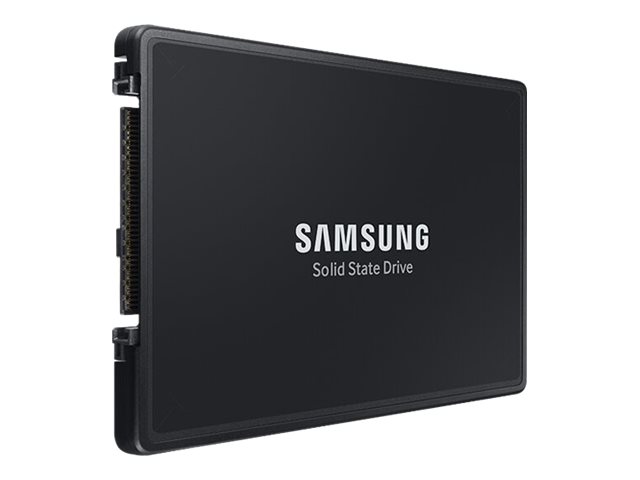

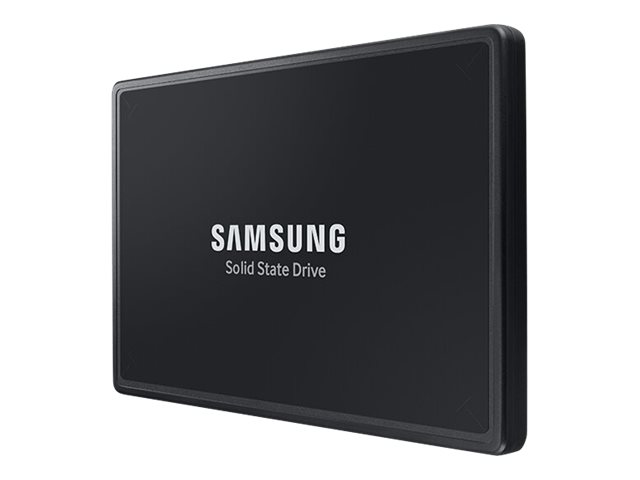

Samsung PM9A3 MZ-QL23T800
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung PM9A3 MZ-QL23T800
- SSD
- encrypted
- 3.84 TB
- internal
- 2.5"
- U.2 PCIe 4.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MZ-QL23T800 |
| SHI Part #: | 44859700 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung PM9A3 MZ-QL23T800 - SSD - encrypted - 3.84 TB - internal - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption |
| Manufacturer | Samsung |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100.2 mm |
| Dimensions & Weight / Height | 6.8 mm |
| Dimensions & Weight / Weight | 90 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | PCI Express 4.0 x4 U.2 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 100.2 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, Auto Garbage Collection Algorithm, Worldwide Name (WWN), Samsung Elpis Controller, Samsung V-NAND TLC Technology, Low Power SDRAM cache, NGUID supported, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 6.8 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 90 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Performance | |
| 4KB Random Read | 1000000 IOPS |
| 4KB Random Write | 180000 IOPS |
| Internal Data Rate | 6900 MBps (read) / 4100 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Software & System Requirements | |
| Software Included | Samsung SSD DC Tool kit |
