Hardware

Panduit PROFINET Type A

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details

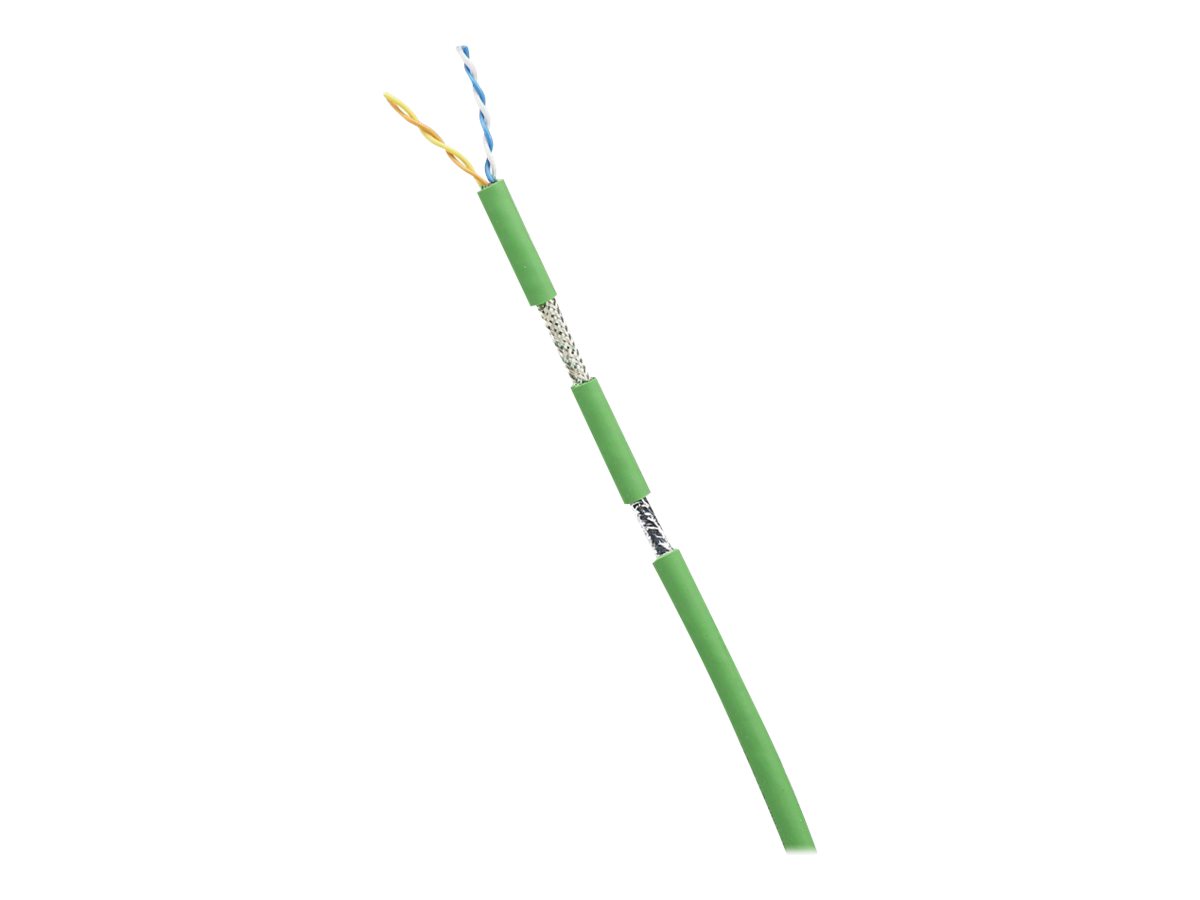

Bulk cable 305 m 7.4 mm SF/UTP CAT 5e

Panduit PROFINET Type A

General Information
Category	Network cable
Description	Panduit PROFINET Type A - Bulk cable - 305 m - 7.4 mm - SF/UTP - CAT 5e - CMX/CMR - solid - green, RAL 6018
Manufacturer	Panduit
UNSPSC	26121609
Main Specifications
Header / Brand	Panduit
Length	305 m
Miscellaneous / Product Color	Green
Network Cable Type	Bulk cable
Packaged Quantity	1
Service & Support / Type	1-year warranty
Environmental Parameters
Max Operating Temperature	75 °C
Min Operating Temperature	-40 °C
General
American Wire Gauge (AWG)	22
Color	Green, RAL 6018
Diameter	7.4 mm
Features	Solid, oil-resistant, sunlight-resistant, reel package, power limited tray cable (PLTC), HDPE conductor insulation, weld spatter resistant
Impedance	100 Ohm
Jacket Material	Thermoplastic elastomer (TPE)
Length	305 m
Network Cable Type	Bulk cable - CAT 5e - CMX/CMR
Pairs per Cable	2 pairs
Shielding Material	Polyester foil with tinned copper braid
Technology	SF/UTP
Weight	22.3 kg
Wires per Cable	4 wires
Manufacturer Warranty
Service & Support	1-year warranty
Miscellaneous
Compliant Standards	Directive 2011/65/EU, ISTA 1A, ISO 11801 Ed. 2, UL AWM Style 2463, EN50575: Euroclass Eca - up to 100 MHz
