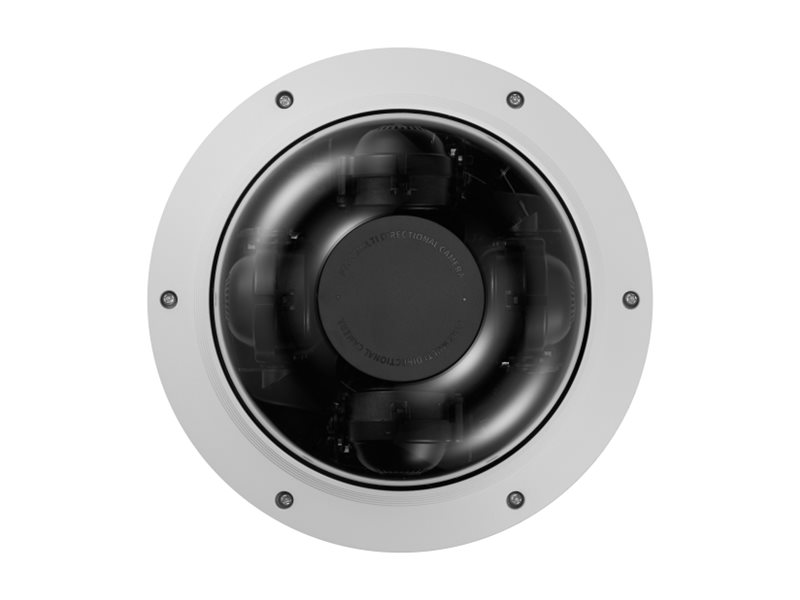

Hanwha Vision WiseNet P PNM-9084QZ1
MSRP$2,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet P PNM-9084QZ1
- Network surveillance camera
- PTZ
- dome
- indoor, outdoor
- color (Day&Night)
- 4x2MP
- 1920 x 1080
- fixed iris
- motorized
- audio
- GbE
- MJPEG, H.264, H.265
- High PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,200.00 |
| Mfr Part #: | PNM-9084QZ1 |
| SHI Part #: | 44672569 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PNM-9084QZ1 - Network surveillance camera - PTZ - dome - indoor, outdoor - color (Day&Night) - 4x2MP - 1920 x 1080 - fixed iris - motorized - audio - GbE - MJPEG, H.264, H.265 - High PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $2,200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.1 cm |
| Dimensions & Weight / Height | 11.65 cm |
| Dimensions & Weight / Weight | 3 kg |
| Dimensions & Weight / Width | 25.1 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), auto ICR, Highlight Compensation (HLC), digital noise reduction, Digital Image Stabilization (DIS), Defog, Motion Detection Technology, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, Defocus Detection, direction detection, fog detection, face detection, motion detection, appearing / disappearing detection, entrance / exit detection, tamper-detection, Virtual Line detection, Audio Detection, notification picture to FTP, notification picture to E-mail, trigger recording, Handover, WiseStream II support, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, Hallway View, user access log, digest authentication |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 5 GB |
| Type | Color - Day&Night - pan / tilt / zoom - indoor, outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 25.1 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.65 cm |
| Weight | 3 kg |
| Width | 25.1 cm |
| Image Sensor | |
| Type | 4x2MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, LLDP, Bonjour, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 64.3 - 126 |
| Focal Length | 3 mm - 6 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 56.3 - 107 |
| Lens Iris | F/2.2-3.1 fixed iris |
| Min Focus Distance | 0.5 m |
| Optical Zoom | 2 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 31.5 - 57 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IK10, IP66, NEMA Type 4X, IEEE 802.3bt, IEEE 802.1x |
| Included Accessories | PoE injector |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 20 Watt |
| Power Requirements | High PoE |
| Tilting | |
| Range (degree) | 0 to 73 |
