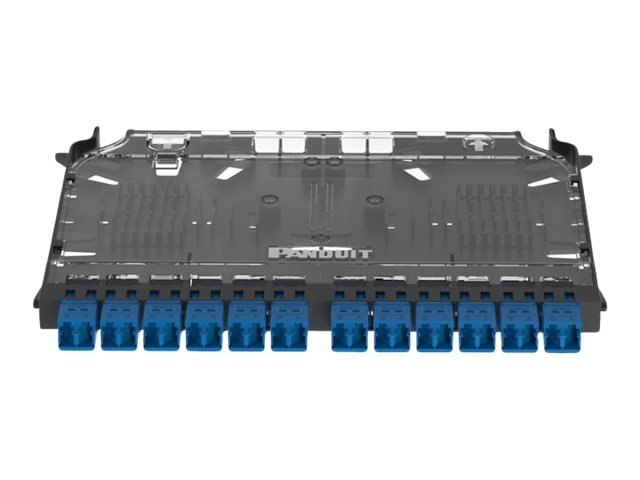

Panduit HD Flex - Fiber optic cassette

MSRP$1,266.36

$836.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
ribbon pigtail, standard IL blue 12 ports

Panduit HD Flex - Fiber optic cassette

General Information
Category	Fiber optic connector
Description	Panduit HD Flex - Fiber optic cassette - ribbon pigtail, standard IL - blue - 12 ports
Manufacturer	Panduit
MSRP	$1,266.36
UNSPSC	43223310
Main Specifications
Cabling & Wiring / Port Qty	12 ports
Dimensions & Weight / Depth	17.23 cm
Dimensions & Weight / Height	1.17 cm
Dimensions & Weight / Weight	170 g
Dimensions & Weight / Width	19.04 cm
Header / Brand	Panduit
Miscellaneous / Product Color	Black Blue
Packaged Quantity	1
Product Type	Fiber optic cassette
Service & Support / Type	1-year warranty
Cabling & Wiring
Compliant Standards	OS2
Connector Provided	24 x LC single-mode female 1 x MPO single-mode male
Core / Cladding Diameter	9 / 125 micron
Features	Up to 24 fibers, blue adapter color
Port Qty	12 ports
Technology	Fiber optic
Environmental Parameters
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
General
Depth	17.23 cm
Enclosure Color	Blue
Height	1.17 cm
Product Type	Fiber optic cassette - ribbon pigtail, standard IL
Weight	170 g
Width	19.04 cm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	RoHS, ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-10, TIA-604-5
Features	Zirconia ceramic sleeves, standard loss, pre-loaded with flat ribbon pigtails and splice sleeve(s), max insertion loss (0.75 dB), min return loss (55 dB)

	Product	Qty	Price

We currently have limited stock of this product.
For availability options and shipping info, contact your sales team.

Overview
