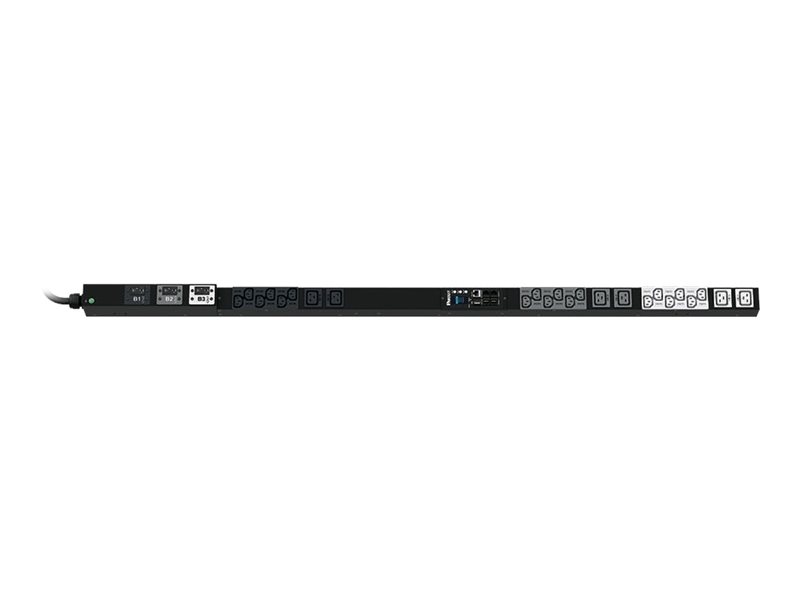

Panduit SmartZone G5 Monitored Input (MI) Series
MSRP$2,307.34
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Panduit SmartZone G5 Monitored Input (MI) Series
- Power distribution unit (rack-mountable)
- AC 200-240 V
- 8600 Watt
- 8600 VA
- 3-phase delta
- Ethernet 10/100/1000
- input: NEMA L15-30P
- output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13)
- 0U
- 3 m cord
- red
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,307.34 |
| Mfr Part #: | P24D27M-RD2A |
| SHI Part #: | 44656457 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Panduit |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Panduit SmartZone G5 Monitored Input (MI) Series - Power distribution unit (rack-mountable) - AC 200-240 V - 8600 Watt - 8600 VA - 3-phase delta - Ethernet 10/100/1000 - input: NEMA L15-30P - output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13) - 0U - 3 m cord - red |
| Manufacturer | Panduit |
| MSRP | $2,307.34 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 5.8 kg |
| General / Subcategory | Power distribution devices |
| Header / Brand | Panduit |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Height | 149 cm |
| Weight | 5.8 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, REACH |
| Features | Vertical orientation, monitored per outlet, half size |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 3 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | Power NEMA L15-30P |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 30 A |
| Power Capacity | 8600 Watt / 8600 VA |
| Power Output Connectors Details |
|
