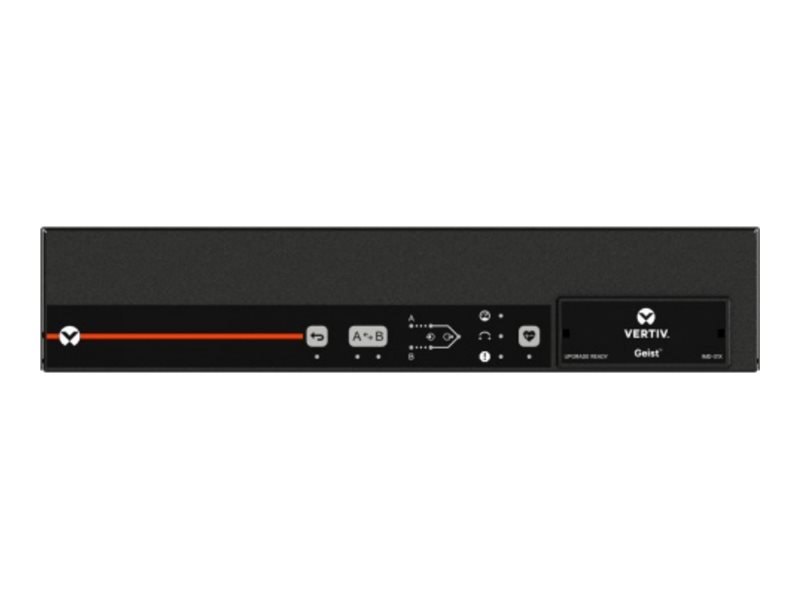

Geist Rack Transfer Switch AN01X2R0-20S203-2TL5TL5A011-D
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Geist Rack Transfer Switch AN01X2R0-20S203-2TL5TL5A011-D
- Power distribution unit (rack-mountable)
- AC 100-120 V
- 1.9 kW
- input: NEMA L5-20P
- output connectors: 20 (NEMA 5-20R)
- 19"
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Mfr Part #: | VA1N2201 |
| SHI Part #: | 44644094 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Rack Transfer Switch AN01X2R0-20S203-2TL5TL5A011-D - Power distribution unit (rack-mountable) - AC 100-120 V - 1.9 kW - input: NEMA L5-20P - output connectors: 20 (NEMA 5-20R) - 19" - 3 m cord - black powder coat |
| Manufacturer | Vertiv |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 45.7 cm |
| Dimensions & Weight / Height | 8.7 cm |
| Dimensions & Weight / Width | 43.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Voltage Required | AC 100-120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 45.7 cm |
| Height | 8.7 cm |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 5.44 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, RoHS, FCC Part 15 A, UL/CUL 62368-1 |
| Features | 2 post rack mountable, LCD display |
| Rack Mounting Kit | Included |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 100-120 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1.9 kW |
| Power Output Connectors Details | 20 x power NEMA 5-20R |
