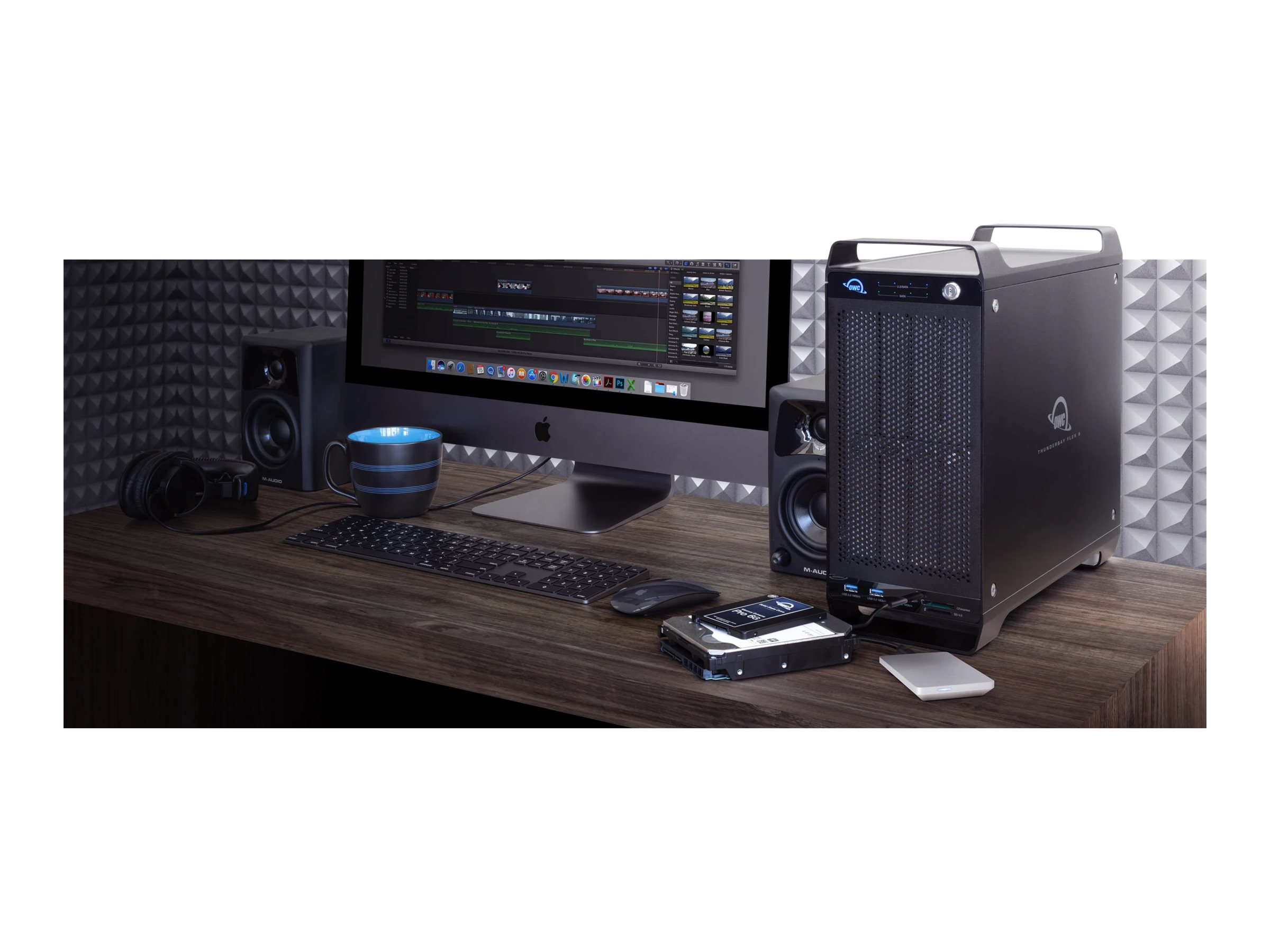

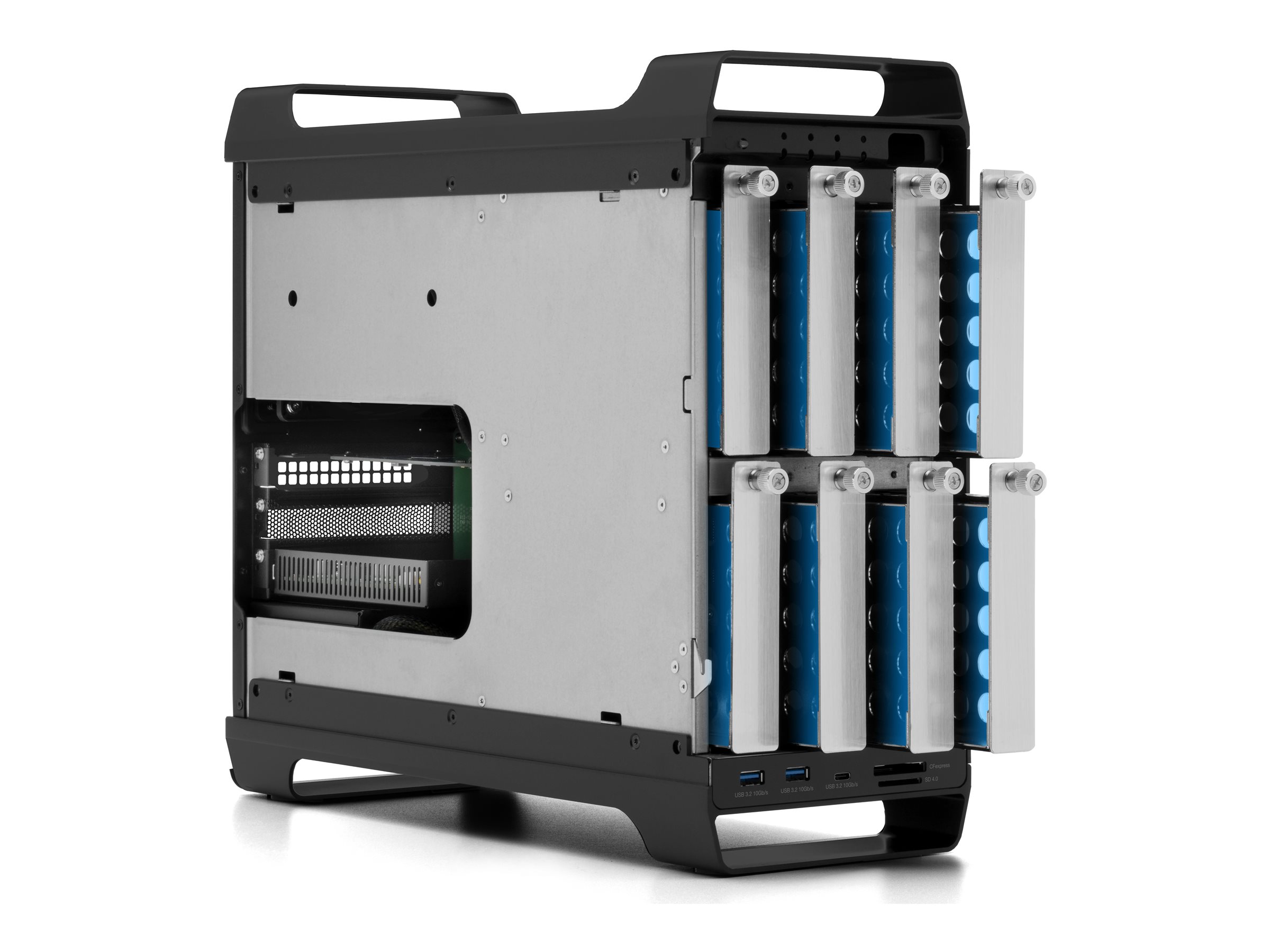

OWC ThunderBay Flex 8
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

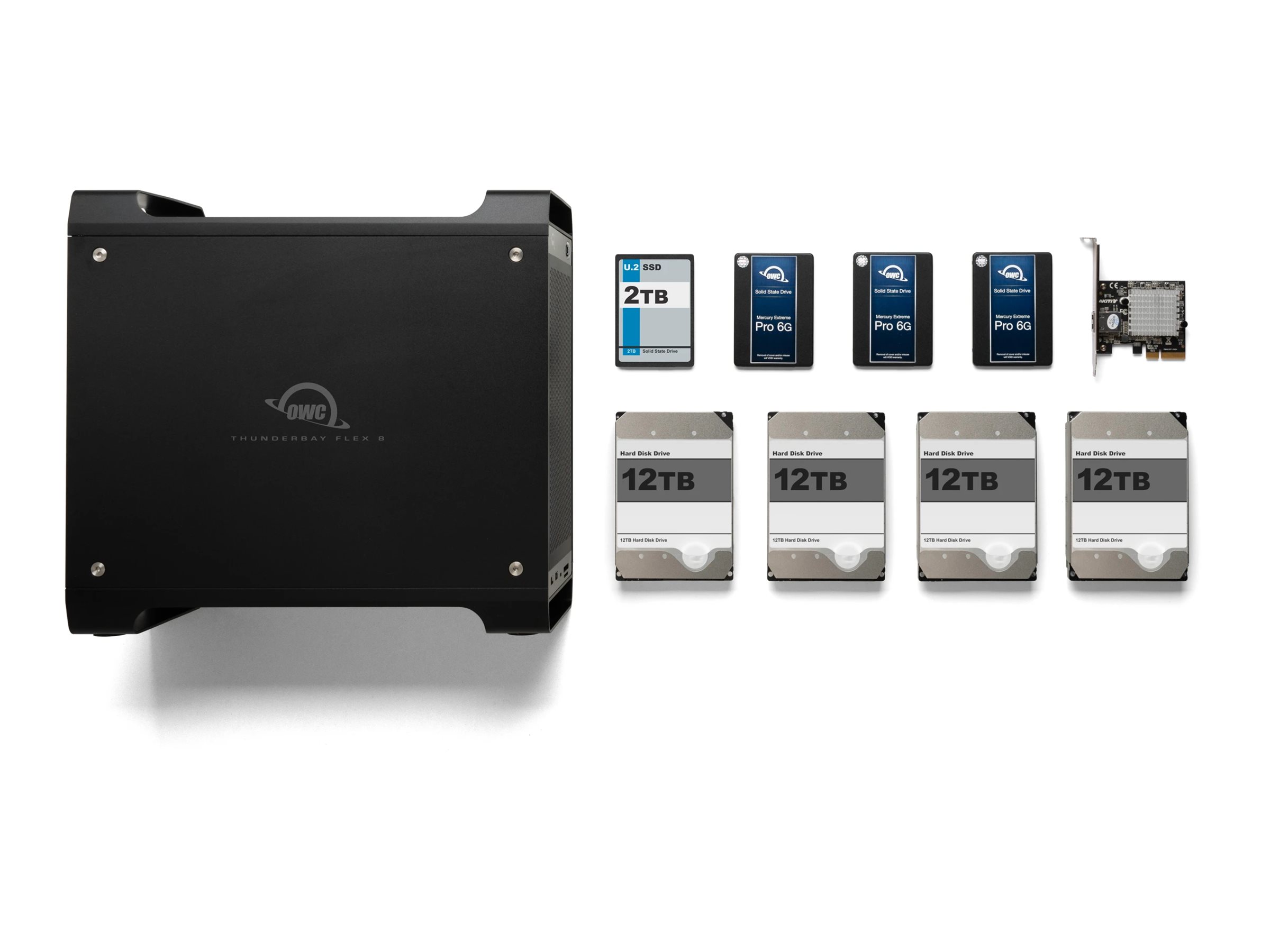

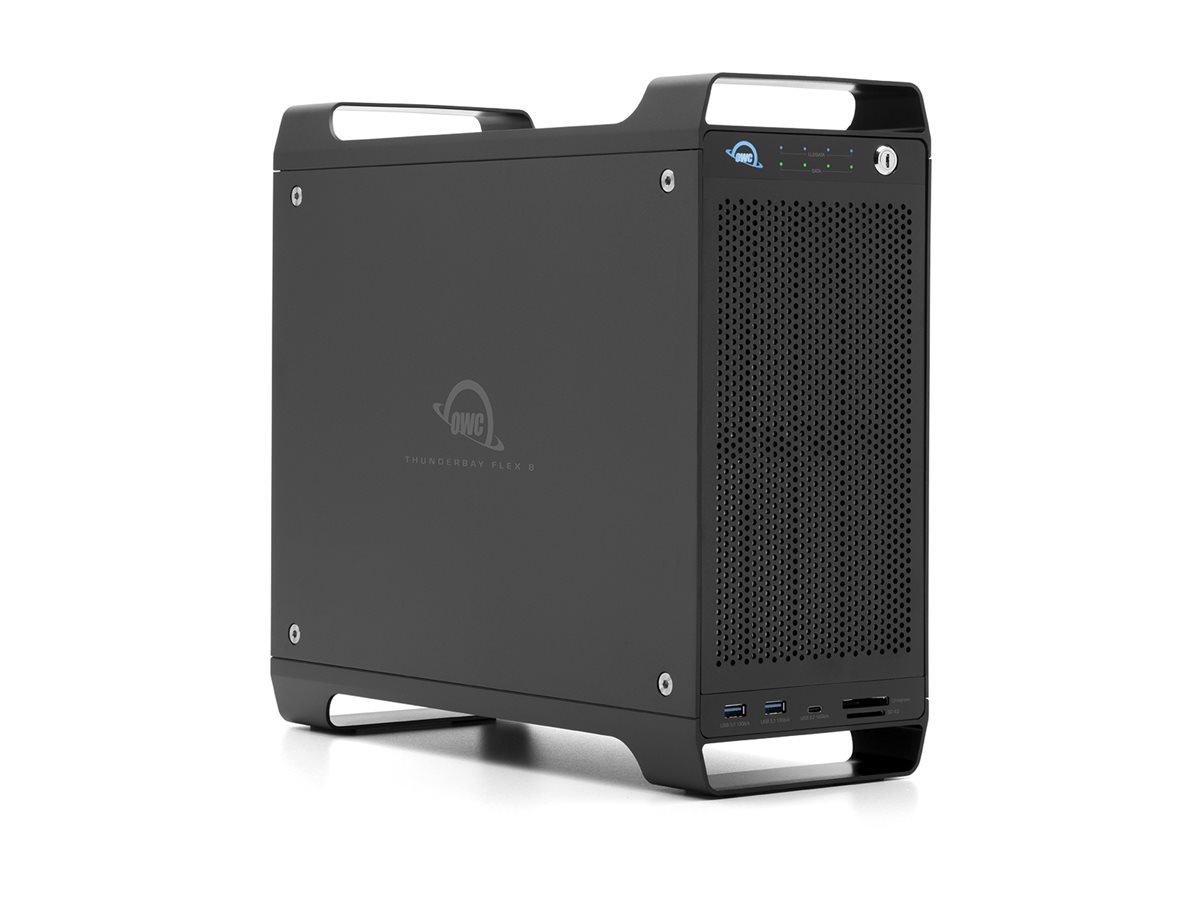

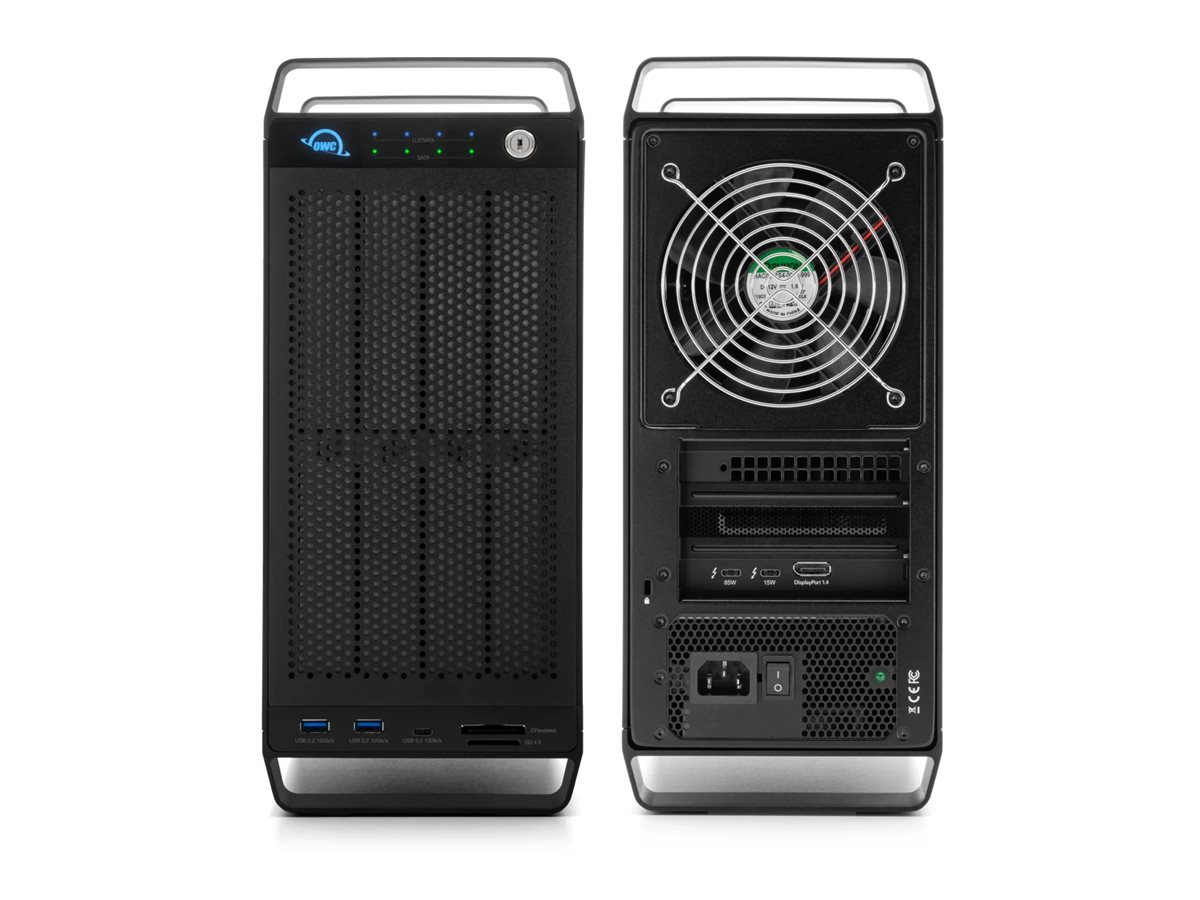

OWC ThunderBay Flex 8
- Solid state / hard drive array
- 158 TB
- 11 bays (SATA-600 / PCI Express (NVMe) / U.2)
- HDD 18 TB x 7 + SSD 8 TB x 4
- Thunderbolt 3 (external)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | OWCTB3F81S158X |
| SHI Part #: | 44553858 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Other World Computing |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | OWC ThunderBay Flex 8 - Solid state / hard drive array - 158 TB - 11 bays (SATA-600 / PCI Express (NVMe) / U.2) - HDD 18 TB x 7 + SSD 8 TB x 4 - Thunderbolt 3 (external) |
| Manufacturer | Other World Computing |
| MSRP | $9,999.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 39 cm |
| Dimensions & Weight / Height | 34.9 cm |
| Dimensions & Weight / Weight | 9.2 kg |
| Dimensions & Weight / Width | 14.9 cm |
| Hard Drive / Capacity | 18 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | OWC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / HDD Array External Interface | Thunderbolt 3 |
| Storage / HDD Array External Interface Class | Thunderbolt |
| Storage / Total Array Capacity | 158 TB |
| Storage / Type | Solid state / hard drive array |
| Chassis | |

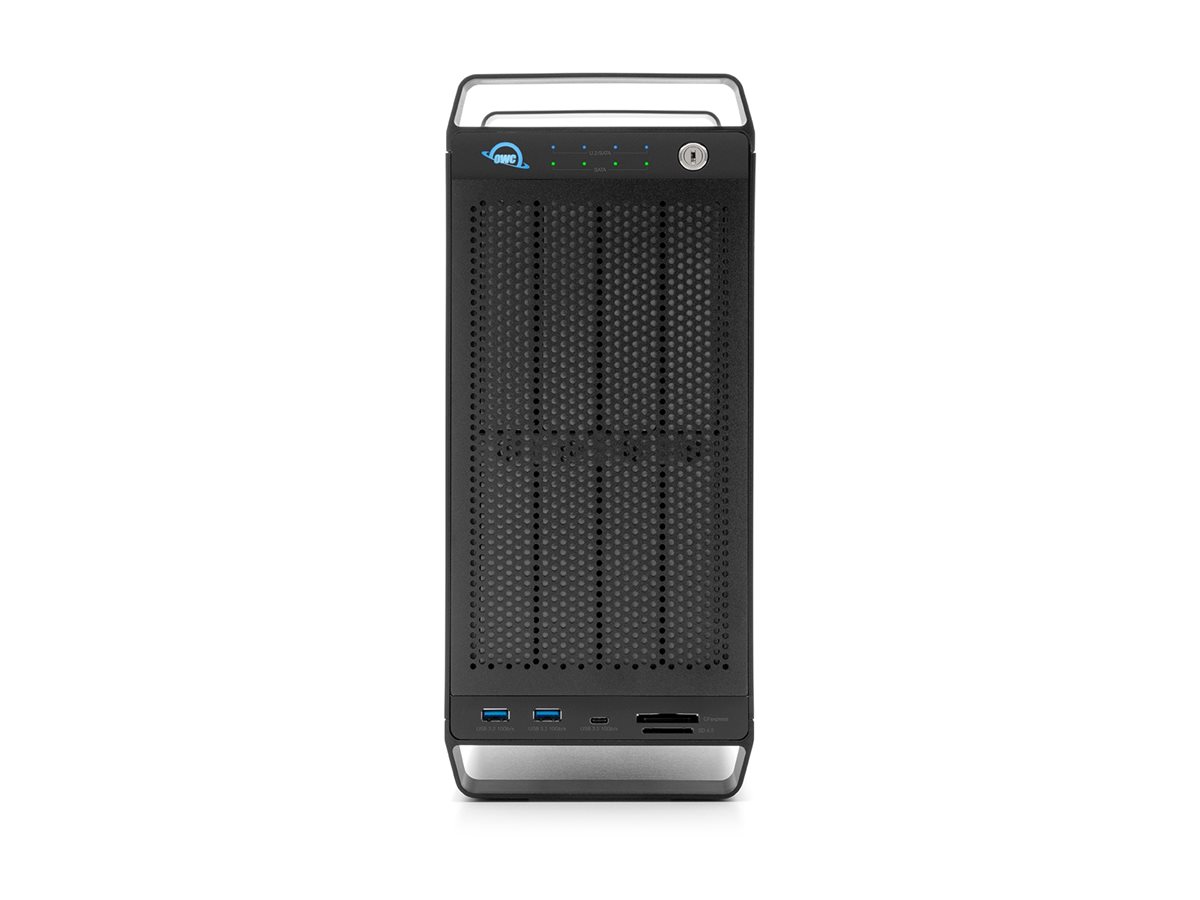

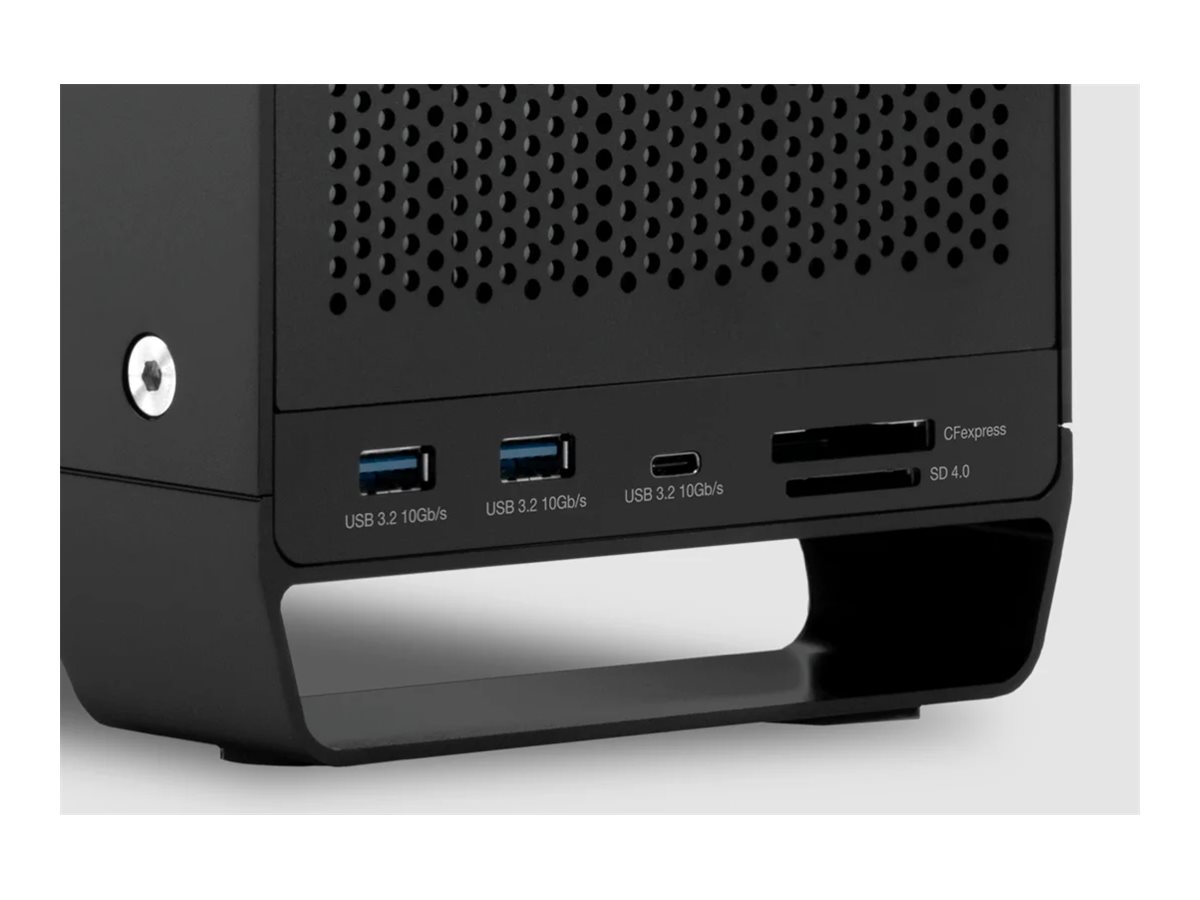

| Built-in Devices | LED panel, memory card reader |
| Installed Devices / Modules Qty | 11 |
| Supported Devices / Modules Qty | 11 |
| Supported Drives | SATA-600 / PCI Express (NVMe) / U.2 |
| Dimensions & Weight | |
| Depth | 39 cm |
| Height | 34.9 cm |
| Weight | 9.2 kg |
| Width | 14.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Expansion Bays |
|

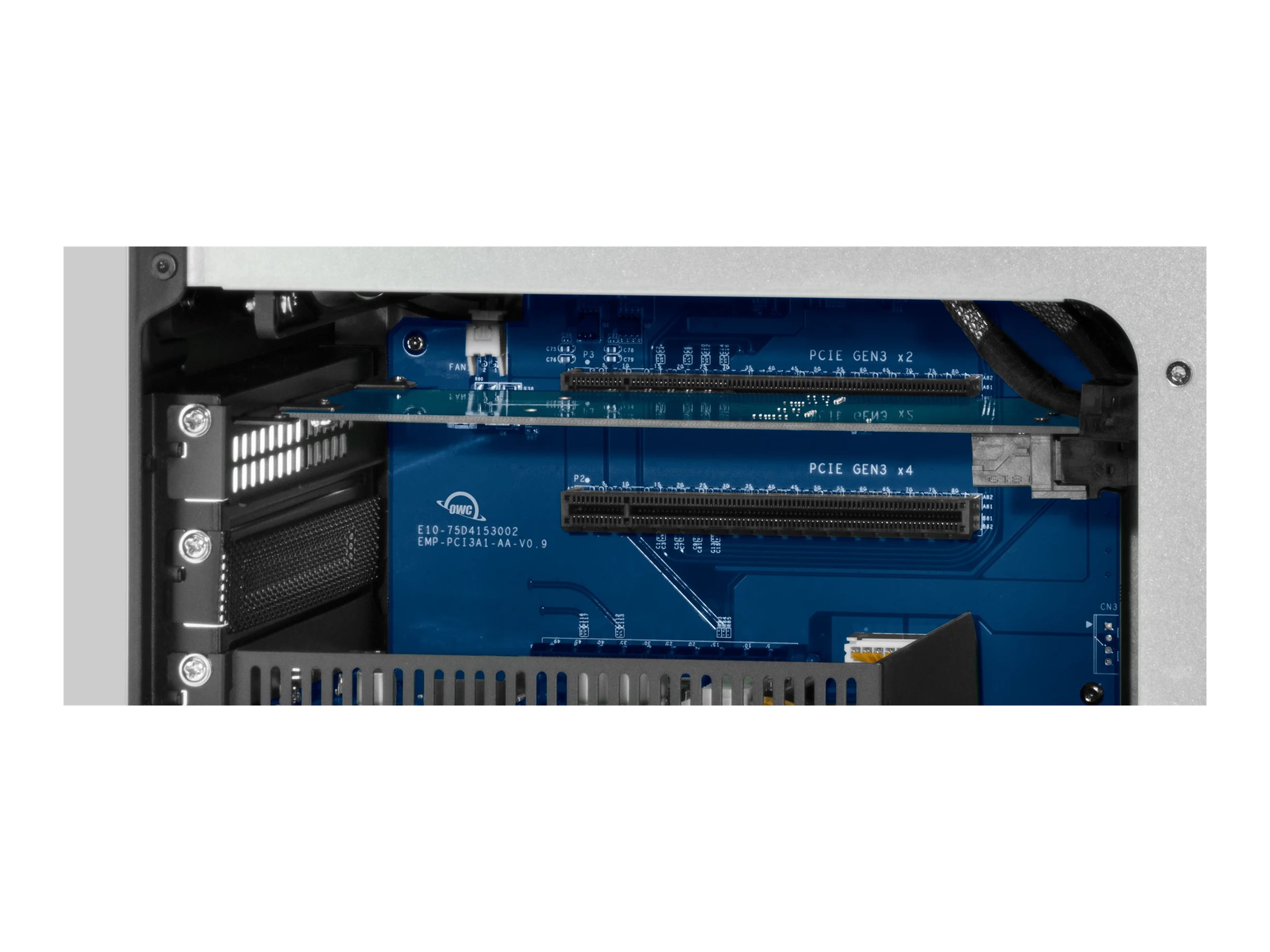

| Expansion Slots |
|
| Interfaces |
|
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Color | Black |
| Hard Drive | |
| Capacity | 7 x 18 TB |
| Features | RAID 5 - factory configured |
| Interface Type | SATA 6Gb/s |
| Manufacturer | Toshiba |
| Spindle Speed | 7200 rpm |
| Type | HDD - hot-swap |
| Hard Drive (2nd) | |

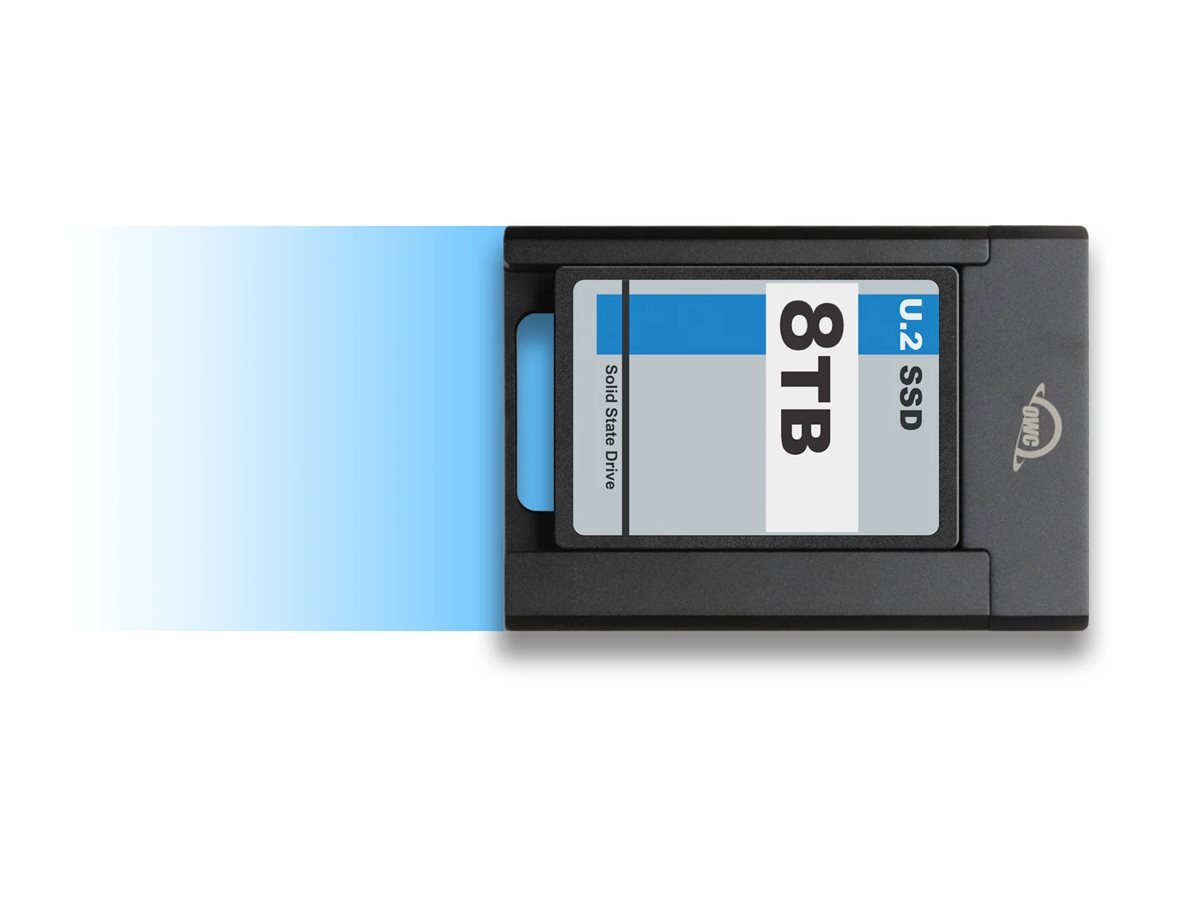

| Capacity | 4 x 8 TB |
| Interface Type | PCI Express (NVMe) |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |

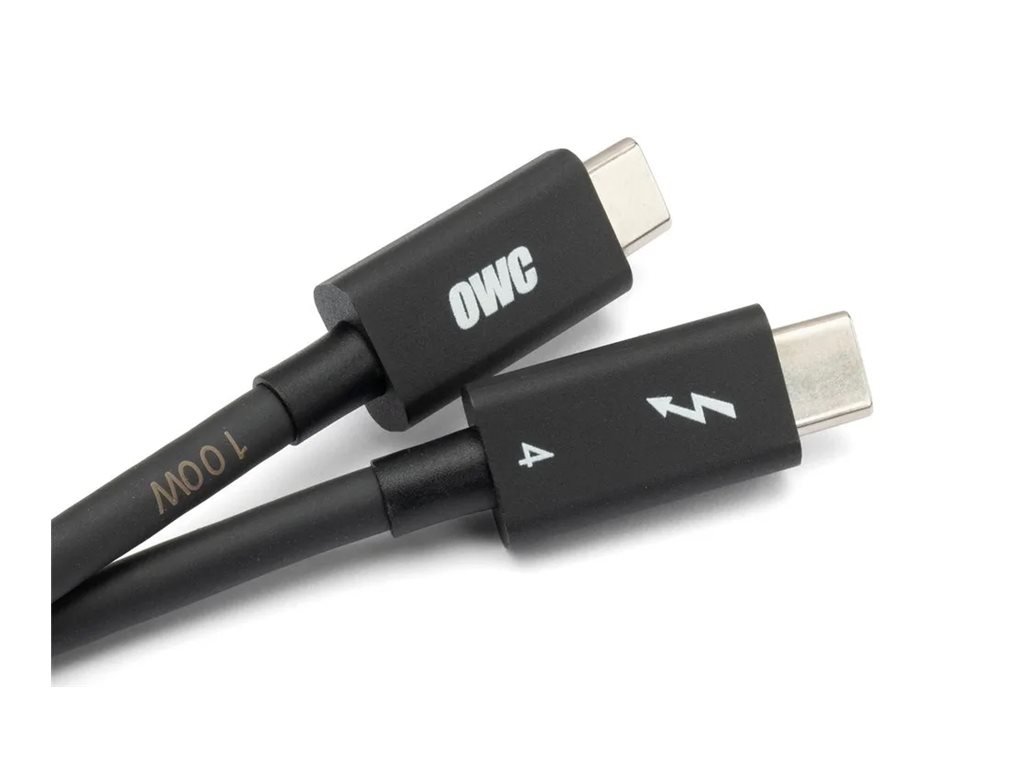

| Cables Included | 1 x Thunderbolt 3 cable |

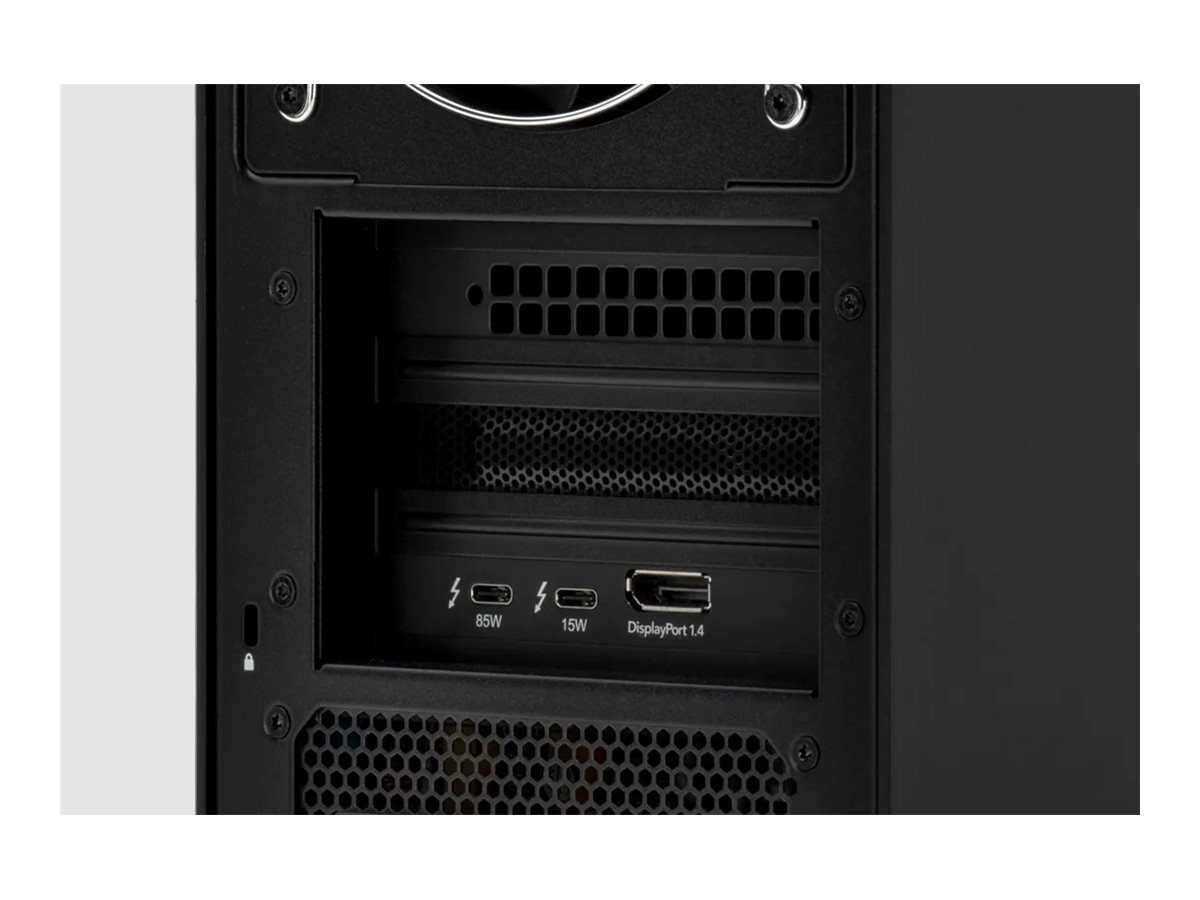

| Compliant Standards | UL, VCCI, BSMI, FCC, RCM, DisplayPort 1.4 |

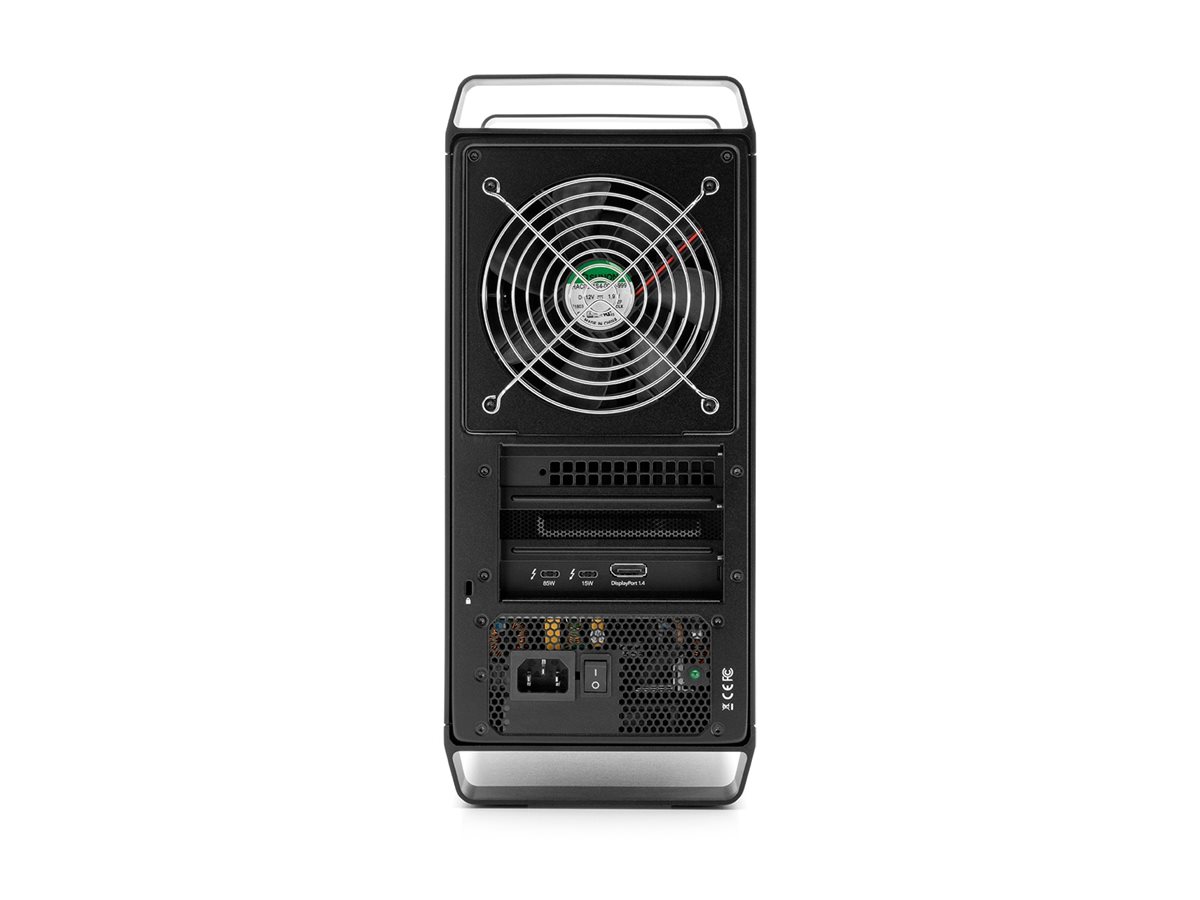

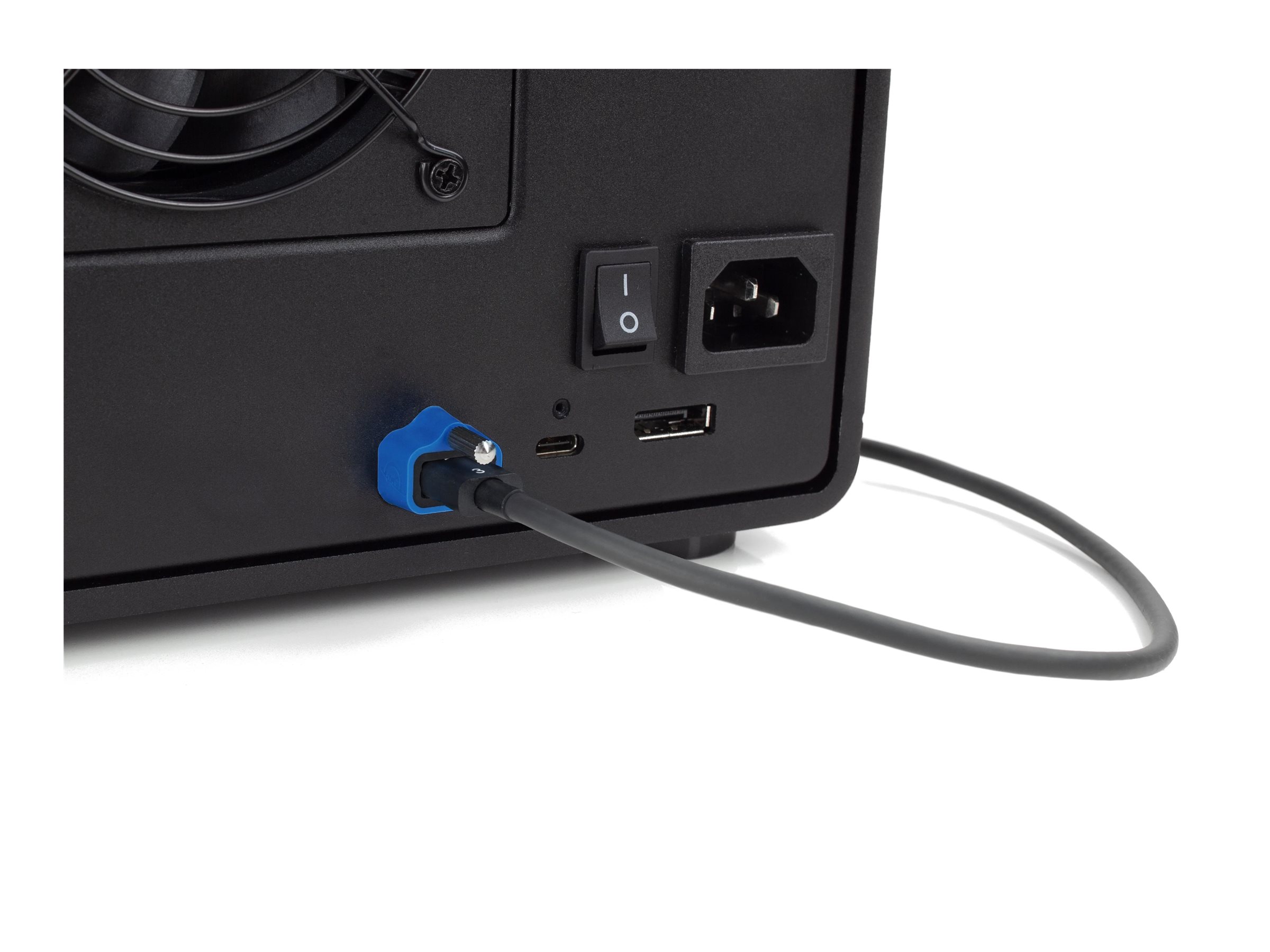

| Features | Security lock slot (cable lock sold separately), key lock, on/off switch, aluminum enclosure, 120mm cooling fan |
| Included Accessories | 2 x keys, hex tool |
| MTBF | 1,400,000 hours |
| Software Included | SoftRAID, Acronis Cyber Protect Home Office (1 year subscription) |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 504 Watt |
| Voltage Required | AC 100-240 V 47/63 Hz |
| Storage | |
| HDD Array External Interface | Thunderbolt 3 |
| Total Array Capacity | 158 TB |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / PCIe (NVMe) / U.2 |
| RAID Level | RAID 0, RAID 1, RAID 4, RAID 5, JBOD, RAID 0+1 |
| Type | RAID |
| System Requirements | |
| OS Required | Apple macOS Catalina 10.15.1 or later |
