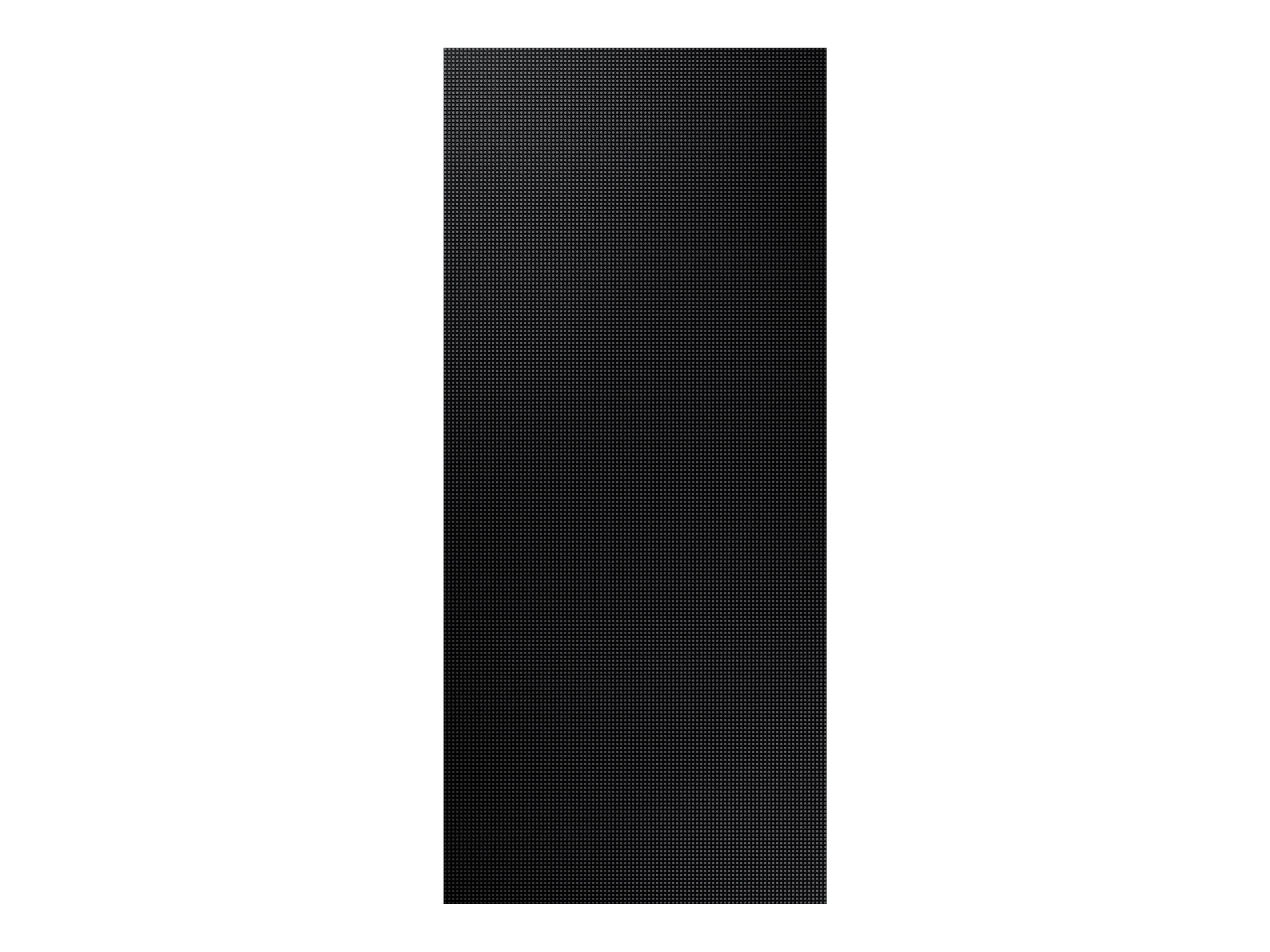

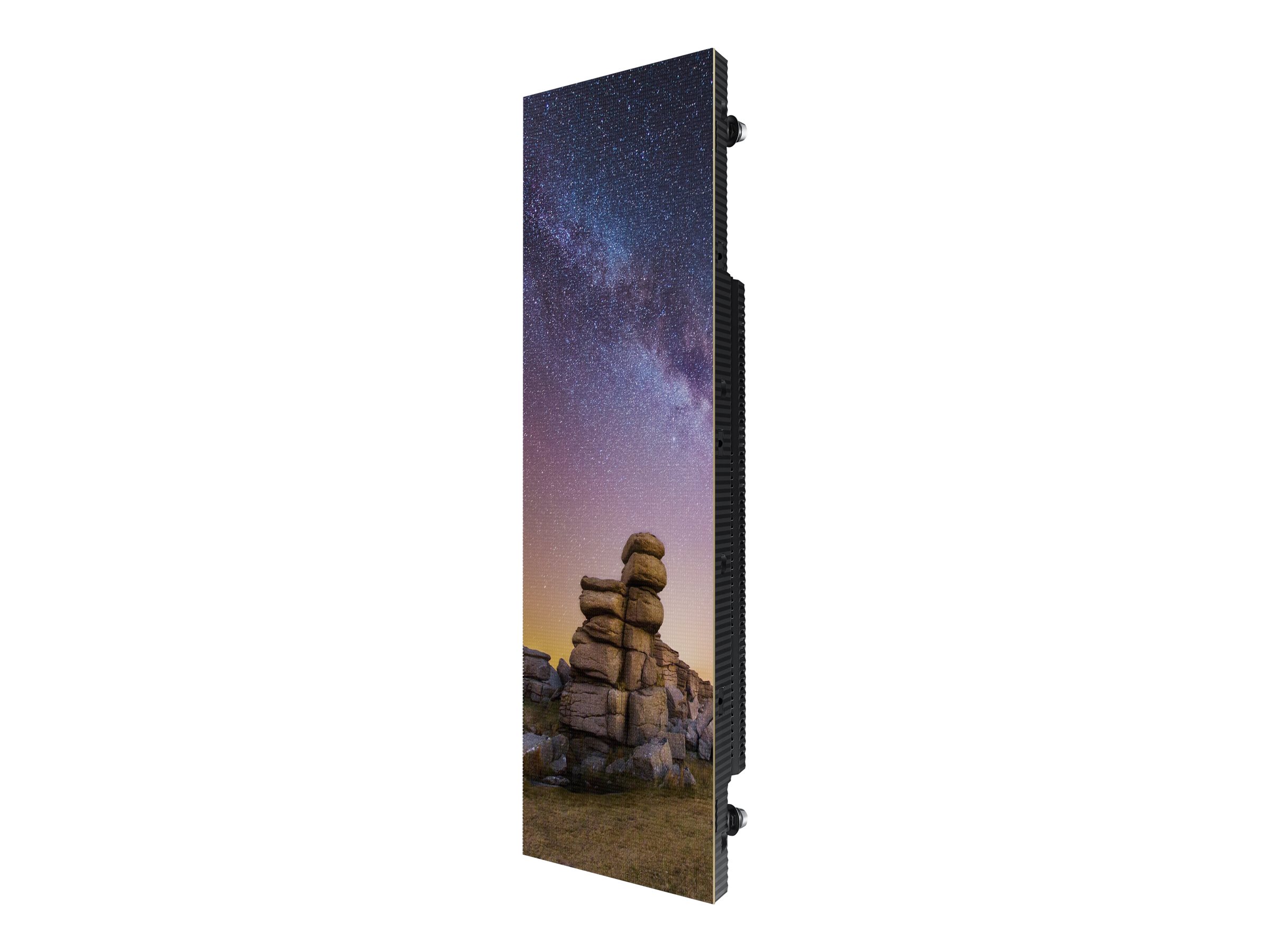

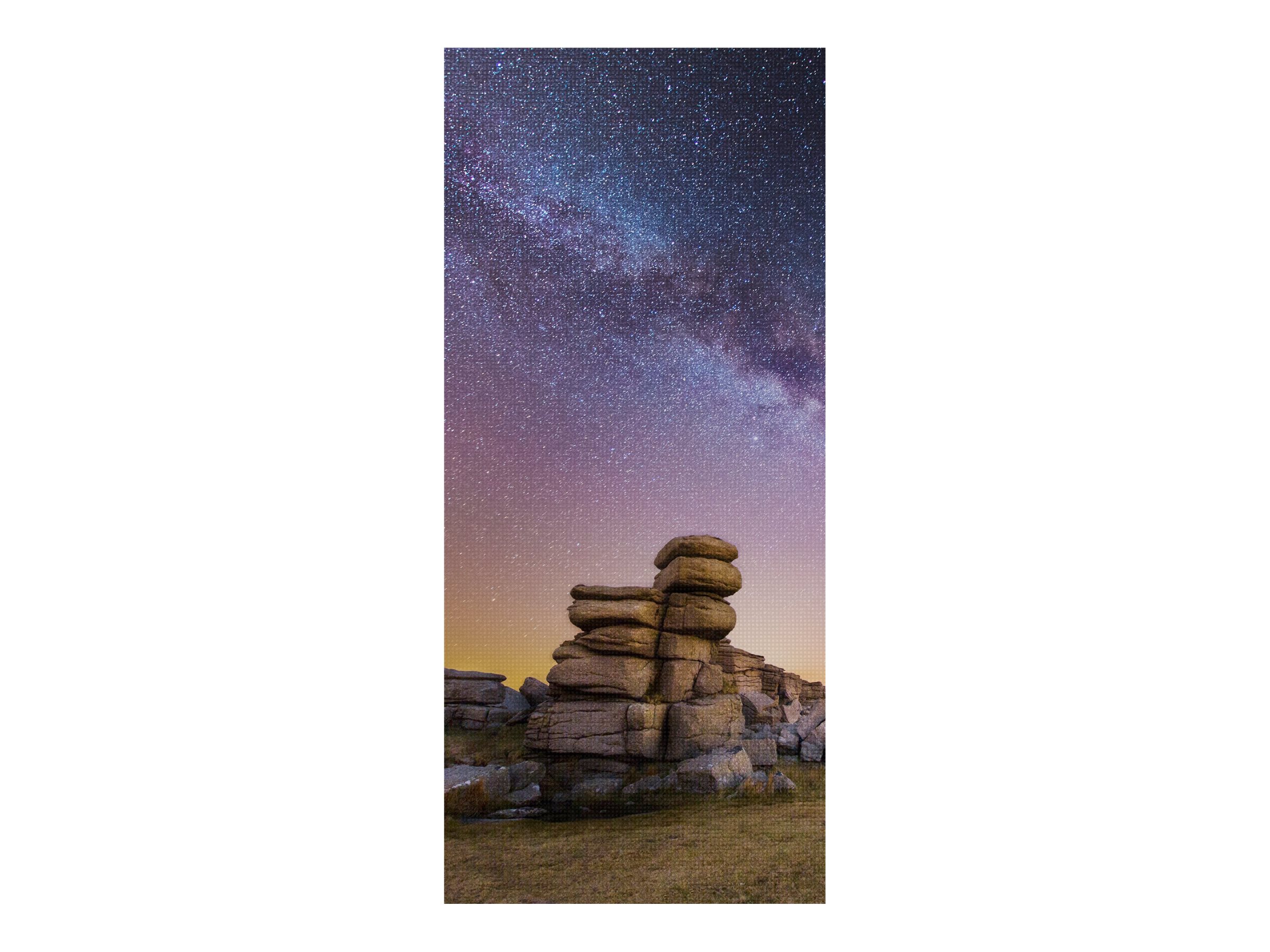

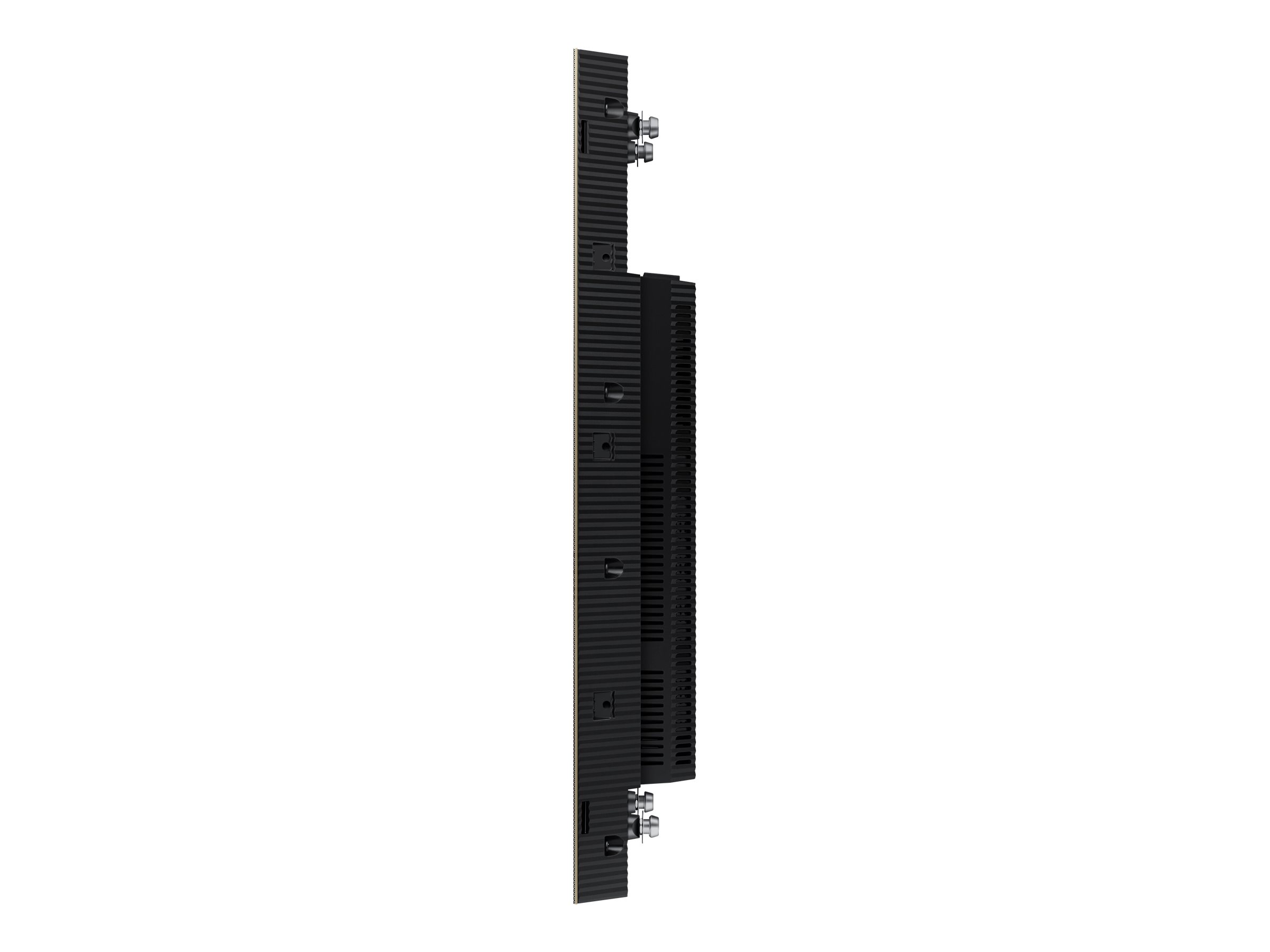

Samsung IE020A-F - IEA-F Series LED display unit
MSRP$1,070.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Samsung IE020A-F - IEA-F Series LED display unit
- digital signage 120 x 270 per unit
- 3-in-1 1212
- HDR
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,070.00 |
| Mfr Part #: | LH020IEACFS/GO |
| SHI Part #: | 44532978 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung IE020A-F - IEA-F Series LED display unit - digital signage 120 x 270 per unit - 3-in-1 1212 - HDR |
| Manufacturer | Samsung |
| MSRP | $1,070.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.1 cm |
| Dimensions & Weight / Height | 54 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 24 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1000 cd/m² |
| Television / Image Contrast Ratio | 7500:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 150° |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 14.8 cm |
| Height (Shipping) | 35.4 cm |
| Weight (Shipping) | 4.9 kg |
| Width (Shipping) | 65.3 cm |
| Display | |
| Additional Features | MagicInfo, Surface Mount Device (SMD), 16-bit support |
| Brightness | 1000 cd/m² |
| Color Temperature | 6500K |
| Commercial Features | Curved installation supported, MagicInfo compatible, convex installation supported, 3000R max curve |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate, 60 Hz Video Rate |
| Image Contrast Ratio | 7500:1 |
| Viewing Angle | 150° |
| Viewing Angle (Vertical) | 150° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 8.1 cm |
| Design | Flexible design |
| Dimensions | Display unit |
| HDR Capable | Yes |
| HDR Format | HDR10+ |
| HDR Technology | LED HDR, Multi-link HDR |
| Height | 54 cm |
| Operating System | Tizen OS |
| Picture Enhancements | Dynamic Peaking Technology, Eco Image Enhancer, Inverse Tone Mapping, Color Mapping |
| Product Type | LED display unit |
| Sensors | Temperature sensor |
| Series | IEA-F Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 3.2 kg |
| Width | 24 cm |
| Miscellaneous | |
| Compliant Standards | EMC Class A, IP20, Safety 60950-1, Safety 62368-1 |
| Included Accessories | Frame kit |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 60 W |
| Video Wall Display Unit Power Consumption (Typical) | 40 W |
| Video Wall Power Consumption (Max) | 463 W/m² |
| Video Wall Power Consumption (Typical) | 309 W/m² |
| Video Wall Display Unit | |
| LED Lifetime | 100000 hours |
| LED Type | 3-in-1 1212 |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 1x3 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 2 mm |
| Resolution | 120 x 270 |
