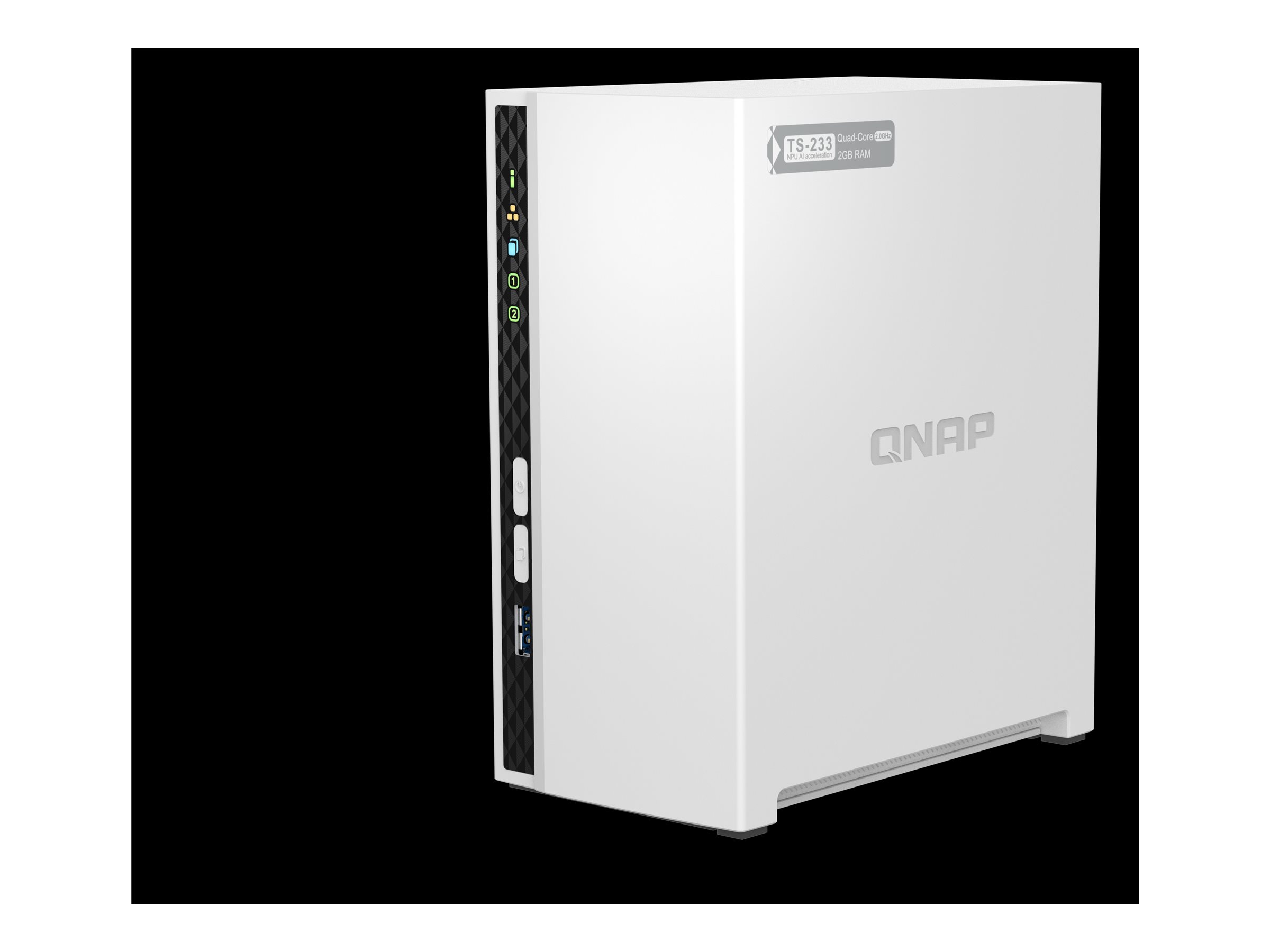

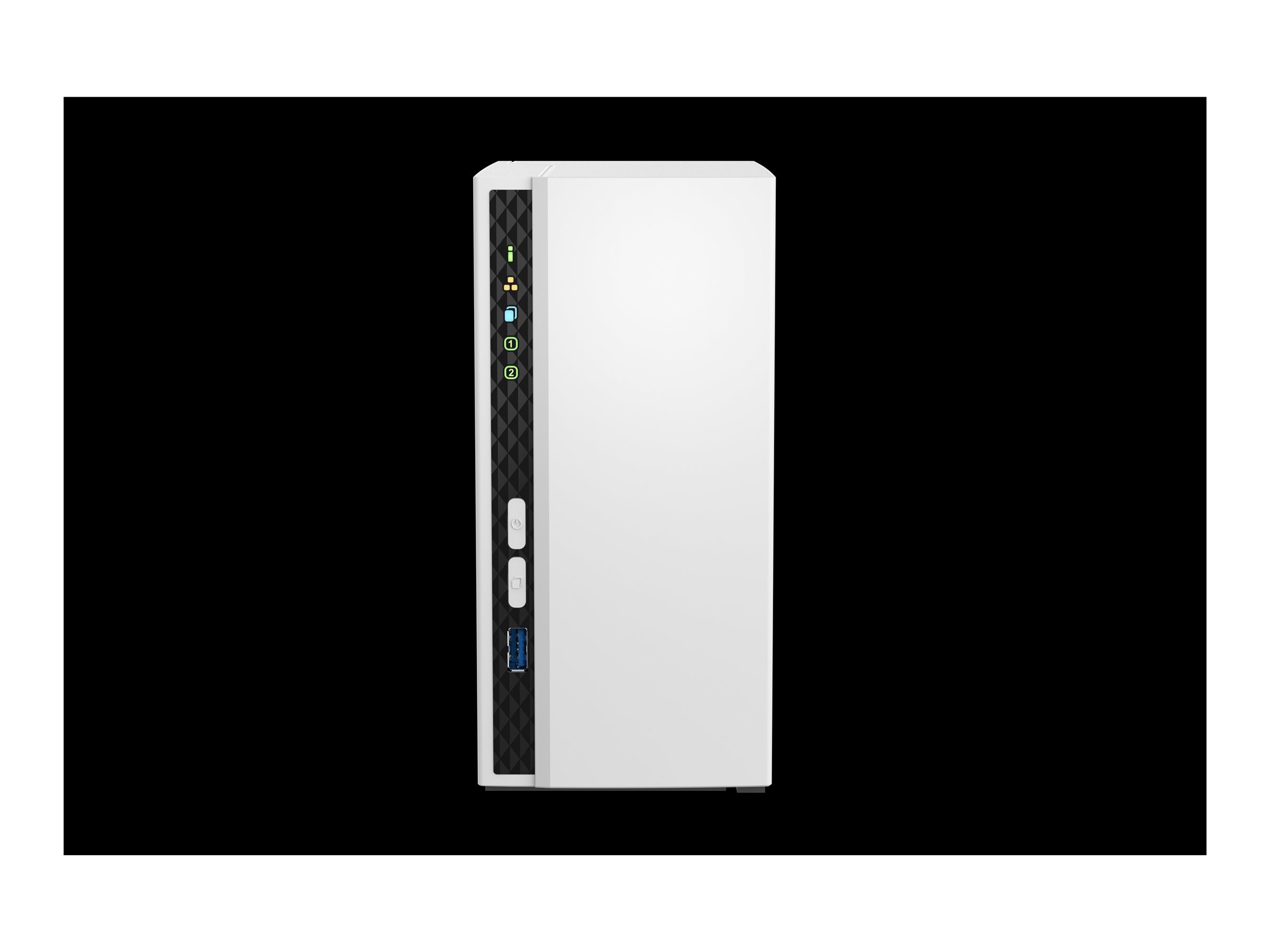

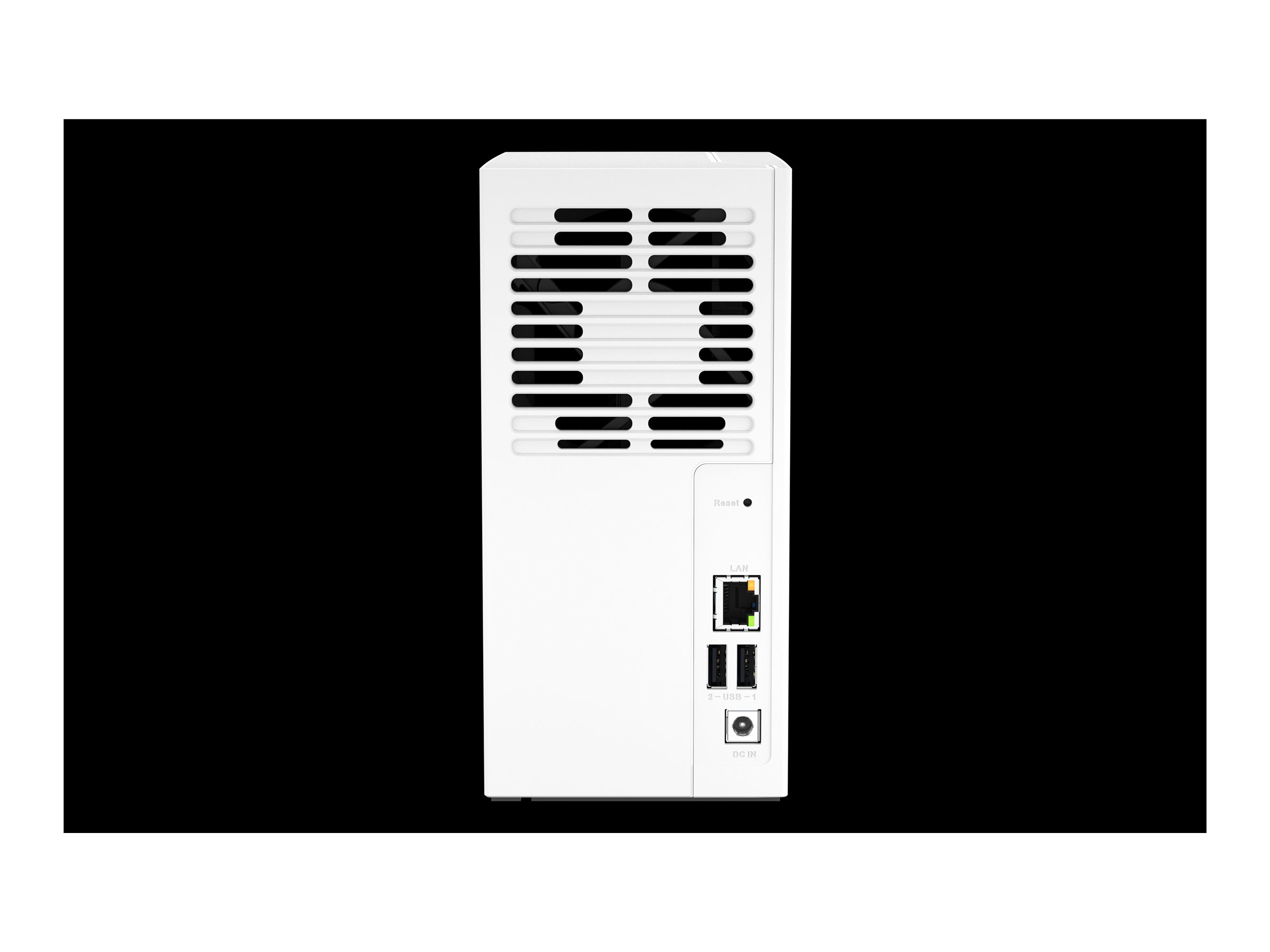

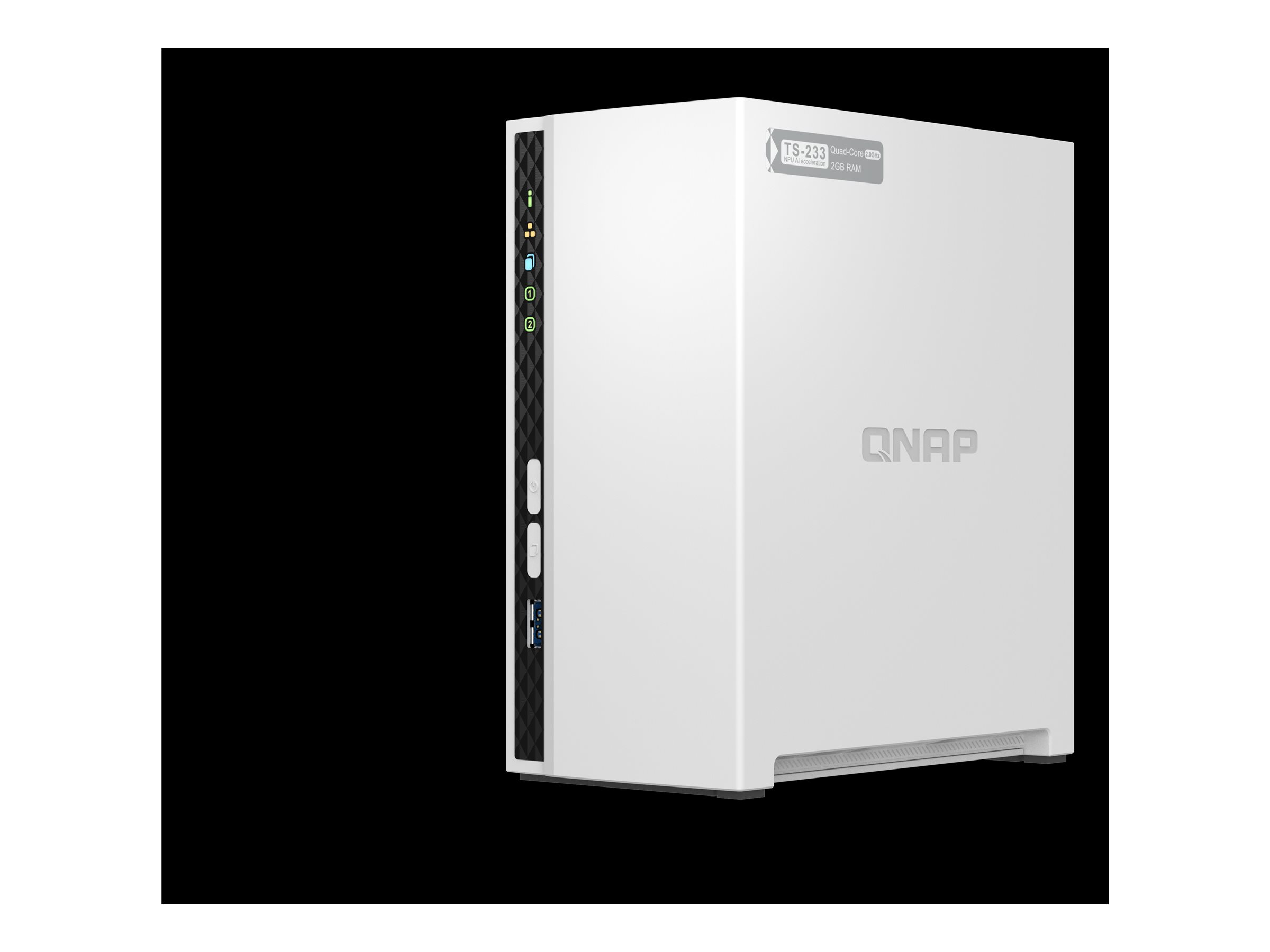

QNAP TS-233 - Personal cloud storage device

QNAP TS-233 - Personal cloud storage device

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 2 bays
  • SATA 6Gb/s
  • RAID 0, 1, JBOD
  • RAM 2 GB
  • Gigabit Ethernet
QNAP TS-233 - Personal cloud storage device
  • 2 bays
  • SATA 6Gb/s
  • RAID 0, 1, JBOD
  • RAM 2 GB
  • Gigabit Ethernet
  • iSCSI support
  Additional Details
Price: $240.00
Mfr Part #: TS-233-US
SHI Part #: 44448697
Category: Electronic data storage equipment
UNSPSC: 43201800
Manufacturer: QNAP
Product Type: Hardware
General Information
CategoryElectronic data storage equipment
DescriptionQNAP TS-233 - Personal cloud storage device - 2 bays - SATA 6Gb/s - RAID 0, 1, JBOD - RAM 2 GB - Gigabit Ethernet - iSCSI support
Main Specifications
Dimensions & Weight / Depth15.626 cm
Dimensions & Weight / Height18.864 cm
Dimensions & Weight / Weight1.11 kg
Dimensions & Weight / Width9.018 cm
Header / BrandQNAP
Miscellaneous / Product ColorWhite
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Processor / TypeA55
Service & Support / Type2-year warranty
System Requirements / OS Required
  • Apple MacOS X 10.10 or later
  • CentOS 7.0
  • IBM AIX 7
  • Microsoft Windows 7 / 8 / 10 / 11
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Oracle Solaris 10 or later
  • Red Hat Enterprise Linux 6.6
  • SuSE Linux 12 or later
  • Ubuntu 14.04
Dimensions & Weight (Shipping)
Shipping Weight1.95 kg
Environmental Parameters
Humidity Range Operating5 - 95% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Bays2 (total) / 2 (free) x hot-swap - 2.5" / 3.5"
  • 1 x Ethernet 1000Base-T - RJ-45
  • 2 x USB 2.0 - Type A
  • 1 x USB 3.2 Gen 1 - Type A
Built-in DevicesLED panel
Depth15.626 cm
Device TypePersonal cloud storage device
Height18.864 cm
Host ConnectivityGigabit Ethernet
Installed Devices / Modules Qty0 (installed) / 2 (max)
Total Storage Capacity0 GB
Weight1.11 kg ()
Width9.018 cm
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Cables Included1 x network cable
Compliant StandardsFIPS 140-2, ISO 7779
FeaturesWake on LAN, Online RAID Level Migration (RLM), hardware encryption, scheduled power on/off, S.M.A.R.T. support, Secure Erase, dual boot, 80mm cooling fan, alarm buzzer, array roaming
Included Accessories6 x flat head screws (for 2.5" HDD), 8 x flat head screws (for 3.5" HDD)
Data Link Protocol10Mb LAN, 100Mb LAN, GigE
Encryption AlgorithmSSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
FeaturesFirewall protection, hardware encryption, VPN support, LDAP support, VLAN support, wake on LAN (WOL), web server, backup server, download client, file sharing, anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, FTP server, reset button, online RAID capacity expansion, online RAID level migration, dual firmware images, anti-virus protection, system log, Photo album server, event notification, file station, port trunking, black list, USB One Touch Copy, EXT4 file system, SSD trim, Windows ODX, white list, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), snapshot (folder and LUN), SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN
Network / Transport ProtocolPPTP, L2TP, IPSec, iSCSI, FTP, DHCP, SMB, DDNS, NFS, SFTP, HTTP, HTTPs, IPv4, IPv6
Network Services CompatibilityFile Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
PerformanceConcurrent connections (CIFS): 200
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, DHCP, RADIUS
Power Consumption Operational10.81 Watt
Power Consumption Stand by3.43 Watt
Power DeviceExternal power adapter
Power Provided65 Watt
Voltage RequiredAC 100-240 V
Processor / Memory
Flash Memory Installed4 GB
Max Supported Qty1
Number of CoresQuad-Core
Processors Installed1 x A55 2 GHz
RAM2 GB (installed) / 2 GB (supported)
Security DVR
Compression FormatMPEG-4, H.264
IP Cameras Supported8
Software / System Requirements
OS RequiredMicrosoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11
Software IncludedMcAfee AntiVirus
Storage Operating SystemQNAP QTS 5.0.0
Storage Controller
Interface TypeSATA 6Gb/s
