Intel Next Unit of Computing 12 Extreme Kit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

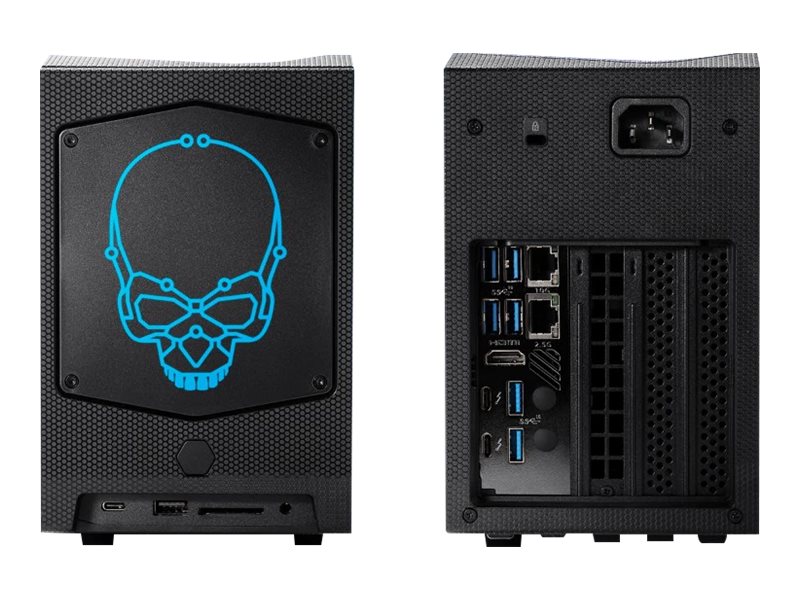

Intel Next Unit of Computing 12 Extreme Kit
- NUC12DCMi9
- Barebone
- mini PC Intel Z690
- 1 x Core i9 12900 / up to 5.1 GHz
- RAM 0 GB
- UHD Graphics 770
- 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2
| Additional Details | |
|---|---|
| Mfr Part #: | RNUC12DCMI90001 |
| SHI Part #: | 44387048 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Intel Next Unit of Computing 12 Extreme Kit - NUC12DCMi9 - Barebone - mini PC Intel Z690 - 1 x Core i9 12900 / up to 5.1 GHz - RAM 0 GB - UHD Graphics 770 - 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2 |
| Manufacturer | Intel |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 35.7 cm |
| Dimensions & Weight / Height | 18.9 cm |
| Dimensions & Weight / Width | 12 cm |
| Display / Type | None. |
| Header / Brand | Intel |
| Header / Country Kits | United States |
| Mainboard / Chipset Type | Intel Z690 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Generation | 12 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | I9-12900 |
| Processor / Type | Core i9 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 30 MB |
| Installed Size | 30 MB |
| Card Reader | |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 35.7 cm |
| Height | 18.9 cm |
| Width | 12 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Localization | Region: United States |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Max Monitors Supported | 3 |
| Video Interfaces | USB-C, HDMI |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2 |
| Ethernet Controller | Marvell AQC113, Intel i225-LM |
| Ethernet Ports | 1 x 10 Gigabit Ethernet, 1 x 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Gold |
| Device Type | Power supply |
| Installed Qty | 1 |
| Power Provided | 650 Watt |
| Processor / Chipset | |
| Chipset Type | Intel Z690 |
| CPU | Intel Core i9 (12th Gen) 12900 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| Processor Main Features | Intel Virtualization Technology, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT), Intel AES New Instructions |
| RAM | |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 3200 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA/NVMe |
