Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

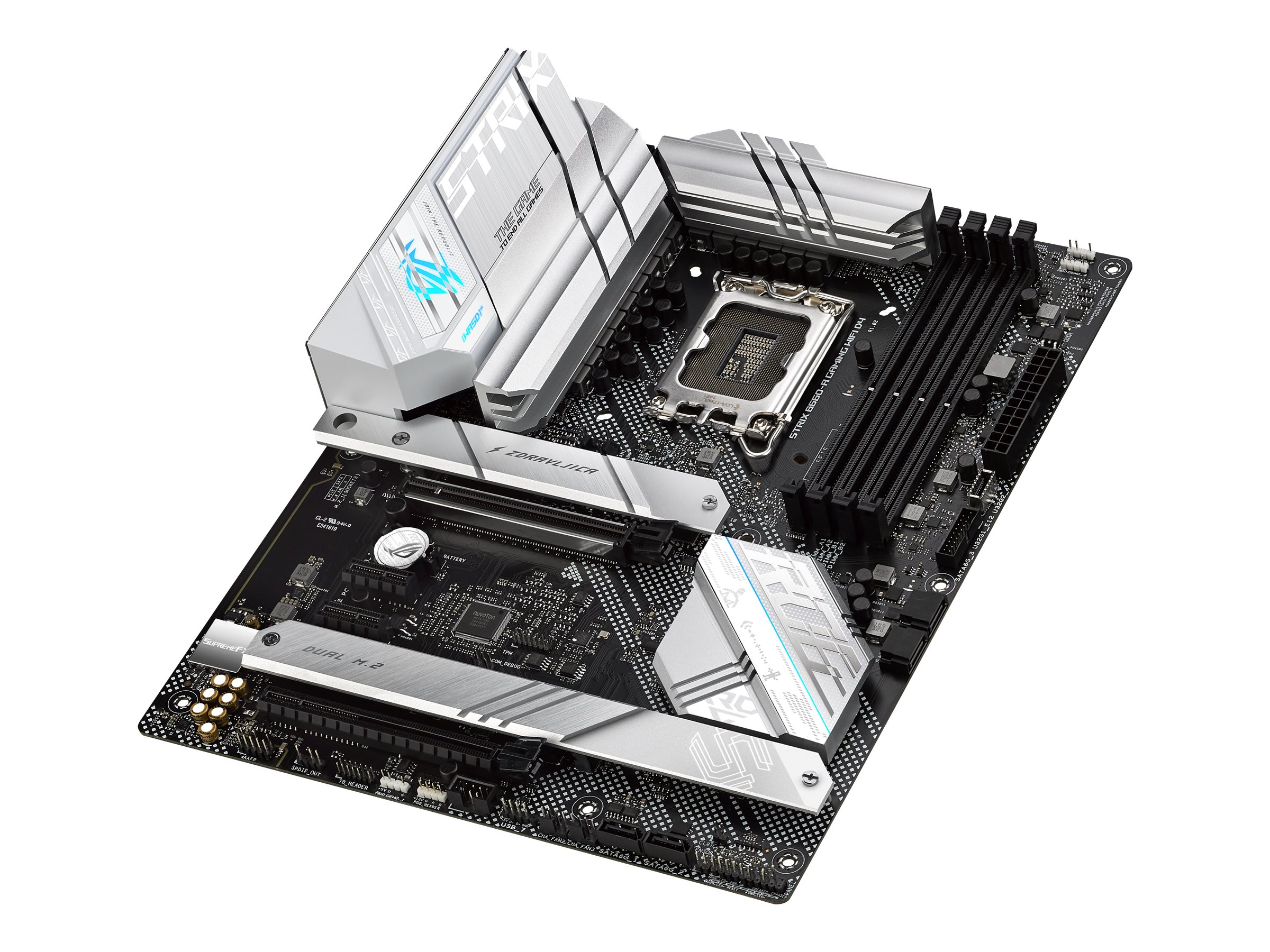

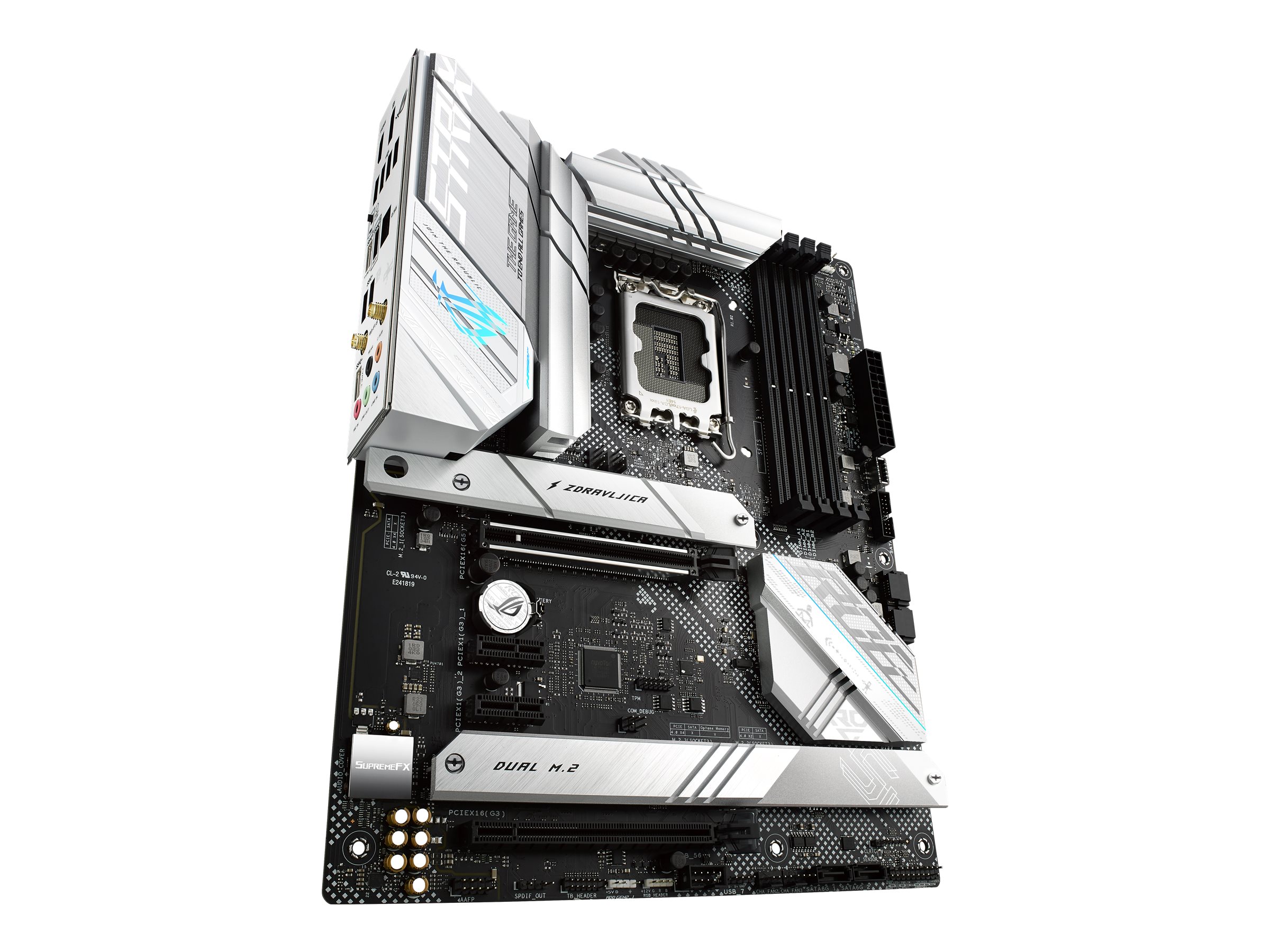

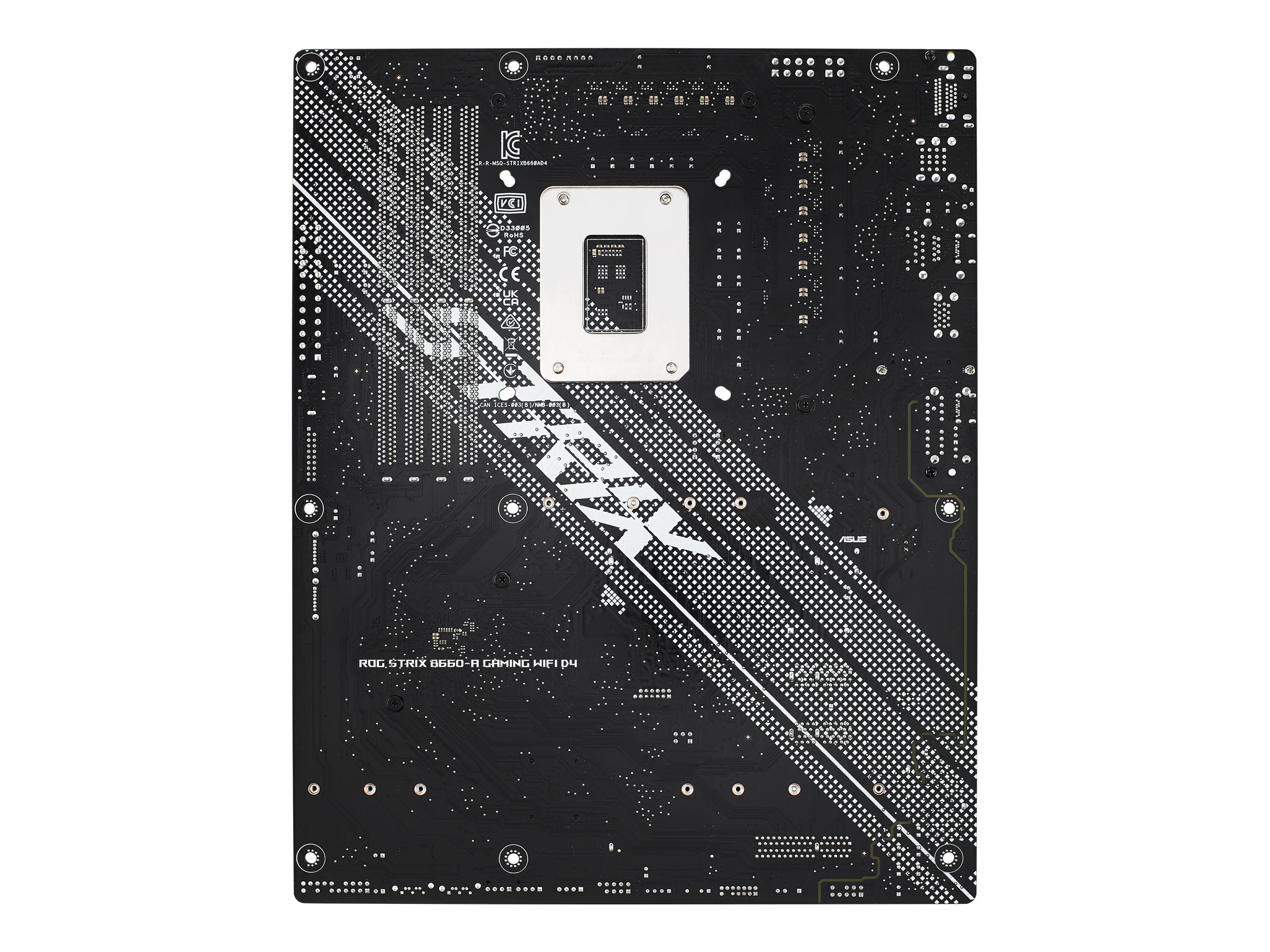

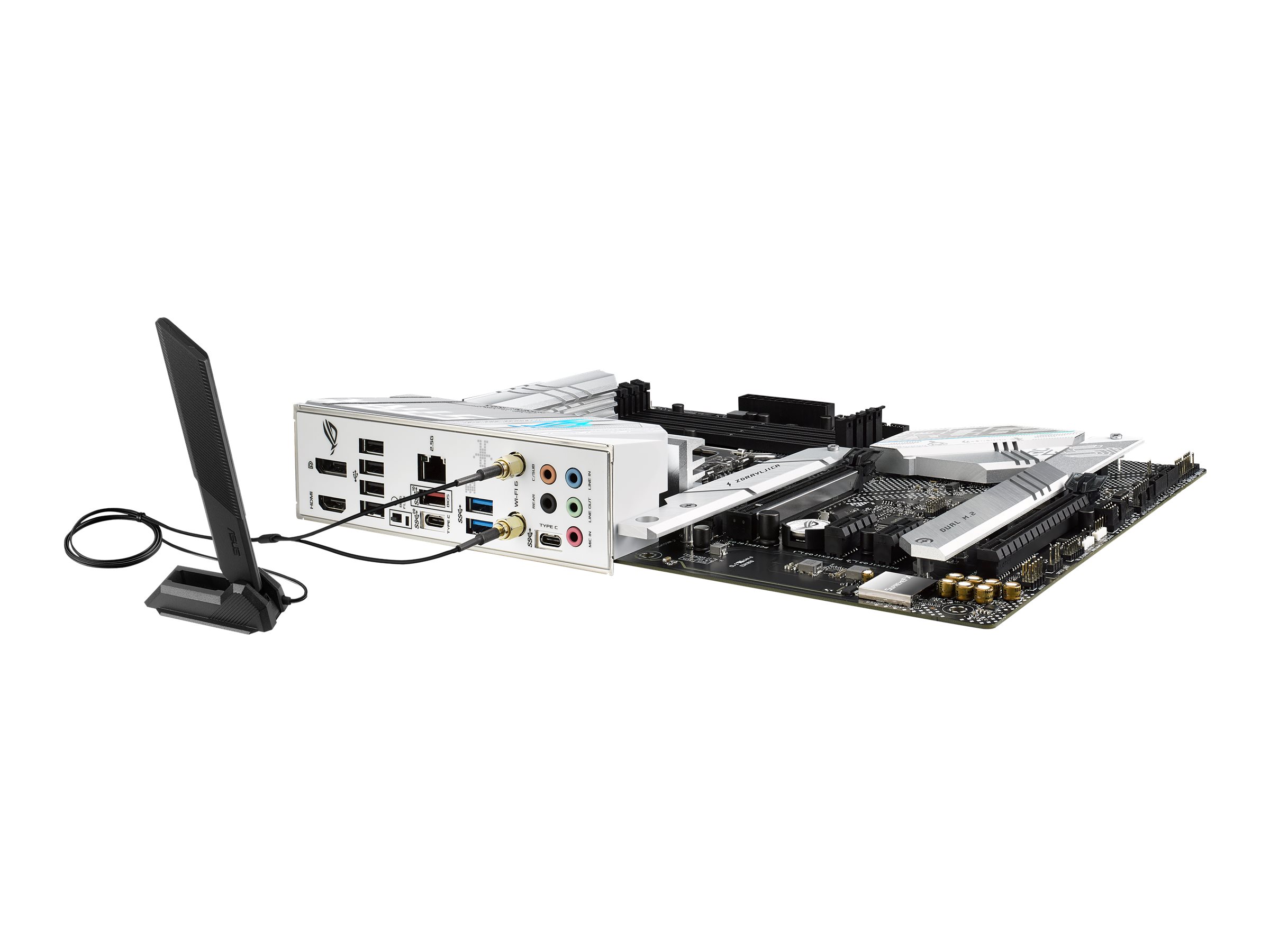

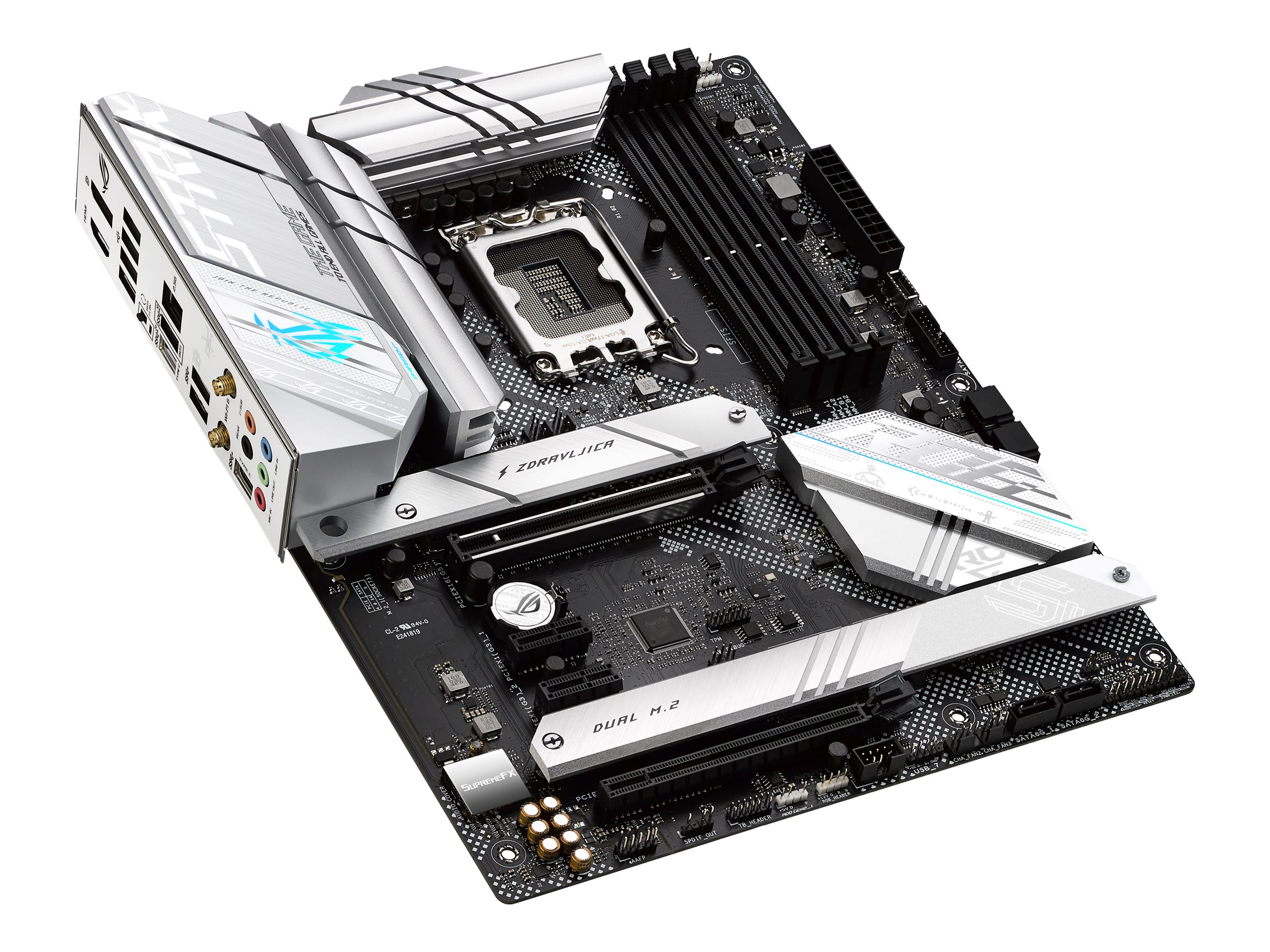

ASUS ROG STRIX B660-A GAMING WIFI D4

Login for Price
ASUS ROG STRIX B660-A GAMING WIFI D4
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • B660 Chipset
  • USB-C Gen 2x2, USB 3.2 Gen 1, USB-C Gen1, USB 3.2 Gen 2, USB-C Gen2
ASUS ROG STRIX B660-A GAMING WIFI D4
  • Motherboard
  • ATX
  • LGA1700 Socket
  • B660 Chipset
  • USB-C Gen 2x2, USB 3.2 Gen 1, USB-C Gen1, USB 3.2 Gen 2, USB-C Gen2
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: ROG STRIX B660-A GAMING WIFI D4
SHI Part #: 44304235
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX B660-A GAMING WIFI D4 - Motherboard - ATX - LGA1700 Socket - B660 Chipset - USB-C Gen 2x2, USB 3.2 Gen 1, USB-C Gen1, USB 3.2 Gen 2, USB-C Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel B660
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4080)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 2 x PCIe 3.0 x1

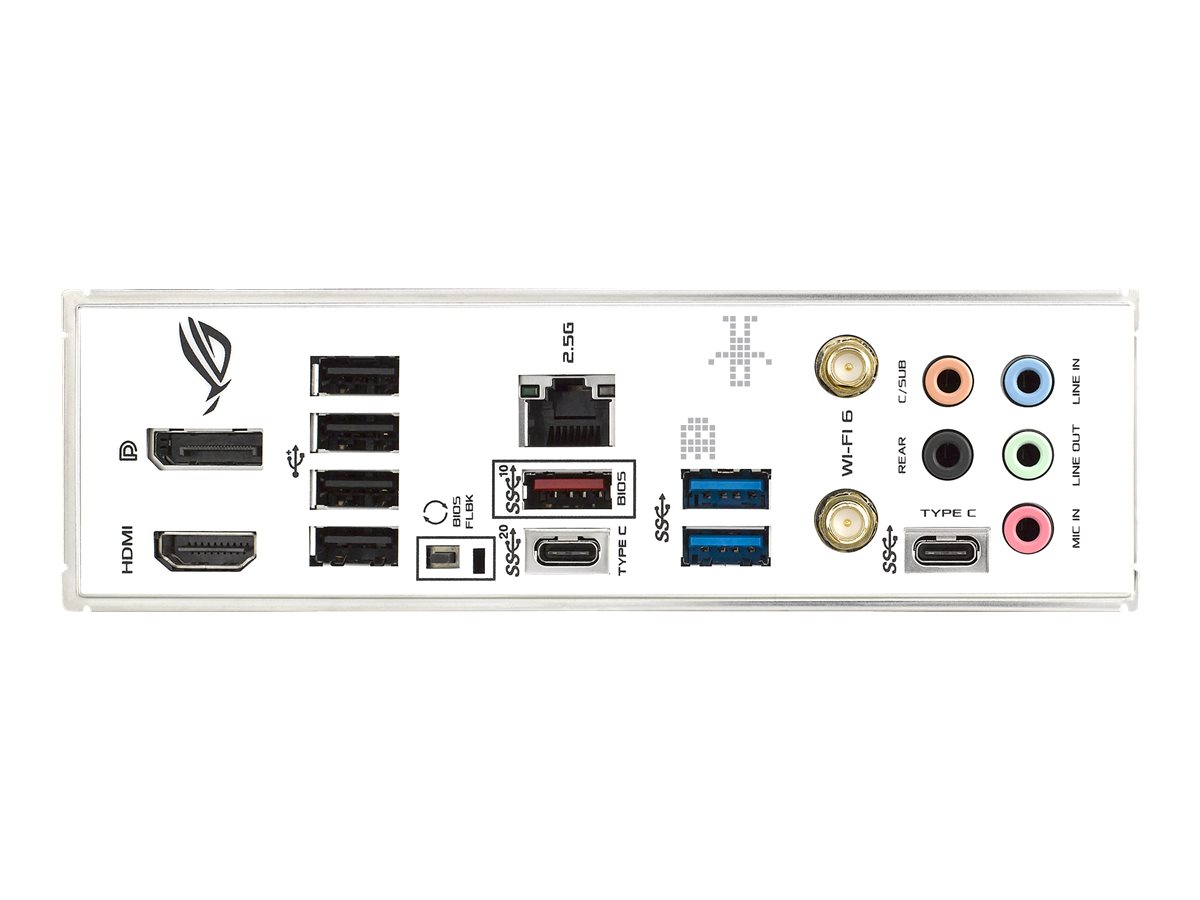

Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x USB-C Gen2x2
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen 2
  • 2 x USB 3.2 Gen 1
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x USB-C Gen1
Internal Interfaces
  • 3 x USB 2.0 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x USB-C Gen2 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
  • 1 x SPDIF out - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, MemTest86
BIOS TypeAMI
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, ASUS Extreme Engine Digi+, ASUS Q-Design, Q-DIMM, Q-LED, M.2 Q-Latch, Q-Slot, M.2 heatsink, ASUS EZ DIY, CPU Socket lever protector, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, GameFirst VI, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS Fan Xpert 4, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, FlexKey button, Preboot eXecution Environment (PXE), Windows 11 compatible, 12+1 Phase Power Design, DIY Friendly Design, ASUS ProCool, 6 Layer PCB
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel B660
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm

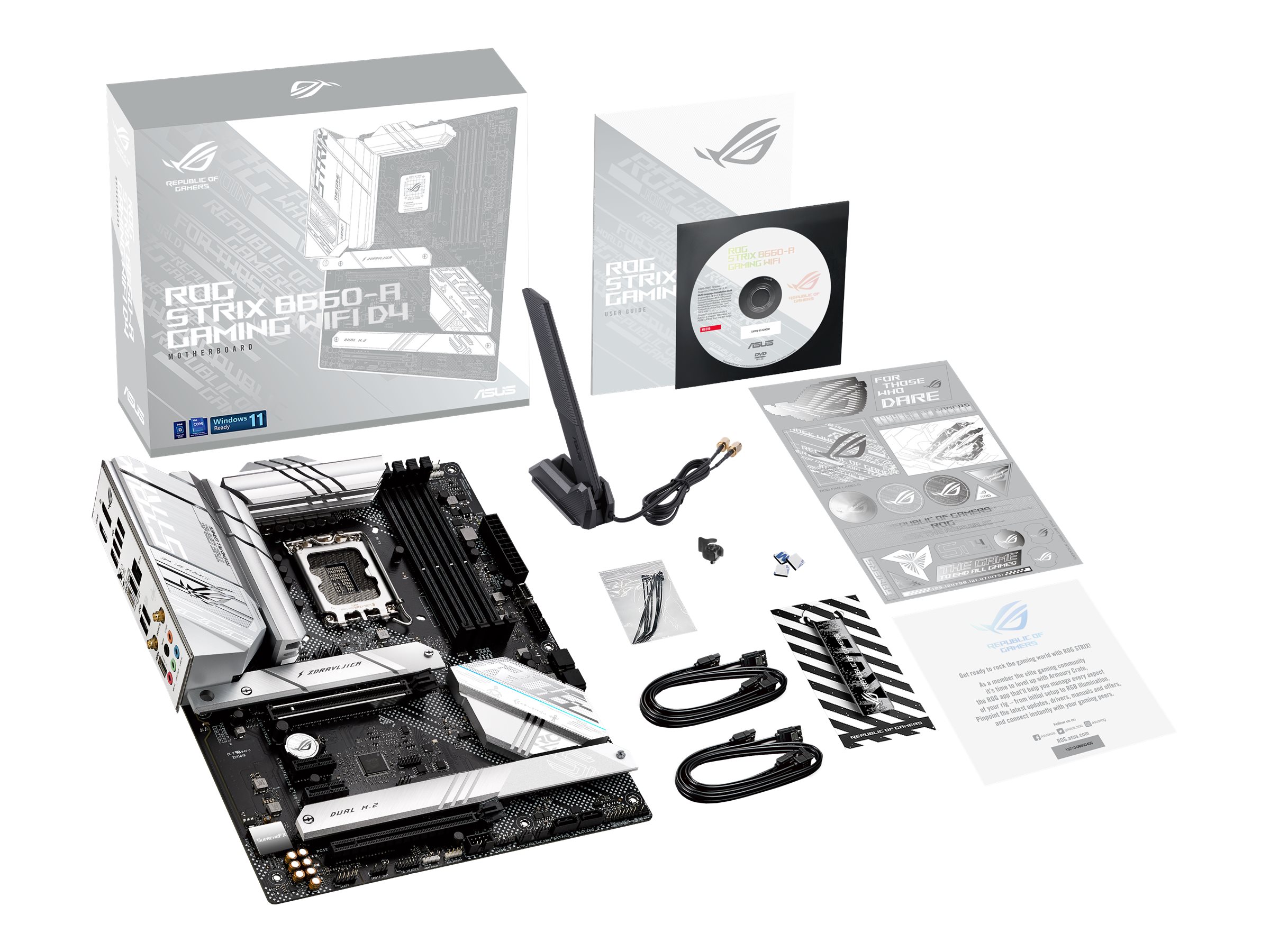

Included AccessoriesASUS Wi-Fi moving antenna, cable ties, 1 x M.2 rubber package, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card
Software IncludedDrivers & utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Sonic Suite Companion, Antivirus, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, MyAsus, WinRAR, ASUS EZ Flash 3
Width30.5 cm
Supported RAM
Bus Clock2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
