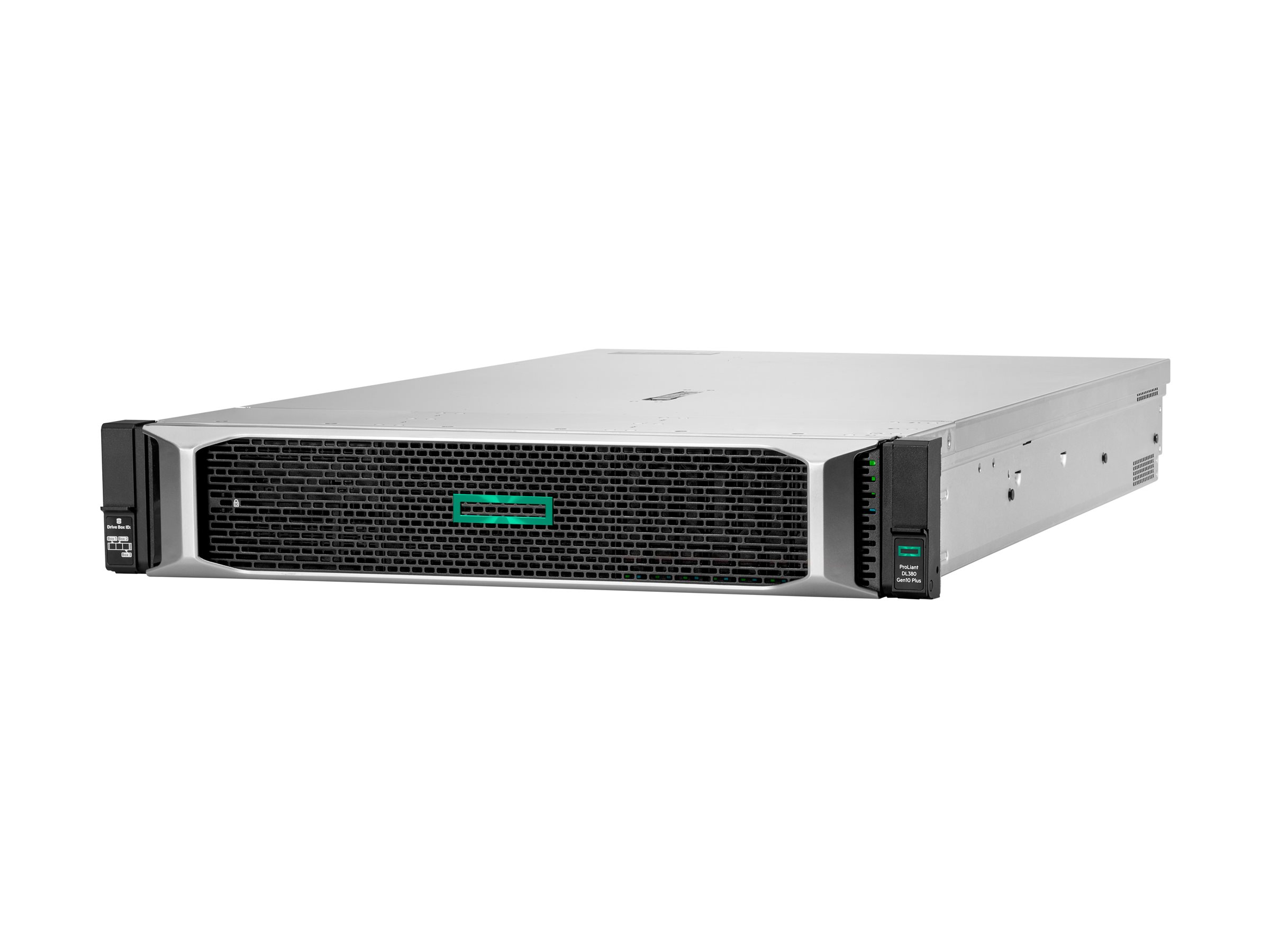

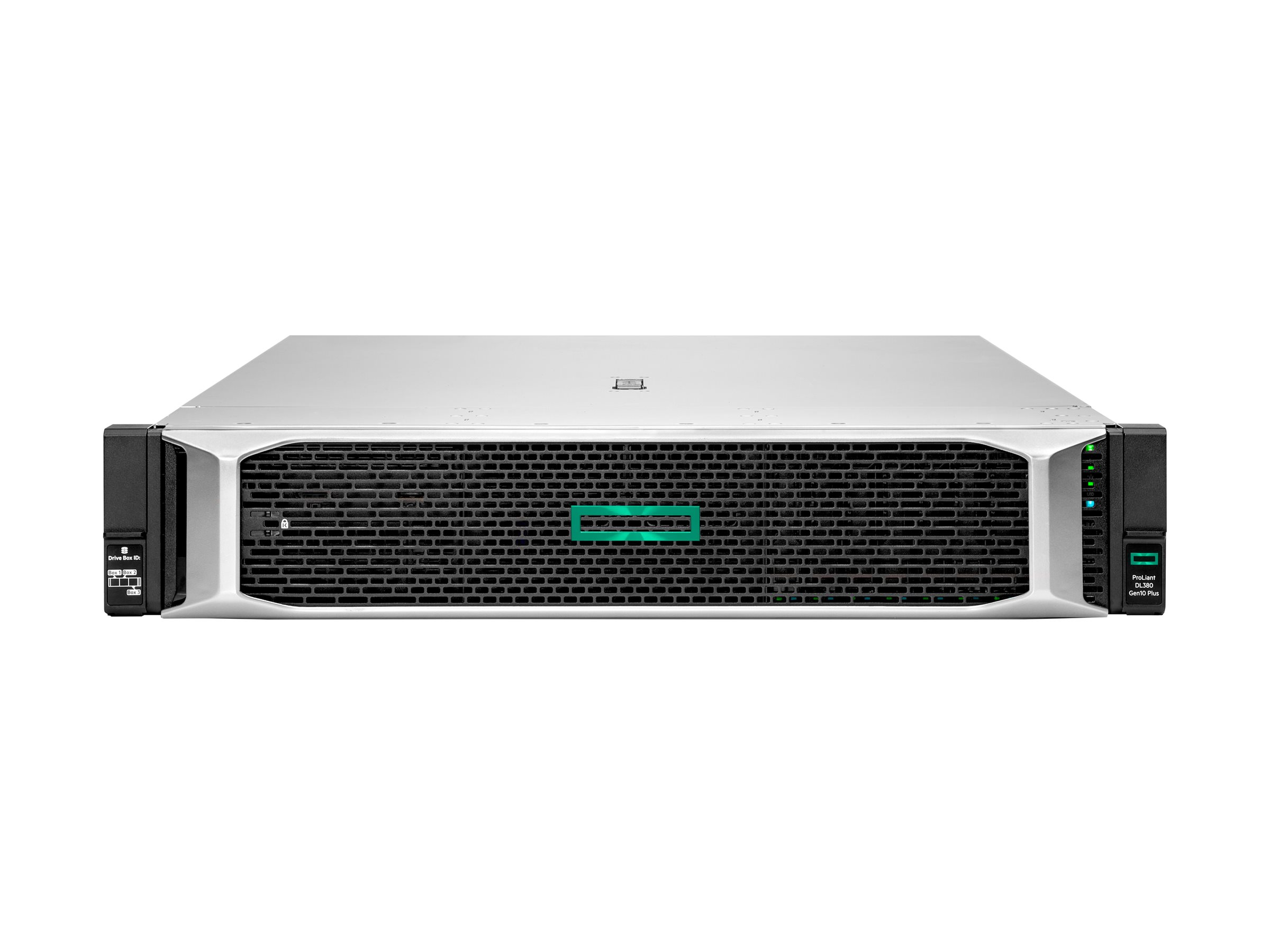

HPE ProLiant DL380 Gen10 Plus Network Choice


MSRP$12,653.00
$10,487.00
HPE ProLiant DL380 Gen10 Plus Network Choice

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Server
  • rack-mountable
  • 2U
  • 2-way
  • 1 x Xeon Silver 4309Y / 2.8 GHz
HPE ProLiant DL380 Gen10 Plus Network Choice
  • Server
  • rack-mountable
  • 2U
  • 2-way
  • 1 x Xeon Silver 4309Y / 2.8 GHz
  • RAM 32 GB
  • SAS
  • hot-swap 3.5" bay(s)
  • no HDD
  • GigE
  • no OS
  • monitor: none
  Additional Details
Price: $10,487.00
MSRP: $12,653.00
Mfr Part #: P43354-AA1
SHI Part #: 44294599
Category: Servers
UNSPSC: 43211501
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Control/Interface Boards

Broadcom MegaRAID MR216i-a
  • Storage controller
  • 16 Channel
  • SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
  • RAID RAID 0, 1, 10
  • PCIe 4.0 x8
  • for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL380 Gen10, DL385 Gen10
MSRP $1,620.00 $516.00
Microchip SmartRAID SR932i-p
  • Storage controller (RAID)
  • 32 Channel
  • SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
  • RAID RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM, RAID TP
  • PCIe 4.0 x16
  • for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL380 Gen10
MSRP $10,990.00 $8,054.00
HPE Primary/Secondary
  • Riser card
  • for ProLiant DL380 Gen10, DL385 Gen10
MSRP $123.00 $91.00

Network Interface Cards

Broadcom BCM57412 - Network adapter
  • PCIe 3.0 x8
  • 1Gb Ethernet / 10Gb Ethernet SFP+ x 2
  • for Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10; ProLiant DL325 Gen10
MSRP $940.00 $689.00
Broadcom BCM57414 - Network adapter
  • OCP 3.0
  • Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
  • for ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL380 Gen10, DX360 Gen10, XL220n Gen10
MSRP $1,231.00 $903.00
Broadcom BCM57416 - Network adapter
  • PCIe 3.0 x8
  • Gigabit Ethernet / 10Gb Ethernet x 2
  • for ProLiant DL20 Gen10, DL325 Gen10, DL360 Gen10, DL380 Gen10, ML30 Gen10, XL220n Gen10
MSRP $1,105.00 $284.00
General Information
CategoryServers
DescriptionHPE ProLiant DL380 Gen10 Plus Network Choice - Server - rack-mountable - 2U - 2-way - 1 x Xeon Silver 4309Y / 2.8 GHz - RAM 32 GB - SAS - hot-swap 3.5" bay(s) - no HDD - GigE - no OS - monitor: none
ManufacturerHewlett Packard Enterprise
MSRP$12,653.00
UNSPSC43211501
Main Specifications
Chassis / Form FactorRack-mountable
Chassis / Server Storage BaysHot-swap
Chassis / Server Swappable Drive InterfaceSAS
Dimensions & Weight / Depth74.9 cm
Dimensions & Weight / Height8.75 cm
Dimensions & Weight / Weight22.48 kg
Dimensions & Weight / Width44.54 cm
Display / TypeNone.
Header / BrandHPE
Header / Country KitsChina
Mainboard / Chipset TypeIntel C621A
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeNo operating system
Packaged Quantity1
Processor / Clock Speed2.8 GHz
Processor / ManufacturerIntel
Processor / Number of Cores8-core
Processor / Processor Number4309Y
Processor / TypeXeon Silver
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed2933 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity0 GB
System / TypeServer
Cache Memory
Cache Per Processor12 MB
Installed Size12 MB
Dimensions & Weight
Depth74.9 cm
Height8.75 cm
Weight22.48 kg
Width44.54 cm
Environmental Parameters
Humidity Range Operating8 - 90% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Environmental Standards
ENERGY STAR CertifiedYes
Expansion / Connectivity
Bays12 (total) / 12 (free) x hot-swap 3.5" LFF

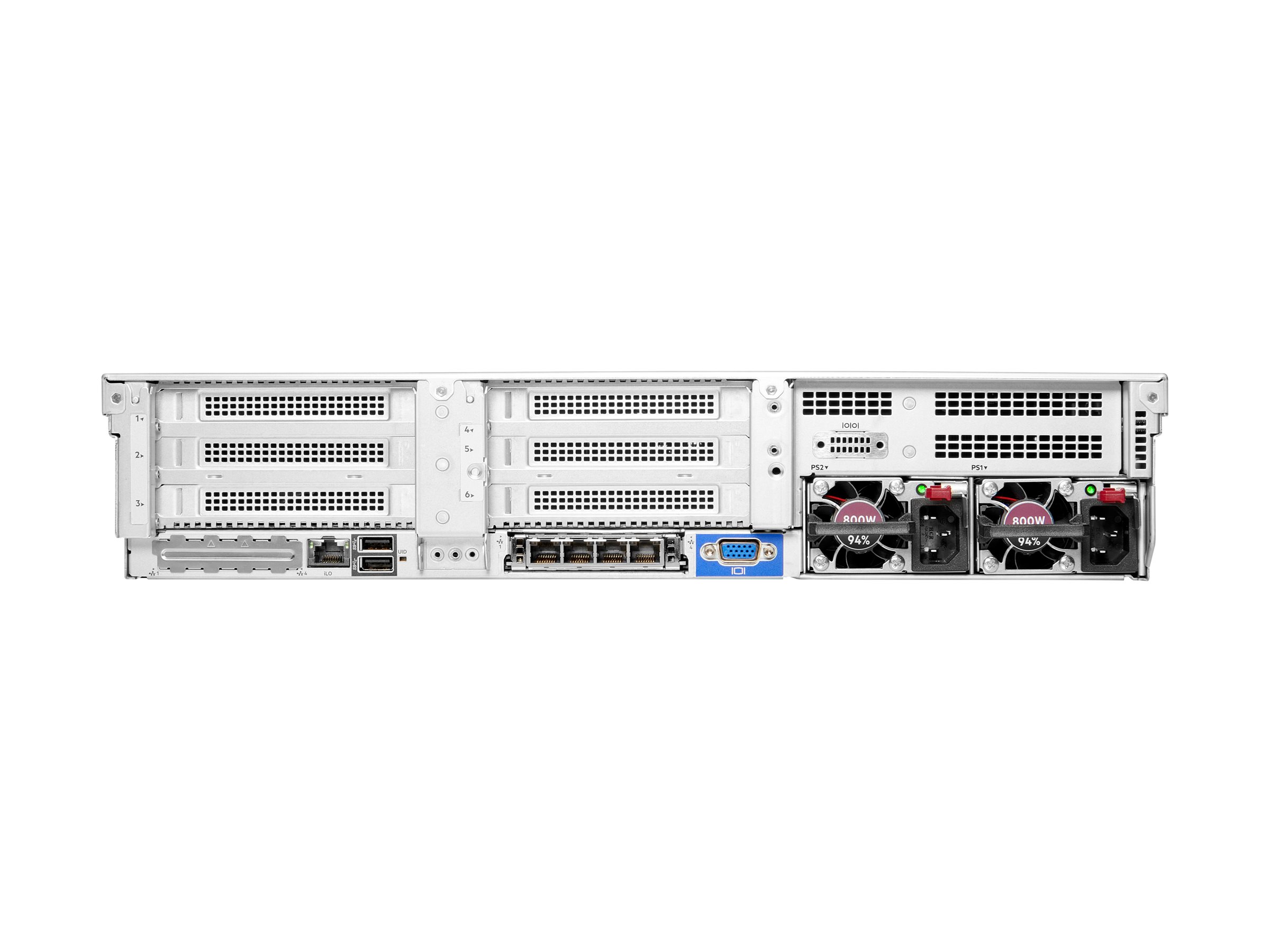

Interfaces
  • 1 x HPE iLO - RJ-45
  • 3 x USB 3.0 (1 front, 2 rear)
  • 1 x HPE iLO (service port)
  • 4 x LAN (Gigabit Ethernet) - RJ-45
  • 1 x VGA
Slots
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode)
  • 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
General
Hot-Swap Bays Qty12
LocalizationRegion: China
Product Form FactorRack-mountable - 2U
Server Scalability2-way
TypeServer
Graphics Controller
Video InterfacesVGA
Video Memory16 MB
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Compliant StandardsAES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
Included AccessoriesCPU standard heatsink, HPE Easy Install Rails with CMA, 6 standard fans
Monitor
Monitor TypeNone.
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I350-T4
Ethernet Ports4 x Gigabit Ethernet
Remote Management ControllerIntegrated Lights-Out 5
Operating System / Software
OS ProvidedNo operating system
Optical Storage
TypeNo optical drive
Power
80 PLUS Certification80 PLUS Platinum
Device TypePower supply - hot-plug
Installed Qty1
Max Supported Qty2
Power Provided800 Watt
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel C621A
Clock Speed2.8 GHz
CPUIntel Xeon Silver 4309Y
CPU Qty1
CPU UpgradabilityUpgradable
Max CPU Qty2
Max Turbo Speed3.6 GHz
Number of Cores8-core
RAM
Configuration Features1 x 32 GB
Effective Memory Speed2933 MHz
FeaturesRegistered, HP SmartMemory, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
Form FactorDIMM 288-pin
Installed Size32 GB / 2 TB (max)
RAM Supported
  • 8 TB Load-Reduced
  • 2 TB registered
  • 8 TB - HPE Persistent Memory - Optane DC Persistent
Rated Memory Speed3200 MHz
Slots32 (total) / 31 (empty)
TechnologyDDR4 SDRAM
Storage Controller
Buffer Size4 GB
Channel Qty16
Controller Interface TypeSAS 12Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Storage Controller NameHPE Smart Array P816i-a SR Gen10
Type1 x RAID - PCIe 3.0 x8
