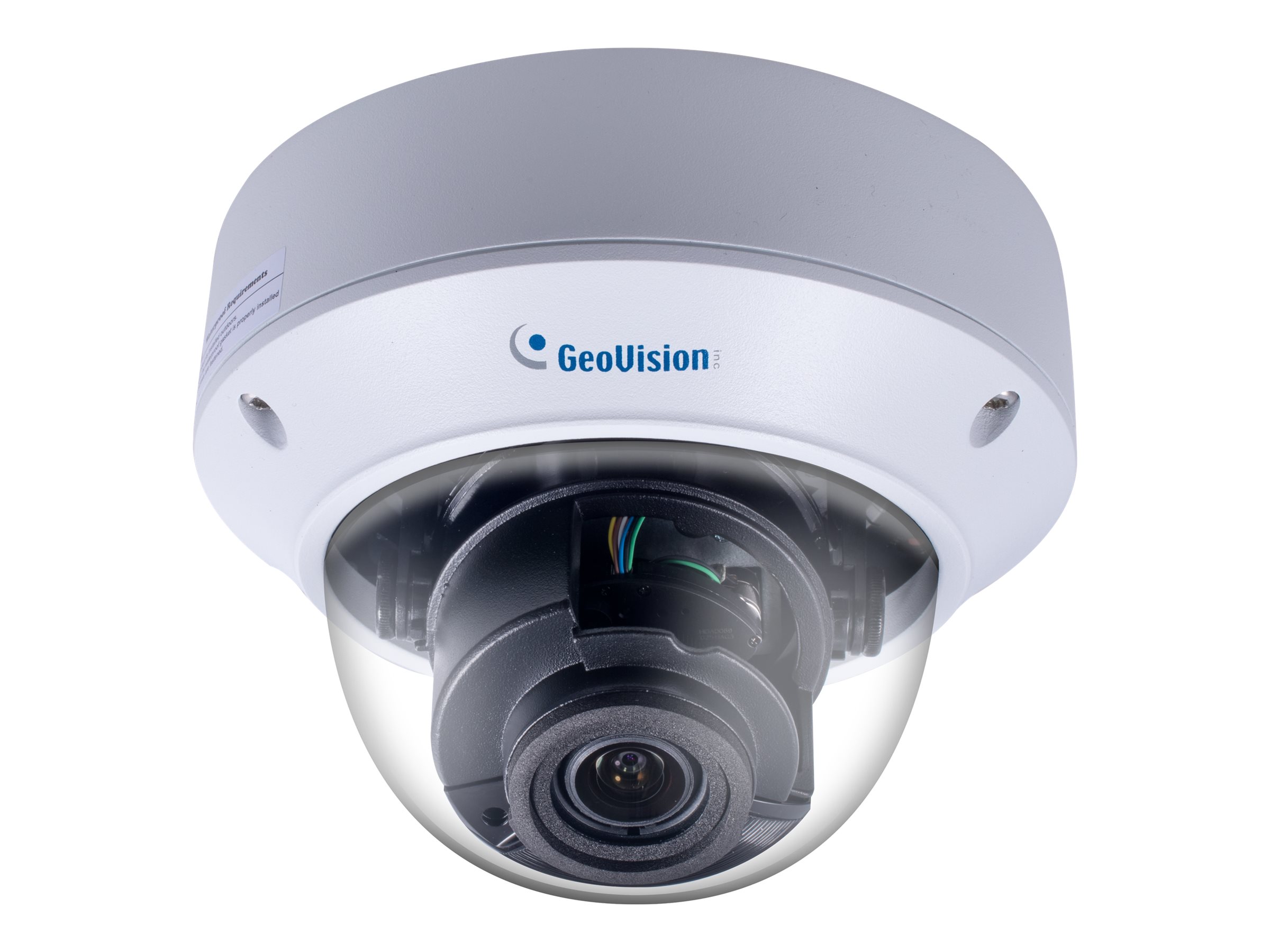

GeoVision GV-TVD4810
MSRP$454.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
GeoVision GV-TVD4810
- Network surveillance camera
- PTRZ
- dome
- outdoor
- ingress protection / vandal resistant
- color (Day&Night)
- 4 MP
- 2688 x 1520
- f14 mount
- fixed iris
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $454.00 |
| Mfr Part #: | 84-TVD480W-0010 |
| SHI Part #: | 44292901 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | GeoVision |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | GeoVision GV-TVD4810 - Network surveillance camera - PTRZ - dome - outdoor - ingress protection / vandal resistant - color (Day&Night) - 4 MP - 2688 x 1520 - f14 mount - fixed iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE |
| Manufacturer | GeoVision |
| MSRP | $454.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.8 cm |
| Dimensions & Weight / Height | 11.1 cm |
| Dimensions & Weight / Weight | 920 g |
| Dimensions & Weight / Width | 14.8 cm |
| Header / Brand | GeoVision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 352 x 288 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1 sec - 1/100000 sec |
| Features | Super Low Lux, Wide Dynamic Range (WDR) Pro, deep learning function, auto gain control, manual gain control, auto white balance, manual white balance, >56 dB SNR, 120 dB dynamic range, infrared-cut filter, DORI coverage, triple video stream, 20 video streams, Audio Detection, Tampering detection, video analytics, cross line detection, region entrance detection, region exiting detection, region intrusion, target counting, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, 802.1x authentication, 0° / 355° rotation |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | 2 |
| Max Digital Video Resolution | 2688 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt / roll / zoom - outdoor - ingress protection / vandal resistant |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 14.8 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.1 cm |
| Weight | 920 g |
| Width | 14.8 cm |
| Image Sensor | |
| Type | 4 MP Progressive Scan CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DDNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, QOS, PPPoE, RTP, RTCP, RTSP, RTMP, SMTP, SNMP, UDP, UPnP |
| Lens Construction | |
| Diagonal Field of View (degree) | 36.99 - 127.74 |
| Focal Length | 2.7 mm - 13.5 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 31 - 98 |
| Lens Iris | F/1.2 fixed iris |
| Optical Zoom | 5 x |
| Type | F14 mount - motorized zoom |
| Vertical Field of View (degree) | 18.55 - 54.76 |
| Miscellaneous | |
| Compliant Standards | IP67, IK10, IEEE 802.3af, FCC, RoHS, UL |
| Included Accessories | Waterproof rubber set, screw kit, drill hole template, torx wrench |
| Panning | |
| Range (degree) | 0 to 355 |
| Power | |
| Power Device | 7 Watt |
| Power Requirements | DC 12 V / PoE |
| Tilting | |
| Range (degree) | 0 to 80 |
