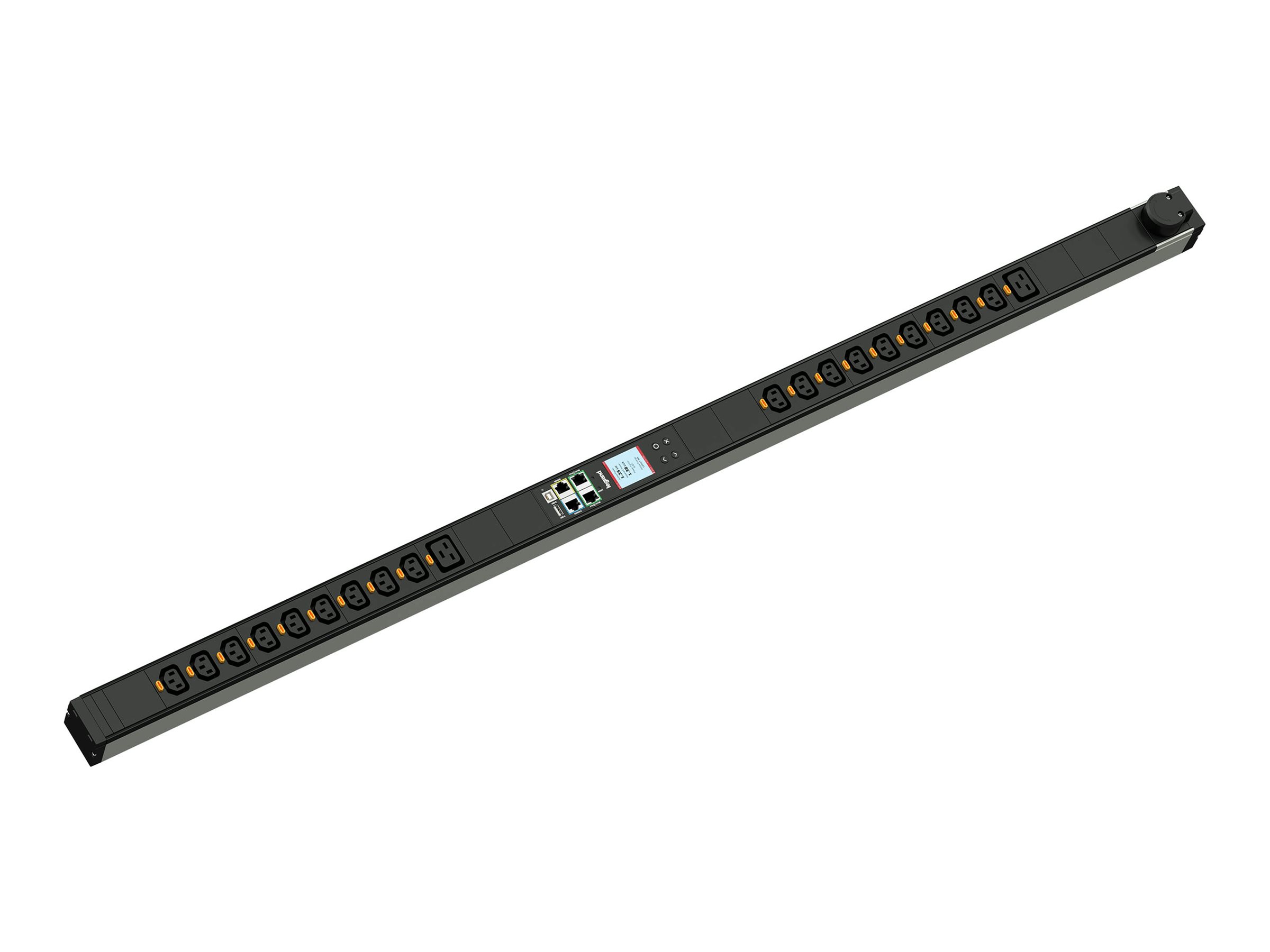

Middle Atlantic - Power distribution unit (rack-mountable)
MSRP$1,680.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Middle Atlantic - Power distribution unit (rack-mountable)
- vertical, metered
- AC 208 V
- 3800 VA
- 1-phase
- Ethernet 10/100, RS-232, USB
- input: NEMA L6-20P
- output connectors: 20 (IEC 60320 C13 12A, IEC 60320 C19 16A)
- 0U
- 3 m cord
- black and silver
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,680.00 |
| Mfr Part #: | LP-42201 |
| SHI Part #: | 44198178 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Middle Atlantic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Middle Atlantic - Power distribution unit (rack-mountable) - vertical, metered - AC 208 V - 3800 VA - 1-phase - Ethernet 10/100, RS-232, USB - input: NEMA L6-20P - output connectors: 20 (IEC 60320 C13 12A, IEC 60320 C19 16A) - 0U - 3 m cord - black and silver - TAA Compliant |
| Manufacturer | Middle Atlantic |
| MSRP | $1,680.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5 cm |
| Dimensions & Weight / Height | 129.8 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Middle Atlantic |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Power Capacity (VA) | 3800 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5 cm |
| Height | 129.8 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% RH |
| Max Operating Temperature | 45 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black and silver |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | FCC Part 15 A, UL, ICES-003, RoHS |
| Features | Vertical mount, user defined notifications, LCD display, load monitoring, network monitoring, remote management, locking outlets, rotatable cord, Hydraulic-Magnetic breakers, PDU Linking, ISO/IEC 62053-21 1% metering accuracy, environmental sensor ready, temperature and humidity sensor support, 16MB SPI Flash, 64MB DDR2 RAM, ARM Cortex A5 CPU, cascadable, cord retention, power cable IP44 compliant, bottom-front feed cord entry |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 200-240 V |
| Power Capacity | 3800 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Power Output Connectors Details |
|
