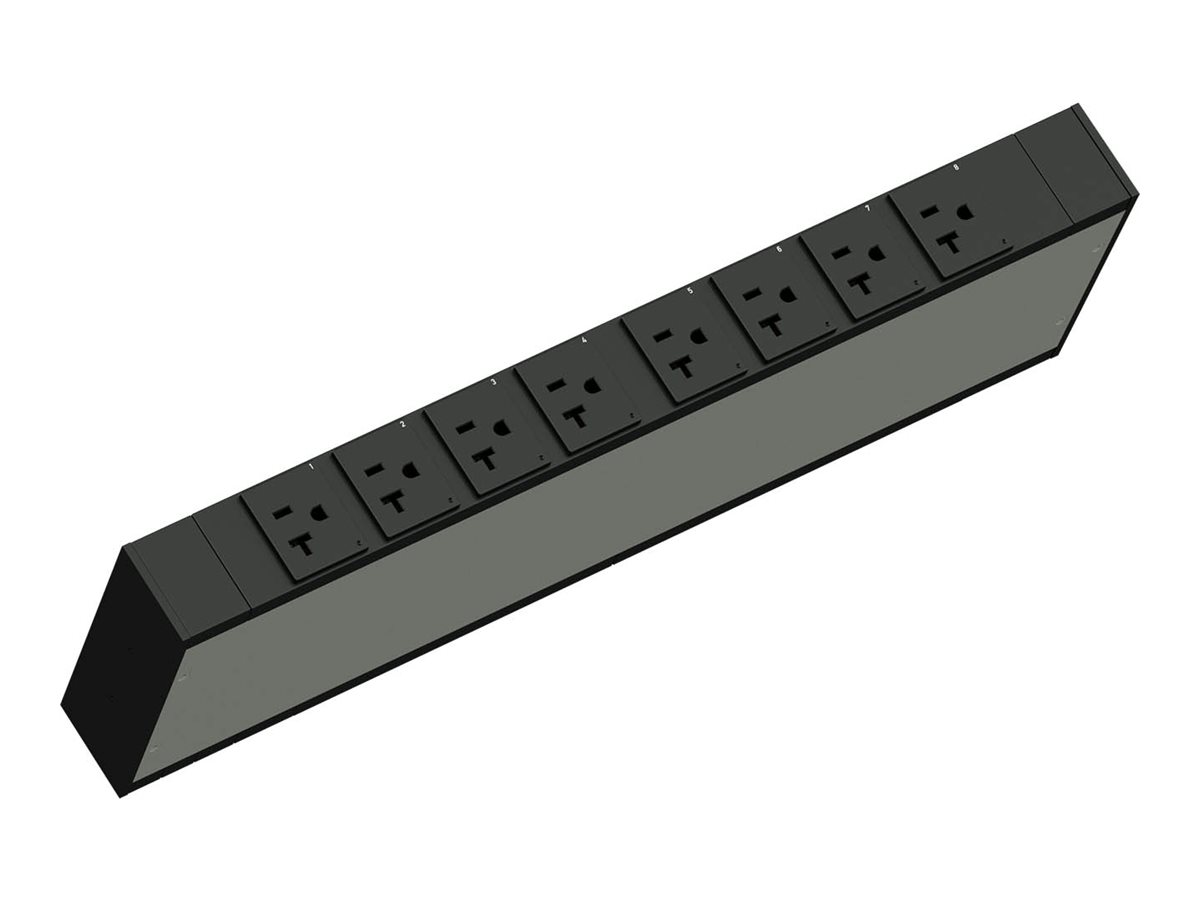

Middle Atlantic - Power distribution unit (rack-mountable)
MSRP$1,512.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Middle Atlantic - Power distribution unit (rack-mountable)
- horizontal, network switched
- AC 120 V
- 1900 VA
- 1-phase
- Ethernet 10/100, RS-232, USB
- input: NEMA L5-20P
- output connectors: 8 (NEMA 5-20R)
- 1U
- 3 m cord
- black and silver
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,512.00 |
| Mfr Part #: | LP-61210 |
| SHI Part #: | 44198152 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Middle Atlantic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Middle Atlantic - Power distribution unit (rack-mountable) - horizontal, network switched - AC 120 V - 1900 VA - 1-phase - Ethernet 10/100, RS-232, USB - input: NEMA L5-20P - output connectors: 8 (NEMA 5-20R) - 1U - 3 m cord - black and silver - TAA Compliant |
| Manufacturer | Middle Atlantic |
| MSRP | $1,512.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.3 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 43.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Middle Atlantic |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 13.3 cm |
| Height | 4.4 cm |
| Width | 43.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% RH |
| Max Operating Temperature | 45 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black and silver |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | FCC Part 15 A, UL, ICES-003, RoHS |
| Features | Horizontal mount, delayed power sequencing, outlet use management, advanced load monitoring, LCD display, rotatable cord, cascadable, Hydraulic-Magnetic breakers, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, ISO/IEC 62053-21 1% metering accuracy, metering per input line, remote outlet switching, environmental sensor ready, Power IQ technology, 16MB SPI Flash, 64MB DDR2 RAM, ARM Cortex A5 CPU, power cable IP44 compliant, cord retention, bottom-front feed cord entry |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 100-120 V |
| Power Capacity | 1900 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 1.9 kVA at 120 V |
| Power Output Connectors Details | 8 x power NEMA 5-20R |
