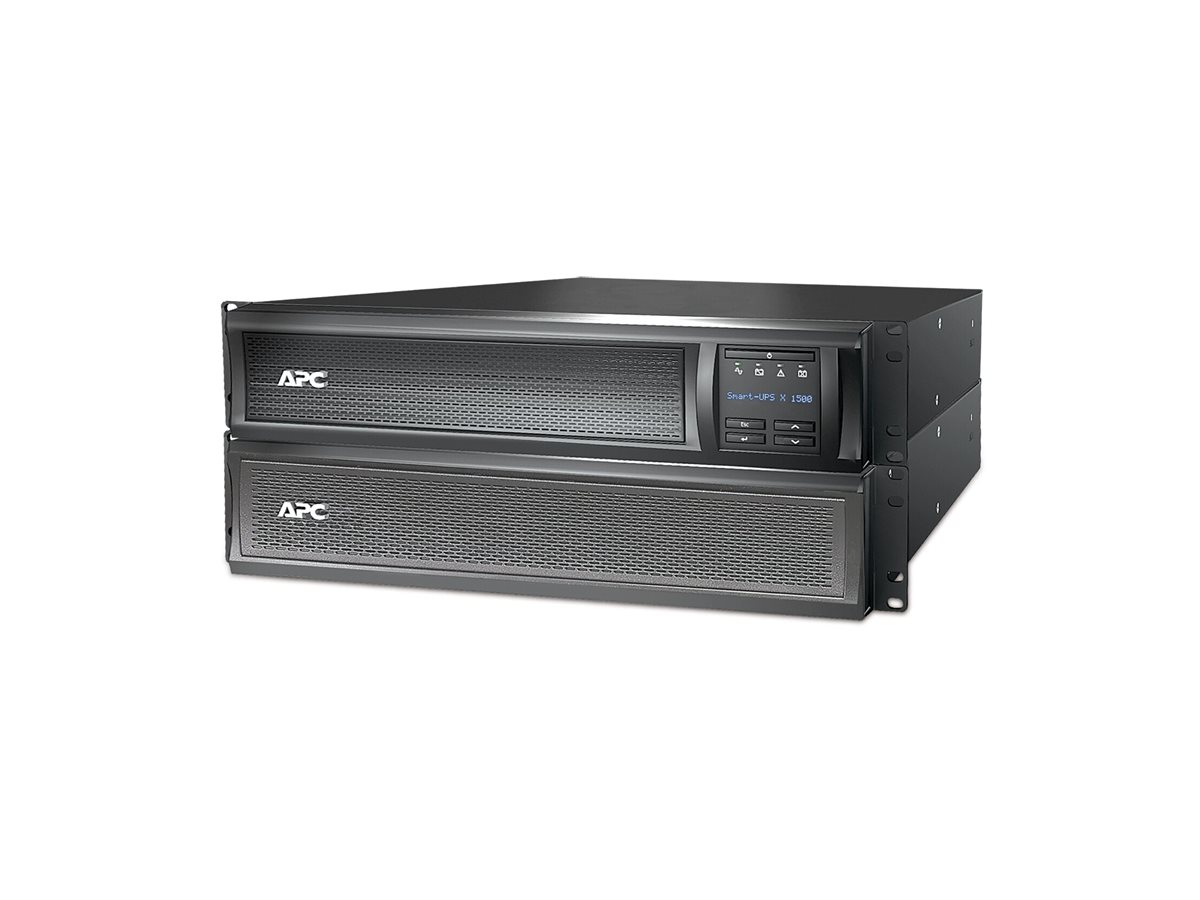

APC Smart-UPS X SMX1500RM2UCNC
MSRP$3,060.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS X SMX1500RM2UCNC
- UPS (rack-mountable / external)
- AC 120 V
- 1350 Watt
- 1440 VA
- USB, serial, Ethernet
- output connectors: 8
- 2U
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,060.00 |
| Mfr Part #: | SMX1500RM2UCNCUS |
| SHI Part #: | 44121210 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Smart-UPS X SMX1500RM2UCNC - UPS (rack-mountable / external) - AC 120 V - 1350 Watt - 1440 VA - USB, serial, Ethernet - output connectors: 8 - 2U - black - TAA Compliant |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,060.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 49 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 24.82 kg |
| Dimensions & Weight / Width | 8.9 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1440 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, leak-proof, sealed |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 43.2 cm |
| Weight | 24.82 kg |
| Width | 8.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 62 cm |
| Shipping Height | 58.9 cm |
| Shipping Weight | 30 kg |
| Shipping Width | 24.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | cUL, UL 1778, UL 1449, RoHS, REACH, FCC Part 15 |
| Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, Green Function, EcoStruxure Ready, 3 switched outlet groups, hot-swappable batteries |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, serial, Ethernet |
| Remote Management Protocol | DHCP, IPv4 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.85% at 100% Green mode (on-line) |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Output Voltage | AC 120 V 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1350 Watt / 1440 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Sustainability Information | |
| ENERGY STAR | Yes |
