Hardware

Panduit IndustrialNet TX6A

$77.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details

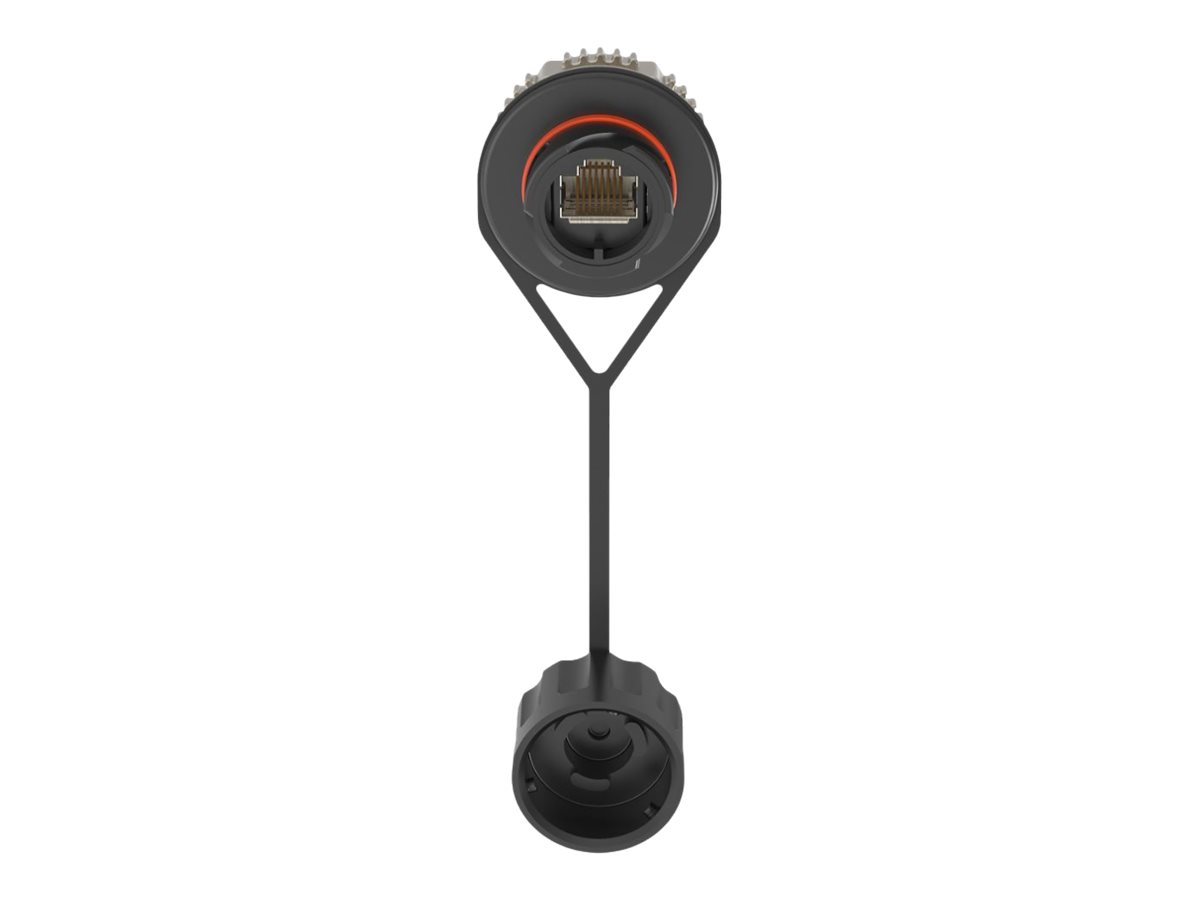

Network coupler RJ-45 (F) bulkhead to RJ-45 (F) shielded CAT 6a IEEE 802.3af/IEEE 802.3at

Panduit IndustrialNet TX6A

General Information
Category	Network cable
Description	Panduit IndustrialNet TX6A - Network coupler - RJ-45 (F) bulkhead to RJ-45 (F) - shielded - CAT 6a - IEEE 802.3af/IEEE 802.3at - black
Manufacturer	Panduit
MSRP	$72.48
UNSPSC	26121609
Main Specifications
Dimensions & Weight / Height	13.55 cm
Dimensions & Weight / Width	3.78 cm
Header / Brand	Panduit
Left Connector Type	RJ-45
Miscellaneous / Product Color	Black
Network Cable Type	Network coupler
Packaged Quantity	1
Right Connector Type	RJ-45
Service & Support / Type	5-year warranty
Connectivity
Connector	RJ-45 - female - bulkhead
Connector (Second End)	RJ-45 - female
Environmental Parameters
Max Operating Temperature	75 °C
General
Color	Black
Depth	4.23 cm
Features	Tethered cap, sealable, for 24 AWG cable
Height	13.55 cm
Impedance	100 Ohm
Network Cable Type	Network coupler - CAT 6a - IEEE 802.3af/IEEE 802.3at
Pairs per Cable	4 pairs
Plated Connector	Gold
Technology	Shielded
Width	3.78 cm
Wiring Scheme	T568B
Manufacturer Warranty
Service & Support	5-year warranty
Miscellaneous
Compliant Standards	ANSI/TIA-568-C.2, UL Type 12, ISO 11801 Class Ea, IEC 60529:2004, ANSI/TIA-1096-A, IEC 60603-7, IP67, RoHS, IP65 - up to 500 MHz
