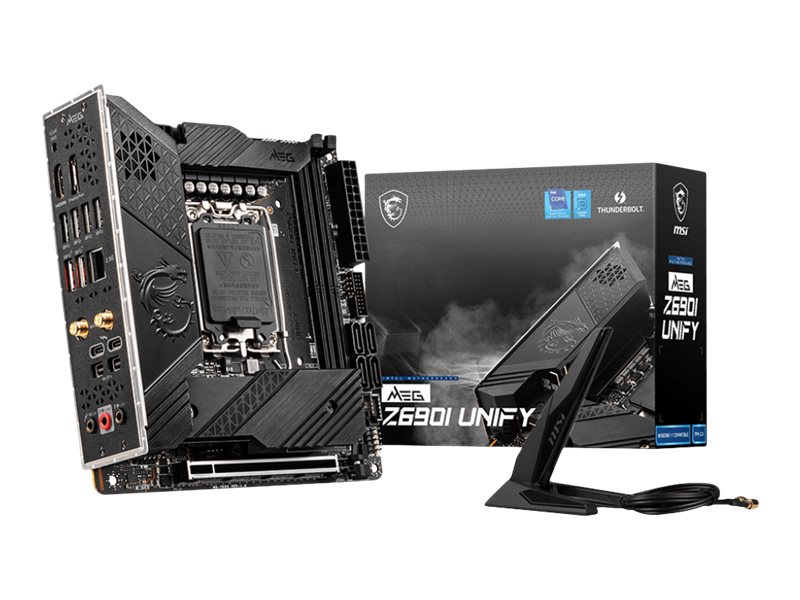

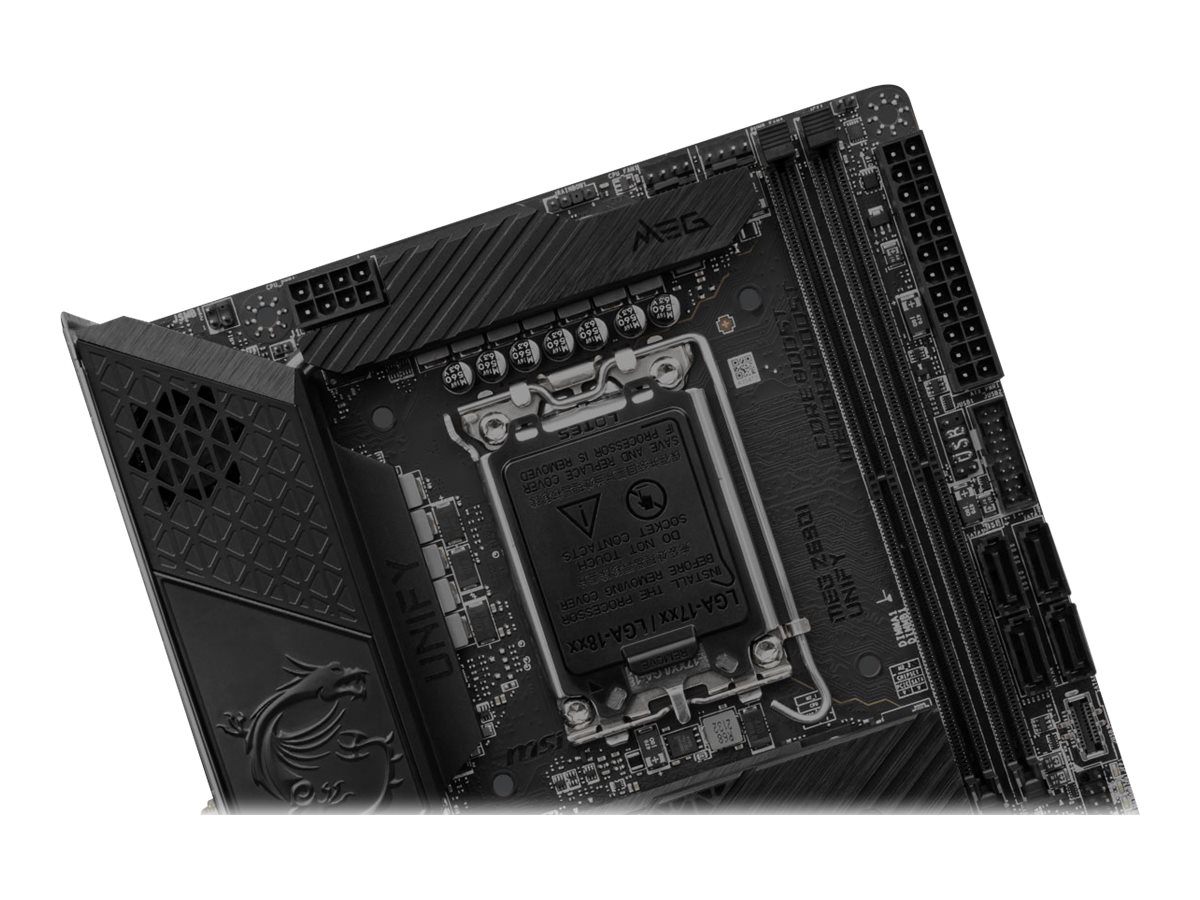

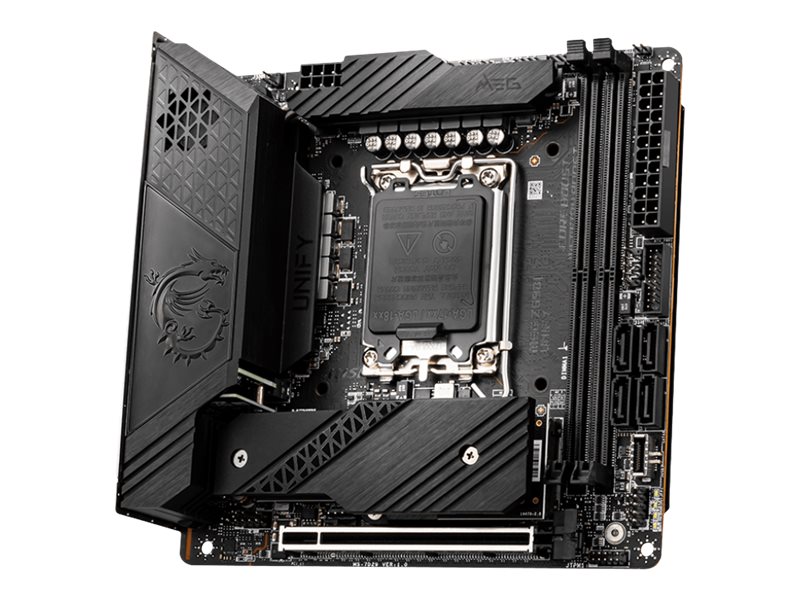

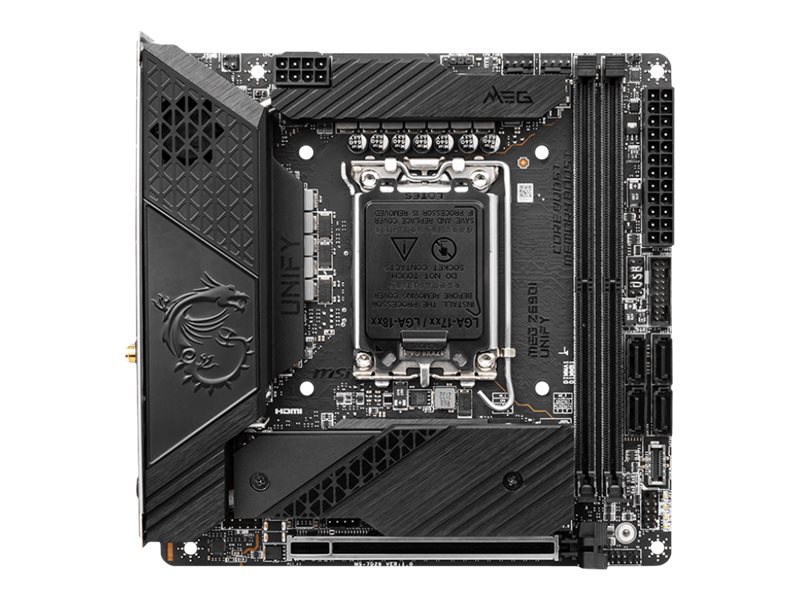

MSI MEG Z690I UNIFY - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
MSI MEG Z690I UNIFY - Motherboard
- mini ITX
- LGA1700 Socket
- Z690 Chipset

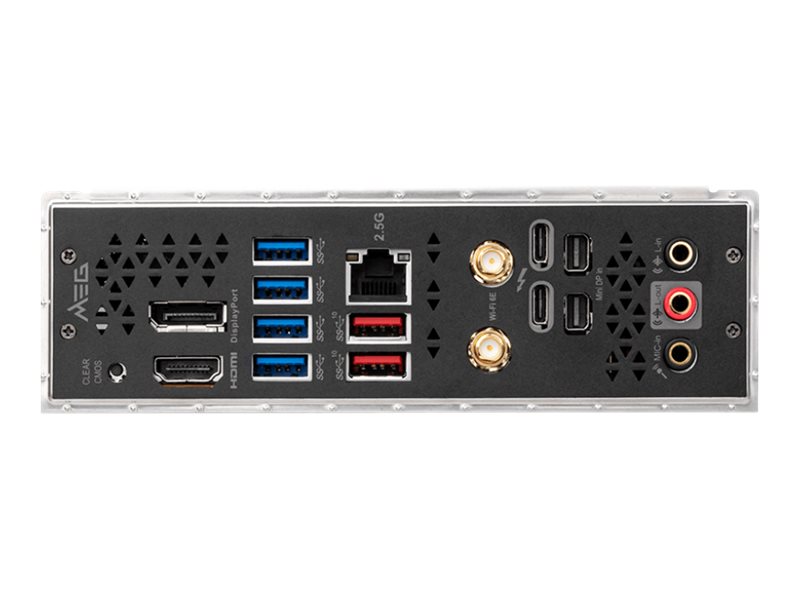

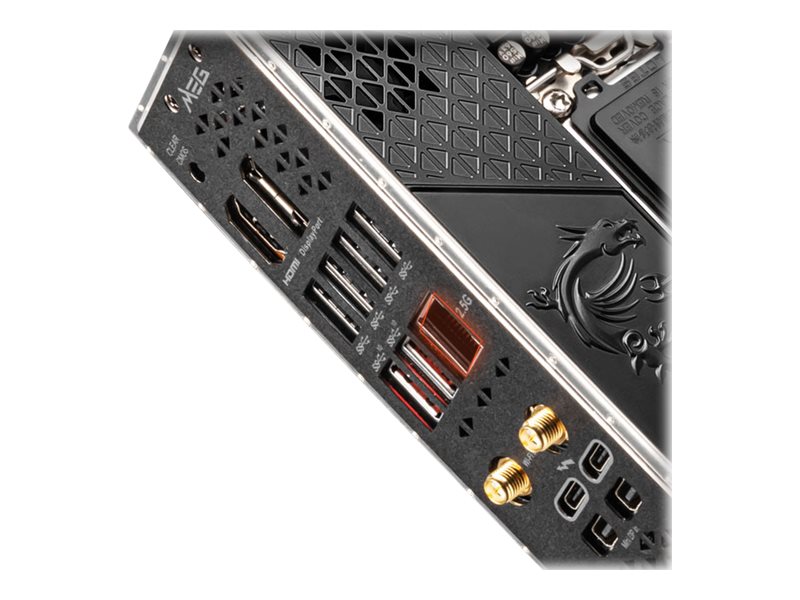

- USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
- 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | Z690IUNIFY |
| SHI Part #: | 44083141 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MEG Z690I UNIFY - Motherboard - mini ITX - LGA1700 Socket - Z690 Chipset - USB-C Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Width | 17 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | Intel Z690 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces |
|
| Features | |
| Hardware Features | Intel Optane Memory Ready, Debug LED, Clear CMOS Button, MSI Steel Armor, M.2 Shield FROZR, Zero Frozr technology |
| General | |
| Chipset Type | Intel Z690 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - mini ITX |
| LAN | |
| Network Controller | Intel I225-V |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FIPS, FISMA |
| Depth | 17 cm |
| Included Accessories | USB drive, case badge, cleaning brush, Wi-Fi antenna, MEG stickers, cable labels, EZ front panel cable, Rainbow RGB LED extension cable, 3 x M.2 screws |
| Width | 17 cm |
| Supported RAM | |
| Bus Clock | 4800 MHz, 5600 MHz (O.C.), 6800 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
