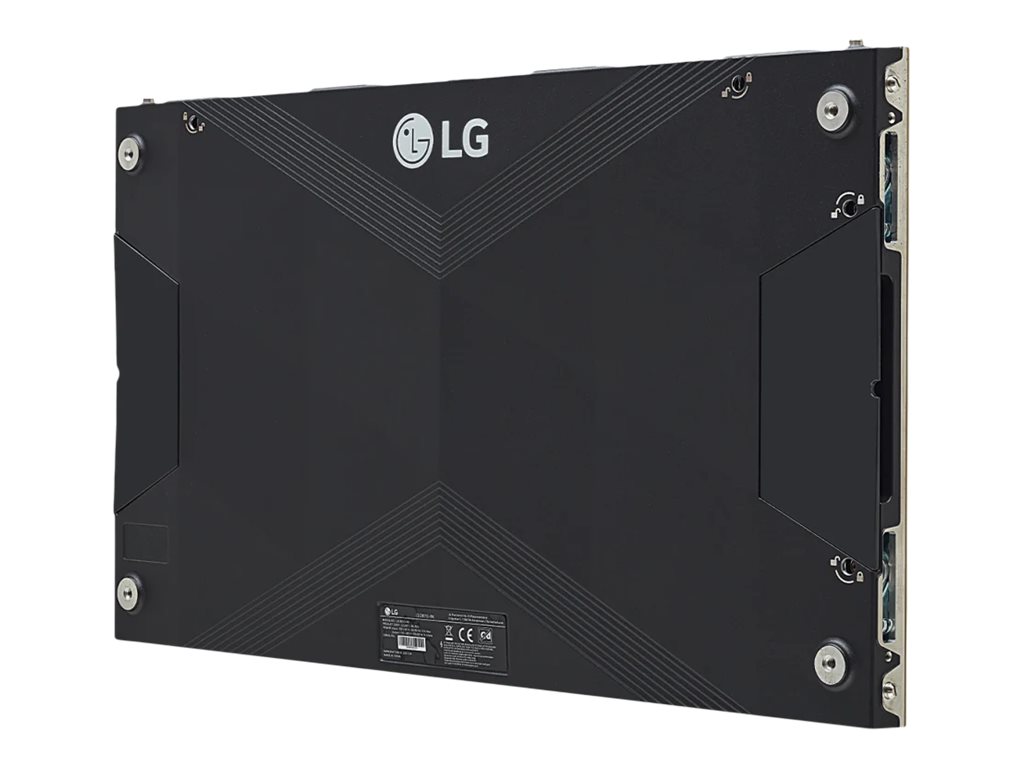

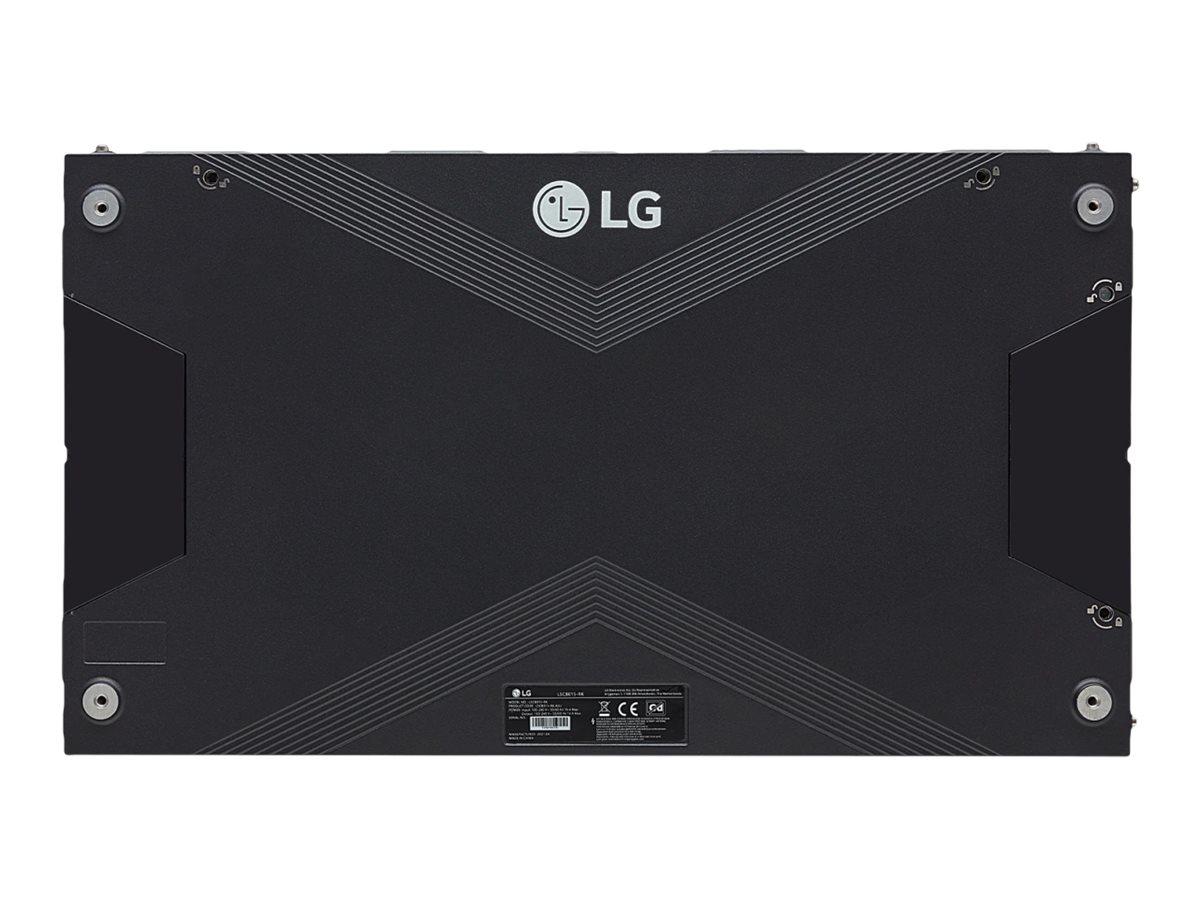

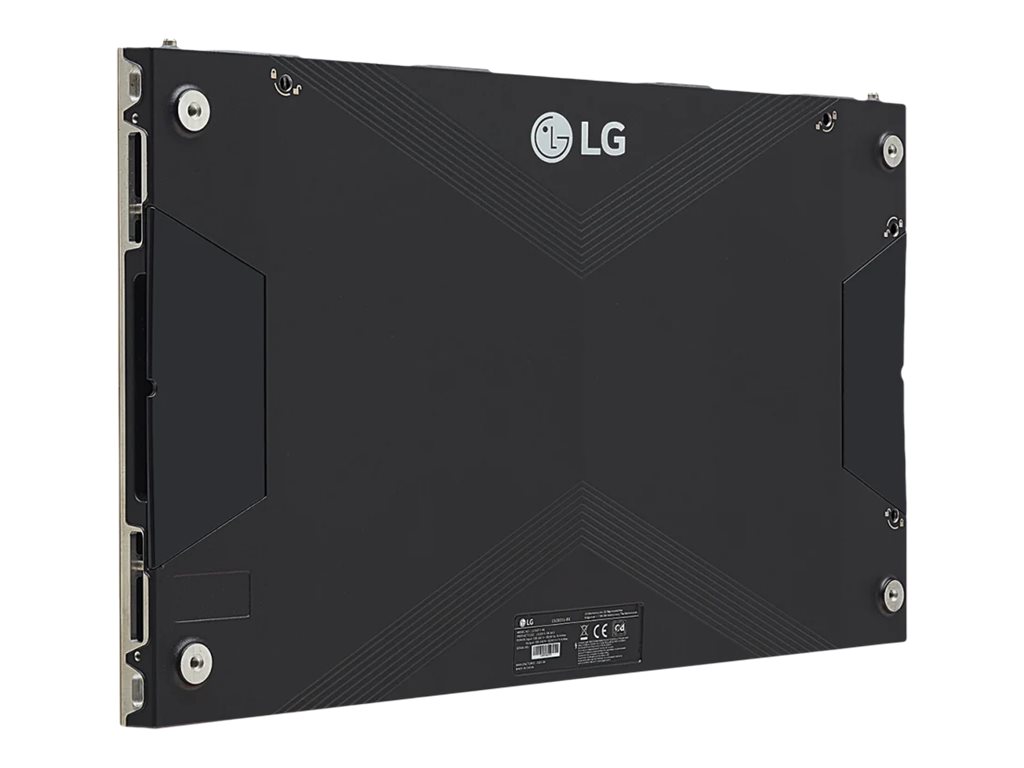

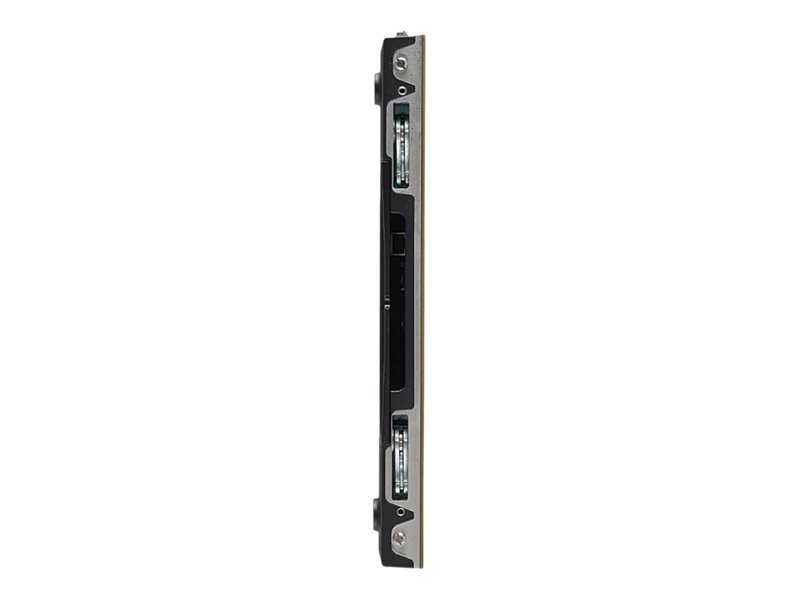

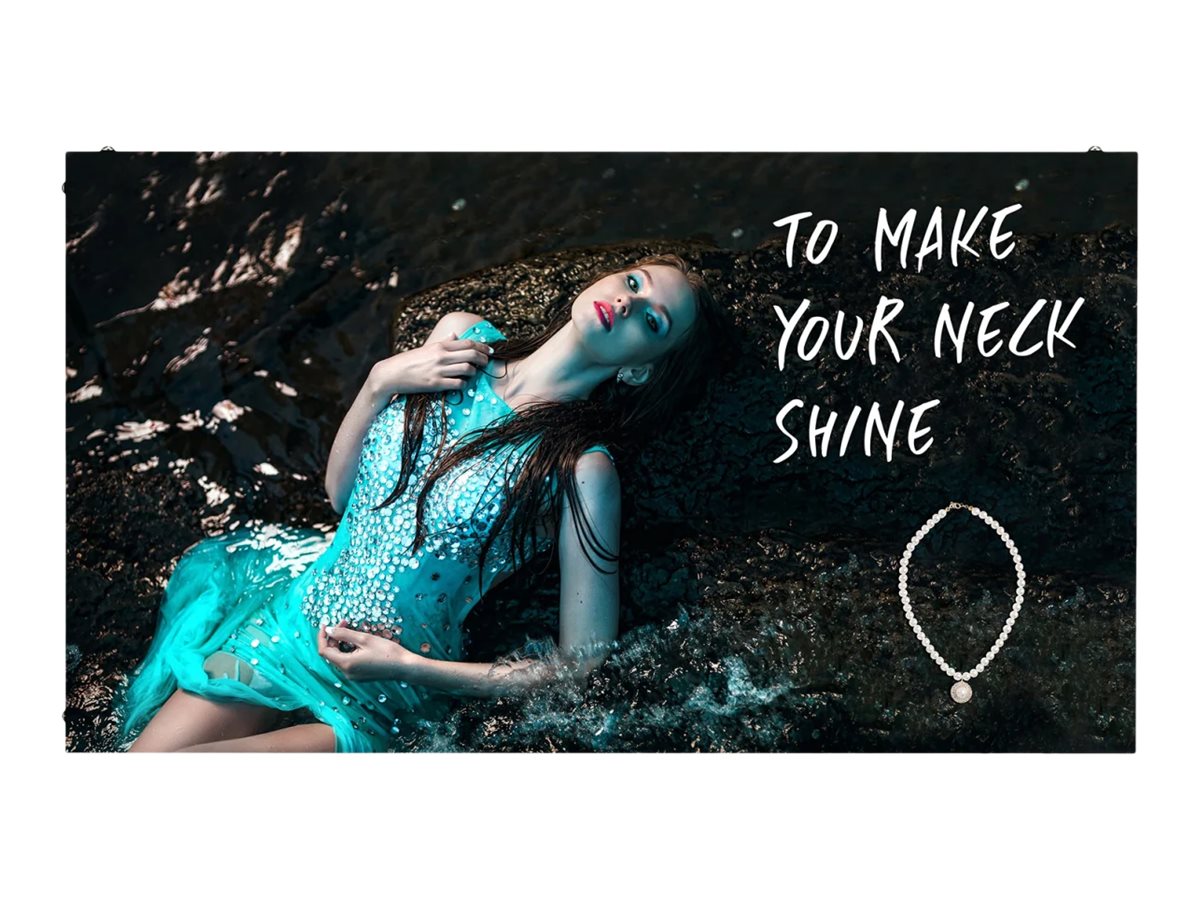

LG LSCB015-RK - LSCB Series LED display unit
MSRP$2,483.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LG LSCB015-RK - LSCB Series LED display unit
- digital signage 384 x 216 per unit
- SMD
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,483.00 |
| Mfr Part #: | LSCB015-RK |
| SHI Part #: | 43682427 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG LSCB015-RK - LSCB Series LED display unit - digital signage 384 x 216 per unit - SMD |
| Manufacturer | LG Electronics |
| MSRP | $2,483.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.38 cm |
| Dimensions & Weight / Height | 33.75 cm |
| Dimensions & Weight / Weight | 6 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 800 cd/m² |
| Television / Image Contrast Ratio | 5000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Display | |
| Additional Features | 14-bit Processing |
| Brightness | 800 cd/m² |
| Color Temperature | 3200 - 9300K |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 5000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -10 °C |
| General | |

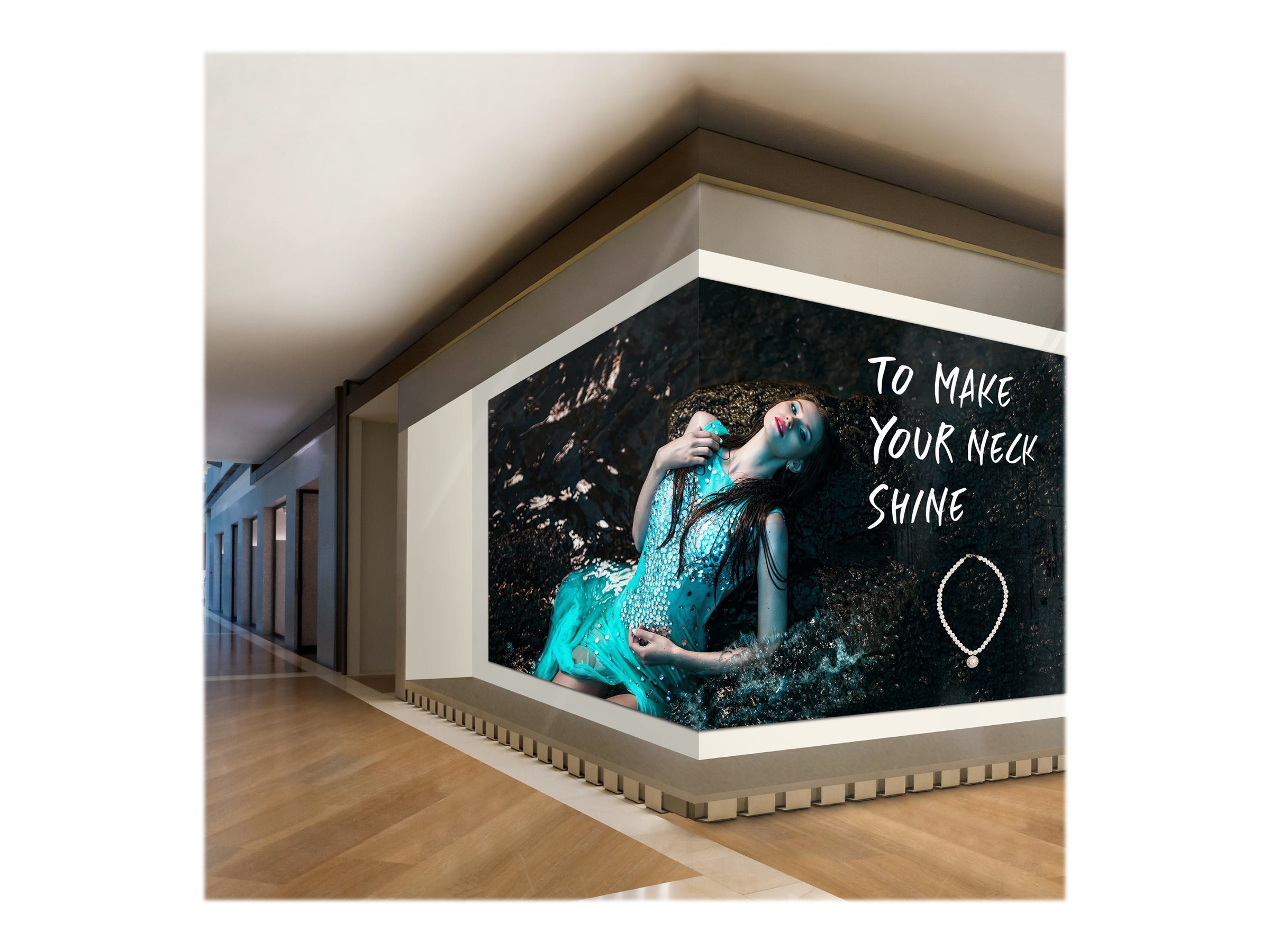

| Commercial Use | Yes - digital signage |
| Depth | 3.38 cm |
| Design | Ultra Slim |
| Dimensions | Display unit |
| Height | 33.75 cm |
| Product Type | LED display unit |
| Series | LSCB Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 6 kg |
| Width | 60 cm |
| Miscellaneous | |
| Compliant Standards | EMC Class B, IP30, BS 476 Part 7 Class 1 |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 150 W |
| Video Wall Display Unit Power Consumption (Typical) | 50 W |
| Video Wall Power Consumption (Max) | 740 W/m² |
| Video Wall Display Unit | |
| Area | 0.203 m² |
| Aspect Ratio | 16:9 |
| Cabinet Frame Material | Die-casting aluminum |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 2x2 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Density | 409600 pixels/m² |
| Pixel Pitch | 1.563 mm |
| Resolution | 384 x 216 |
