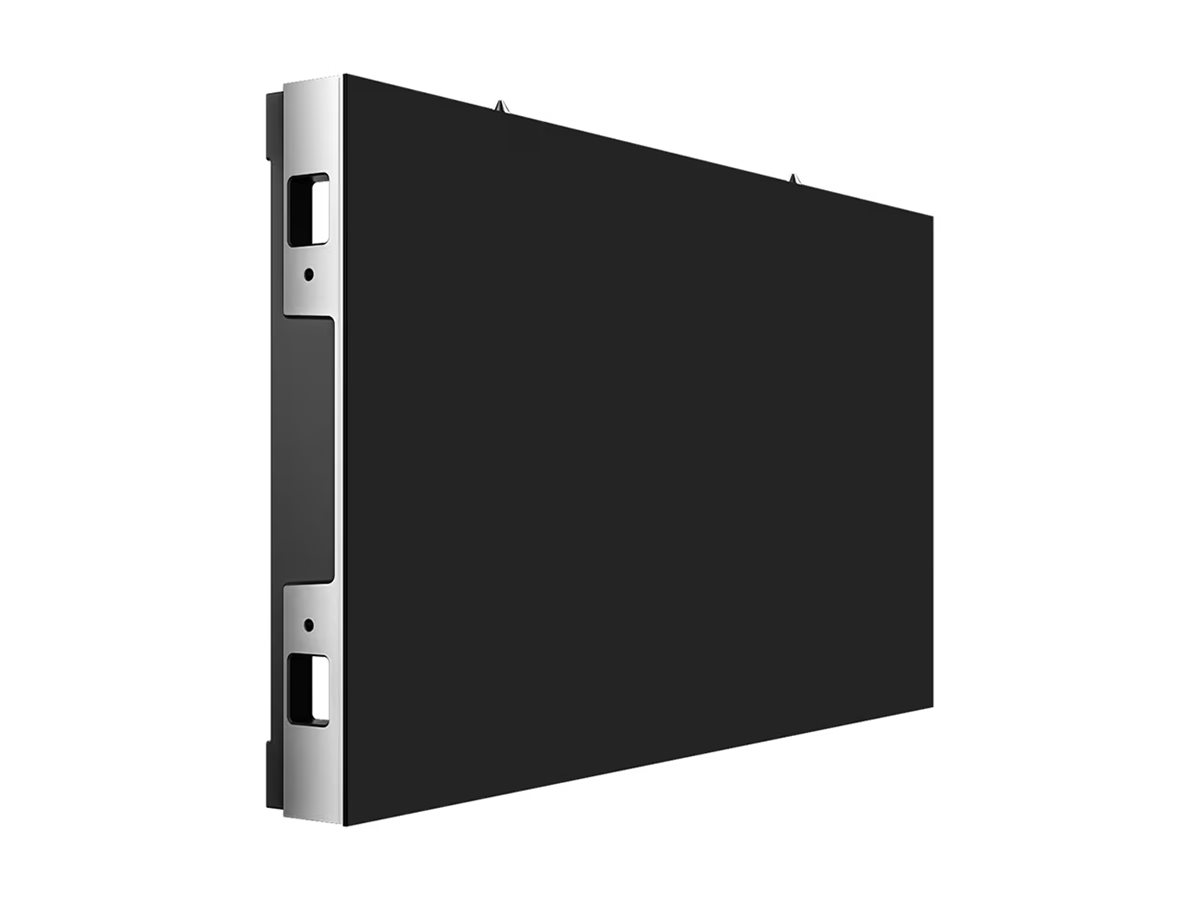

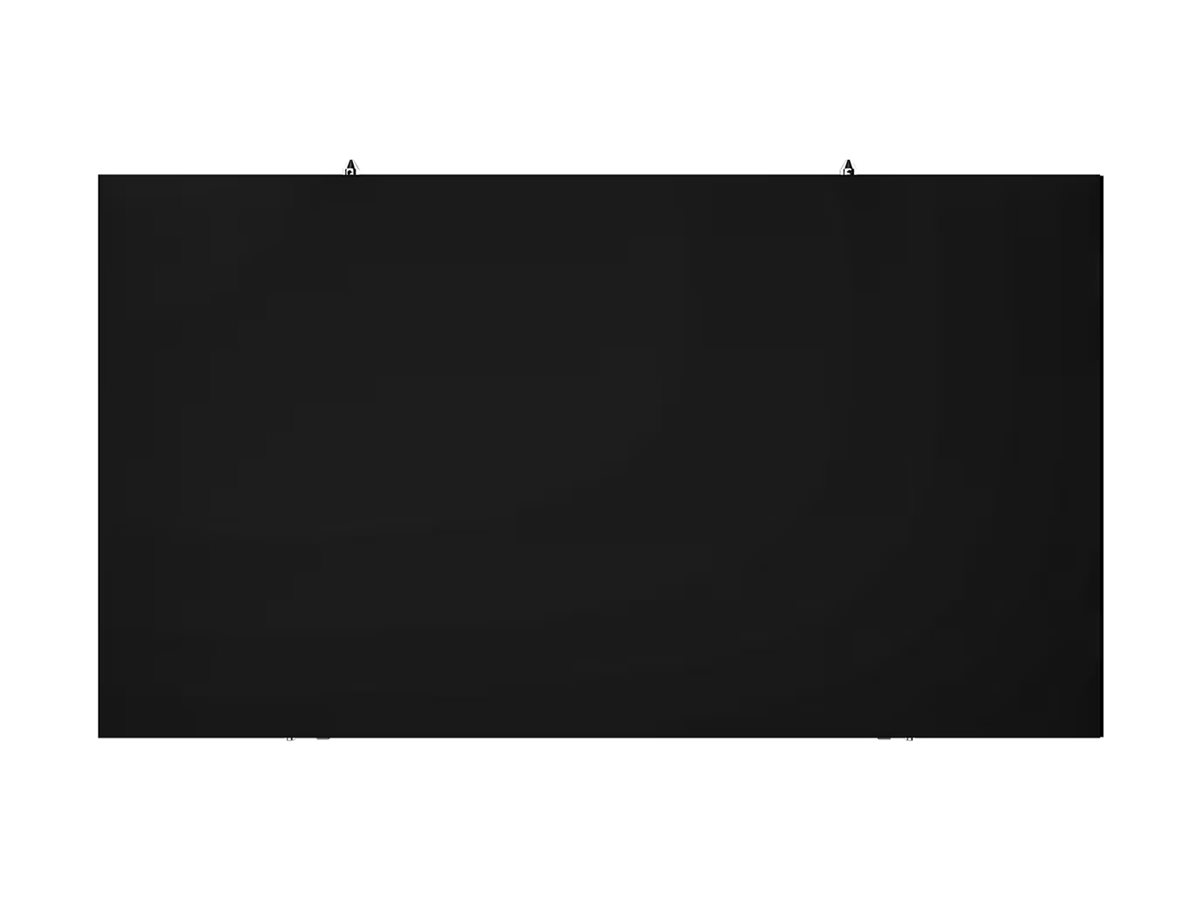

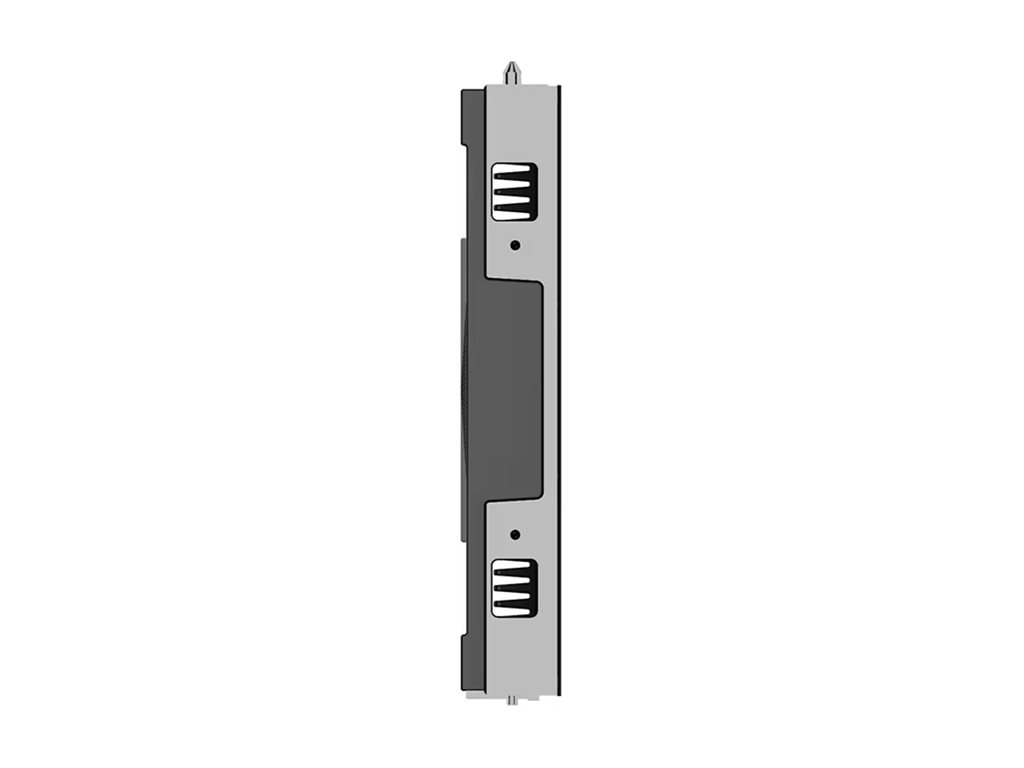

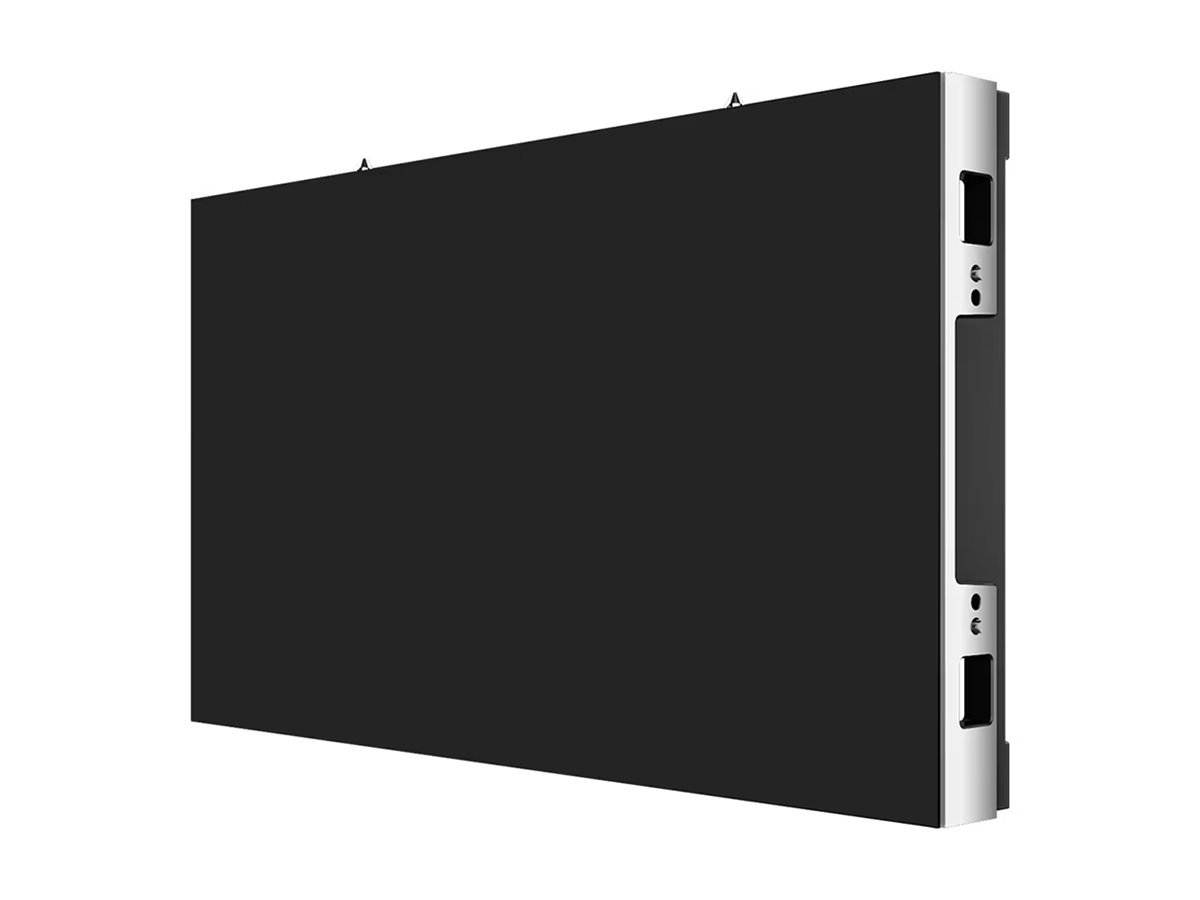

LG LSBB015-GD - LSBB Fine-pitch Essential series LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LG LSBB015-GD - LSBB Fine-pitch Essential series LED display unit
- digital signage 96 x 216 (LED unit) / 384 x 216 (cabinet) per unit
- 3-in-1 SMD
- HDR
- Direct View LED
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LSBB015-GD |
| SHI Part #: | 43682403 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG LSBB015-GD - LSBB Fine-pitch Essential series LED display unit - digital signage 96 x 216 (LED unit) / 384 x 216 (cabinet) per unit - 3-in-1 SMD - HDR - Direct View LED |
| Manufacturer | LG Electronics |
| MSRP | $2,417.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Height | 33.75 cm |
| Dimensions & Weight / Weight | 0.5 kg |
| Dimensions & Weight / Width | 15 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 600 cd/m² |
| Television / Image Contrast Ratio | 5000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Additional Features | 16-bit color processing, 97% brightness uniformity, 0.5 mm cabinet flatness |
| Brightness | 600 cd/m² |
| Color Temperature | 3200 - 9300K |
| Commercial Features | CVBA controller |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 5000:1 |
| LCD Backlight Technology | Direct View LED |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 140° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Design | Sleek Design |
| Dimensions | Display unit |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Height | 33.75 cm |
| Product Type | LED display unit |
| Series | LSBB Fine-pitch Essential series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 0.5 kg |
| Width | 15 cm |
| Miscellaneous | |
| Compliant Standards | TUV, FCC, RoHS, WEEE, REACH, IP5X |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 120 W |
| Video Wall Display Unit Power Consumption (Typical) | 40 W |
| Video Wall Power Consumption (Max) | 600 W/m² |
| Video Wall Display Unit | |
| Area | 0.203 m² |
| Cabinet Frame Material | Die-casting aluminum |
| LED Lifetime | 100000 hours |
| LED Type | 3-in-1 SMD |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 4x1 |
| Pixel Density | 409600 pixels/m² |
| Pixel Pitch | 1.563 mm |
| Resolution | 96 x 216 (LED unit) / 384 x 216 (cabinet) |
