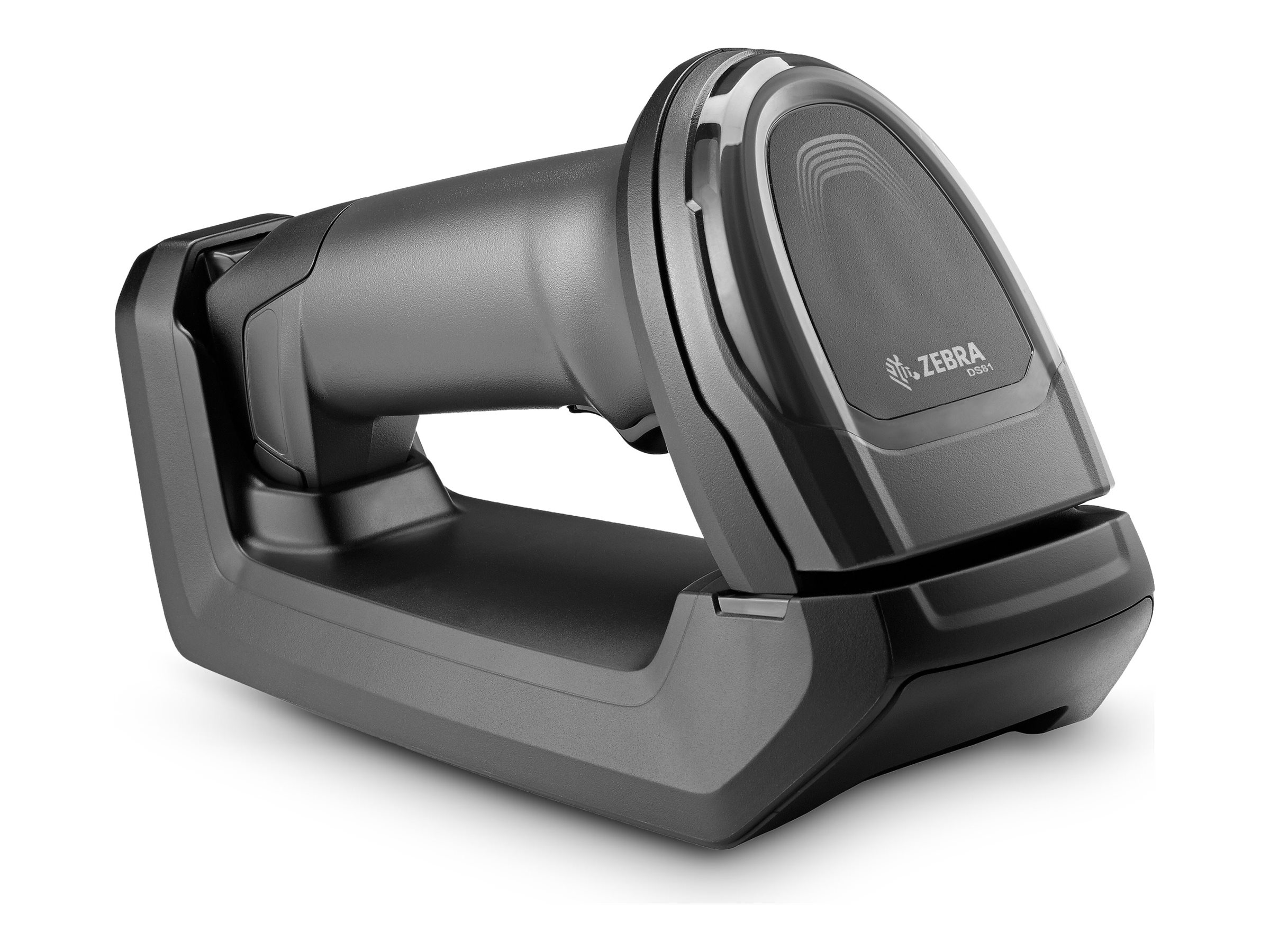

Zebra DS8100 Series DS8178
MSRP$1,370.79
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zebra DS8100 Series DS8178
- Barcode scanner
- handheld
- 2D imager
- decoded
- Bluetooth 4.0
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,370.79 |
| Mfr Part #: | DS8178-DLSU21SC-32 |
| SHI Part #: | 43170015 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Zebra DS8100 Series DS8178 - Barcode scanner - handheld - 2D imager - decoded - Bluetooth 4.0 |
| Manufacturer | Zebra Technologies |
| MSRP | $1,370.79 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.7 cm |
| Dimensions & Weight / Height | 16.8 cm |
| Dimensions & Weight / Weight | 235.3 g |
| Dimensions & Weight / Width | 6.6 cm |
| Header / Brand | Zebra |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, MicroPDF417, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, TLC39, Micro QR code, UPC/EAN supplementals, DotCode, Korean 3 of 5, Base 32, Chinese Sensible Code, Composite Codes, SecurPharm, Dotted DataMatrix, Postal Code, Aztec, I 2 of 5, DataMatrix |
| Features | PRZM Intelligent Imaging technology, red LEDs illumination, digital watermark technology, 15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge) |
| Interface Type | Bluetooth 4.0 |
| Light Source Wave Length | 617 nm |
| Max Working Distance | 93.5 cm |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Scan Element Type | 2D imager - LED |
| Scan Mode | Single-pass |
| Sensor Resolution | 1280 x 960 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 235.3 g |
| Width | 6.6 cm |
| Environmental Parameters | |
| Drop Specification | 1.8 m to concrete |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Twilight black |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, Bluetooth Class 1, Bluetooth Class 2, EN 61000-4-2, RoHS, FIPS 140-2, UL 60950-1, IP52, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, IEC 60950-1 (2nd Edition) + A1 + A2, CAN/CSA-C22.2 No. 60950-1-07, EN 55022 Class B, FCC 47 CFR Part 15 Subpart B Class B |
| Included Accessories | Cradle |
| Power | |
| Battery | Lithium ion |
| Processor | |
| Clock Speed | 800 MHz |
