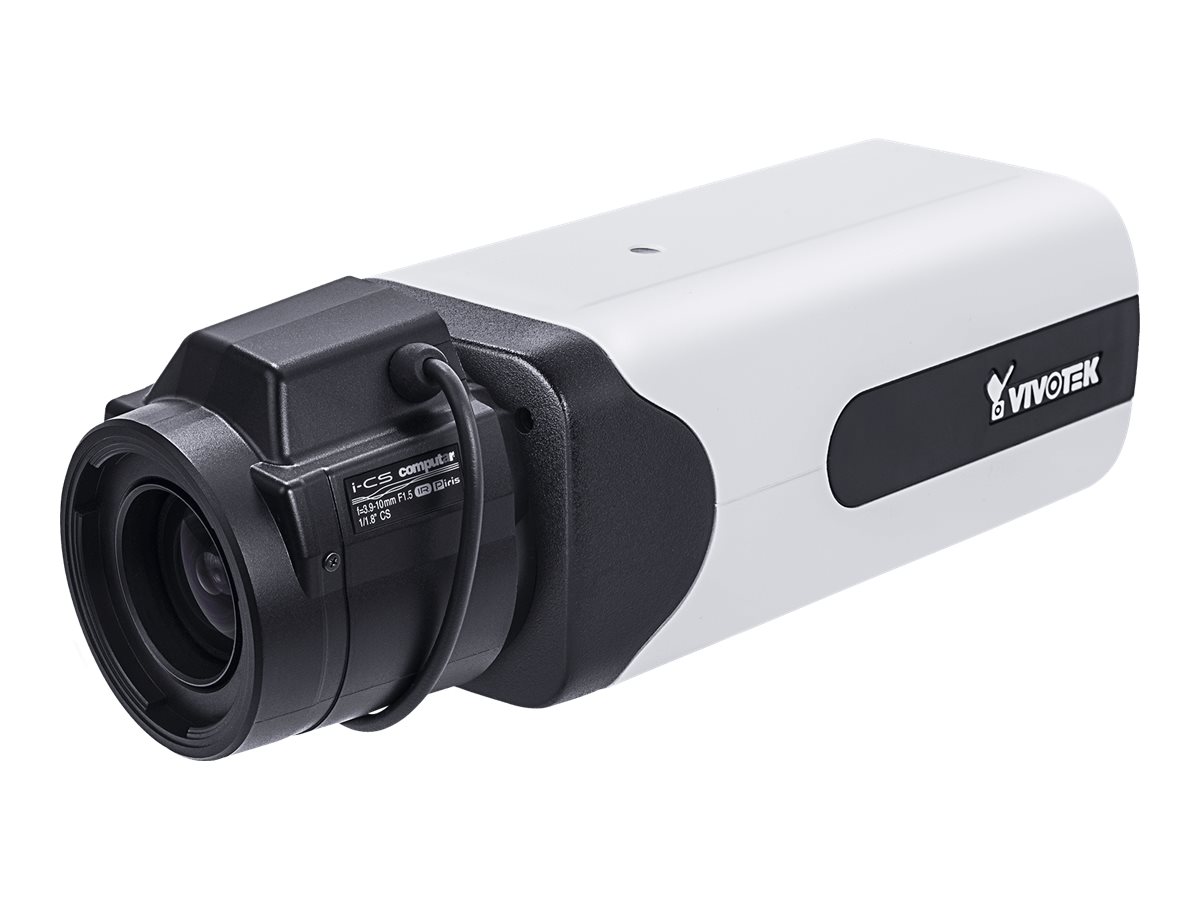

Vivotek S Series IP9165-HT-v2
MSRP$1,437.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Vivotek S Series IP9165-HT-v2
- Network surveillance camera
- color (Day&Night)
- 2 MP
- 1920 x 1080
- 1080p
- i-CS-mount
- auto iris
- motorized
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / AC 24 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,437.00 |
| Mfr Part #: | IP9165-HT-v2 |
| SHI Part #: | 43132762 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek S Series IP9165-HT-v2 - Network surveillance camera - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - i-CS-mount - auto iris - motorized - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE |
| Manufacturer | Vivotek |
| MSRP | $1,437.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21 cm |
| Dimensions & Weight / Height | 6.6 cm |
| Dimensions & Weight / Weight | 790 g |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | Backlight Compensation (BLC), date/time stamp, sharpness control, digital image rotation, white balance, saturation control, brightness control, Power over Ethernet, contrast control, image flip, image mirror, face detection, infrared cut filter, Privacy Mask Function, Auto Scene mode (ASCN), Highlight Compensation (HLC), ePTZ, NAS-Ready, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, tamper-detection, notification picture to E-mail, Camera Tampering Detection, notification picture to FTP, Smart Focus, Audio Detection, Defog, intrusion detection, 3D Digital Noise Reduction Technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, image overlay, exposure control, Line Crossing Detection, CorridorView, bit rate control, Smart Stream III, i-CS lens, Wide Dynamic Range (WDR) Pro II, Supreme Night Visibility II, Lens Shading Correction, missing object detection, unattended object detection, 3 video streams, ONVIF (Profile T) support, Gain Control, anti-overexposure, crowd detection |
| Flash Memory | 8 GB |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, G.711 |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 21 cm |
| Device Type | Network surveillance camera |
| Height | 6.6 cm |
| Weight | 790 g |
| Width | 7 cm |
| Image Sensor | |
| Type | 2 MP PS CMOS 1/2" |
| Interfaces | |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, SSL, QOS, CoS, DSCP, IGMPv3, CIFS, SFTP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 49 - 129.9 |
| Focal Length | 3.9 mm - 10 mm |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 42.7 - 109.7 |
| Lens Iris | F/1.5-2.7 auto iris (DC, P-Iris) |
| Optical Zoom | 2.6 x |
| Type | I-CS-mount - motorized zoom |
| Vertical Field of View (degree) | 23.9 - 58.5 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, cUL, LVD, BIS, IEEE 802.3af, IEEE 802.1x |
| Included Accessories | Stand |
| Power | |
| Power Device | 18 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
