Hanwha Vision WiseNet X XNV-9082R
MSRP$1,750.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

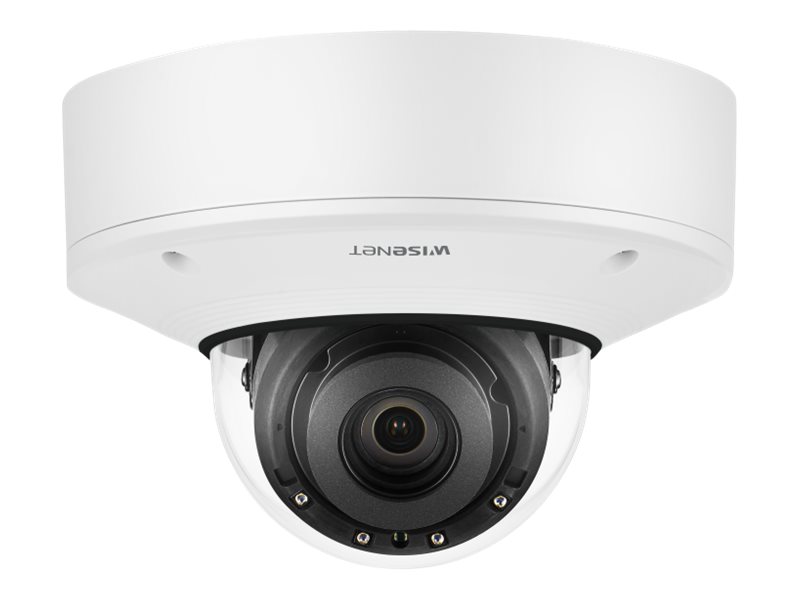

Hanwha Vision WiseNet X XNV-9082R
- Network surveillance camera
- dome
- outdoor
- vandal-proof
- color (Day&Night)
- 3840 x 2160
- auto iris
- motorized
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / AC 24 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,750.00 |
| Mfr Part #: | XNV-9082R |
| SHI Part #: | 43075631 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNV-9082R - Network surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 3840 x 2160 - auto iris - motorized - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $1,750.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18 cm |
| Dimensions & Weight / Height | 12.5 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 18 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), digital noise reduction, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), Camera Tampering Detection, auto tracking, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, entrance / exit detection, appearing / disappearing detection, people counting, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, Hallway View, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, sound classification |
| Flash Memory | 512 MB |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Video Capture | 3840 x 2160 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 18 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.5 cm |
| Weight | 1.9 kg |
| Width | 18 cm |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 46.3 - 133 |
| Focal Length | 2.8 mm - 8.4 mm |
| Horizontal Field of View (degree) | 40.2 - 114 |
| Lens Iris | F/1.2-2.8 auto iris (DC, P-Iris) |
| Min Focus Distance | 70 cm |
| Optical Zoom | 3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 22.5 - 62 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | FCC, NEMA Type 4X, cULus, IP67, IP66, EAC, IK10+, IEEE 802.3af, IEEE 802.1x, IP6K9K |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 13.5 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Software / System Requirements | |
| OS Required | Windows 8.1 or later, Apple macOS 10.13 or later |
| Tilting | |
| Range (degree) | -45 to +85 |
