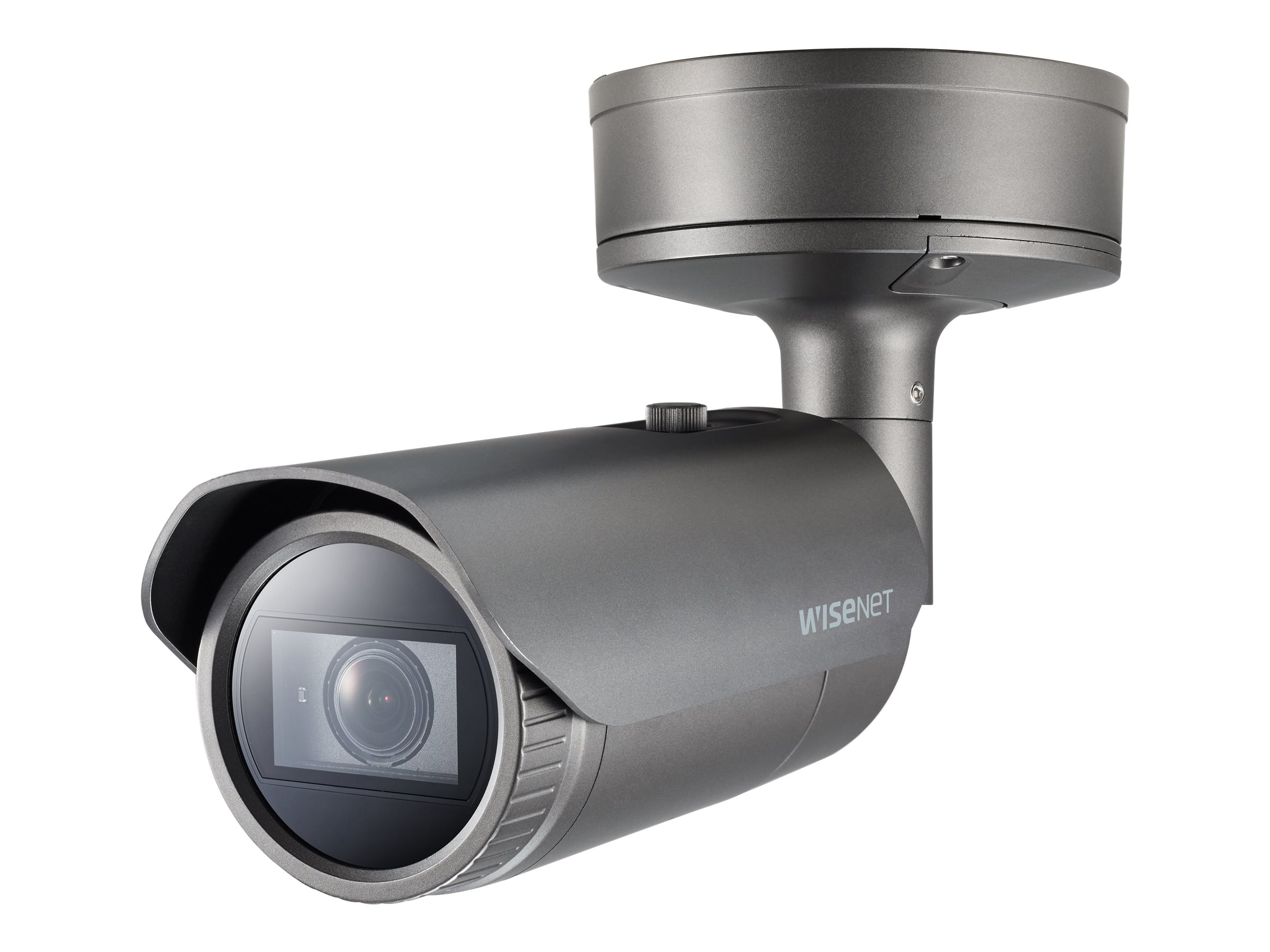

Hanwha Vision WiseNet X XNO-9082R
MSRP$1,750.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNO-9082R
- Network surveillance camera
- outdoor
- color (Day&Night)
- 3840 x 2160
- 4K
- auto iris
- motorized
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / AC 24 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,750.00 |
| Mfr Part #: | XNO-9082R |
| SHI Part #: | 43075579 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNO-9082R - Network surveillance camera - outdoor - color (Day&Night) - 3840 x 2160 - 4K - auto iris - motorized - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $1,750.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.1 cm |
| Dimensions & Weight / Height | 36.86 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 9.1 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, Hallway View, motion detection, Unicast Streaming, aluminum housing, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, body detection, sound classification, digital auto tracking |
| Flash Memory | 512 MB |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Video Capture | 3840 x 2160 @ 30 fps |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 9.1 cm |
| Device Type | Network surveillance camera |
| Height | 36.86 cm |
| Weight | 2.2 kg |
| Width | 9.1 cm |
| Image Sensor | |
| Type | CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 46.3 - 133 |
| Focal Length | 2.8 mm - 8.4 mm |
| Horizontal Field of View (degree) | 40.2 - 114 |
| Lens Iris | F/1.2-2.8 auto iris (DC, P-Iris) |
| Min Focus Distance | 70 cm |
| Optical Zoom | 3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 22.5 - 62 |
| Miscellaneous | |
| Color | Dark gray |
| Compliant Standards | FCC, NEMA Type 4X, cULus, IP67, IK10, IP66, EAC, IEEE 802.3af |
| Power | |
| Power Device | 14.5 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Software / System Requirements | |
| OS Required | Windows 8.1 or later, Apple macOS 10.13 or later |
