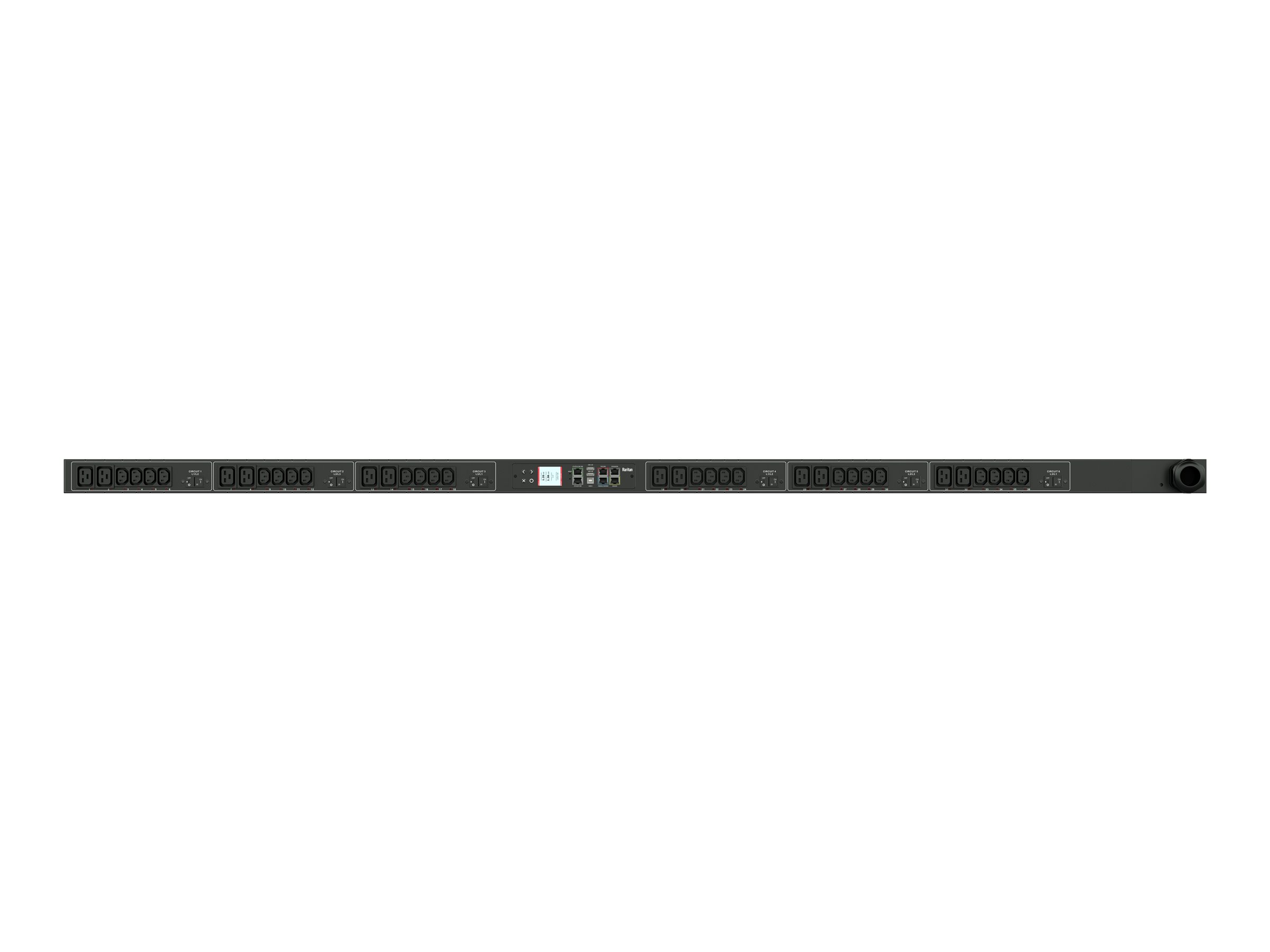

Raritan PX3-5749-V2 - Power distribution unit (rack-mountable)
MSRP$3,742.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5749-V2 - Power distribution unit (rack-mountable)
- AC 208 V
- 14400 VA
- 3-phase delta
- Ethernet 10/100/1000, USB, RS-232
- input: CS8365 3P+G
- output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,742.00 |
| Mfr Part #: | PX3-5749-V2 |
| SHI Part #: | 42878398 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5749-V2 - Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase delta - Ethernet 10/100/1000, USB, RS-232 - input: CS8365 3P+G - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $3,742.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 198.1 cm |
| Dimensions & Weight / Weight | 10.87 kg |
| Dimensions & Weight / Width | 5.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 14400 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 198.1 cm |
| Weight | 10.87 kg |
| Width | 5.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.5 cm |
| Shipping Height | 211 cm |
| Shipping Weight | 13.91 kg |
| Shipping Width | 36.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | cULus, ISO 62053-21, IEC 62053-21, UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Vertical orientation, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, 16MB SPI Flash, 64MB DDR2 RAM, LED indicators, ARM Cortex A5 CPU, power cable IP44 compliant, Raritan SecureLock Ready, cord retention, 6 x LEGBX66-20 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | JSON-RPC, Telnet, SSH, Modbus, TCP/IP, SNMP 3, TFTP, DHCP, CLI, HTTP, HTTPS, SNMP 2, SMTP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365 3P+G |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 40 A |
| Output Voltage | AC 240 V |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Power Output Connectors Details |
|
