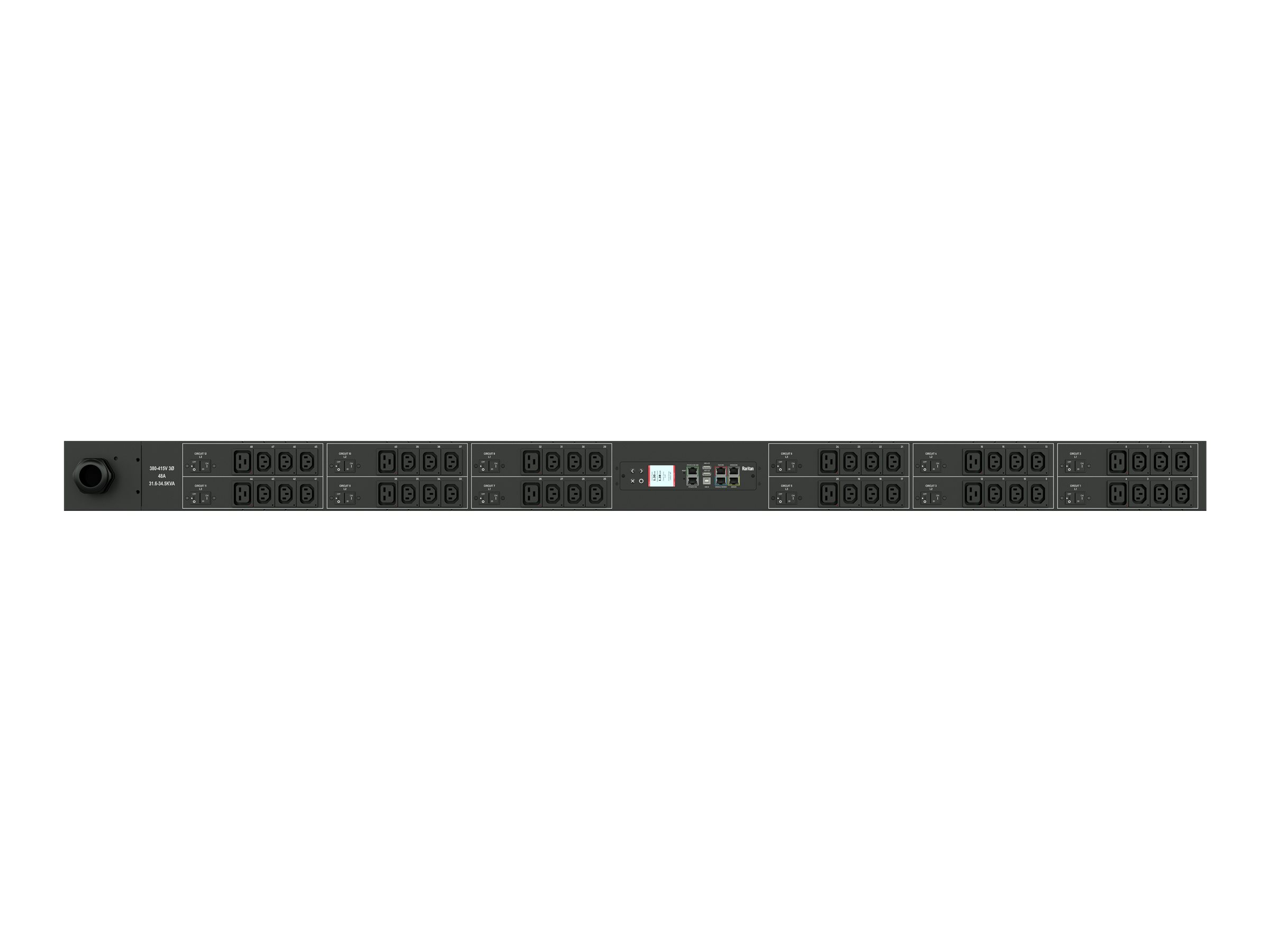

Raritan PX3-5747T-V2
MSRP$4,498.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5747T-V2
- Power distribution unit (rack-mountable)
- AC 415 V
- 34500 VA
- 3-phase WYE (star)
- RS-232, Ethernet 10/100/1000
- input: IEC 60309 3P+N+E
- output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 1 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,498.00 |
| Mfr Part #: | PX3-5747T-V2A1 |
| SHI Part #: | 42614161 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5747T-V2 - Power distribution unit (rack-mountable) - AC 415 V - 34500 VA - 3-phase WYE (star) - RS-232, Ethernet 10/100/1000 - input: IEC 60309 3P+N+E - output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 1 m cord - black |
| Manufacturer | Legrand |
| MSRP | $4,498.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Width | 10.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Power Capacity (VA) | 34500 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 178 cm |
| Width | 10.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18 cm |
| Shipping Height | 197 cm |
| Shipping Width | 43 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 1 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 1 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21 |
| Features | Powder coated, vertical orientation, tool-less button mount, LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, power cable IP67 compliant, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready, 12 x Airpax LELBX1-20 overload protection, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 60 A |
| Output Voltage | AC 230 V |
| Power Capacity | 34500 VA |
| Power Capacity Details | 31.6 kVA at 380 V, 34.5 kVA at 415 V |
| Power Output Connectors Details |
|
