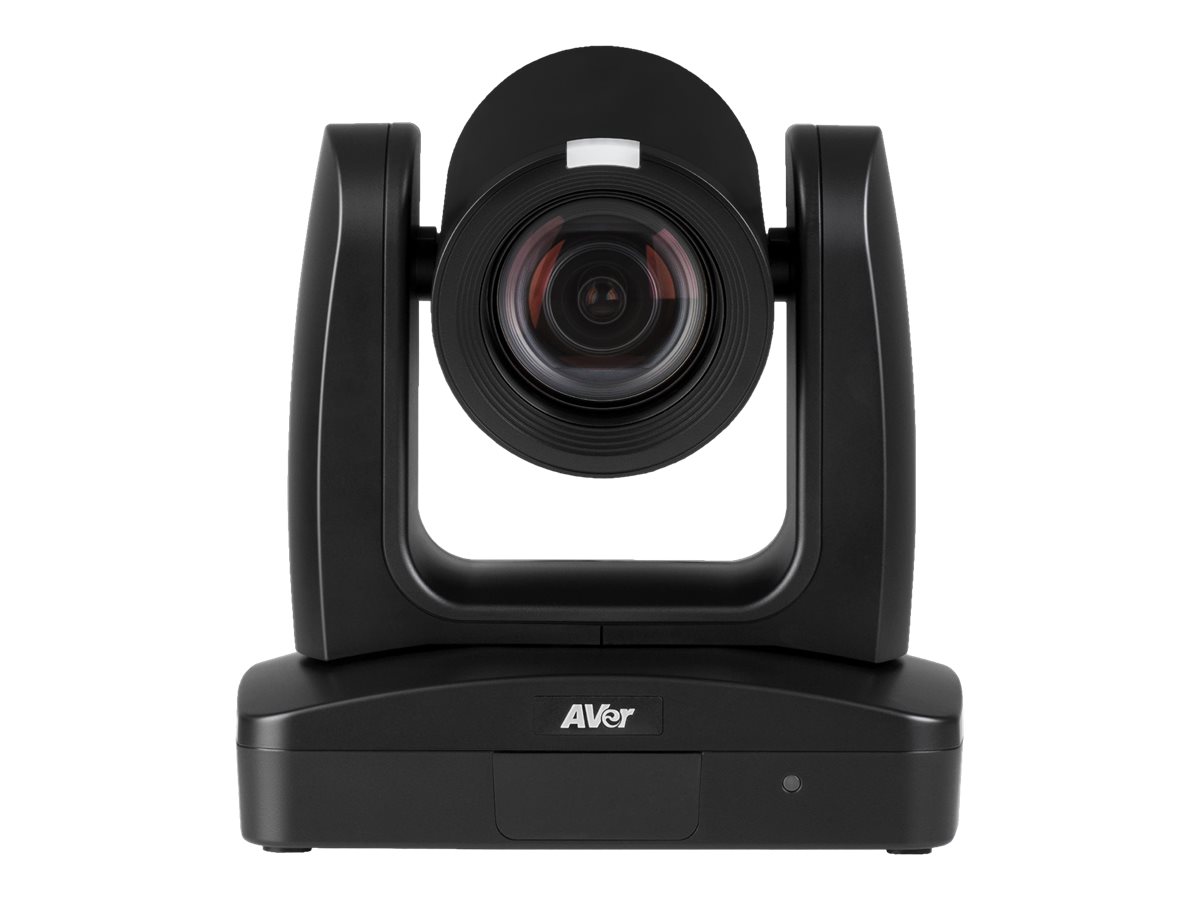

AVer TR331 - Conference camera

Login for Price
AVer TR331 - Conference camera
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • PTZ
  • indoor
  • color
  • 2 MP
  • 1920 x 1080
AVer TR331 - Conference camera
  • PTZ
  • indoor
  • color
  • 2 MP
  • 1920 x 1080
  • 720p, 1080p
  • motorized
  • 900 TVL
  • audio
  • HDMI, 3G-SDI, USB
  • GbE
  • MJPEG, H.264, H.265, YUV
  • DC 12 V / PoE Plus
  Additional Details
Mfr Part #: PAVPTR331
SHI Part #: 42549608
Category: Video conference cameras
UNSPSC: 45121506
Manufacturer: AVer Information
Product Type: Hardware
General Information
CategoryVideo conference cameras
DescriptionAVer TR331 - Conference camera - PTZ - indoor - color - 2 MP - 1920 x 1080 - 720p, 1080p - motorized - 900 TVL - audio - HDMI, 3G-SDI, USB - GbE - MJPEG, H.264, H.265, YUV - DC 12 V / PoE Plus
ManufacturerAVer Information
UNSPSC45121506
Main Specifications
Dimensions & Weight / Depth14.5 cm
Dimensions & Weight / Height18.35 cm
Dimensions & Weight / Weight1.7 kg
Dimensions & Weight / Width18 cm
Header / BrandAVer
Miscellaneous / Product ColorBlack
Packaged Quantity1
Service & Support / Type3-year warranty
Camera
Digital Video FormatMJPEG, H.264, H.265, YUV
Digital Zoom12
Exposure Range1 sec - 1/10000 sec
FeaturesManual white balance, Backlight Compensation (BLC), manual exposure, digital image freeze, auto exposure control, image flip, image mirror, Wide Dynamic Range (WDR), ONVIF support, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 256 preset positions, multi-streaming, security lock slot (cable lock sold separately), manual gain control, auto tracking, Variable Bitrate (VBR), Constant Bitrate (CBR), auto gain control, auto white balance, Artificial Intelligence, human detection
Frame Rate (max)60 frames per second
Horizontal Resolution (TV Lines)900
Max Digital Video Resolution1920 x 1080
Minimum Illumination0.7 lux F1.6 - 50 IRE - shutter 1/30 sec / AGC on
TypeColor - pan / tilt / zoom - indoor
Video Modes720p, 1080p
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Relative Humidity (operating)20 - 80%
Expansion / Connectivity
Ports
  • 3G-SDI - BNC
  • HDMI
  • LAN/power - RJ-45
  • USB 3.0 - Type C
  • Audio line-in/microphone
  • Serial RS-232
  • Serial RS-422
General
Audio FormatsAAC, PCM, G.711
Audio SupportYes
Connectivity TechnologyWired
Depth14.5 cm
Device TypeConference camera
Height18.35 cm
Weight1.7 kg
Width18 cm
Image Sensor
Type2 MP CMOS 1/2.8"
Interfaces
Control InterfaceRS-422, RS-232, VISCA
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsDHCP, HTTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, IPv4, IPv6, RTCP, IGMP, CGI, RTMP
VideoHDMI, 3G-SDI, USB
Lens Construction
Diagonal Field of View (degree)2.64 - 72.9
Focal Length4.3 mm - 129 mm
Focus AdjustmentAutomatic, manual
Horizontal Field of View (degree)2.34 - 65.1
Lens IrisF/1.6-4.7
Min Focus Distance10 cm
Optical Zoom30 x
TypeMotorized zoom
Vertical Field of View (degree)1.36 - 38.4
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • 1 x DB-9 to DIN-8 adapter - external
  • 1 x RS-232 cable - external
Compliant StandardsIEEE 802.3at
Included AccessoriesRemote control, ceiling mount kits, screws, cable fixing plate
Panning
Range (degree)-170 to +170
Speed (degree/sec)Up to 200
Power
Power DevicePower adapter - external 18 Watt
Power RequirementsDC 12 V / PoE Plus
Tilting
Range (degree)-30 to +90
Speed (degree/sec)Up to 200
