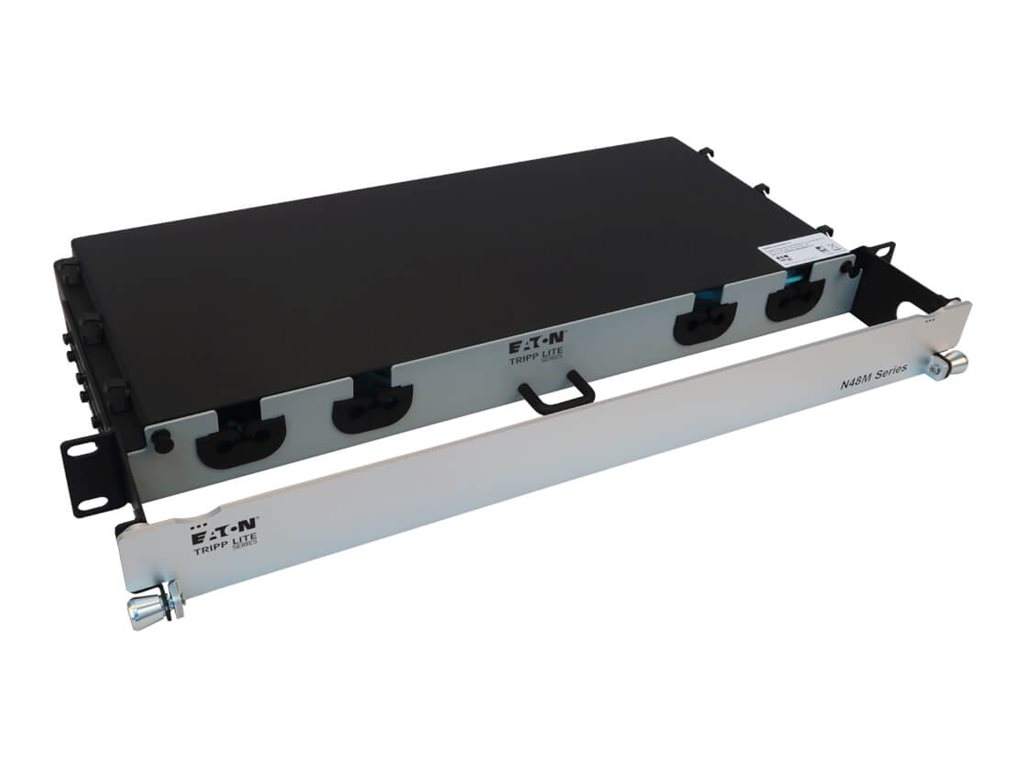

Eaton Tripp Lite Series Preloaded Fiber Panel, 1U
MSRP$4,484.03
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Eaton Tripp Lite Series Preloaded Fiber Panel, 1U

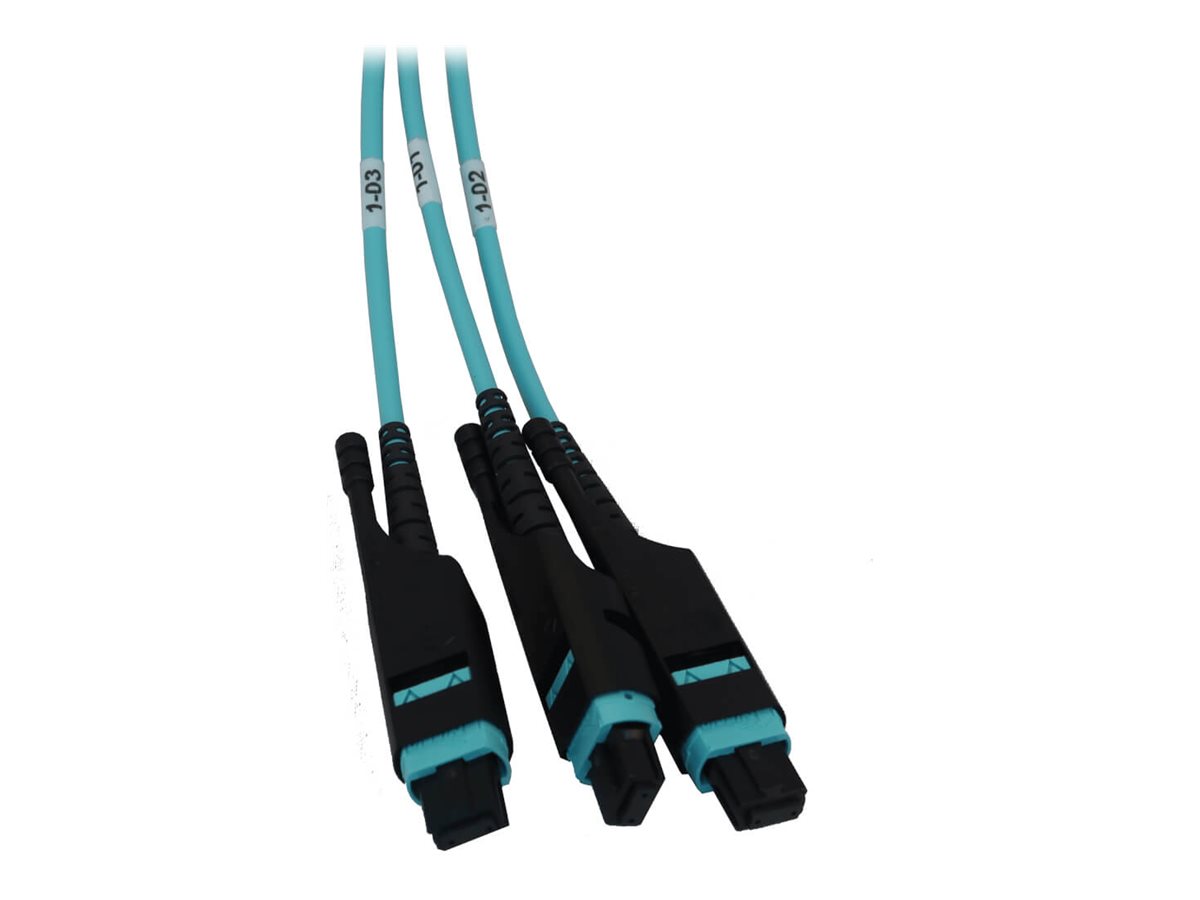

- 4x (3x8F MTP/MPO-PC F/F) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)
- Patch panel
- rack mountable
- 1U
- 19"
- 24 ports
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,484.03 |
| Mfr Part #: | N48M-4M3X8M-10 |
| SHI Part #: | 42505786 |
| Category: | Telephony demultiplexer |
| UNSPSC: | 43222800 |
| Manufacturer: | Eaton |
| Product Type: | Accessories |
| General Information | |
|---|---|
| Category | Telephony demultiplexer |
| Description | Eaton Tripp Lite Series Preloaded Fiber Panel, 1U - 4x (3x8F MTP/MPO-PC F/F) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.) - Patch panel - rack mountable - 1U - 19" - 24 ports |
| Manufacturer | Eaton |
| MSRP | $4,484.03 |
| UNSPSC | 43222800 |
| Main Specifications | |
| Cabling & Wiring / Port Qty | 24 ports |
| Dimensions & Weight / Depth | 25.9 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Product Type | Patch panel |
| Service & Support / Type | Limited lifetime warranty |
| Cabling & Wiring | |
| Compliant Standards | OM4 |
| Connector Provided | 24 x MTP/MPO multi-mode female |
| Core / Cladding Diameter | 50 / 125 micron |
| Port Qty | 24 ports |
| Technology | Fiber optic |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 48 cm |
| Shipping Height | 10.9 cm |
| Shipping Weight | 3.6 kg |
| Shipping Width | 57.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Depth | 25.9 cm |
| Height | 4.39 cm |
| Height (Rack Units) | 1U |

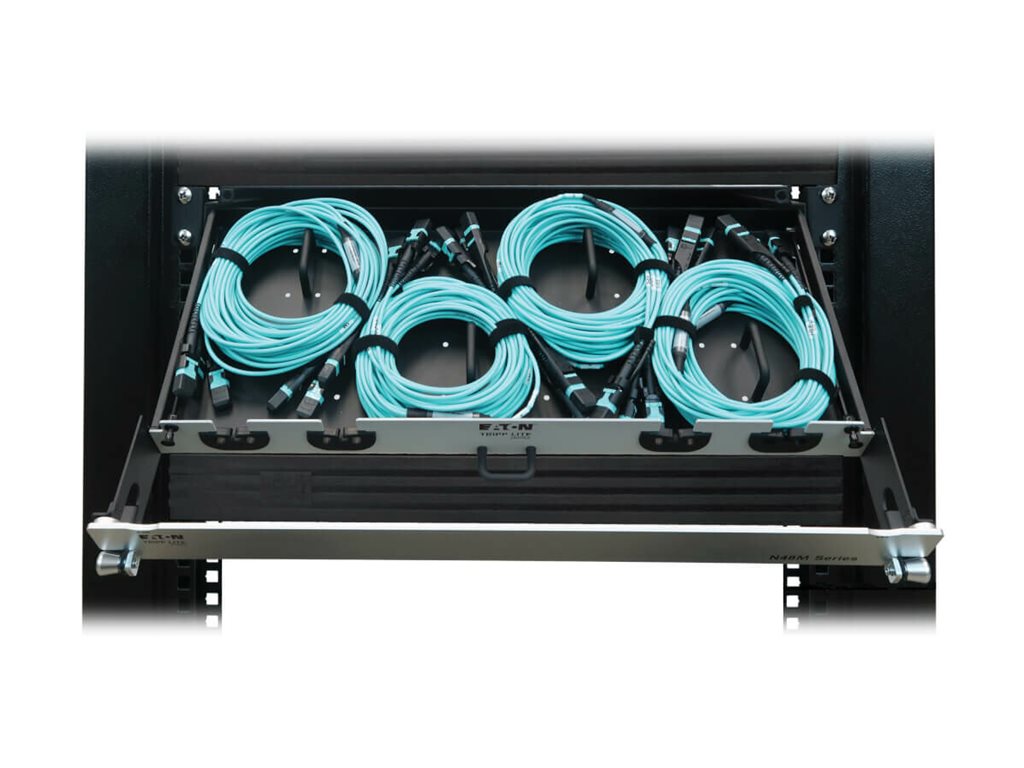

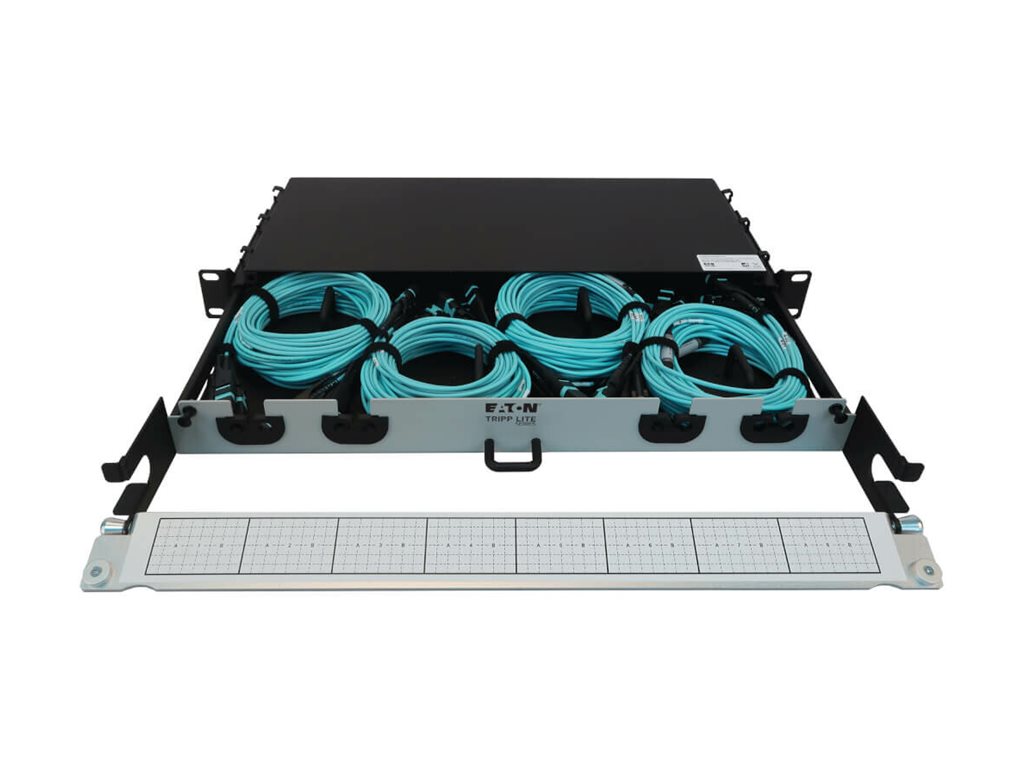

| Package Content | 4 x MTP/MPO-PC to MTP/MPO-PC trunk cables (10 m) |
| Placing / Mounting | Rack mountable |
| Product Type | Patch panel |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compatible Connector Type | MTP/MPO |
| Compliant Standards | OM4, RoHS, REACH |
| Features | Cable organizer |
| Rack Size | 19" |
