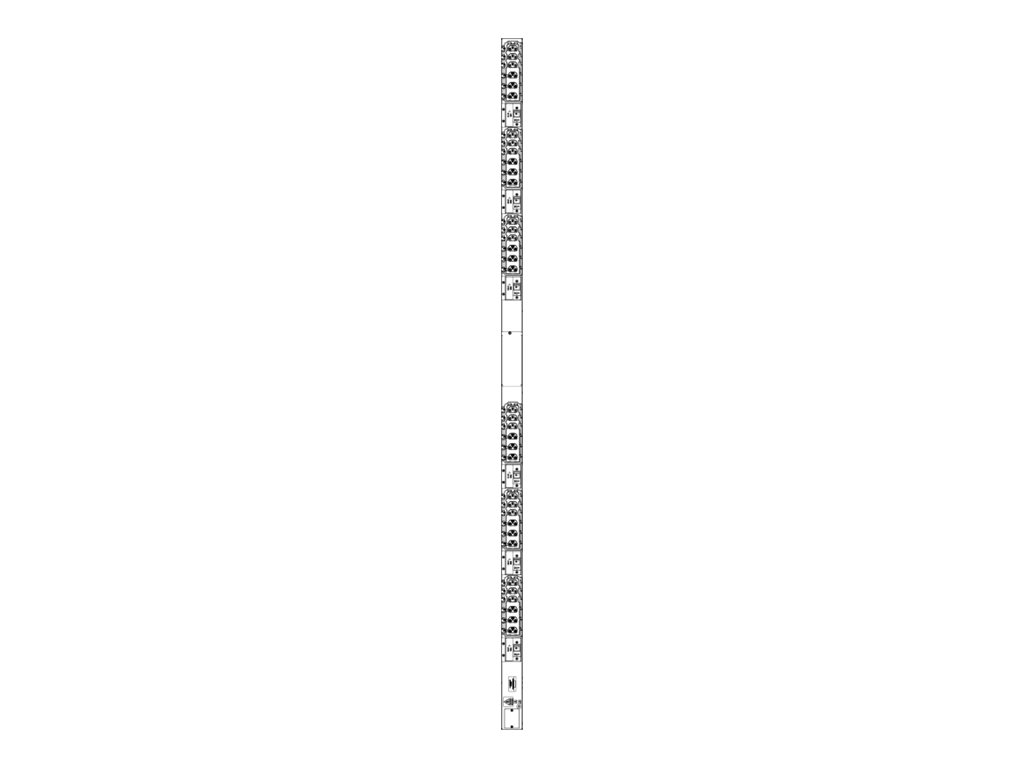

Server Technology PRO3X Smart PDU C3S36RL-YQJE2MT2

$2,745.00
Server Technology PRO3X Smart PDU C3S36RL-YQJE2MT2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Power distribution unit (rack-mountable)
  • AC 208 V
  • 17.3 kW
  • 3-phase WYE (star)
  • USB, Ethernet 10/100/1000
Server Technology PRO3X Smart PDU C3S36RL-YQJE2MT2
  • Power distribution unit (rack-mountable)
  • AC 208 V
  • 17.3 kW
  • 3-phase WYE (star)
  • USB, Ethernet 10/100/1000
  • input: IEC 60309 3P+N+G
  • output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
  Additional Details
Price: $2,745.00
Mfr Part #: C3S36RL-YQJE2MT2
SHI Part #: 42504903
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Legrand
Product Type: Hardware
General Information
CategoryRack systems for rack mount electroni...
DescriptionServer Technology PRO3X Smart PDU C3S36RL-YQJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase WYE (star) - USB, Ethernet 10/100/1000 - input: IEC 60309 3P+N+G - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
ManufacturerLegrand
MSRP$2,737.00
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth6.4 cm
Dimensions & Weight / Height177.8 cm
Dimensions & Weight / Width5.6 cm
General / SubcategoryPower distribution devices
Header / BrandServer Technology
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty36
Power Device / Voltage RequiredAC 208 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth6.4 cm
Height177.8 cm
Width5.6 cm
Environmental Parameters
Humidity Range Operating8 - 90% (non-condensing)
Max Operating Temperature60 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 2 x management (Gigabit Ethernet) - RJ-45
  • 1 x sensor - RJ-45
  • 1 x AUX
  • 1 x console/modem - RJ-45
  • 1 x USB - 4 pin USB Type A
  • 1 x USB - 4 pin USB Type B
  • 1 x sensor - RJ-45
General
Device TypePower distribution unit - rack-mountable
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 2 years
Miscellaneous
Compliant StandardsPlug and Play, UL, EMC, RoHS, IEC 60950-1, WEEE, UL 489, cTUVus, TUV T, Directive 2011/65/EU, FCC Part 15 B 15.109A, EN 55024:2010, TLS v1.2, EN 55032:2012, UL 248, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, ANSI C12.1, FCC Part 15 B 15.107A, EN 60950-1:2006+A11+A1+A12+A2, UL 60950-1:2007 R10.14
FeaturesLED display, voltage monitoring, current meter, master / slave connections, vertical orientation, email alerts support, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), Per Outlet Power Sensing (POPS), measurement per phase, High Density Outlet Technology (HDOT), apparent power meter, crest factor meter, hot-swappable controller, Branch Current Monitoring, Branch Circuit Protection, environmental sensor ready, simplified load balancing, Ramlock Locking Outlets, Raritan Xerus Technology, Multi Master Linking, 20A trip circuit breakers, 10 kAIC Interrupt Rating
Networking
Remote Management InterfaceUSB, Ethernet 10/100/1000
Remote Management ProtocolSNMP, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI, SFTP, SMTP, IPv4, IPv6, TACACS+, LDAP, RADIUS
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x power IEC 60309 3P+N+G
Input VoltageAC 208 V
Input Wiring3-phase WYE (star)
Max Electric Current60 A
Output VoltageAC 208 V 50/60 Hz
Power Capacity17.3 kW
Power Output Connectors Details
  • 18 x power IEC 60320 C13 12 A
  • 18 x power IEC 60320 Cx 16 A
