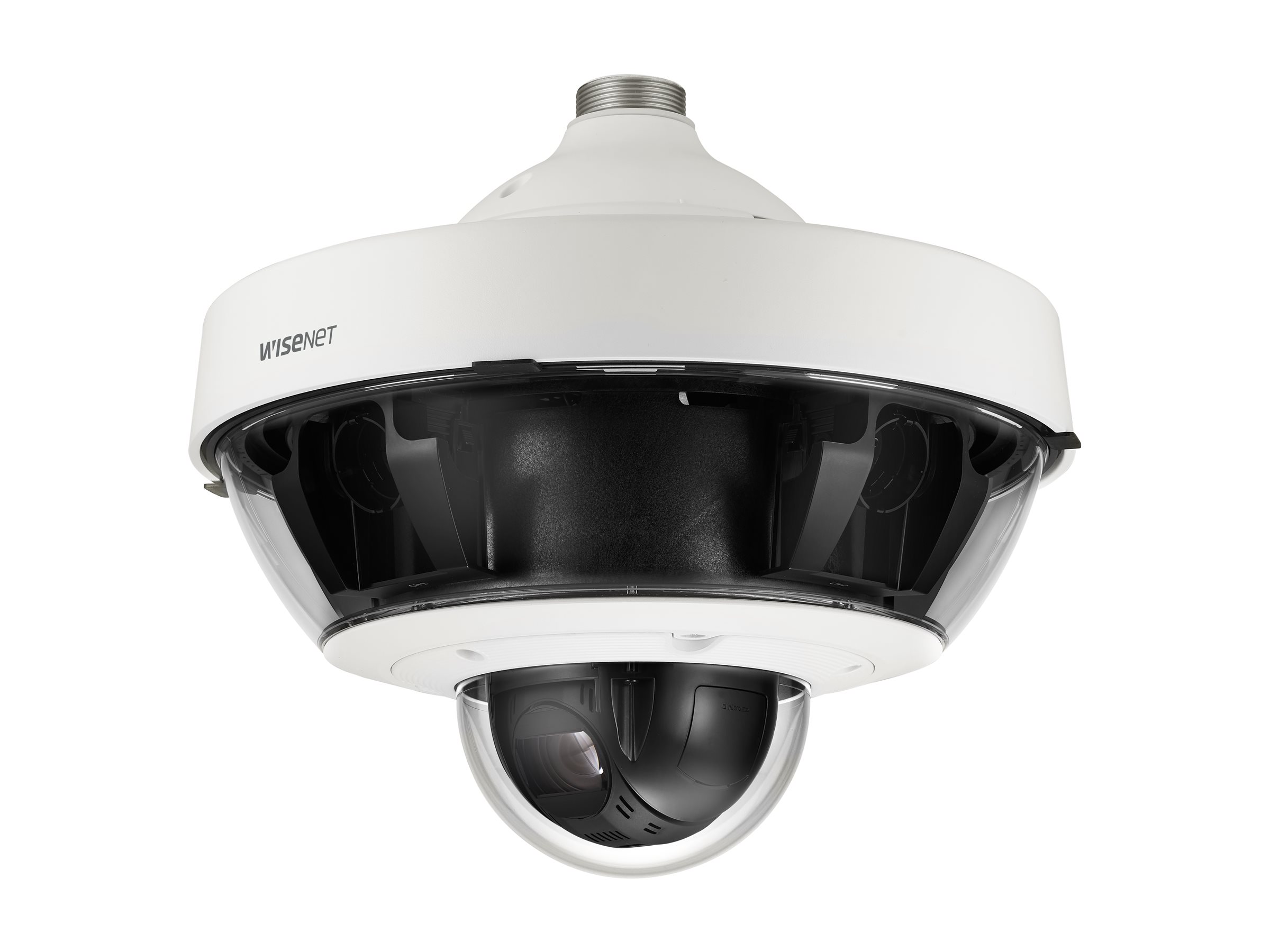

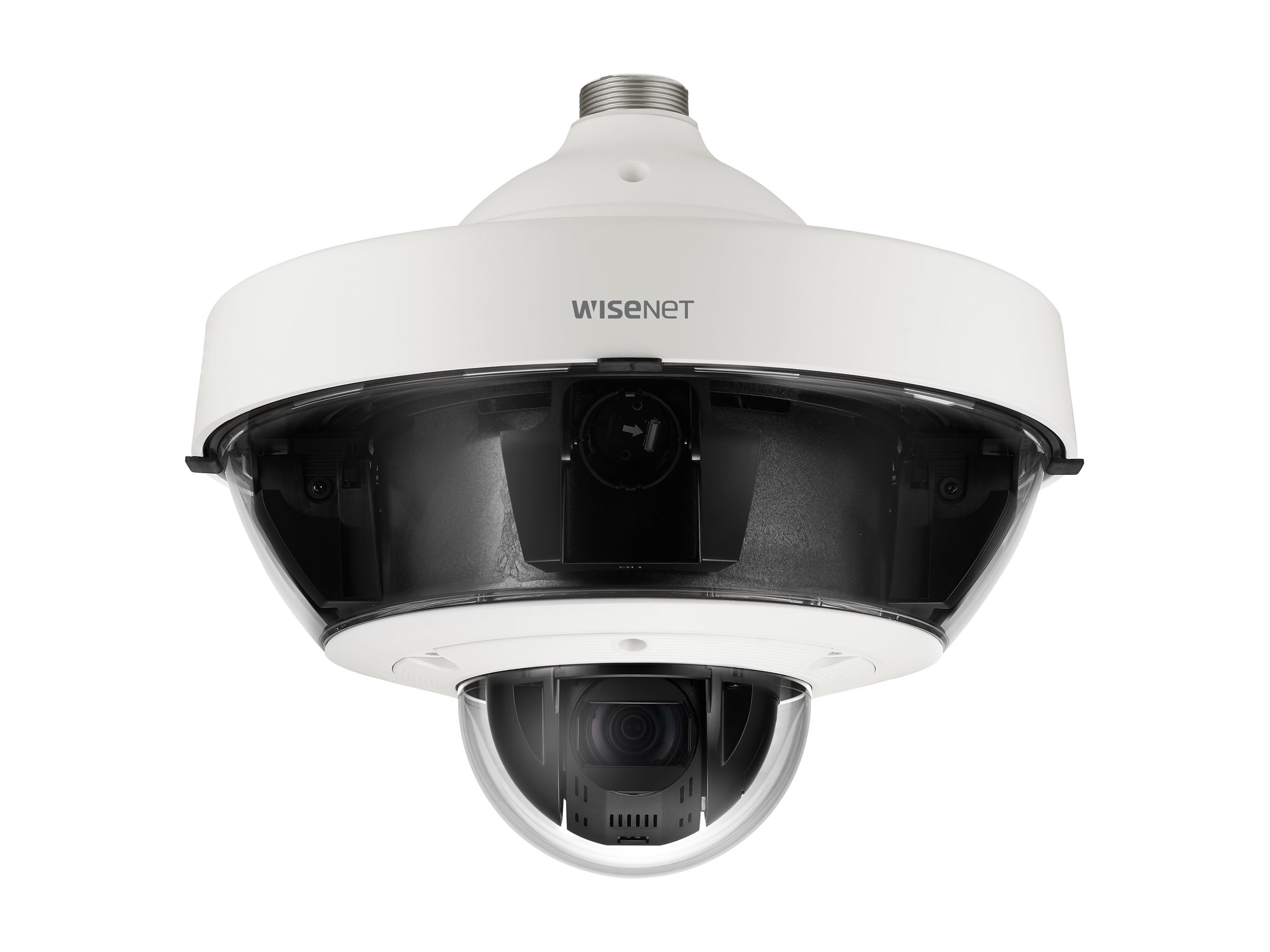

PNM-9322VQP 2MP/5MPX4+2MP 5CHPTZ CAM IP66 IK10 WDR RJ45 WHITE
MSRP$6,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
PNM-9322VQP 2MP/5MPX4+2MP 5CHPTZ CAM IP66 IK10 WDR RJ45 WHITE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,200.00 |
| Mfr Part #: | PNM-9322VQP |
| SHI Part #: | 42214877 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | PNM-9322VQP 2MP/5MPX4+2MP 5CHPTZ CAM IP66 IK10 WDR RJ45 WHITE |
| Manufacturer | HANWHA VISION |
| MSRP | $6,200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 36.78 cm |
| Dimensions & Weight / Height | 33.57 cm |
| Dimensions & Weight / Weight | 7.05 kg |
| Dimensions & Weight / Width | 36.78 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-4 AVC |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, loitering detection, appearing / disappearing detection, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, anti-flicker, IP address filtering, Hallway View, built-in gyroscope, fog detection, Unicast Streaming, built-in 4 head multi-directional camera (no lens modules), Virtual Line detection, Directional Detection, 2D Noise Filtering |
| Flash Memory | 1.28 GB |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| RAM | 5 GB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 36.78 cm |
| Device Type | Network surveillance camera |
| Height | 33.57 cm |
| Weight | 7.05 kg |
| Width | 36.78 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 4.44 mm - 142.6 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.19 - 61.8 |
| Lens Iris | F/1.6-4.4 auto iris (DC) |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 32 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.24 - 36.2 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IK10, IP66, IEEE 802.1x |
| Included Accessories | PoE injector |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 700 |
| Power | |
| Power Device | 65 Watt |
| Power Requirements | High PoE Class 8 |
| Tilting | |
| Range (degree) | -5 to +185 |
| Speed (degree/sec) | Up to 700 |
