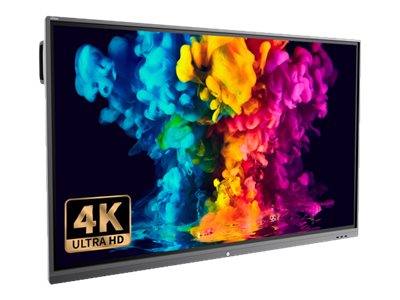

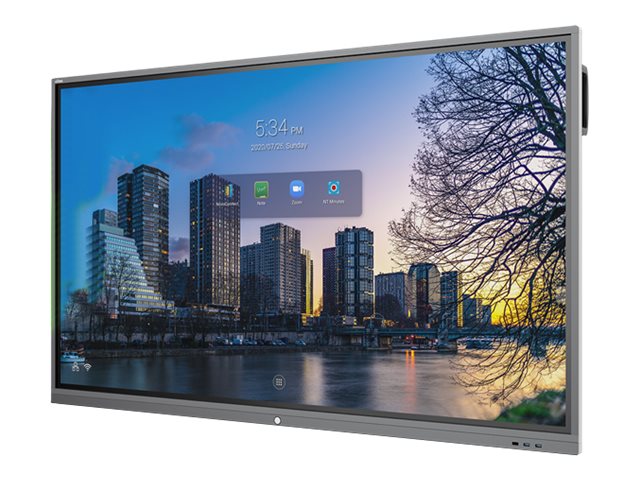

Vivitek NovoTouch EK863i


Vivitek NovoTouch EK863i

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 86" Diagonal Class EK Series LED display
  • interactive
  • with built-in interactive whiteboard, touchscreen (multi touch)
  • 4K UHD (2160p) 3840 x 2160
  • D-LED Backlight
Vivitek NovoTouch EK863i
  • 86" Diagonal Class EK Series LED display
  • interactive
  • with built-in interactive whiteboard, touchscreen (multi touch)
  • 4K UHD (2160p) 3840 x 2160
  • D-LED Backlight
  • gray
  Additional Details
Mfr Part #: EK863I
SHI Part #: 42189063
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: Vivitek
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionVivitek NovoTouch EK863i - 86" Diagonal Class EK Series LED display - interactive - with built-in interactive whiteboard, touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - D-LED Backlight - gray
ManufacturerVivitek
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth9.14 cm
Dimensions & Weight / Height116 cm
Dimensions & Weight / Weight70.8 kg
Dimensions & Weight / Width195.7 cm
Display / Diagonal Size86 in
Header / BrandVivitek
Miscellaneous / Product ColorGray
Service & Support / Type3-year warranty
Television / Brightness500 cd/m²
Television / Combined withBuilt-in interactive whiteboard, touchscreen (multi touch)
Television / Diagonal Size86 in
Television / Diagonal Size (cm)218 cm
Television / Display Format4K UHD (2160p)
Television / Image Aspect Ratio16:9
Television / Image Contrast Ratio4000:1
Television / PC InterfaceVGA (HD-15)
Television / Resolution3840 x 2160
Television / TypeLED-backlit LCD flat panel display
Television / Viewing Angle178°
Audio System
Output Power / Total32 Watt
Speaker System2 speakers
Speakers2 x main channel speaker - 16 Watt
Connections
Connector Type
  • 3 x HDMI input
  • Audio line-out
  • VGA input
  • 2 x USB 2.0
  • USB 3.0
  • 2 x touch
  • RS-232
  • LAN
  • HDMI output
  • SPDIF output
  • Audio line-out
Display
Additional FeaturesInfrared touch technology, OPS Slot
Backlight Life30,000 hour(s)
Brightness500 cd/m²
Coating7H Hard
Display Format4K UHD (2160p)
Frame Rate & Enhancement Technology60 Hz Refresh Rate
Image Aspect Ratio16:9
Image Contrast Ratio4000:1
LCD Backlight TechnologyDirect-lit LED
LCD Display TechnologyIPS
Resolution3840 x 2160
Touchpoints Qty20
Viewing Angle178°
Viewing Angle (Vertical)178°
General
Combined WithBuilt-in interactive whiteboard, touchscreen (multi touch)
Commercial UseYes - interactive
Depth9.14 cm
Diagonal Class86"
Enclosure ColorGray
HDMI Ports Qty3 ports
Height116 cm
ModesLandscape mode
Operating SystemAndroid OS 8.0
PC InterfaceVGA (HD-15)
Power Consumption Operational450 Watt
Product TypeLED-backlit LCD flat panel display
ProtectionToughened glass
SeriesEK Series
TV TunerNo tuner
TV Tuner PresenceNo
Video InterfaceHDMI
Weight70.8 kg
Width195.7 cm
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Media Player
Configuration3 GB DDR3 - 16 GB Flash - Mali G51
USB PortYes
USB Ports Qty3
Miscellaneous
Cables Included
  • VGA cable
  • USB cable
  • HDMI cable
  • Audio cable
Included Accessories2 styluses, Wi-Fi dongle
Network & Internet Multimedia
Connect & ShareScreen Mirroring
ConnectivityWi-Fi, LAN
Wi-Fi Protocol802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
Power
Input VoltageAC 120/230 V (50/60 Hz)
On / Off SwitchYes
Power Consumption Stand by0.5 Watt
Power DevicePower supply
Remote Control
Battery IncludedYes
TypeRemote control
Stands & Mounts
Flat Panel Mount Interface800 x 400 mm
VESA CompatibilityYes
Wall Mount IncludedYes
