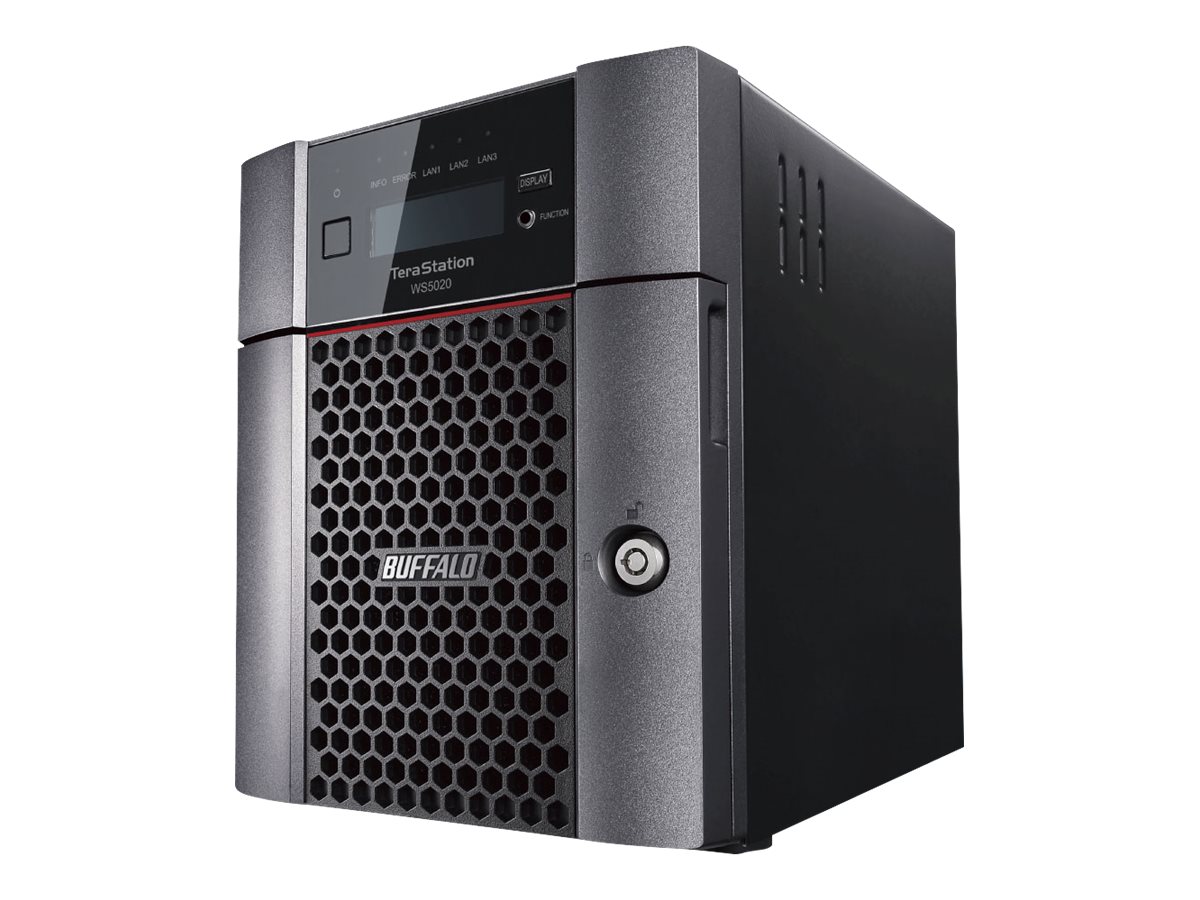

BUFFALO WS5420DNS9 Series WS5420DN08S9
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
BUFFALO WS5420DNS9 Series WS5420DN08S9
- NAS server
- 8 TB
- SATA 6Gb/s
- HDD 2 TB x 4
- RAID RAID 0, 1, 5
- RAM 8 GB
- Gigabit Ethernet / 10 Gigabit Ethernet
| Additional Details | |
|---|---|
| Mfr Part #: | WS5420DN08S9 |
| SHI Part #: | 42168015 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Buffalo Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | BUFFALO WS5420DNS9 Series WS5420DN08S9 - NAS server - 8 TB - SATA 6Gb/s - HDD 2 TB x 4 - RAID RAID 0, 1, 5 - RAM 8 GB - Gigabit Ethernet / 10 Gigabit Ethernet |
| Manufacturer | Buffalo Technology |
| UNSPSC | 43211501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23 cm |
| Dimensions & Weight / Height | 21.5 cm |
| Dimensions & Weight / Weight | 7.4 kg |
| Dimensions & Weight / Width | 17 cm |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | Buffalo |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | C3338 |
| Processor / Type | Atom |
| Service & Support / Type | 3-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap |
| Interfaces |
|
| General | |
| Depth | 23 cm |
| Device Type | NAS server |
| Height | 21.5 cm |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 8 TB |
| Weight | 7.4 kg () |
| Width | 17 cm |
| Hard Drive | |
| Capacity | 4 x 2 TB |
| Interface Type | SATA 6Gb/s |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | RoHS, VCCI Class A |
| Features | LCD display |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Features | Half duplex mode, full duplex mode, cloud backup |
| Network / Transport Protocol | TCP/IP, UDP/IP, SMB |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), Server Message Block (SMB), Apple File Protocol (AFP) |
| Power | |
| Power Consumption Operational | 85 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100 V (50/60 Hz) |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.2 GHz |
| Number of Cores | Dual-Core |
| Processors Installed | 1 x Intel Atom C3338 1.5 GHz |
| RAM | 8 GB DDR4 |
| Software / System Requirements | |
| Software Included | NAS Navigator2, NovaBACKUP Buffalo Edition |
| Storage Operating System | Microsoft Windows Storage Server 2019 Standard |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Type | RAID |
