Raritan PX3-5732V - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

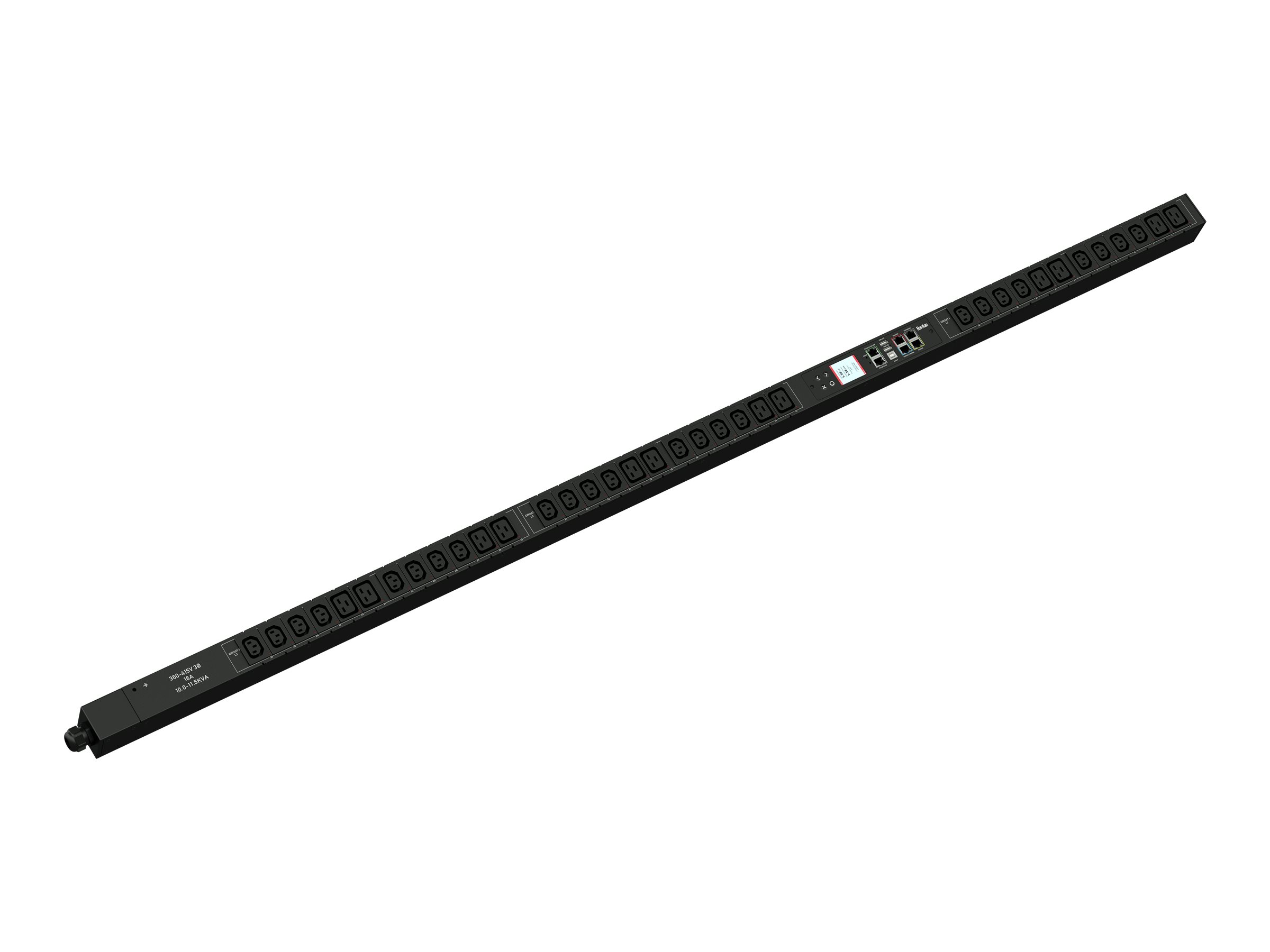

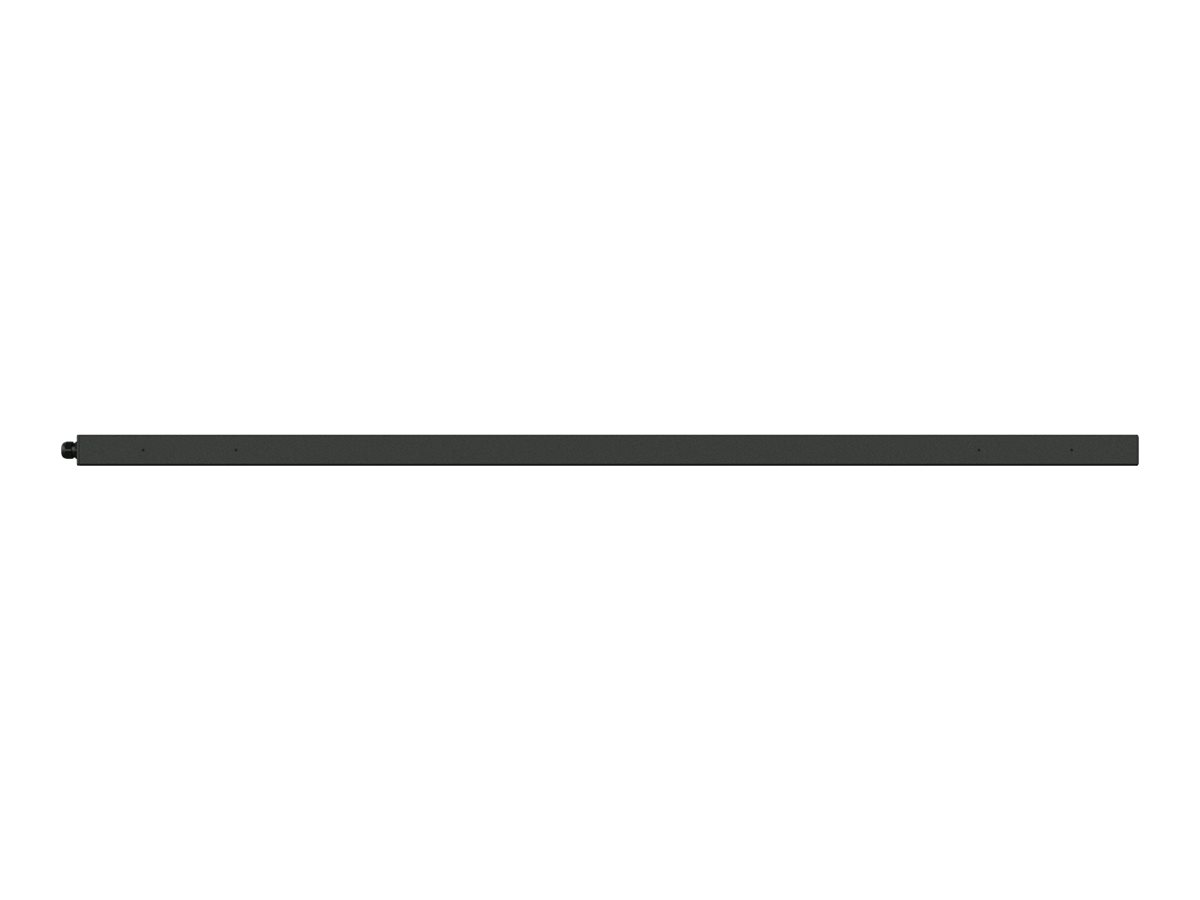

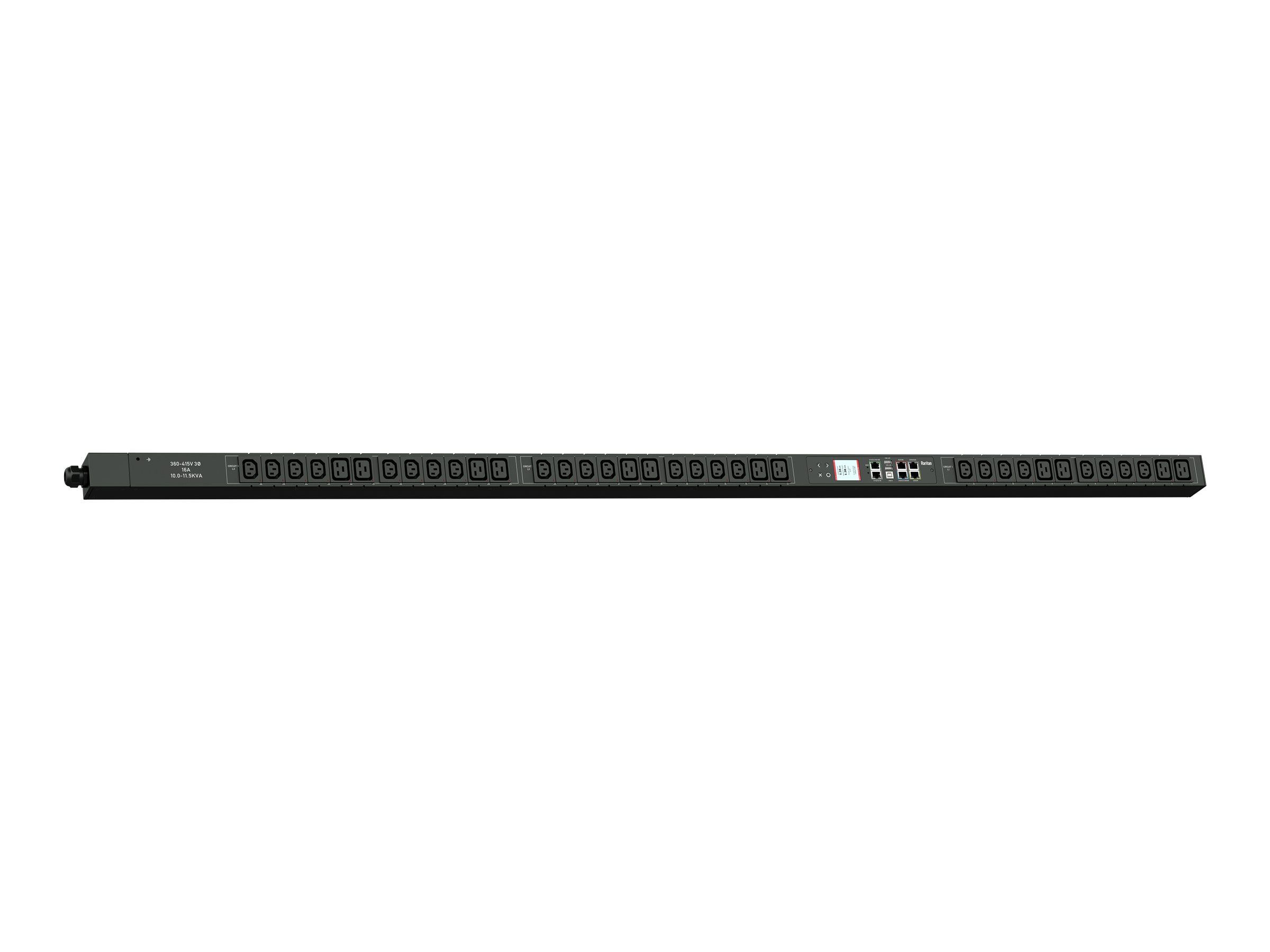

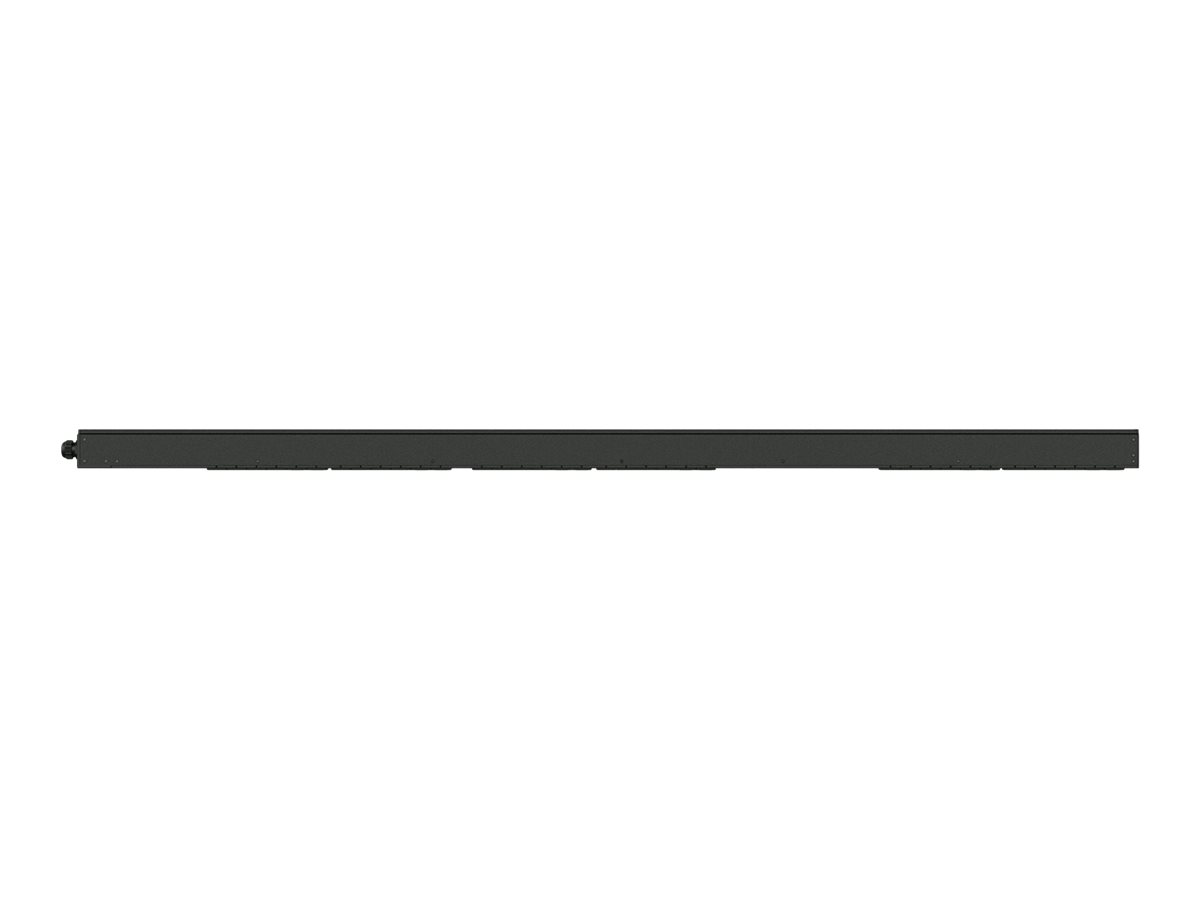

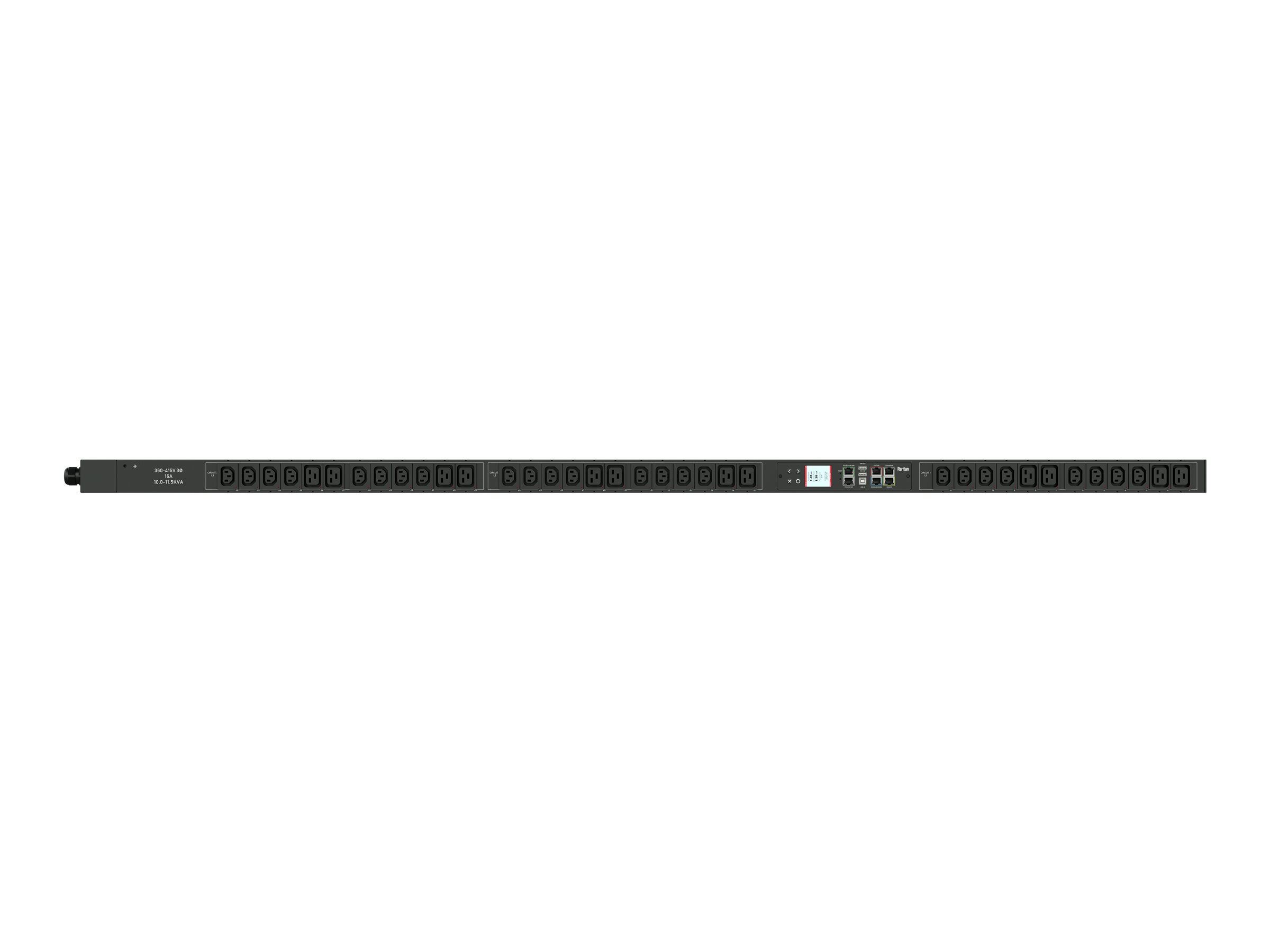

Raritan PX3-5732V - Power distribution unit (rack-mountable)
- AC 400 V
- 11100 VA
- 3-phase WYE (star)
- RS-232, USB, Ethernet 10/100/1000
- input: IEC 60309 3P+N+E
- output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5732V |
| SHI Part #: | 42154047 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5732V - Power distribution unit (rack-mountable) - AC 400 V - 11100 VA - 3-phase WYE (star) - RS-232, USB, Ethernet 10/100/1000 - input: IEC 60309 3P+N+E - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - black |
| Manufacturer | Legrand |
| MSRP | $2,323.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 11100 VA |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21 |
| Features | Powder coated, vertical orientation, 16 Mb flash, LCD display, current meter, LED indicators, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, power cable IP44 compliant, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 16 A |
| Output Voltage | AC 230 V |
| Power Capacity | 11100 VA |
| Power Capacity Details | 10.6 kVA at 380 V, 11.5 kVA at 415 V |
| Power Output Connectors Details |
|
