Supermicro AOC-M25G-I2SM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

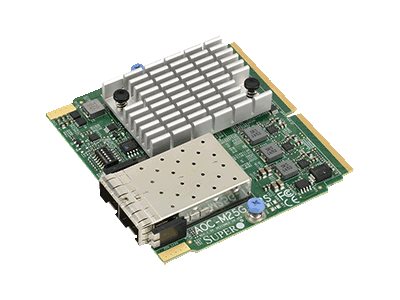

Supermicro AOC-M25G-I2SM
- Network adapter
- SIOM
- 25 Gigabit SFP28 x 2
| Additional Details | |
|---|---|
| Mfr Part #: | AOC-M25G-I2SM-O |
| SHI Part #: | 42008483 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Supermicro AOC-M25G-I2SM - Network adapter - SIOM - 25 Gigabit SFP28 x 2 |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.71 cm |
| Dimensions & Weight / Width | 9.2 cm |
| Header / Brand | Supermicro |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 25 Gigabit Ethernet |
| Networking / Data Transfer Rate | 25 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 8.71 cm |
| Width | 9.2 cm |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 25Gb Ethernet - SFP28 |
| General | |
| Device Type | Network adapter |
| Interface (Bus) Type | Super I/O Module (SIOM) |
| Miscellaneous | |
| Compliant Standards | RoHS, IEEE 1588 |
| Package Type | Retail |
| Networking | |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.3, IEEE 802.1p |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | VXLAN, NVGRE, Intel Flow Director, DPDK, NC-SI, UDP/IP checksum offload, TCP/IP checksum offload, checksum offload support, VMDq, SR-IOV, VMLB, VLAN support, PXE support, iSCSI boot, port teaming |
| Ports | 25 Gigabit SFP28 x 2 |
| Power | |
| Power Consumption Operational | 11.8 watt |
| Processor / Memory | |
| Processor | 1 x Intel |
| Software / System Requirements | |
| OS Required | FreeBSD 10.3, FreeBSD 11, Linux Kernel 2.6, Linux Kernel 4.x, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, VMware ESXi 6.0, VMware ESXi 6.0 update 3, VMware vSphere 5.1, VMware vSphere 5.5 |
