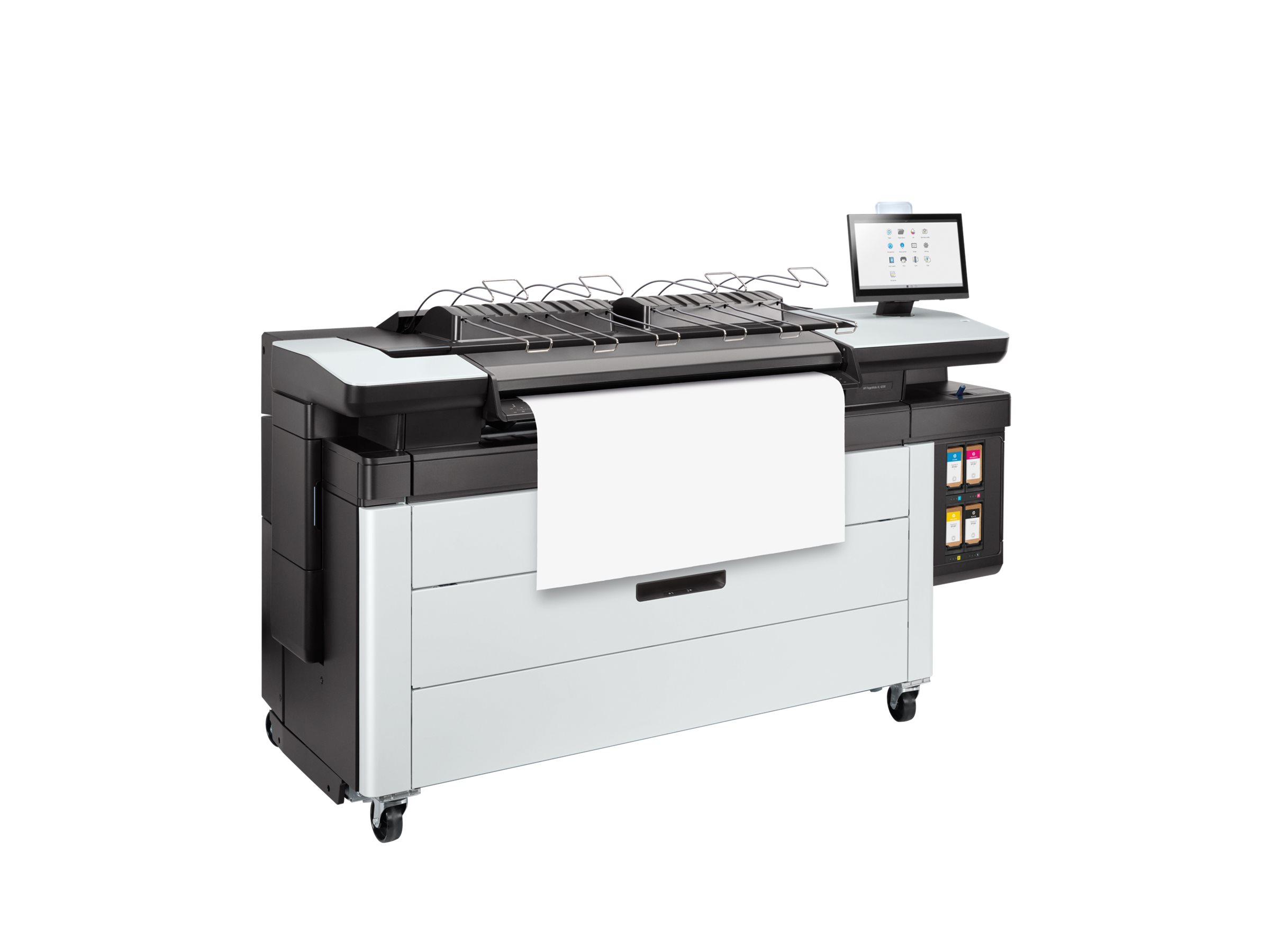

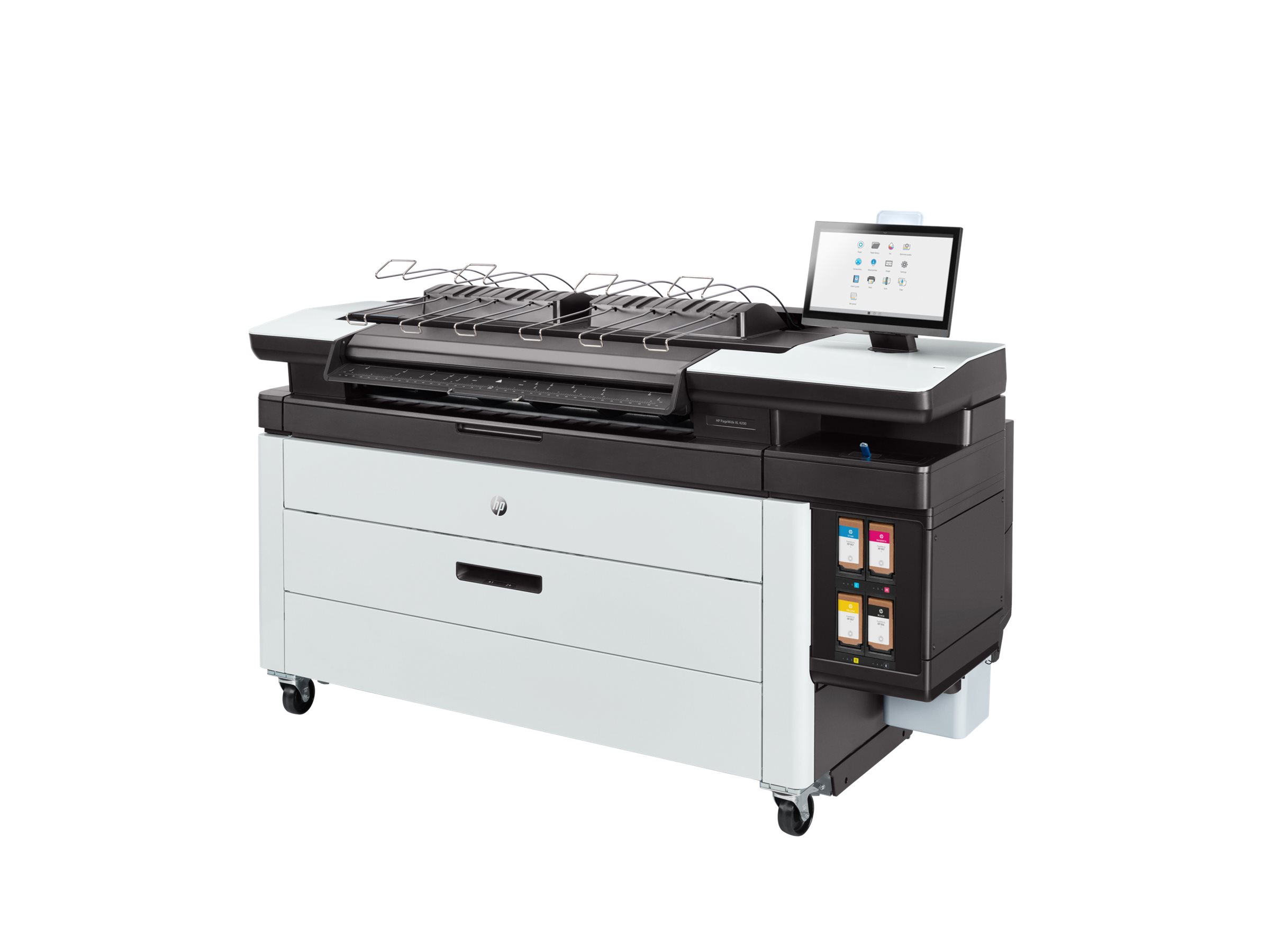

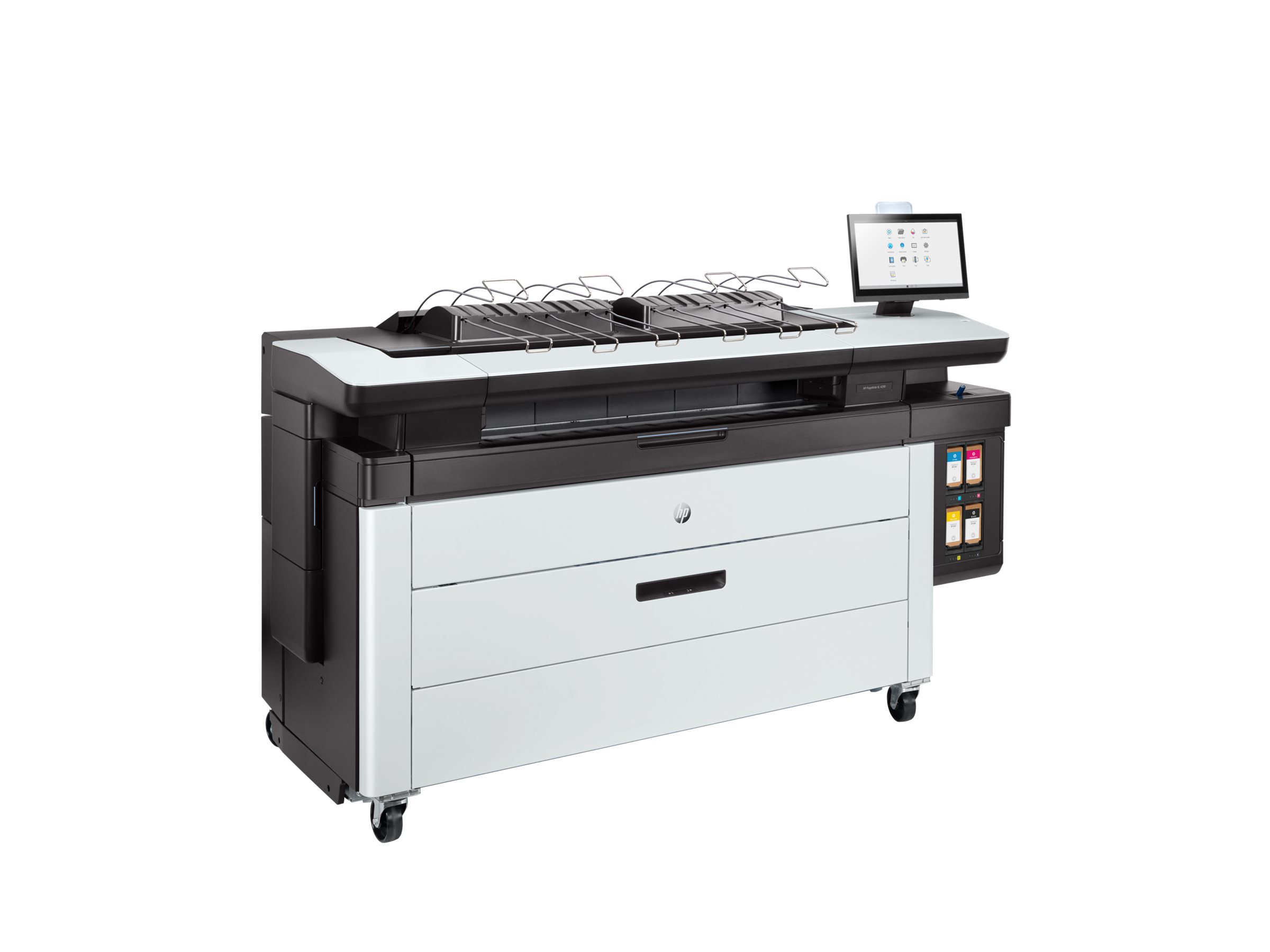

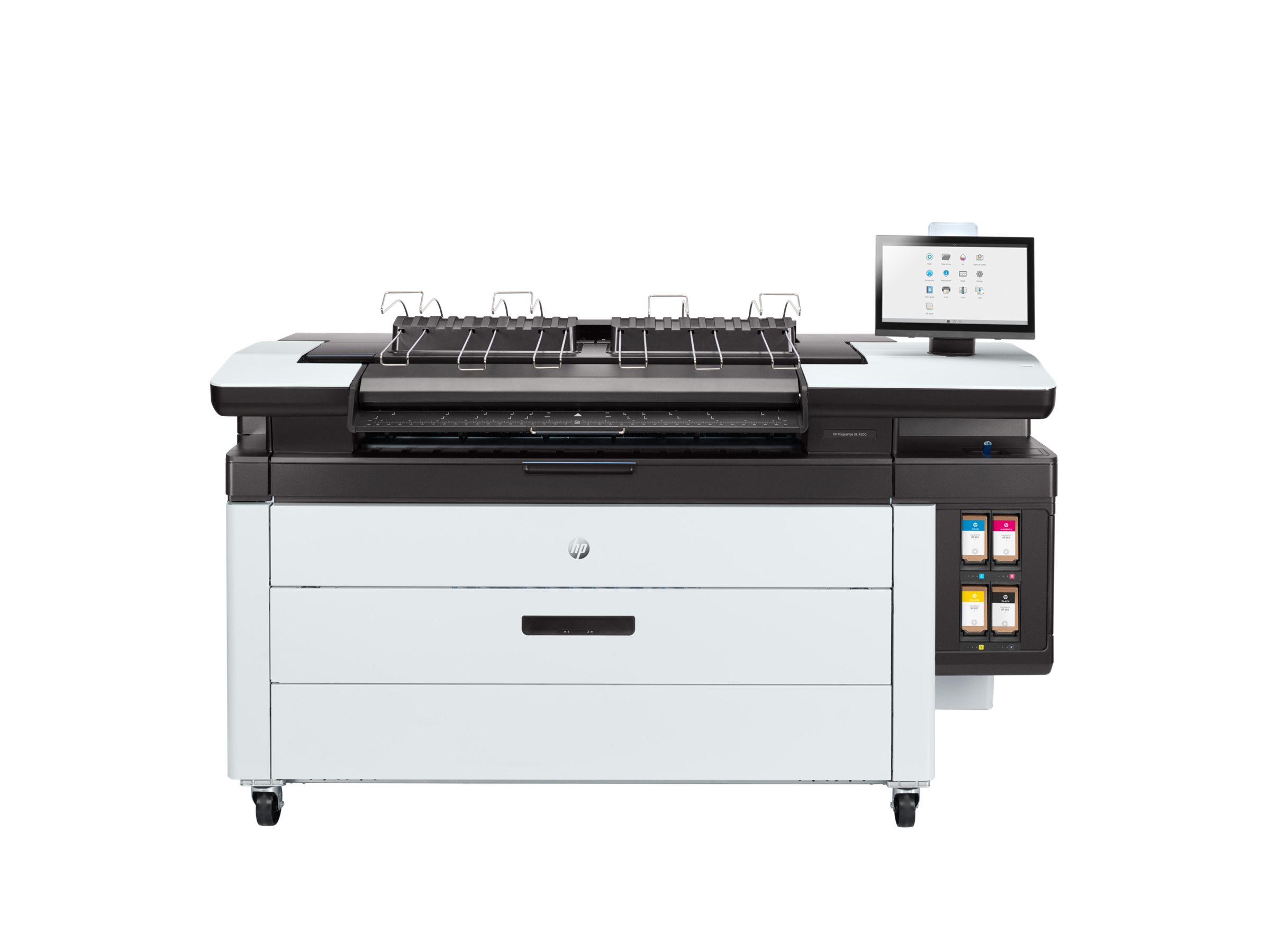

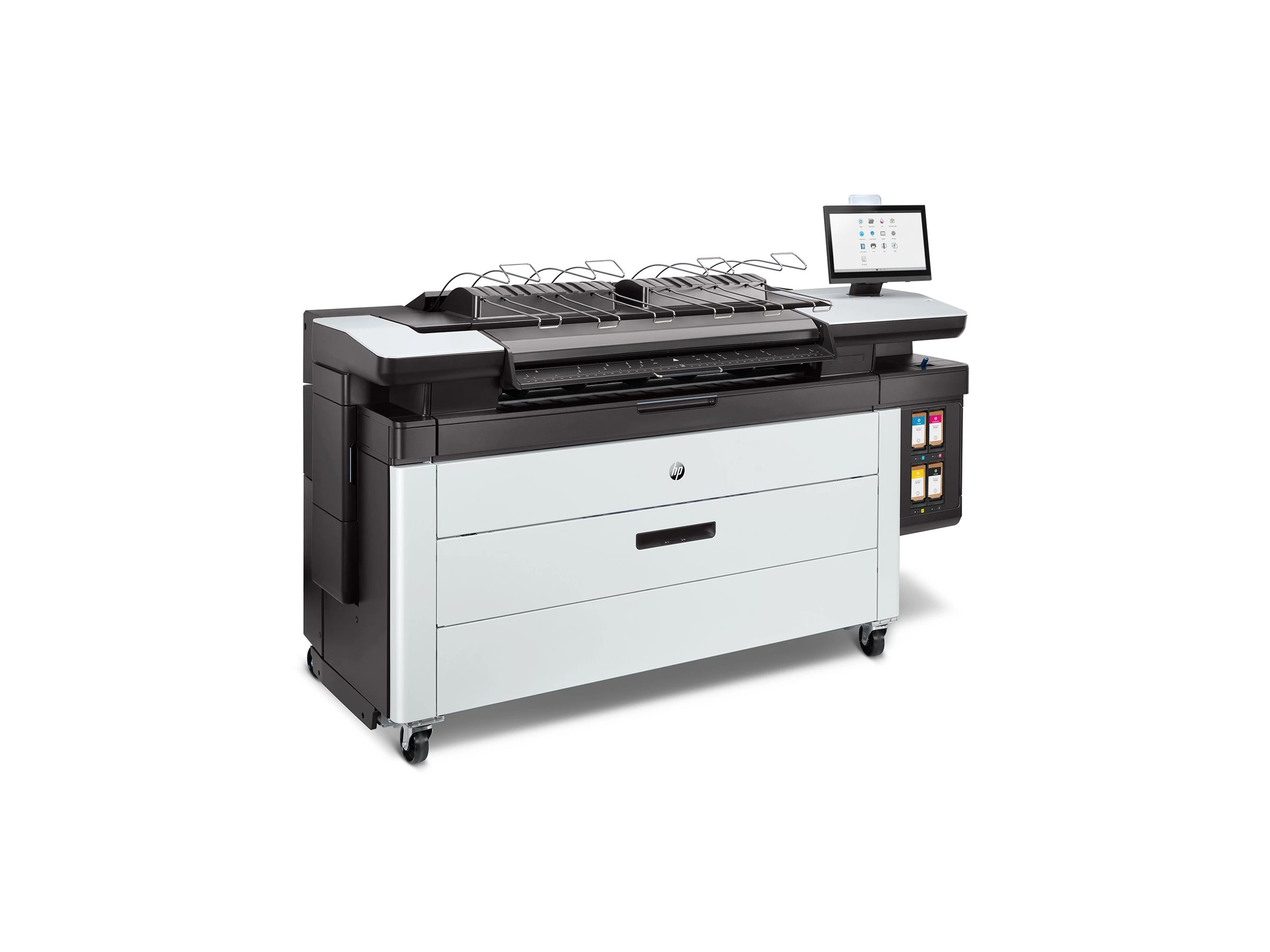

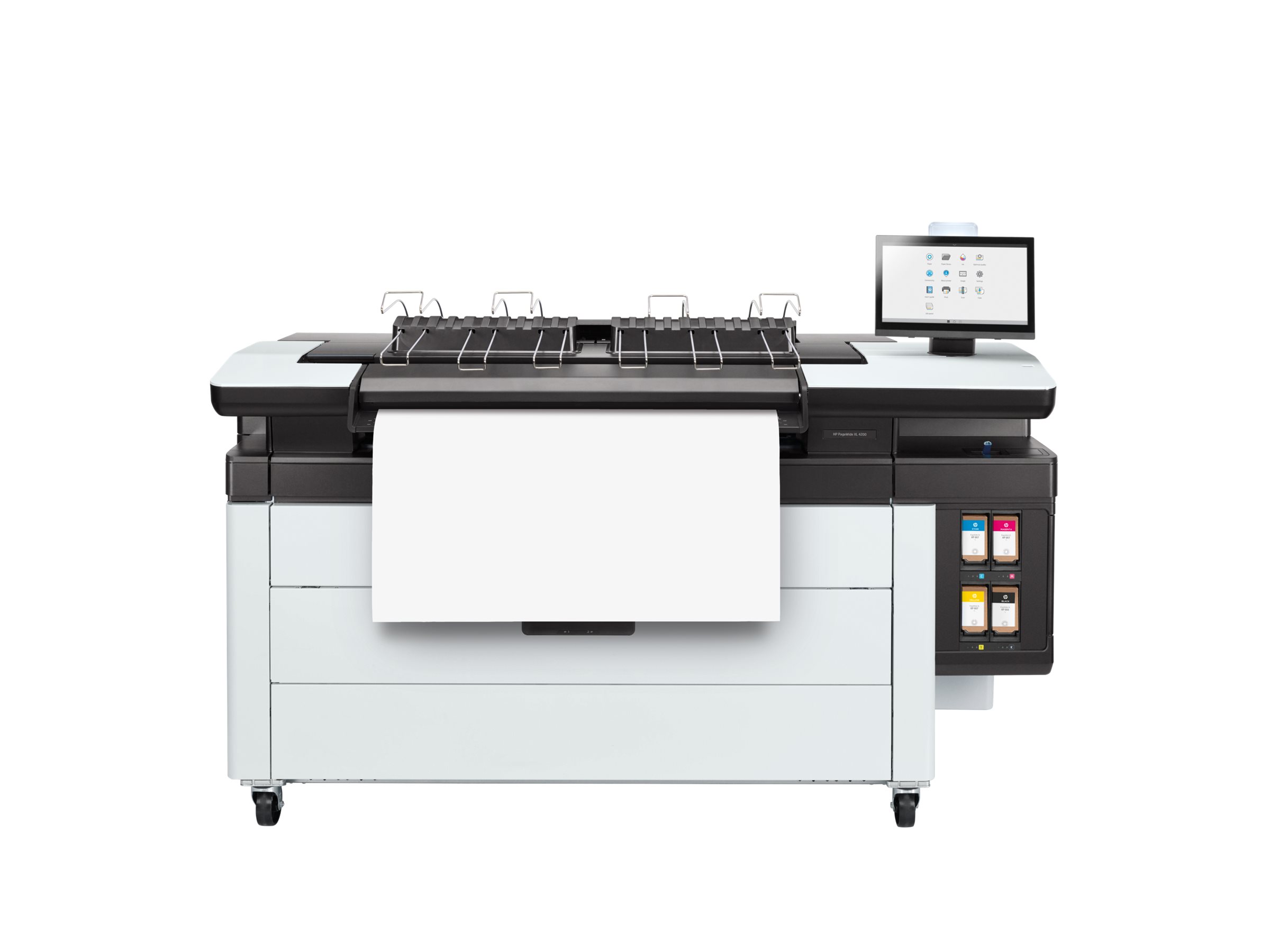

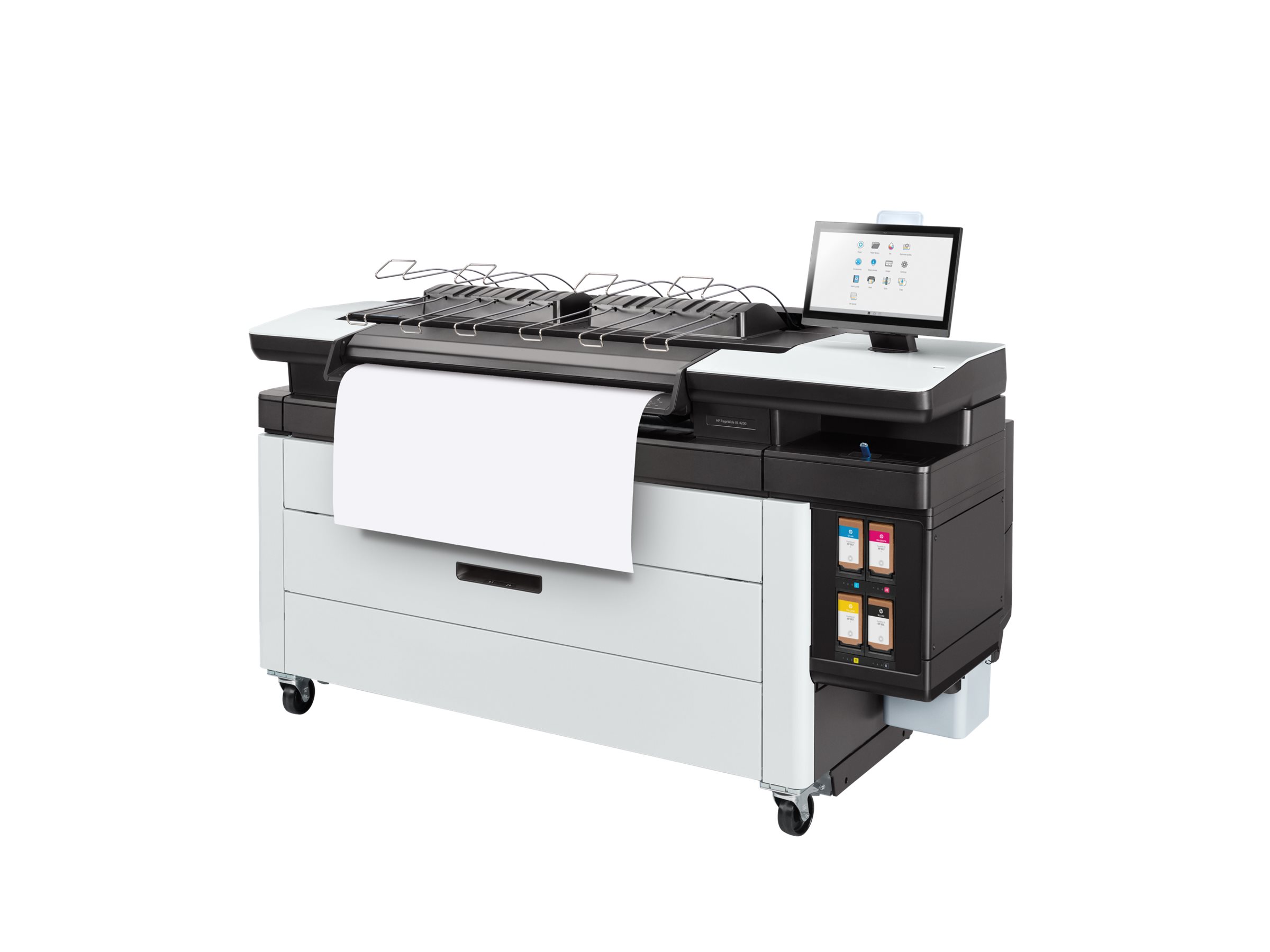

HP PageWide XL 4200 - 40" multifunction printer

Login for Price
HP PageWide XL 4200 - 40" multifunction printer
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • color
  • page wide array
  • Roll (101.6 cm x 200 m) (original)
  • Roll (101.6 cm x 200 m) (media)
  • up to 10 ppm (printing)
HP PageWide XL 4200 - 40" multifunction printer
  • color
  • page wide array
  • Roll (101.6 cm x 200 m) (original)
  • Roll (101.6 cm x 200 m) (media)
  • up to 10 ppm (printing)
  • 2 rolls
  • USB 2.0 host
  Additional Details
Mfr Part #: 4VW13H#B1K
SHI Part #: 41911092
Category: Multifunction machines
UNSPSC: 44101503
Manufacturer: HP, Inc.
Product Type: Hardware

Warranties

Electronic HP Care Pack Site Survey Service
Electronic HP Care Pack Site Survey Service
  • Installation / delivery
  • inspection (for printers and multifunctional office machines)
  • on-site
  • 9x5
  • for PageWide XL 3950, 4250, 4700, 5200, 8200; PageWide XL Pro 10000
Login for Price
Electronic HP Care Pack Next Business Day Hardware Support with Defective Media Retention and Maintenance Kit Replacement Service Post Warranty
Electronic HP Care Pack Next Business Day Hardware Support with Defective Media Retention and Maintenance Kit Replacement Service Post Warranty
  • Extended service agreement
  • parts and labor
  • 1 year
  • on-site
  • 9x5
  • response time: NBD
Login for Price
Electronic HP Care Pack Next Business Day Hardware Support with Defective Media Retention and Maintenance Kit Replacement Service Post Warranty
Electronic HP Care Pack Next Business Day Hardware Support with Defective Media Retention and Maintenance Kit Replacement Service Post Warranty
  • Extended service agreement
  • parts and labor (for printers and multifunctional office machines)
  • 2 years
  • on-site
  • 9x5
  • response time: NBD
Login for Price
General Information
CategoryMultifunction machines
DescriptionHP PageWide XL 4200 - 40" multifunction printer - color - page wide array - Roll (101.6 cm x 200 m) (original) - Roll (101.6 cm x 200 m) (media) - up to 10 ppm (printing) - 2 rolls - USB 2.0 host
ManufacturerHP, Inc.
UNSPSC44101503
Main Specifications
Dimensions & Weight / Depth78.5 cm
Dimensions & Weight / Height1.414 m
Dimensions & Weight / Weight452 kg
Dimensions & Weight / Width1.955 m
Document & Media Handling / Large Format Printer Size40"
Document & Media Handling / Max Media Capacity4 rolls
Document & Media Handling / Standard Media Capacity2 rolls
Header / BrandHP
Header / Country Kits
  • Canada
  • Latin America
  • United States
Header / Localization
  • English
  • French
  • Portuguese
  • Spanish
Miscellaneous / Product Color
  • Black
  • White
Office Machine / Functions
  • Copier
  • Printer
  • Scanner
Office Machine / Printing Output TypeColor
Office Machine / Printing TechnologyPage wide array
Office Machine / TypePrinter / copier / scanner
Packaged Quantity1
PC Connectivity / PC ConnectionUSB 2.0 host
PC Connectivity / PC Connection AvailabilityYes
Service & Support / Type3-year warranty
Connections
Interfaces1 x USB 2.0 host - 4 pin USB Type A
Security Protocols & FeaturesAES-256
Software IncludedDrivers & utilities, HP Partner Link, HP Web Jetadmin
Dimensions & Weight
Depth78.5 cm
Height1.414 m
Weight452 kg
Width1.955 m
Dimensions & Weight (Shipping)
Shipping Depth1.04 m
Shipping Height1.578 m
Shipping Weight621 kg
Shipping Width2.257 m
Document & Media Handling
Document & Media Handling Details
  • Input tray - 2 rolls - Roll (101.6 cm) weight: 70 g/m² - 200 g/m²
  • weight (lbs): 19 lbs - 53 lbs
Max Media Capacity4 rolls
Max Media SizeOther
Max Media Weight200 g/m²
Max Media Weight (lb)53 lbs
Max Original SizeRoll (101.6 cm x 200 m)
Media Thickness Range0.4 mm
Min Media Weight70 g/m²
Min Media Weight (lb)19 lbs
Speed Details
  • Printing: up to 10 ppm (A1)
  • Printing: up to 10 ppm (ANSI D)
  • Printing: up to 10 ppm (ARCH D)
  • Scanning: up to 152.4 mm/sec - color
  • Scanning: up to 254 mm/sec - B/W
Standard Media Capacity2 rolls
Supported Media SizesA1 (594 x 841 mm), ARCH D (609.6 x 914.4 mm), ANSI D (559 x 864 mm), Roll (101.6 cm x 200 m)
Supported Media TypeRecycled paper, coated paper, bond paper, film, Tyvek banner, poster board
Environmental Parameters
Humidity Range Operating20 - 80%
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Sound Emission36 dBA (idle) / 58 dBA (operating)
Environmental Standards
ENERGY STAR CertifiedYes
Finishing Equipment
StackerIncluded
General
Connection AvailabilityYes
Device Type40" multifunction printer
Display Diagonal Size15.6"
Display FeaturesTouch screen
InterfaceUSB 2.0 host
LocalizationEnglish, French, Spanish, Portuguese / United States, Canada, Latin America
Office Machine FeaturesSave to USB flash drive, scan to e-mail, scan to network, Hard Disk Drive Encryption, scan to FTP
Printing TechnologyPage wide array - color
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Memory
Hard Disk Drive500 GB
Standard Memory8 GB
Miscellaneous
Compliant StandardsFCC, ICES, EMC, RCM, VCCI, KC, RoHS, WEEE, REACH, IEC 60950-1+A1+A2, IEC 62368-1 Second Edition, LVD, EN 60950-1, EN 62368-1, EAC, AES-256
Included AccessoriesTop Stacker
Power
Power Consumption Operational270 watt
Power Consumption Sleep1 watt
Power Consumption Standby95 watt
Voltage RequiredAC 120/230 V (50/60Hz)
Printing
Color4-ink
First Print Out Time B/W22 sec
Ink Cartridge Configuration4 cartridges (1 each: pigment cyan, pigment magenta, pigment yellow, dye black)
Ink Palette Supported (Colors)Pigment cyan, pigment magenta, pigment yellow, pigment black
Inkjet TechnologyHP PageWide
Max Printing ResolutionUp to 1200 x 1200 dpi (mono) / up to 1200 x 1200 dpi (color)
Max Printing SpeedUp to 10 ppm (mono) / up to 10 ppm (color)
Printer Drivers / EmulationsPCL 3, HPGL/2, PostScript 3, PDF 1.7, TIFF, JPEG
Scanning
Optical Resolution1200 dpi
Scan ElementCIS
