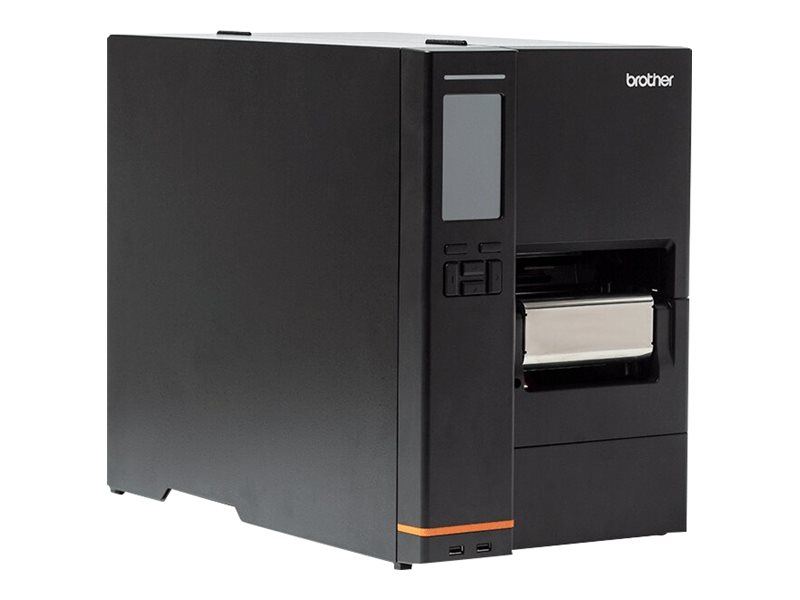

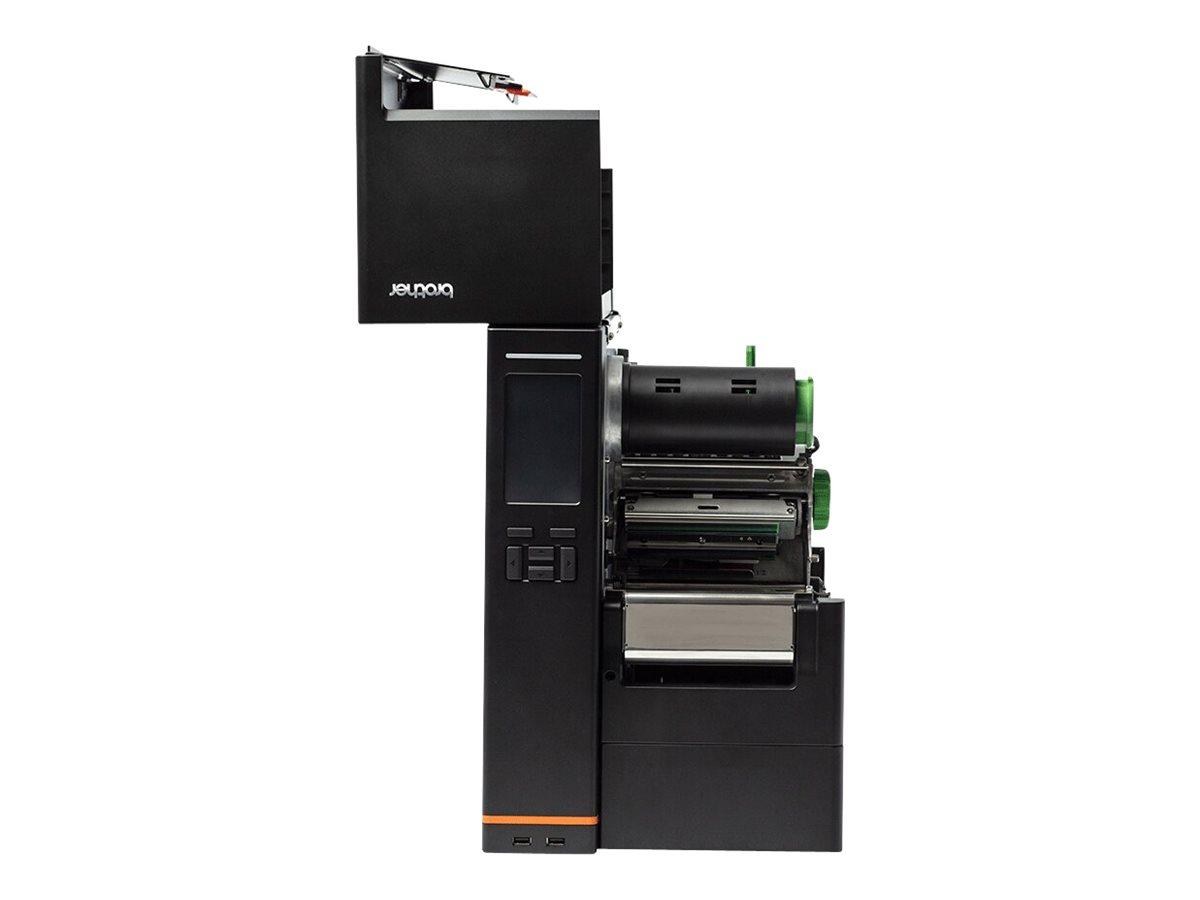

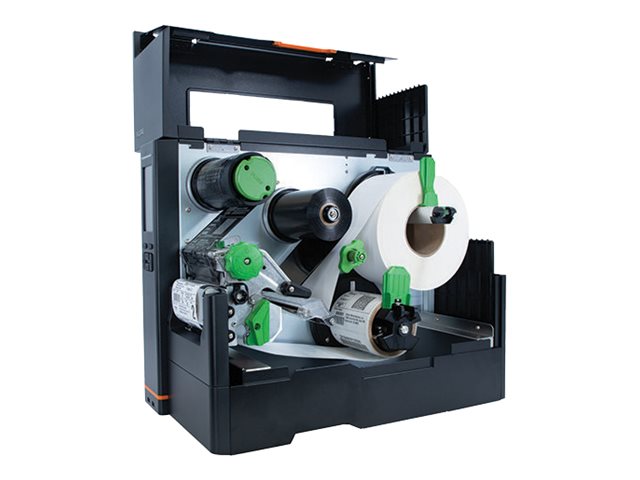

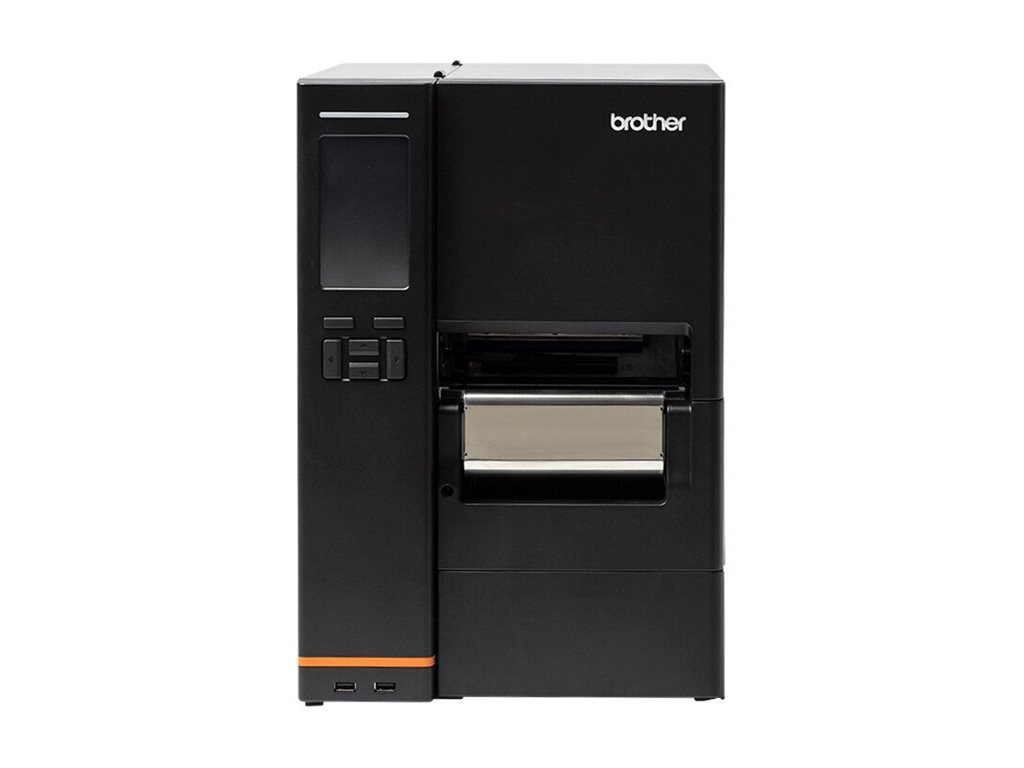

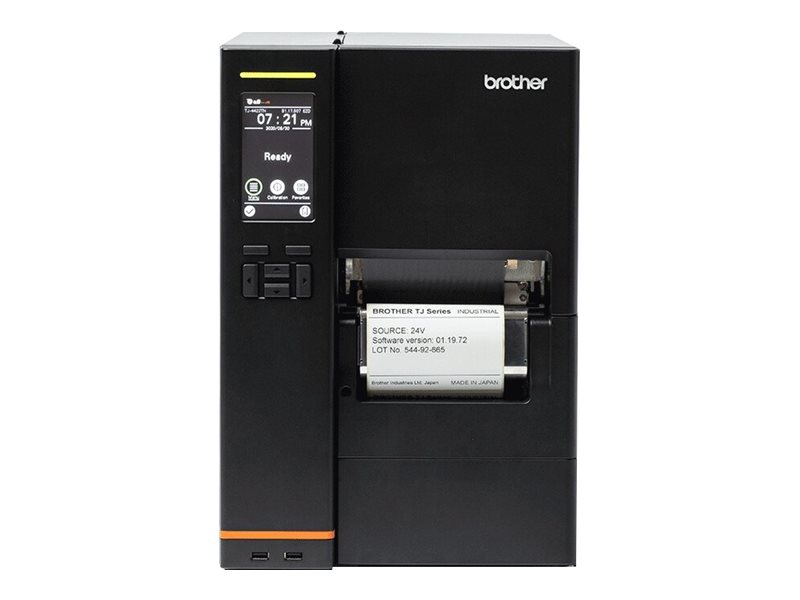

Brother Titan Industrial Printer TJ-4522TN

MSRP$2,873.00
$1,717.00
Brother Titan Industrial Printer TJ-4522TN
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Label printer
  • direct thermal / thermal transfer
  • Roll (11.4 cm)
  • 300 dpi
  • up to 305 mm/sec
Brother Titan Industrial Printer TJ-4522TN
  • Label printer
  • direct thermal / thermal transfer
  • Roll (11.4 cm)
  • 300 dpi
  • up to 305 mm/sec
  • LAN, serial, USB host, USB 2.0
  • with 2 years Premier Limited Warranty
  Additional Details
Price: $1,717.00
MSRP: $2,873.00
Mfr Part #: TJ4522TN
SHI Part #: 41910771
Category: Thermal tape printers
UNSPSC: 43212108
Manufacturer: Brother
Product Type: Hardware
General Information
CategoryThermal tape printers
DescriptionBrother Titan Industrial Printer TJ-4522TN - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm/sec - LAN, serial, USB host, USB 2.0 - with 2 years Premier Limited Warranty
ManufacturerBrother
MSRP$2,873.00
UNSPSC43212108
Main Specifications
Dimensions & Weight / Depth50.2 cm
Dimensions & Weight / Height41.2 cm
Dimensions & Weight / Weight18.9 kg
Dimensions & Weight / Width27.6 cm
Header / BrandBrother
Miscellaneous / Product ColorBlack
Networking / TypePrint server
Office Machine / FunctionsPrinter
Office Machine / Printing Output TypeMonochrome
Office Machine / Printing TechnologyDirect thermal / thermal transfer
Office Machine / TypePrinter
Packaged Quantity1
PC Connectivity / PC Connection
  • LAN
  • Serial
  • USB 2.0
  • USB host
Power Device / TypePower supply
Printer / Connectivity TechnologyWired
Printer / TypeLabel printer
Scanner / TypeNone
System Requirements / OS Required
  • Android 5.0 or later
  • Apple iOS 9 or later
  • Microsoft Windows 7
  • Microsoft Windows Server 2008
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Microsoft Windows Vista
  • Windows 10
  • Windows 8
  • Windows 8.1
Dimensions & Weight
Depth50.2 cm
Height41.2 cm
Weight18.9 kg
Width27.6 cm
Environmental Parameters
Humidity Range Operating25 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Connections
  • 1 x RS-232 - 9 pin D-Sub (DB-9)
  • 1 x USB 2.0
  • 1 x LAN - RJ-45
  • 1 x USB host
Flash Memory
Flash Memory512 MB
General
Bundled Services2 years Premier Limited Warranty
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Media Handling
Max Media SizeRoll (11.4 cm)
Max Media Size (Custom)114 mm
Max Printing Width104 mm
Media SizesRoll (11.4 cm)
Media TypeContinuous labels, black mark labels, die cut labels, fanfold labels, tags
Miscellaneous
Cables Included1 x USB cable
Networking
NetworkingPrint server
Power
Frequency Required50/60 Hz
Power DevicePower supply - internal
Voltage RequiredAC 100-240 V
Printer
BarcodesCode 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, EAN-128, GS1-128, Postnet, MSI, Plessey, Interleaved 2 of 5, Industrial 2 of 5, ITF-14, EAN-14, LOGMARS, Codabar, Telepen, PLANET, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2 of 5, China Post, Codablock F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR code, MicroPDF417, TLC39, GS1 DataBar, Aztec code

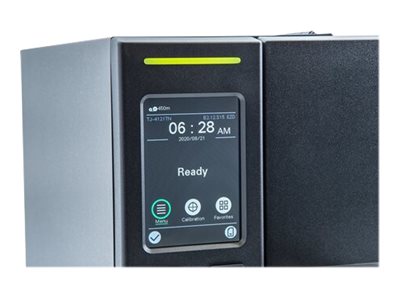

Built-in Devices3.5 inch LCD touch screen
Connectivity TechnologyWired
FeaturesTransmissive/gap sensor, reflective/black mark sensor, ribbon encode sensor, ribbon end sensor, open head sensor
InterfaceLAN, serial, USB host, USB 2.0
Language SimulationFBPL, ZPL II, EPL2, DPL
Max Resolution (B&W)300 dpi
Print SpeedUp to 305 mm/sec - max speed
RAM
RAM Installed (Max)256 MB
Software / System Requirements
OS RequiredMicrosoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Windows 8.1, Microsoft Windows 7, Windows 10, Windows 8, Microsoft Windows Vista, Android 5.0 or later, Apple iOS 9 or later
