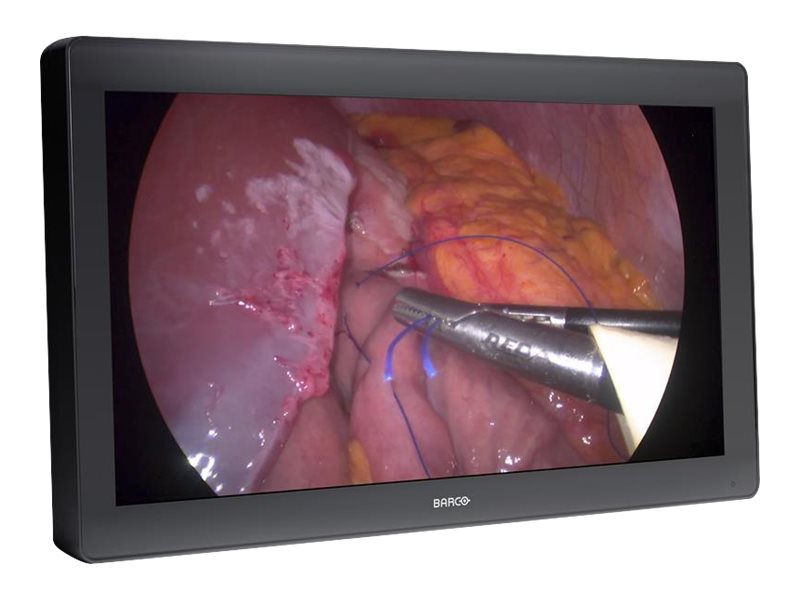

Barco MDFC-8232 3HB - LED monitor
MSRP$16,068.78
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Barco MDFC-8232 3HB - LED monitor
- color
- 31.1"
- stationary
- 4096 x 2160 4K UHD (2160p) @ 60 Hz
- IPS-Pro
- 450 cd/m²
- 1300:1
- 20 ms
- 4xDisplayPort, HDMI, DVI, 2x3G-SDI
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $16,068.78 |
| Mfr Part #: | K9352290 |
| SHI Part #: | 41858703 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco MDFC-8232 3HB - LED monitor - color - 31.1" - stationary - 4096 x 2160 4K UHD (2160p) @ 60 Hz - IPS-Pro - 450 cd/m² - 1300:1 - 20 ms - 4xDisplayPort, HDMI, DVI, 2x3G-SDI |
| Manufacturer | Barco |
| MSRP | $16,068.78 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.3 cm |
| Dimensions & Weight / Height | 47.3 cm |
| Dimensions & Weight / Weight | 16.5 kg |
| Dimensions & Weight / Width | 77.8 cm |
| Display / Diagonal Size | 31.1 in |
| Display / Diagonal Size (metric) | 78.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 4096 x 2160 |
| Display / Pixel Pitch | 0.1704 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 450 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 22 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| 3D Technology | Passive |
| Aspect Ratio | 17:9 |
| Backlight Technology | LED backlight |
| Brightness | 450 cd/m² |
| Color Support | 1.074 billion colors (10-bit) |
| Color Temperature | 9300K, 6500K, 7600K, 5600K |
| Contrast Ratio | 1300:1 |
| Diagonal Size | 31.1" |
| Dimensions (WxDxH) | 77.8 cm x 9.3 cm x 47.3 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - color |
| Features | Picture by picture, anti-reflective, Backlight Output Stabilization (BLOS), 30-bit lookup table, Wide Color Gamut, Picture-in-Picture, Failover mode, screen clone, DICOM Compliant |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 4K UHD (2160p) 4096 x 2160 at 60 Hz |
| Panel Type | IPS-Pro |
| Pixel Pitch | 0.1704 mm |
| Response Time | 20 ms (rise+fall) |
| Vertical Viewing Angle | 178 |
| Weight | 16.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm, 200 x 100 mm |
| Miscellaneous | |
| Compliant Standards | DEMKO, CCC, WEEE, FCC CFR47 Part 15 B, cULus, REACH, IP20, GB 17625.1-2012, CAN/CSA C22.2 No. 60601-1:14, GB 4943.1-2011, ANSI/AAMI ES60601-1 (2005/(R)2012, EN 60601-1-2:2015, IEC 60601-1-2:2014, IEC 60601-1:2012 Edition 3.1, RoHS3, GB/T9254-2008, IP45 front, EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014 |
| Included Accessories | Ergonomic kit |
| Power | |
| Input Voltage | AC 100 - 240 V (47 - 63 Hz) |
| Power Consumption (Off Mode) | 1 Watt |
| Power Consumption (Typical) | 168 Watt |
