ASRock Rack 1U4LW-X570/2L2T RPSU
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

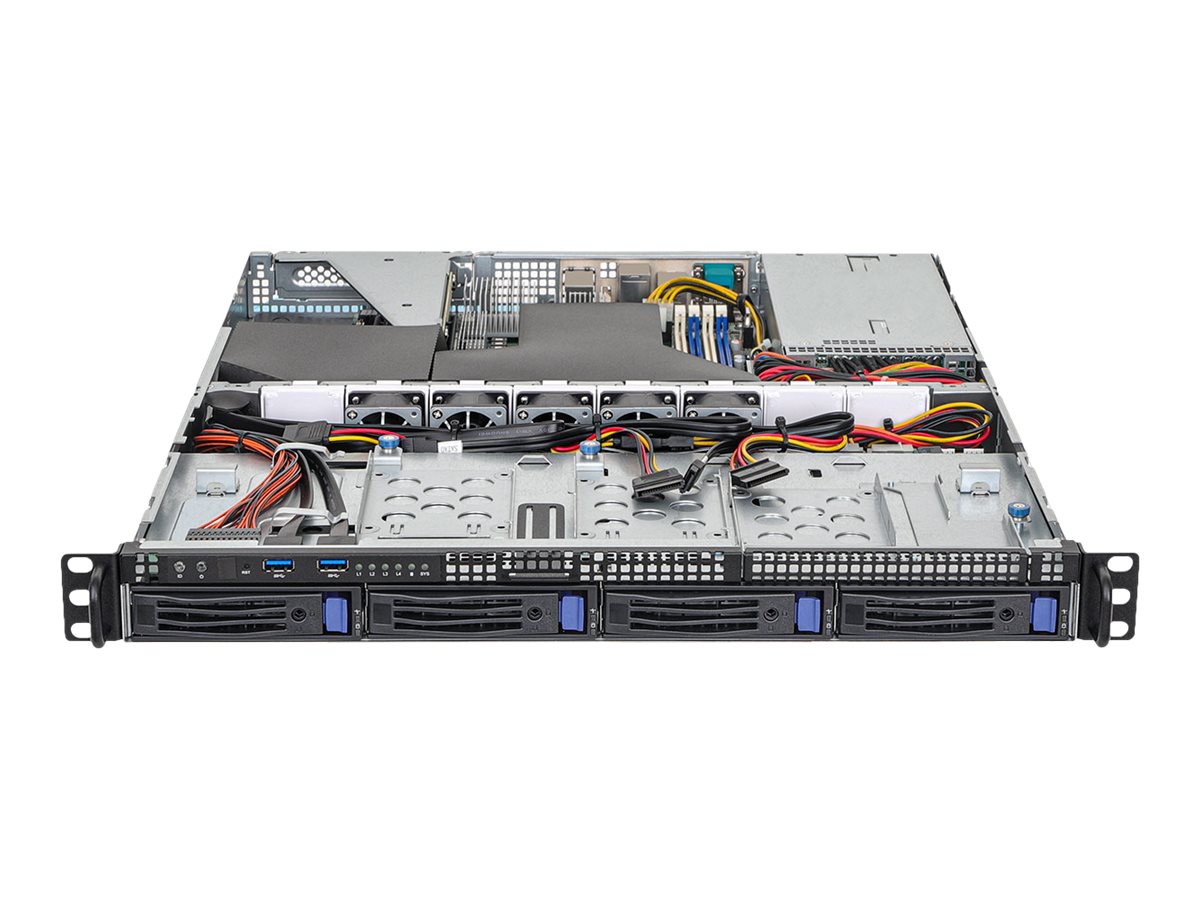

ASRock Rack 1U4LW-X570/2L2T RPSU
- Server
- rack-mountable
- 1U
- 1-way
- no CPU up to
- RAM 0 GB
- SATA
- hot-swap 3.5" bay(s)
- no HDD
- AST2500
- Gigabit Ethernet, 10 Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 1U4LW-X570/2L2T RPSU |
| SHI Part #: | 41836125 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | ASRock Rack 1U4LW-X570/2L2T RPSU - Server - rack-mountable - 1U - 1-way - no CPU up to - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | ASRock |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA |
| Dimensions & Weight / Depth | 48.26 cm |
| Dimensions & Weight / Height | 4.44 cm |
| Dimensions & Weight / Width | 53.34 cm |
| Display / Type | None. |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | AMD X570 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Dimensions & Weight | |
| Depth | 48.26 cm |
| Height | 4.44 cm |
| Width | 53.34 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 4 |
| Internal Bays Qty | 3 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | Plug and Play, ACPI 2.0 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | Intel I210, X710-AT2 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2500 |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 450 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | AMD X570 |
| CPU | No CPU |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| RAM | |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB |
| Slots | 4 (total) / 4 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Type | 1 x SATA |
