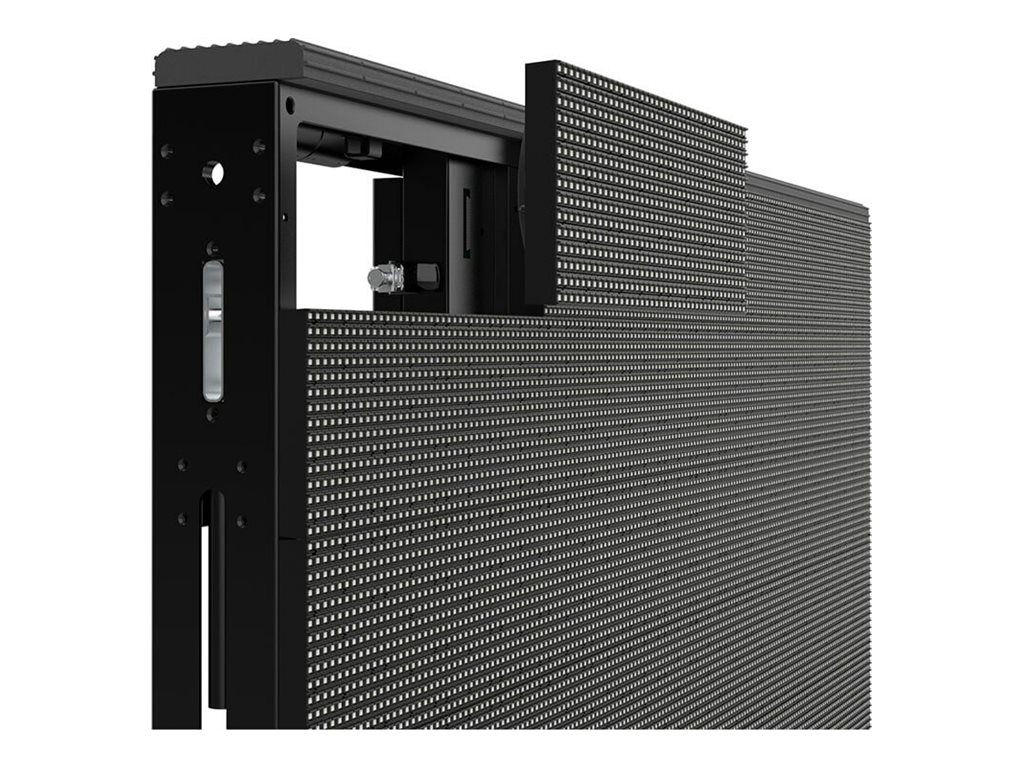

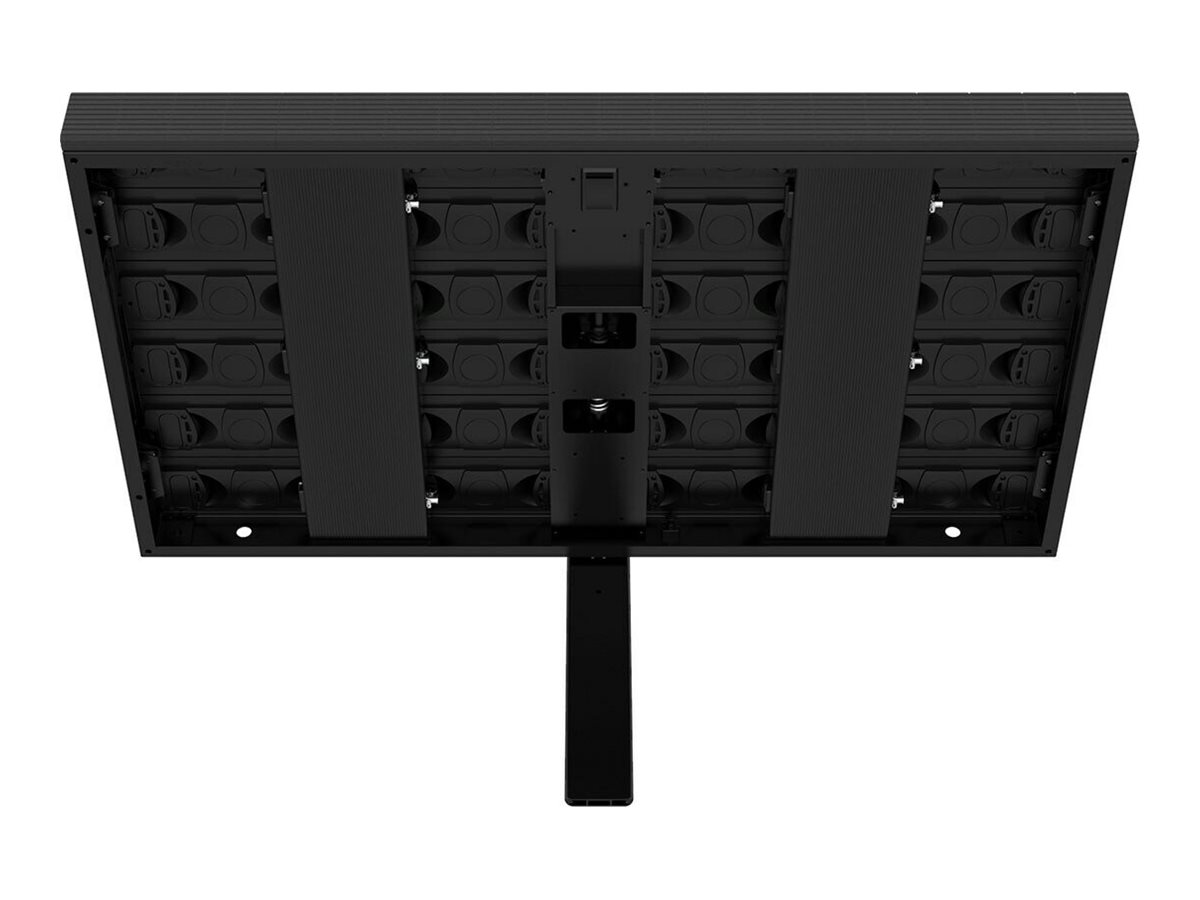

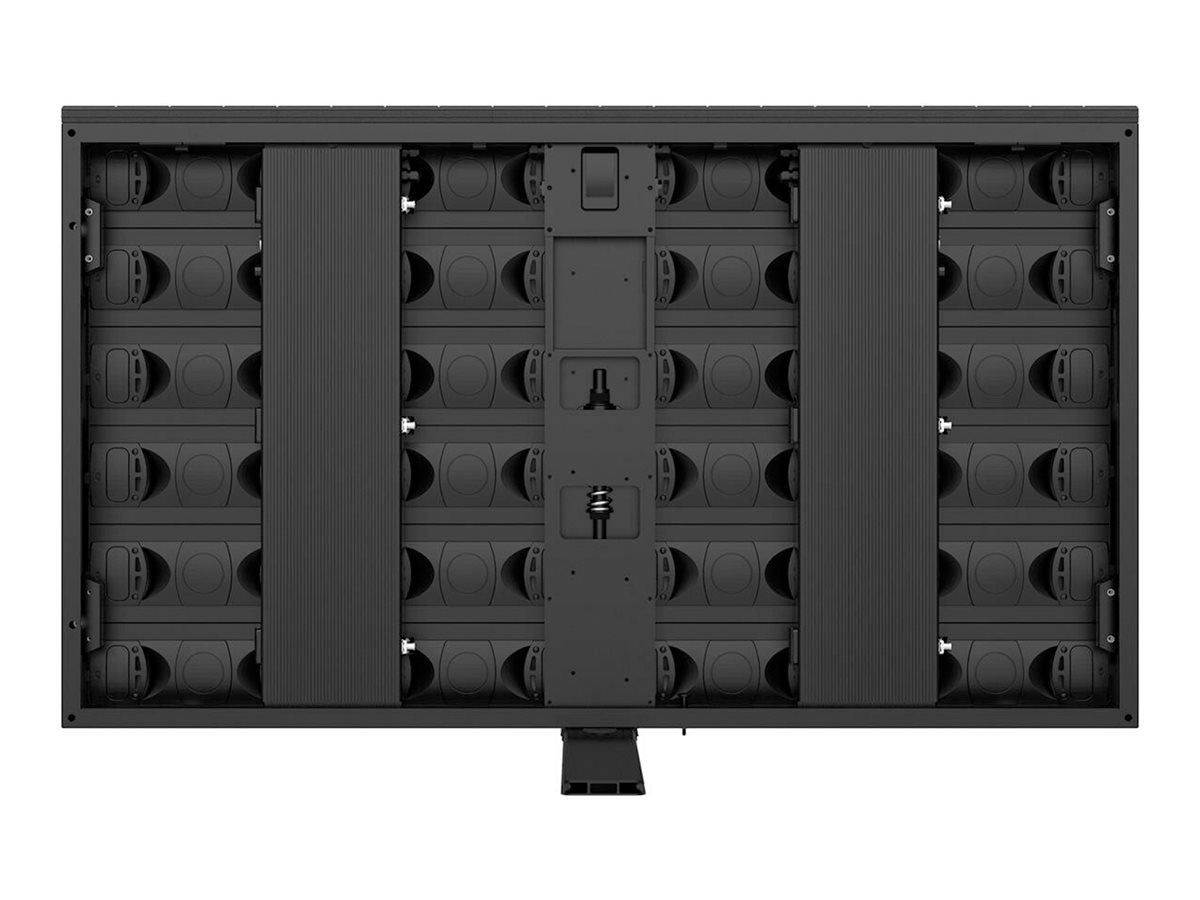

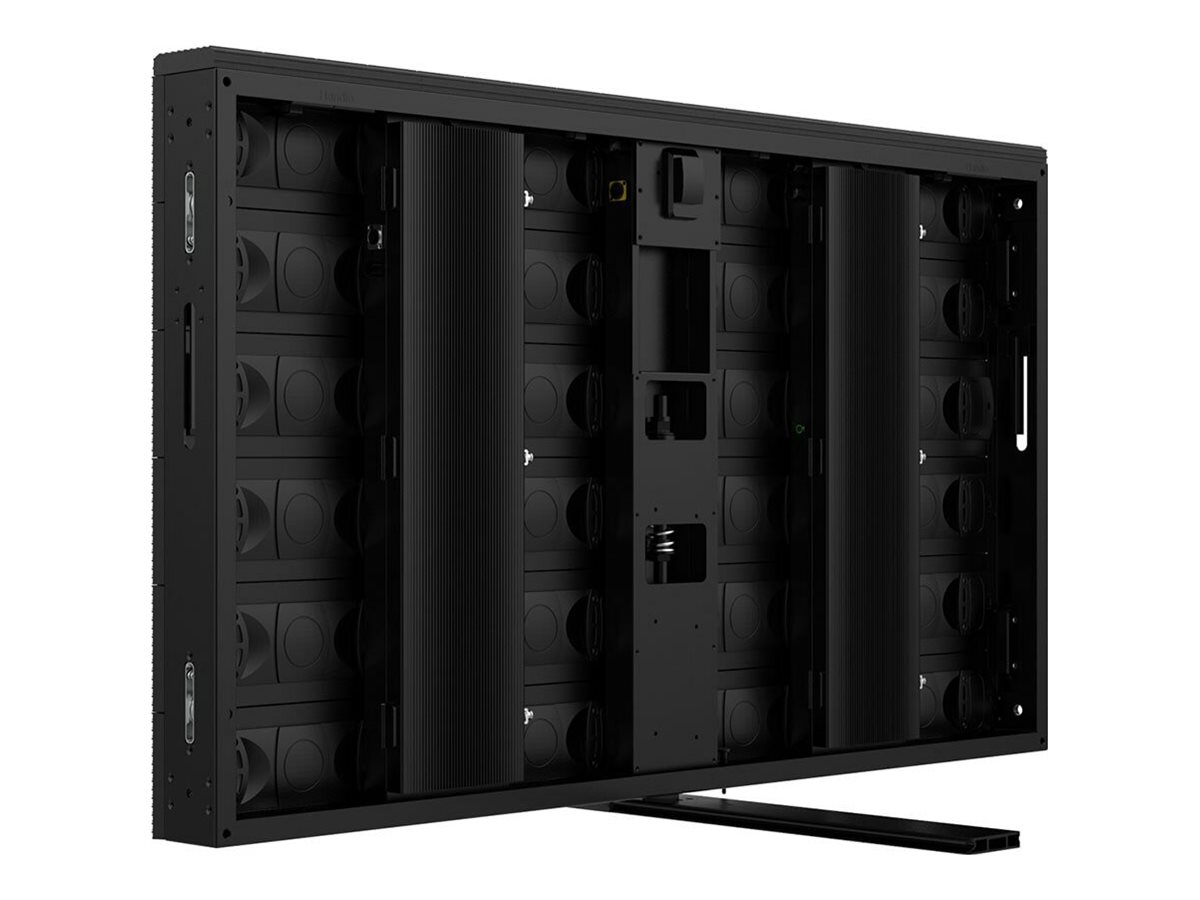

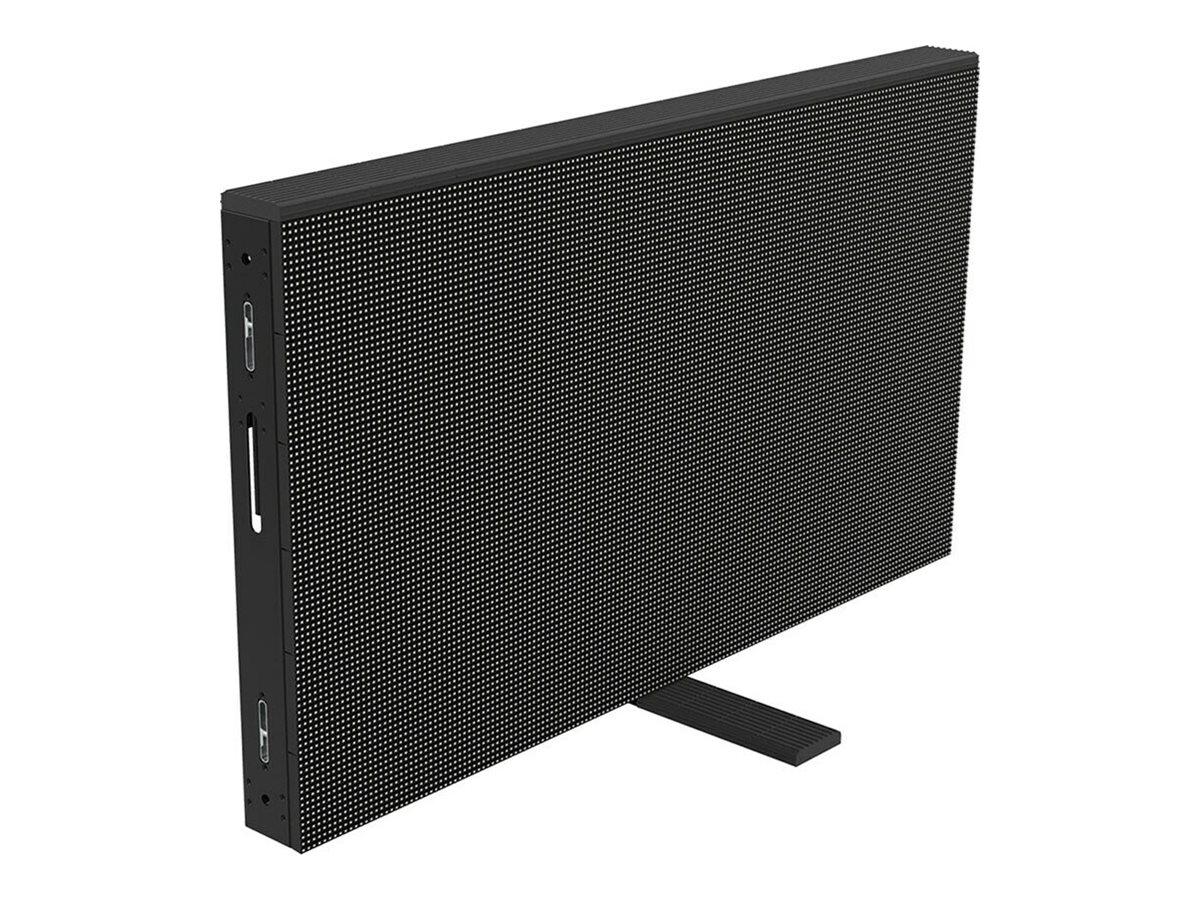

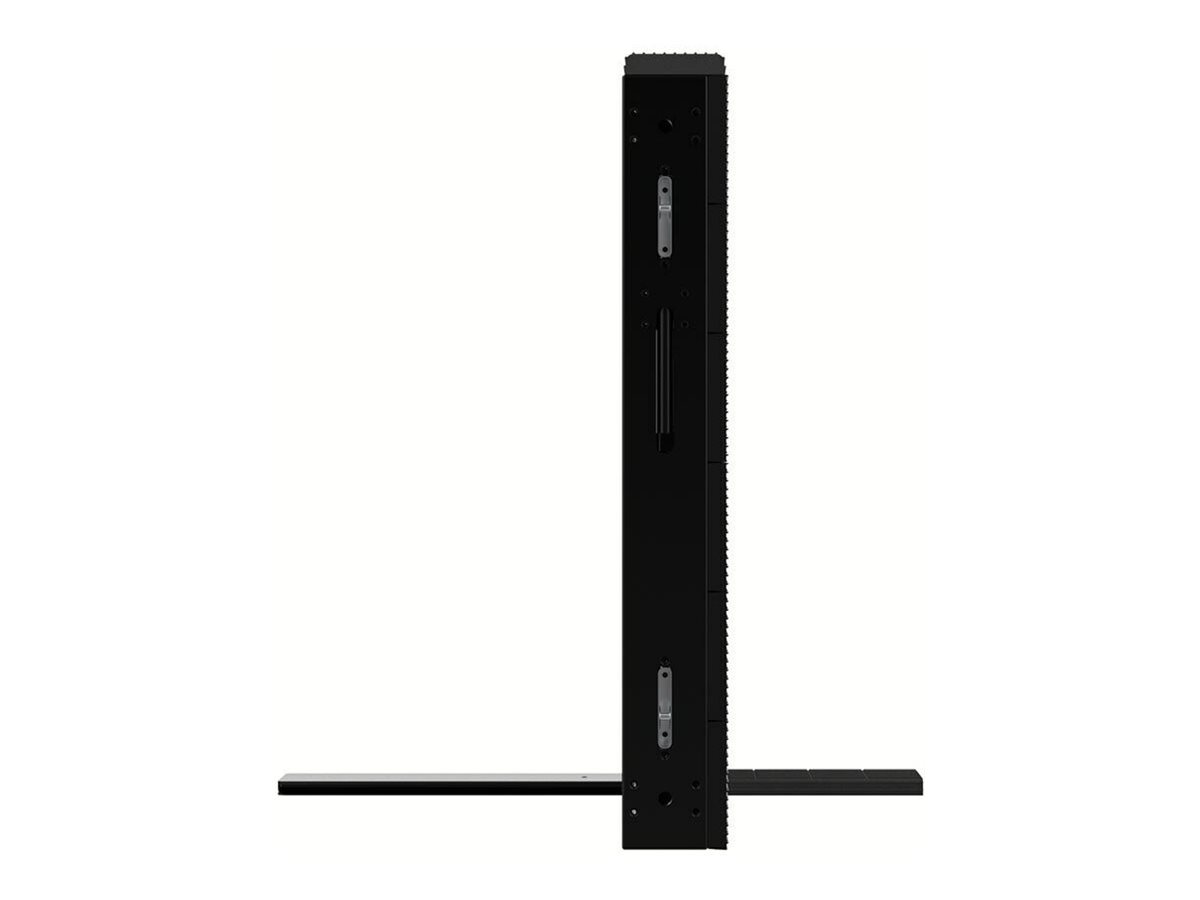

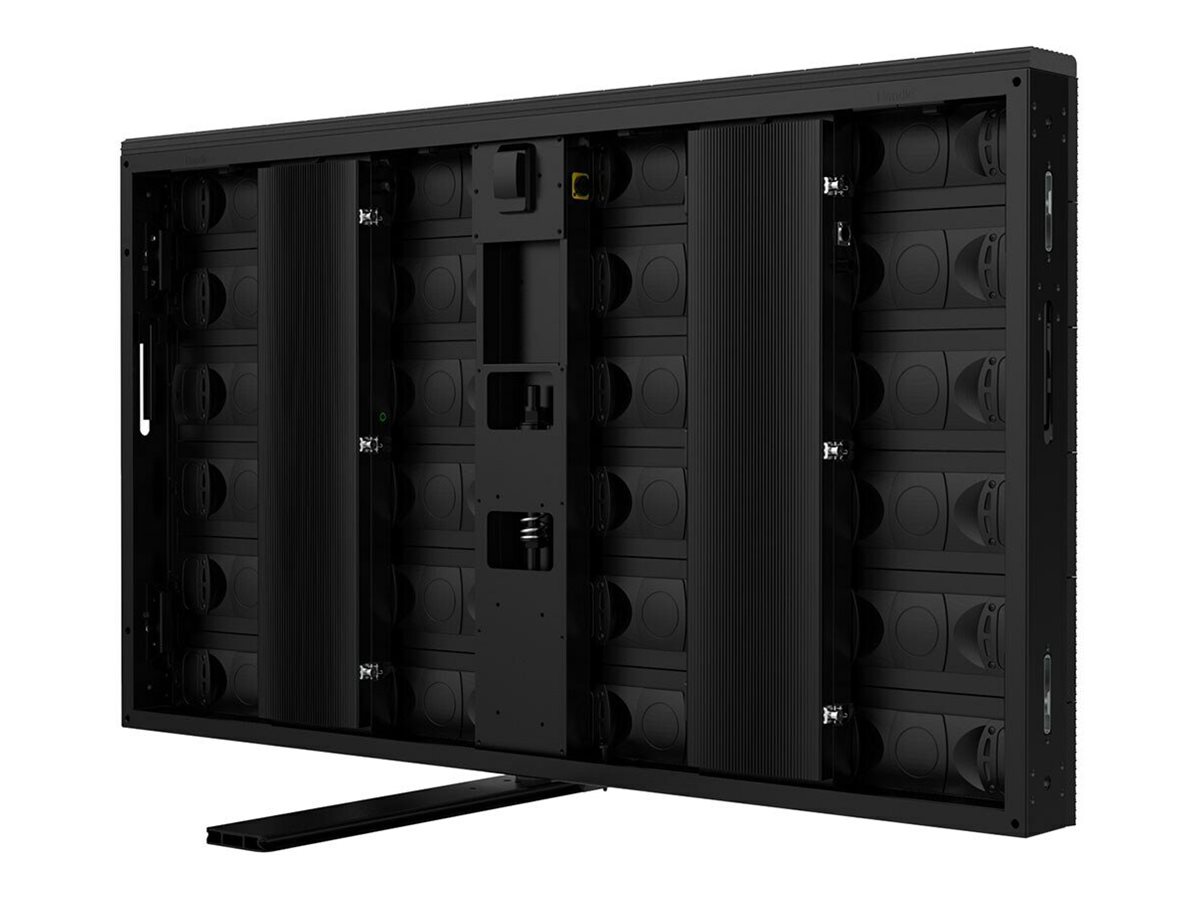

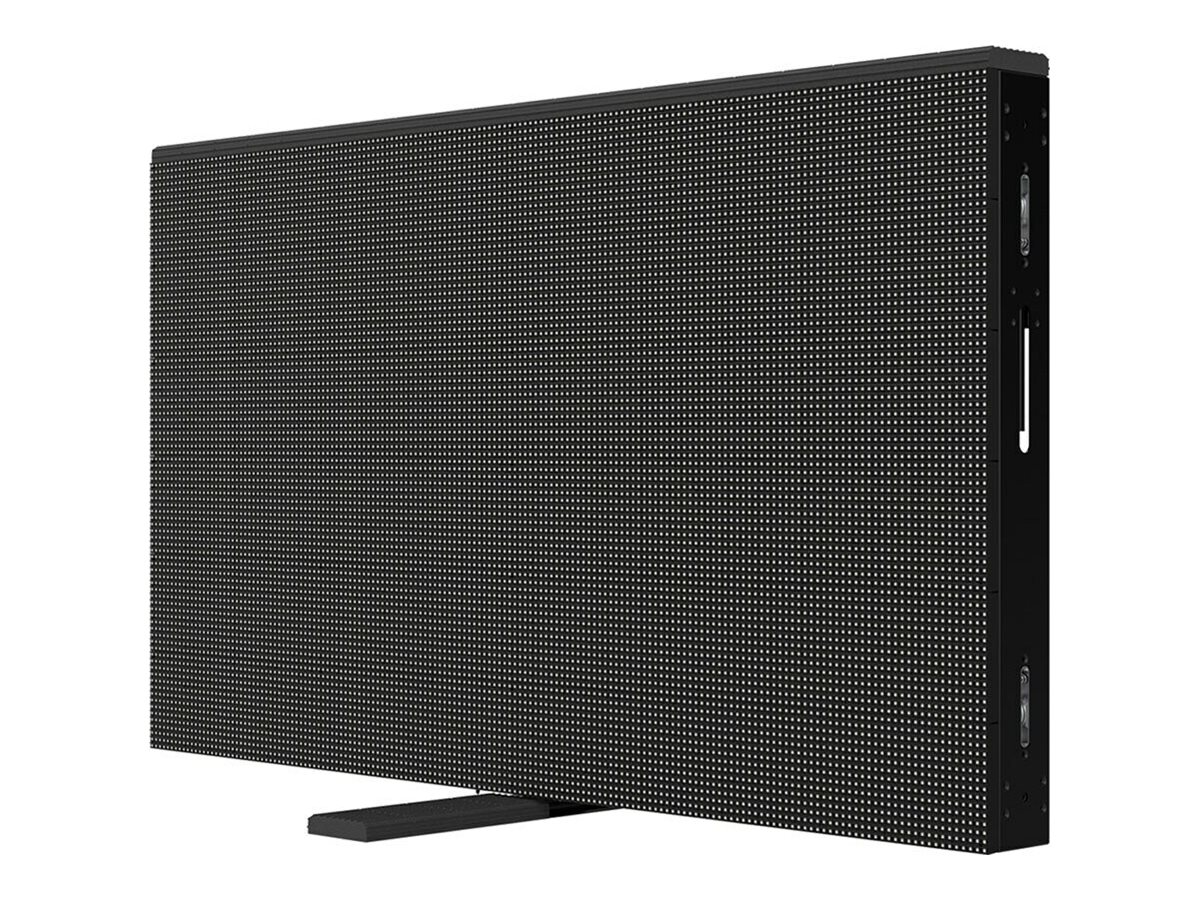

LG LBB100DD3 - Stadium Series (Perimeter) LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

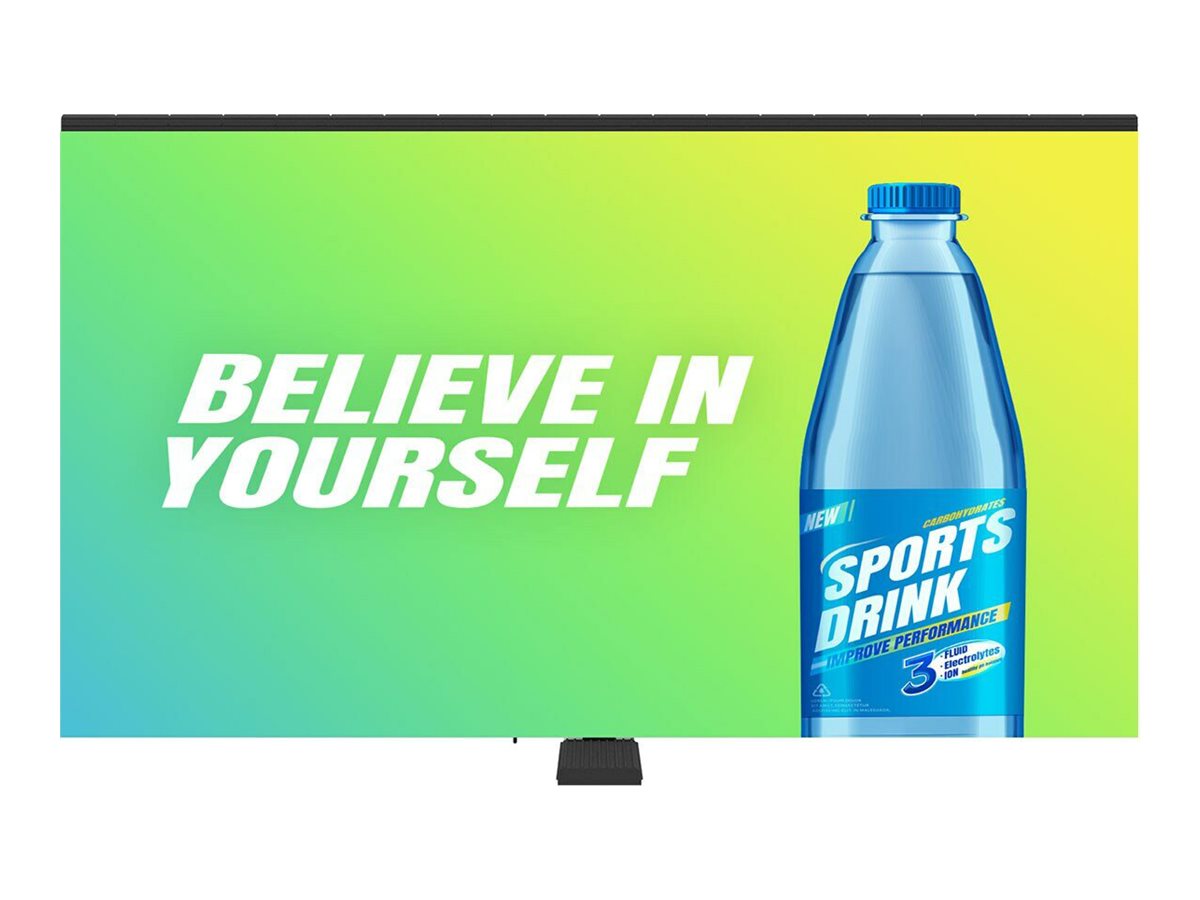

LG LBB100DD3 - Stadium Series (Perimeter) LED display unit
- digital signage outdoor
- full sun 160 x 90 per unit
- SMD
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LBB100DD3 |
| SHI Part #: | 41835017 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG LBB100DD3 - Stadium Series (Perimeter) LED display unit - digital signage outdoor - full sun 160 x 90 per unit - SMD |
| Manufacturer | LG Electronics |
| MSRP | $10,592.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.4 cm |
| Dimensions & Weight / Height | 90 cm |
| Dimensions & Weight / Weight | 65 kg |
| Dimensions & Weight / Width | 160 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 6000 cd/m² |
| Television / Image Contrast Ratio | 12000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Display | |
| Additional Features | 14-bit Processing |
| Brightness | 6000 cd/m² |
| Color Temperature | 3500 - 9000K |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 12000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 120° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 99% RH |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 12.4 cm |
| Height | 90 cm |
| Outdoor | Yes |
| Product Type | LED display unit |
| Protection | Weatherproof |
| Series | Stadium Series (Perimeter) |
| Sun Exposure | Full sun |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 65 kg |
| Width | 160 cm |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, ETL, IP65 |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 1200 W |
| Video Wall Display Unit Power Consumption (Typical) | 400 W |
| Video Wall Power Consumption (Max) | 840 W/m² |
| Video Wall Display Unit | |
| Area | 1.44 m² |
| Cabinet Frame Material | Aluminum |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 4x6 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Density | 10000 pixels/m² |
| Pixel Pitch | 10 mm |
| Resolution | 160 x 90 |
