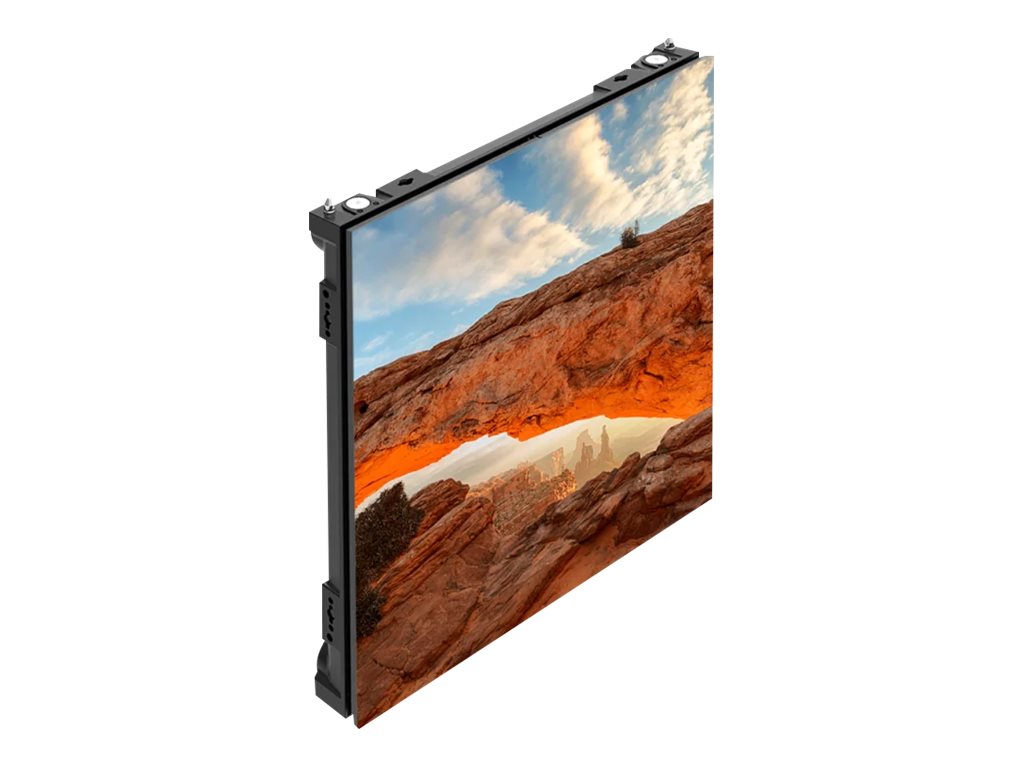

LG GSCA039-GN2 - GSCA Versatile Series LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LG GSCA039-GN2 - GSCA Versatile Series LED display unit
- digital signage outdoor
- full sun 128 x 128 per unit
- SMD
| Additional Details | |
|---|---|
| Mfr Part #: | GSCA039-GN2 |
| SHI Part #: | 41834993 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | LG Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | LG GSCA039-GN2 - GSCA Versatile Series LED display unit - digital signage outdoor - full sun 128 x 128 per unit - SMD |
| Manufacturer | LG Electronics |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.605 cm |
| Dimensions & Weight / Height | 50 cm |
| Dimensions & Weight / Weight | 7.93 kg |
| Dimensions & Weight / Width | 50 cm |
| Header / Brand | LG |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 5000 cd/m² |
| Television / Image Contrast Ratio | 6000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Display | |
| Additional Features | 14-bit Processing |
| Brightness | 5000 cd/m² |
| Color Temperature | 3500 - 9000K |
| Frame Rate & Enhancement Technology | 3844 Hz Refresh Rate |
| Image Contrast Ratio | 6000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 155° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 99% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 6.605 cm |
| Design | 90° corner design |
| Dimensions | Display unit |
| Height | 50 cm |
| Outdoor | Yes |
| Product Type | LED display unit |
| Protection | Weatherproof |
| Series | GSCA Versatile Series |
| Sun Exposure | Full sun |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 7.93 kg |
| Width | 50 cm |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, ETL, IP65 |
| Power | |
| Input Voltage | AC 120/230 V |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 150 W |
| Video Wall Display Unit Power Consumption (Typical) | 50 W |
| Video Wall Power Consumption (Max) | 600 W/m² |
| Video Wall Display Unit | |
| Area | 0.25 m² |
| Cabinet Frame Material | Die-casting magnesium |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 2x1 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Density | 65536 pixels/m² |
| Pixel Pitch | 3.91 mm |
| Resolution | 128 x 128 |
