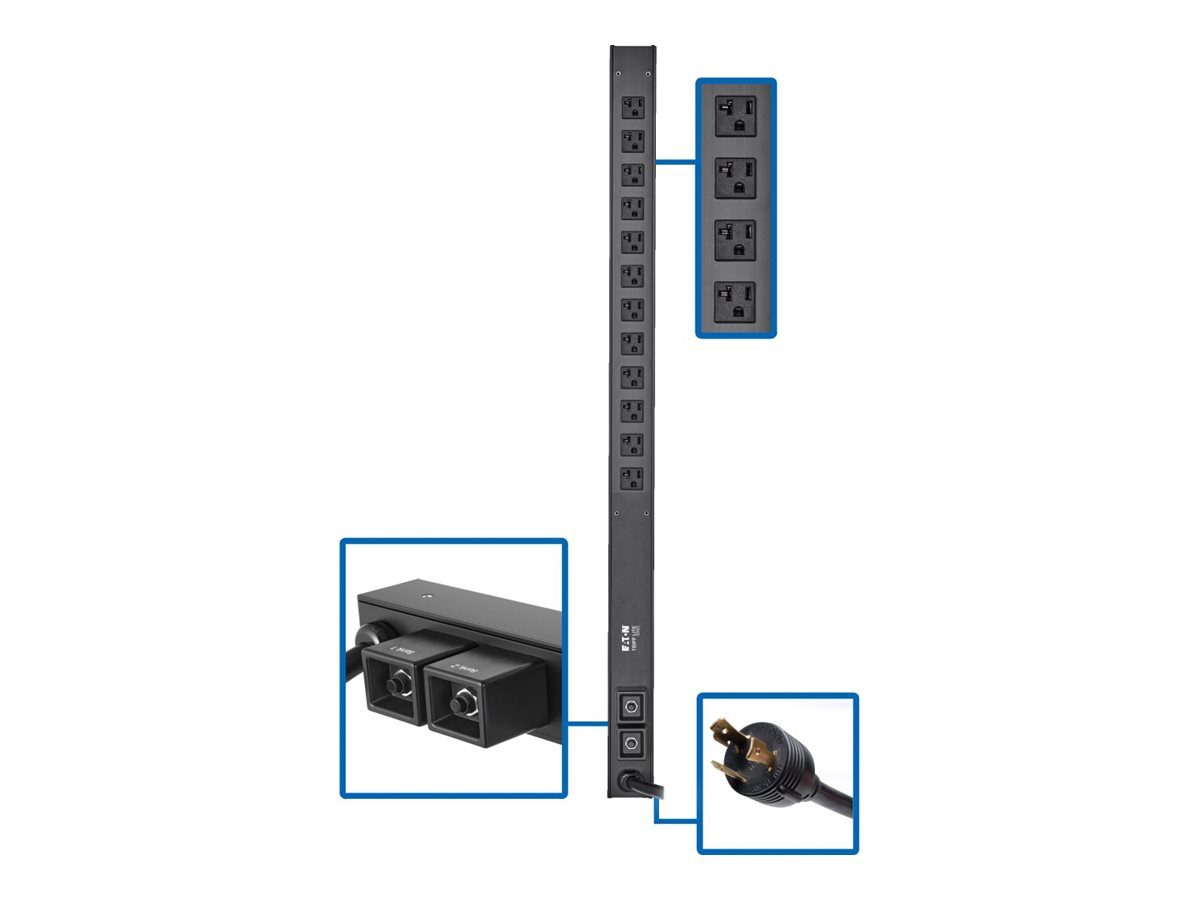

Eaton Tripp Lite Series PDU Basic 2.9kW 120V Single-Phase

MSRP$507.00
$389.00
Eaton Tripp Lite Series PDU Basic 2.9kW 120V Single-Phase
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount
  • Power distribution unit (rack-mountable)
  • 30 A
  • AC 100/120/127 V
  • 3.05 kW
Eaton Tripp Lite Series PDU Basic 2.9kW 120V Single-Phase
  • 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount
  • Power distribution unit (rack-mountable)
  • 30 A
  • AC 100/120/127 V
  • 3.05 kW
  • 1-phase

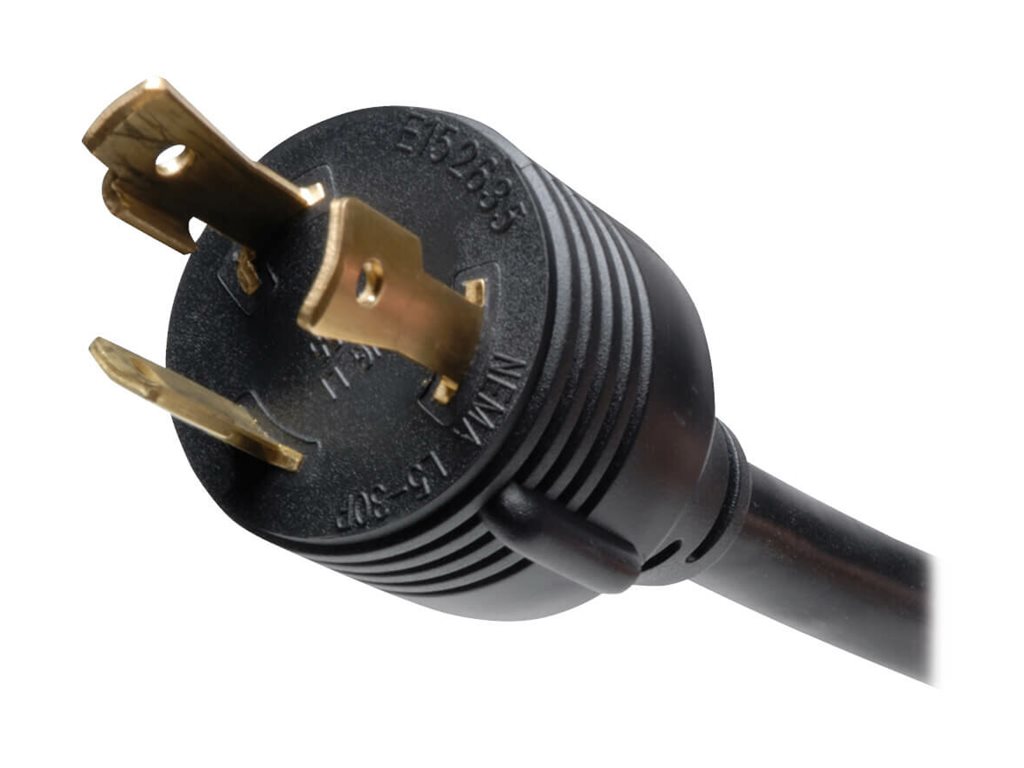

  • input: NEMA L5-30P
  • output connectors: 12 (12 x NEMA 5-15/20R)
  • 0U
  • 3.05 m cord
  Additional Details
Price: $389.00
MSRP: $507.00
Mfr Part #: PDUV30-36
SHI Part #: 41727419
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Eaton
Product Type: Hardware

Power Cables

Tripp Lite 6in Power Cord Adapter Cable Heavy Duty L5-20R to 5-20P 20A 12AWG 6"
Tripp Lite 6in Power Cord Adapter Cable Heavy Duty L5-20R to 5-20P 20A 12AWG 6"
  • Power cable
  • NEMA 5-20 (M) to NEMA L5-20 (F)
  • 15 cm
MSRP $51.71 $27.00
Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 10A 18AWG 6'
Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 10A 18AWG 6'
  • Power cable
  • IEC 60320 C13 to NEMA 5-15 (M)
  • AC 110 V
  • 1.8 m
  • black
MSRP $12.50 $7.00
Tripp Lite 10ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 10'
Tripp Lite 10ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 10'
  • Power cable
  • NEMA 5-15 (M) to IEC 60320 C13
  • AC 110 V
  • 3 m
  • molded
  • black
MSRP $36.93 $19.00

UPS-Battery Backups

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V USB DB9 SNMP 2URM
Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V USB DB9 SNMP 2URM
  • UPS (rack-mountable)
  • AC 120 V
  • 2.25 kW
  • 3000 VA
  • output connectors: 9
  • 2U
MSRP $2,695.35 $2,190.00
Tripp Lite SMART3000RM2U
Tripp Lite SMART3000RM2U
MSRP $2,695.35 $1,774.00
General Information
CategoryRack systems for rack mount electroni...
DescriptionEaton Tripp Lite Series PDU Basic 2.9kW 120V Single-Phase - 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount - Power distribution unit (rack-mountable) - 30 A - AC 100/120/127 V - 3.05 kW - 1-phase - input: NEMA L5-30P - output connectors: 12 (12 x NEMA 5-15/20R) - 0U - 3.05 m cord
ManufacturerEaton
MSRP$507.00
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth9.53 cm
Dimensions & Weight / Height91.4 cm
Dimensions & Weight / Weight3.63 kg
Dimensions & Weight / Width5.72 cm
General / SubcategoryPower distribution devices
Header / BrandTripp Lite
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty12
Power Device / Voltage RequiredAC 100/120/127 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth9.53 cm
Height91.4 cm
Weight3.63 kg
Width5.72 cm
Dimensions & Weight (Shipping)
Shipping Depth165 cm
Shipping Height12.7 cm
Shipping Width7.62 cm
Environmental Parameters
Humidity Range Operating0 - 95%
General
Cord Length3.05 m
Device TypePower distribution unit - rack-mountable
Height (Rack Units)0U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedPower cable 3.05 m
Compliant StandardsUL 60950-1, NOM, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, UL 60950-1:2007 Second edition + A1 + A2 R10.14, RoHS

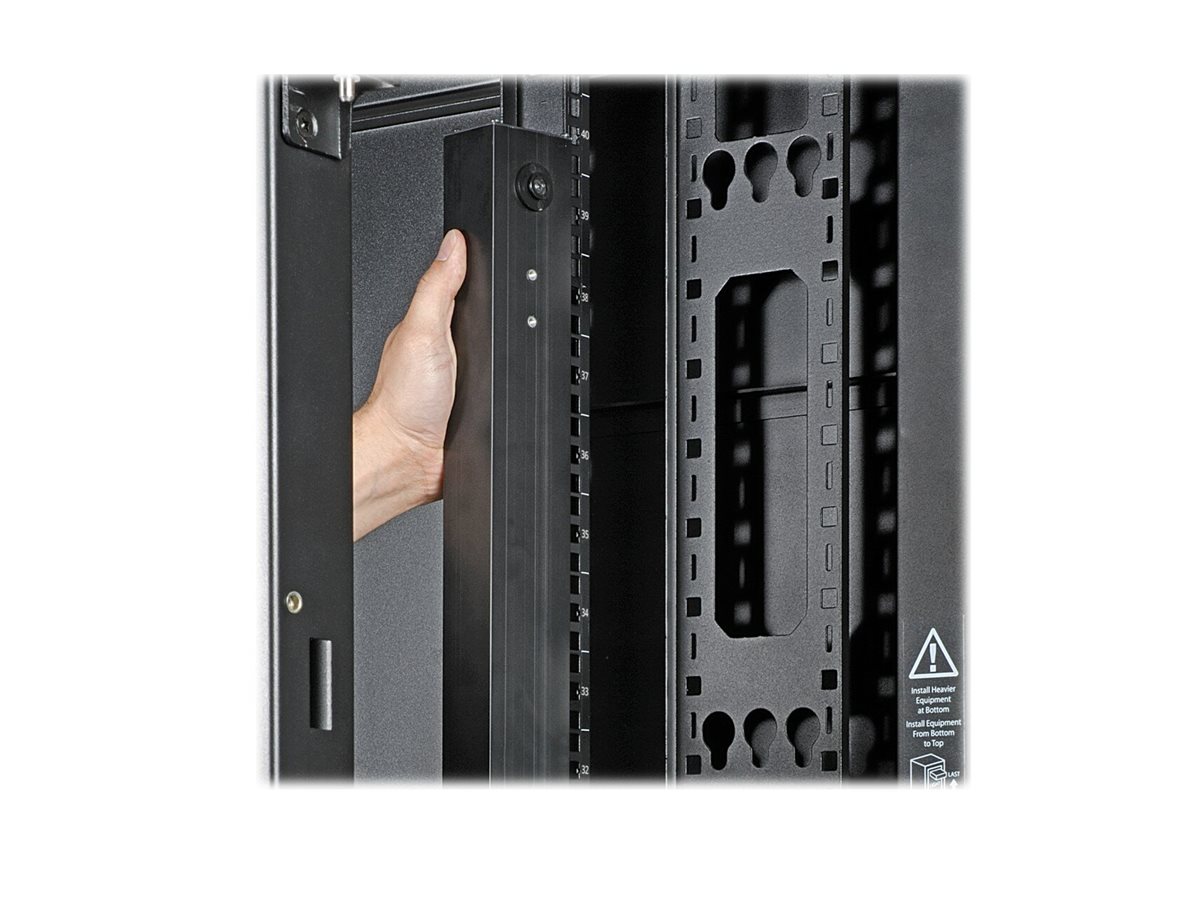

FeaturesVertical mount, wall mountable, under counter mountable
Included Accessories2 x cable retention brackets
Rack Mounting KitIncluded
Power Device

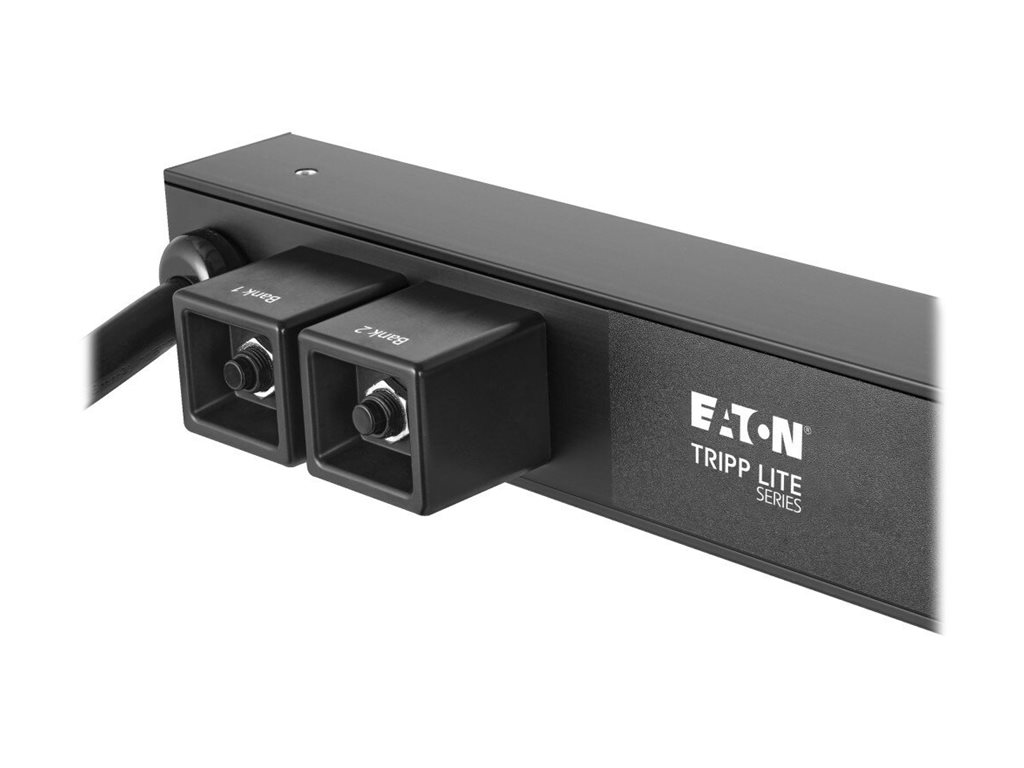

Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 100/120/127 V
Input Wiring1-phase
Max Electric Current30 A
Output VoltageAC 100/120/127 V 50/60 Hz
Power Capacity3.05 kW
Power Output Connectors Details12 x power NEMA 5-15/20R - 127 V 16 A
