HP EliteDesk 800 G6 - Mini desktop
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

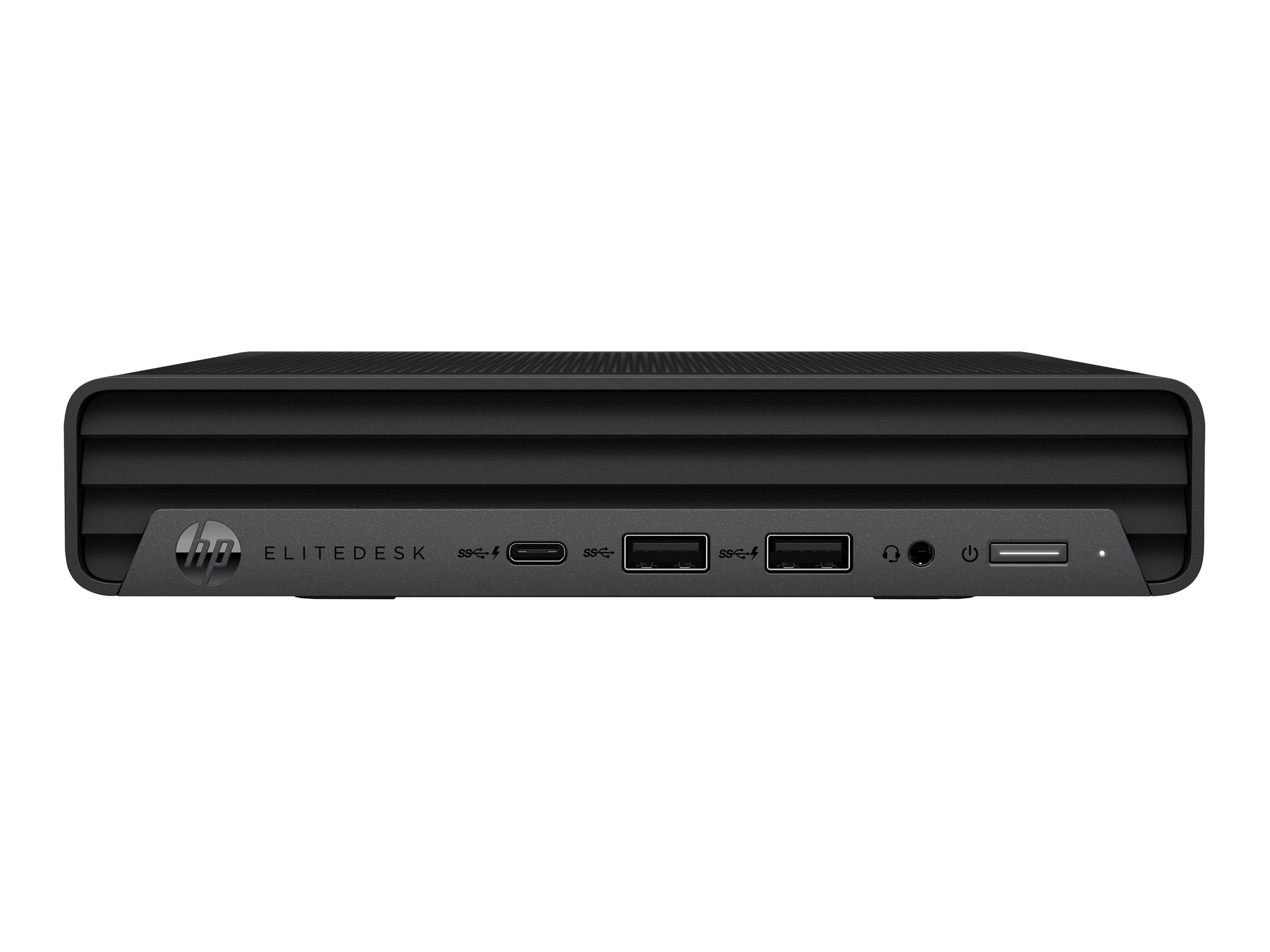

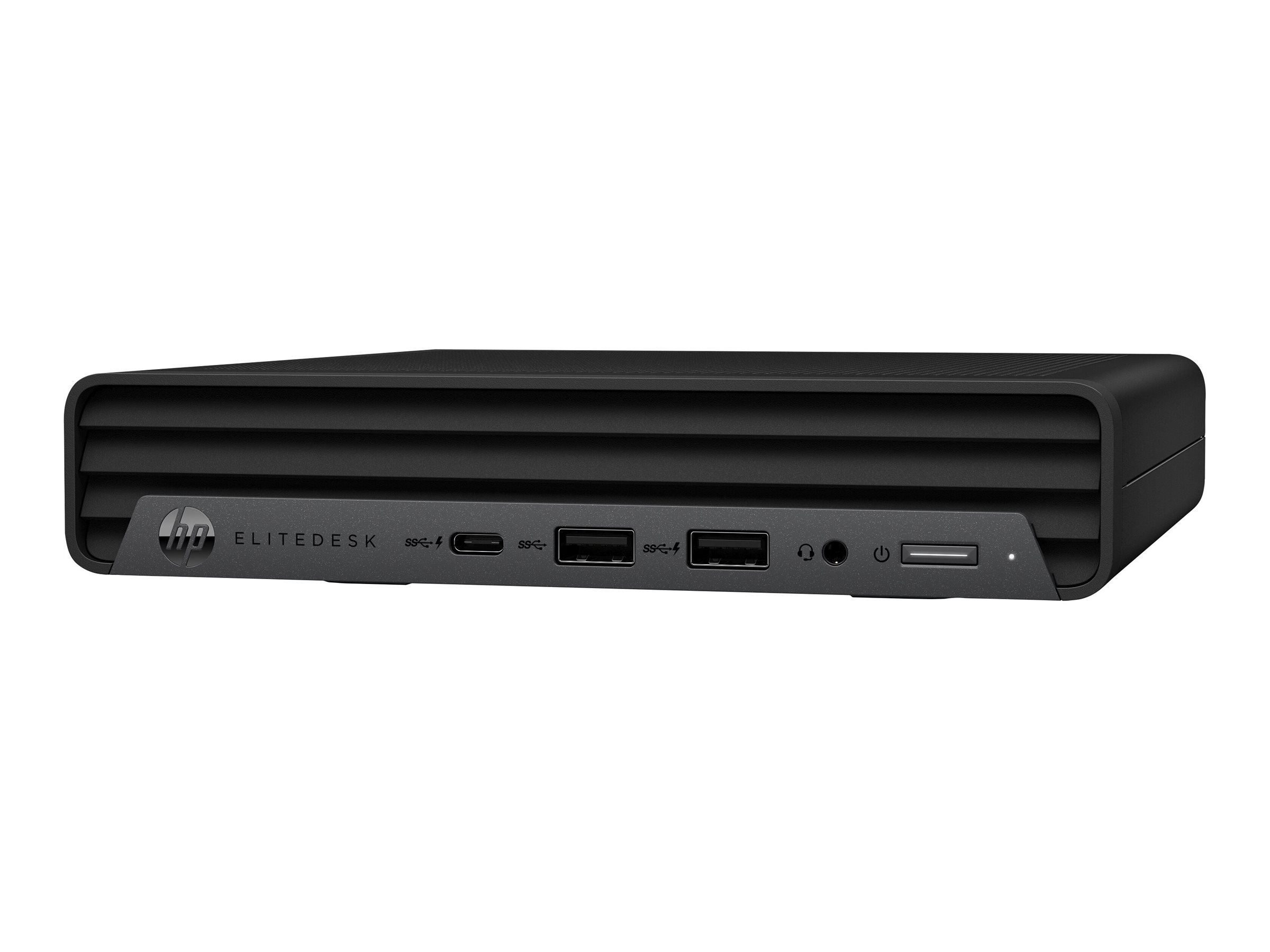

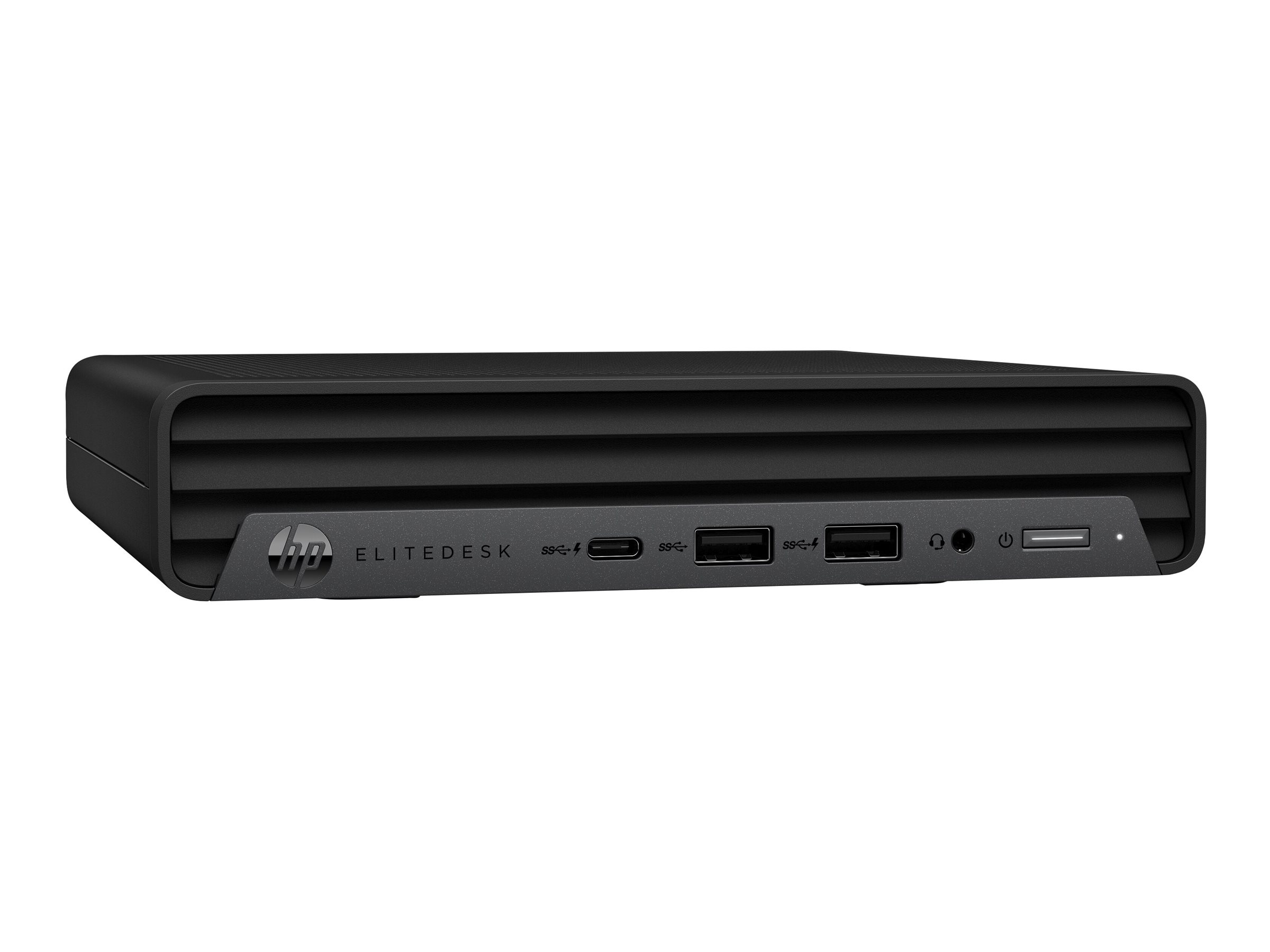

HP EliteDesk 800 G6 - Mini desktop
- Core i5 10500 / 3.1 GHz
- vPro
- RAM 8 GB
- SSD 256 GB
- NVMe, TLC
- UHD Graphics 630
- GigE
- WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1
- Win 10 Pro 64-bit
- monitor: none
- keyboard: US
| Additional Details | |
|---|---|
| Mfr Part #: | 20J09UT#ABA |
| SHI Part #: | 41675511 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Keyboards and Keypads
- USB
- US
- for Elite Slice G2; EliteDesk 80X G6; EliteOne 800 G8; ProDesk 405 G6; ProOne 400 G6, 600 G6
Audio/Video Cables
- Video adapter
- DisplayPort (M) to HDMI (F)
- 4K support
- for HP 260 G4, t540; Desktop Pro 300 G6; Elite Slice G2; EliteDesk 805 G6; ProDesk 405 G6
- Mini DisplayPort (M) to DisplayPort (F)
- for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP EliteDesk 800 G6 - Mini desktop - Core i5 10500 / 3.1 GHz - vPro - RAM 8 GB - SSD 256 GB - NVMe, TLC - UHD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1 - Win 10 Pro 64-bit - monitor: none - keyboard: US |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 17.5 cm |
| Dimensions & Weight / Height | 3.4 cm |
| Dimensions & Weight / Weight | 1.42 kg |
| Dimensions & Weight / Width | 17.7 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Hard Drive / Interface | PCI Express 3.0 |
| Hard Drive / Interface Type | PCI Express 3.0 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel Q470 |
| Mainboard / Processor Socket | FCLGA1200 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 Pro 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.1 GHz |
| Processor / Generation | 10 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | I5-10500 |
| Processor / Type | Core i5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Specification Compliance | PC4-21333 |
| RAM / Memory Speed | 2666 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Platform Technology | Intel vPro Platform |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 630 |
| Video Output / HDCP compatible | Yes |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Max Sampling Rate | 192 kHz |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | L3 cache - 12 MB |
| Dimensions & Weight | |
| Depth | 17.5 cm |
| Height | 3.4 cm |
| Weight | 1.42 kg |
| Width | 17.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.2 cm |
| Shipping Height | 23.5 cm |
| Shipping Weight | 2.95 kg |
| Shipping Width | 49.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Platform Technology | Intel vPro Platform |
| Product Form Factor | Mini desktop |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 Dynamic Video Memory Technology |
| HDCP Compatible | Yes |
| Max Monitors Supported | 3 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 3.0 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 320M |
| Networking | |
| Compliant Standards | IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6) |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), MU-MIMO Support, PXE 2.1 support, dual stream (2x2), Miracast compatible |
| Remote Management Protocol | SNMP 2 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition English |
| Software | HP Support Assistant, Windows Defender, HP Secure Erase, HP Setup Integrated OOBE, HP JumpStart, HP Noise Cancellation, HP Privacy Settings, HP Cloud Recovery, Intel Unite Plus Lync Plug-in, HP BIOSphere Gen6, HP Wake on WLAN, HP Desktop Support Utility, HP Client Security Suite Gen6 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 89% (230VAC), 88% (115VAC) |
| Power Provided | 90 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel Q470 |
| Clock Speed | 3.1 GHz |
| CPU | Intel Core i5 (10th Gen) 10500 |
| CPU Qty | 1 |
| CPU Socket | FCLGA1200 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 6-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 2666 MHz |
| Features | Unbuffered |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Memory Specification Compliance | PC4-21333 |
| Rated Memory Speed | 2666 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
