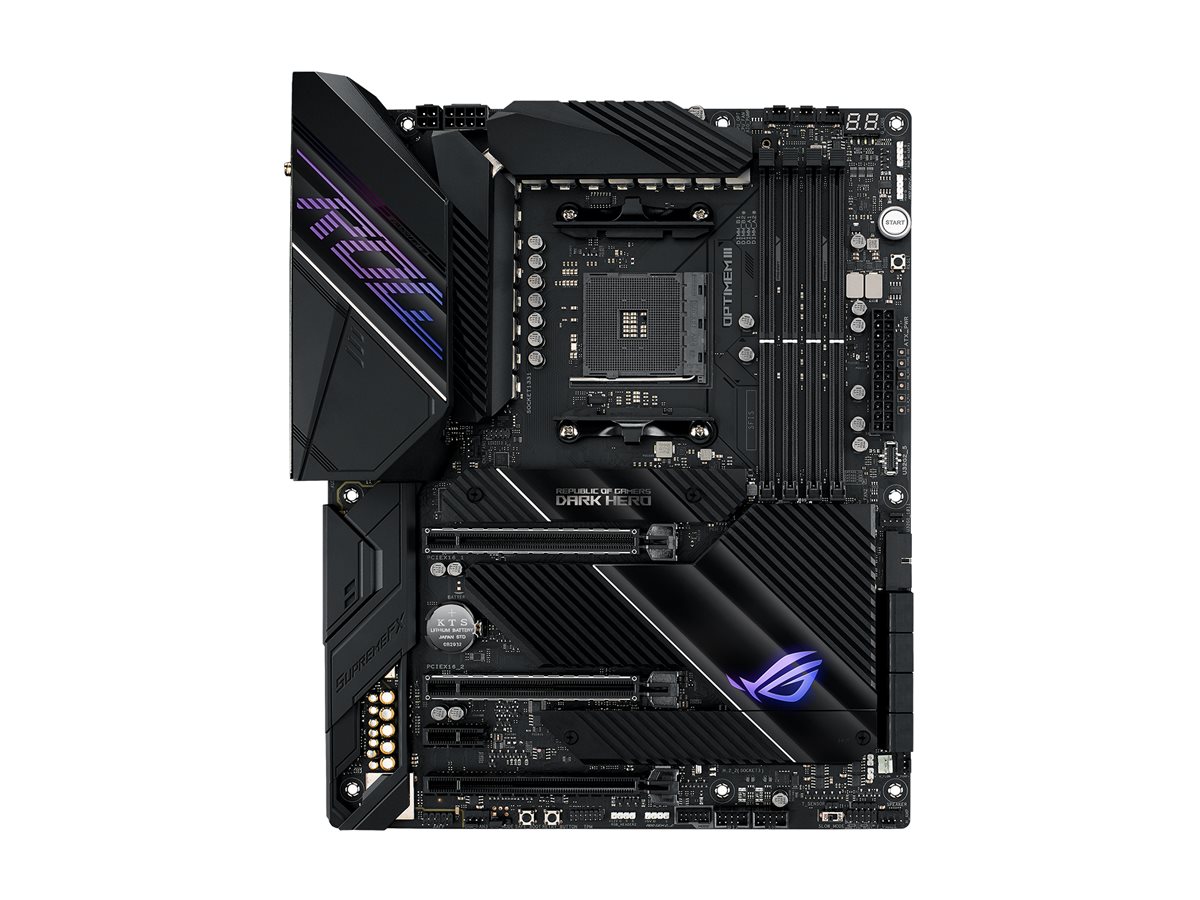

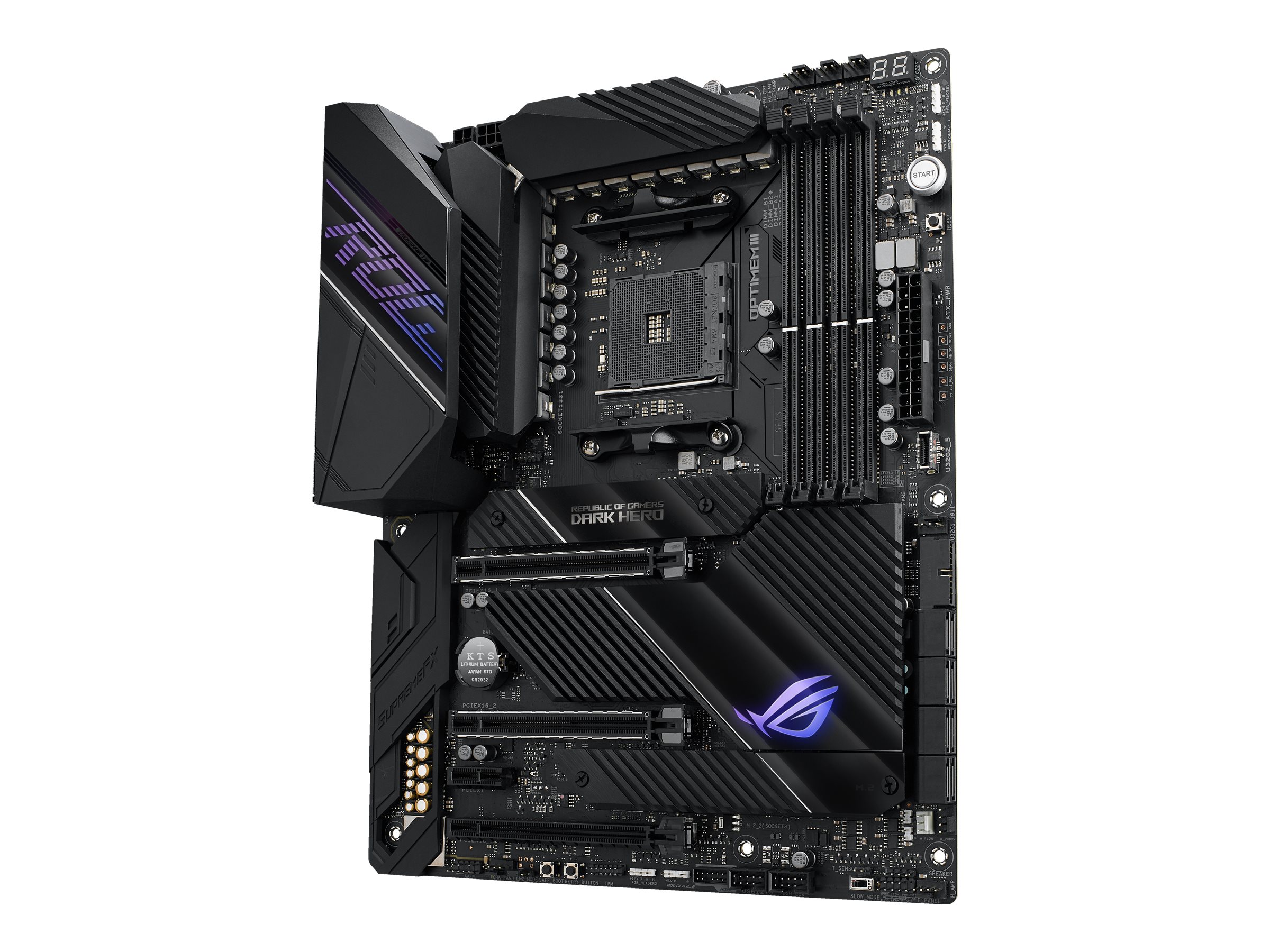

ASUS ROG Crosshair VIII Dark Hero

Login for Price
ASUS ROG Crosshair VIII Dark Hero
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • Socket AM4
  • AMD X570 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
ASUS ROG Crosshair VIII Dark Hero
  • Motherboard
  • ATX
  • Socket AM4
  • AMD X570 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: 90MB1760-M0AAY0
SHI Part #: 41670111
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG Crosshair VIII Dark Hero - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X570
Mainboard / Compatible ProcessorsRyzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.1
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeNone
Audio
Audio CodecSupremeFX
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8, x8/x0 modes (with 2nd Generation Ryzen CPU and 3rd Generation Ryzen CPU with Radeon Graphics))
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x1
Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 4 x USB 3.2 Gen 1
  • 7 x USB 3.2 Gen 2
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x USB-C Gen2
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB 3.2 Gen 2 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x speaker - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
  • SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Features
BIOS FeaturesWfM 2.0 support, USB BIOS Flashback, UEFI BIOS, SMBIOS 3.2 support, ACPI 6.2 support
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, NVIDIA 3-way SLI Technology Support, Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), anti-pop function, LANGuard, ESS ES9023P
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeAMD X570
Compatible ProcessorsRyzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - ATX
LAN
Network ControllerIntel I211-AT / Realtek RTL8125-CG / Intel AX200
Network InterfacesGigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Miscellaneous
Cables Included4 x Serial ATA cable
Depth24.4 cm
Included AccessoriesExternal antenna, 1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable, Q-Connector
Software IncludedDrivers & utilities
Width30.5 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5100 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckECC, non-ECC
TechnologyDDR4
