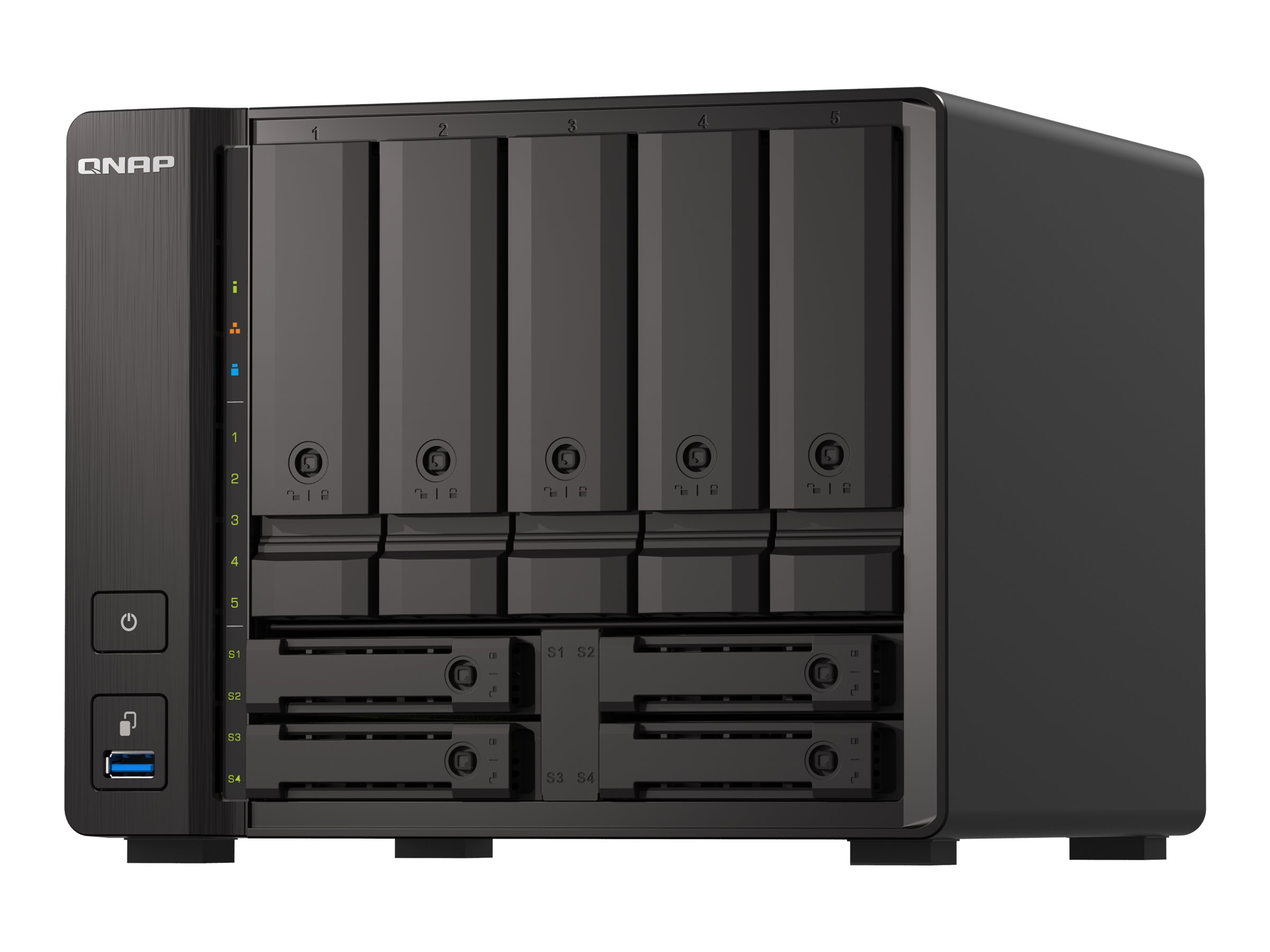

QNAP TS-H973AX-8G - NAS server

$1,324.00
QNAP TS-H973AX-8G - NAS server
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 9 bays
  • SATA 6Gb/s
  • RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP
  • RAM 8 GB
  • 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
QNAP TS-H973AX-8G - NAS server
  • 9 bays
  • SATA 6Gb/s
  • RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP
  • RAM 8 GB
  • 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
  • iSCSI support
  Additional Details
Price: $1,324.00
Mfr Part #: TS-H973AX-8G-US
SHI Part #: 41598539
Category: Electronic data storage equipment
UNSPSC: 43201800
Manufacturer: QNAP
Product Type: Hardware
General Information
CategoryElectronic data storage equipment
DescriptionQNAP TS-H973AX-8G - NAS server - 9 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 8 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
ManufacturerQNAP
MSRP$1,099.00
UNSPSC43201800
Main Specifications
Dimensions & Weight / Depth22.41 cm
Dimensions & Weight / Height18.265 cm
Dimensions & Weight / Weight3.52 kg
Dimensions & Weight / Width22.46 cm
Header / BrandQNAP
Header / Country KitsUnited States
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
Packaged Quantity1
Processor / Processor NumberV1500B
Processor / TypeRyzen Embedded
System Requirements / OS Required
  • Apple OS X 10.10 Yosemite or later
  • CentOS 7.0
  • IBM AIX 7
  • Microsoft Windows 7 / 8 / 10
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Oracle Solaris 10 or later
  • Red Hat Enterprise Linux 6.6
  • SuSE Linux 12 or later
  • Ubuntu 14.04
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission22.9 dBA
Expansion / Connectivity
Expansion Bays
  • 5 (total) / 5 (free) x hot-swap - 3.5"
  • 4 (total) / 4 (free) x hot-swap - 2.5"
Interfaces
  • 1 x Ethernet 10Gb
  • 3 x USB 3.2 Gen 2 - Type A
  • 1 x USB 3.2 Gen 2 - Type C
  • 2 x 2.5 Gigabit Ethernet
General
Depth22.41 cm
Device TypeNAS server
Height18.265 cm
Host Connectivity2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty0 (installed) / 9 (max)
LocalizationUnited States
Total Storage Capacity0 GB
Weight3.52 kg ()
Width22.46 cm
Miscellaneous
Cables Included1 x network cable
FeaturesSecurity lock slot (cable lock sold separately), built-in cooling fan
Included Accessories2 x front panel keys, 24 x flat head screws (for 3.5" HDD), 32 x flat head screws (for 2.5" HDD)
Security Slot TypeKensington security slot
Networking
Compliant StandardsUPnP
Data Link Protocol10GbE, 2.5GbE
Encryption AlgorithmSSL, FIPS 140-2, 128-bit AES, 256-bit AES
FeaturesNAT support, load balancing, wake on LAN (WOL), IPv6 support, Spanning Tree Protocol (STP) support, download client, Jumbo Frames support, DHCP server, IPv4 support, DHCP client, link aggregation trunking, DLNA support, port trunking, IFTTT agent, FXP support
Network / Transport ProtocolPPTP, L2TP, IPSec, FTP, DHCP, DDNS, SFTP, SMSC, HTTP, HTTPs
Network Services CompatibilityMicrosoft Active Directory (AD), DDNS, Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV)
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, IPMI 1.0, HTTP, HTTPS, TFTP, SSH, SMTP
Power
Power DeviceExternal power adapter
Power Provided120 Watt
Voltage RequiredAC 120/230 V
Processor / Memory
Flash Memory Installed5 GB
Max Supported Qty1
Number of CoresQuad-Core
Processors Installed1 x AMD Ryzen Embedded V1500B 2.2 GHz
RAM8 GB (installed) / 32 GB (supported) - DDR4
Software / System Requirements
OS RequiredMicrosoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Apple OS X 10.10 Yosemite or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later
Storage Operating SystemQNAP QuTS hero 4.5.0
Storage Controller
Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP
TypeRAID
