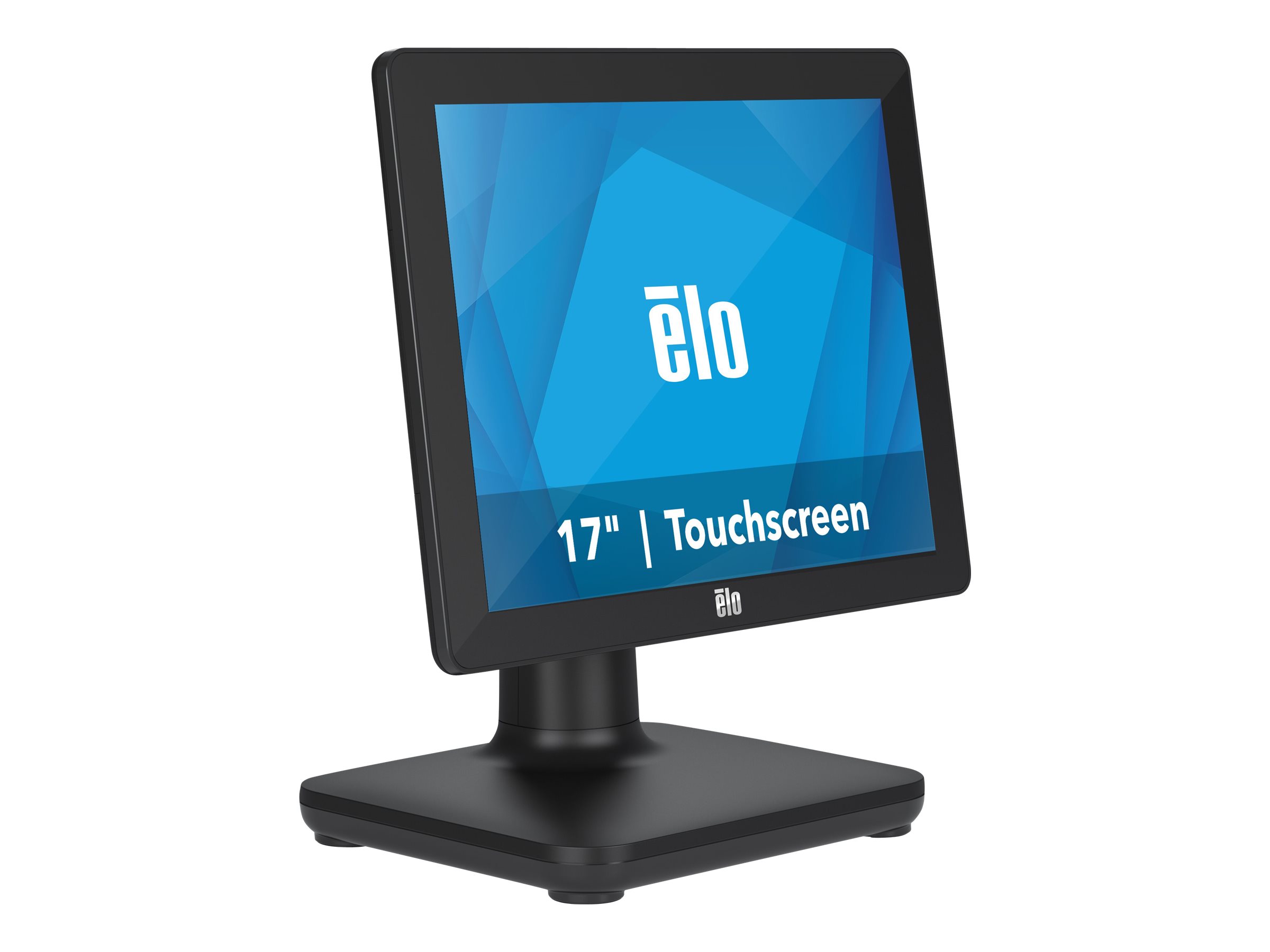

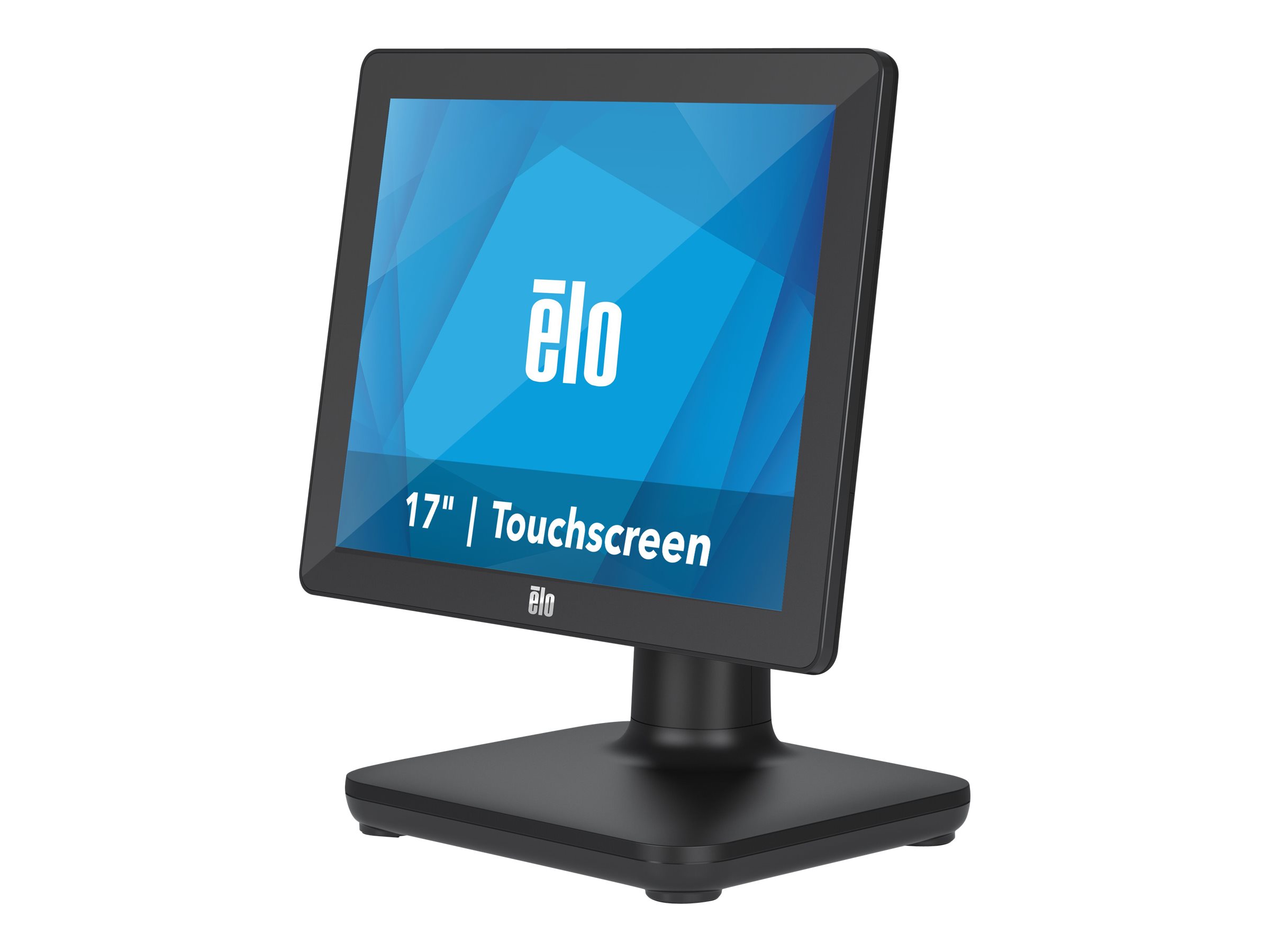

EloPOS System - With I/O Hub Stand


MSRP$1,651.00
$1,514.00
EloPOS System - With I/O Hub Stand

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • all-in-one
  • 1 x Celeron J4105 / 1.5 GHz
  • RAM 4 GB
  • SSD 128 GB
  • UHD Graphics 600
EloPOS System - With I/O Hub Stand
  • all-in-one
  • 1 x Celeron J4105 / 1.5 GHz
  • RAM 4 GB
  • SSD 128 GB
  • UHD Graphics 600
  • GigE
  • WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0
  • Win 10 IoT Enterprise LTSC 64-bit
  • monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
  Additional Details
Price: $1,514.00
MSRP: $1,651.00
Mfr Part #: E401992
SHI Part #: 41378731
Category: Point of sale (POS) terminals
UNSPSC: 43211505
Manufacturer: Elo Touch Solutions
Product Type: Hardware
General Information
CategoryPoint of sale (POS) terminals
DescriptionEloPOS System - With I/O Hub Stand - all-in-one - 1 x Celeron J4105 / 1.5 GHz - RAM 4 GB - SSD 128 GB - UHD Graphics 600 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - Win 10 IoT Enterprise LTSC 64-bit - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
ManufacturerElo Touch Solutions
MSRP$1,651.00
UNSPSC43211505
Main Specifications
Dimensions & Weight / Weight0.00
Height0.00
Length0.00
UPC0843173128894
Width0.00
Audio Output
Sound Output ModeStereo
Speakers Included2 x right / left channel
Cache Memory
Cache Per Processor4 MB
Installed Size4 MB
Dimensions & Weight
Weight6.7 kg
Dimensions & Weight (Shipping)
Shipping Depth28.3 cm
Shipping Height47.8 cm
Shipping Weight9 kg
Shipping Width47.6 cm
Environmental Parameters
Humidity Range Operating20 - 80% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 3 x USB 3.0
  • 2 x USB 2.0
  • 4 x USB 2.0 - micro-USB
  • 2 x PoweredUSB (12 V)
  • 1 x PoweredUSB (24 V)
  • 1 x LAN (Gigabit Ethernet) - RJ-45
  • 1 x cash drawer (12V/24 V)
  • 1 x headphones/microphone
  • 2 x serial - RJ-45
  • 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Slots1 (total) / 0 (free) x M.2 Card
General
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Product Form FactorAll-in-one
TypePoint of sale terminal
Graphics Controller
Graphics ProcessorIntel UHD Graphics 600
Hard Drive
Capacity1 x 128 GB
Interface TypeSATA 6Gb/s
SSD Endurance80 TB
TypeSSD - M.2
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables IncludedRJ-45 to DB-9 cable
Compliant StandardsUL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM
Included AccessoriesCable cover locking screw
VESA Mounting Interface75 mm
Monitor
Diagonal Size17"
Horizontal Viewing Angle170
Image Aspect Ratio5:4
Image Brightness250 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesAnti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology
Monitor TypeLED
Native Resolution1280 x 1024 (SXGA)
Response Time5 ms
TouchscreenYes (10-point multi-touch)
Vertical Viewing Angle160
Widescreen DisplayNo
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Wireless LAN SupportedYes
Operating System / Software
OS ProvidedWindows 10 IoT Enterprise LTSC 64-bit Edition
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Installed Qty1
Power Consumption Operational31 Watt
Power Provided180 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Clock Speed1.5 GHz
CPUIntel Celeron J4105
CPU Qty1
Max CPU Qty1
Max Turbo Speed2.5 GHz
Number of CoresQuad-Core
RAM
Configuration Features1 x 4 GB
Effective Memory Speed2400 MHz
FeaturesUnbuffered
Form FactorSO-DIMM 260-pin
Installed Size4 GB / 8 GB (max)
Rated Memory Speed2666 MHz
Slots2 (total) / 1 (empty)
TechnologyDDR4 SDRAM - non-ECC
Storage Controller
Controller Interface TypeSATA 6Gb/s
Type1 x SATA
