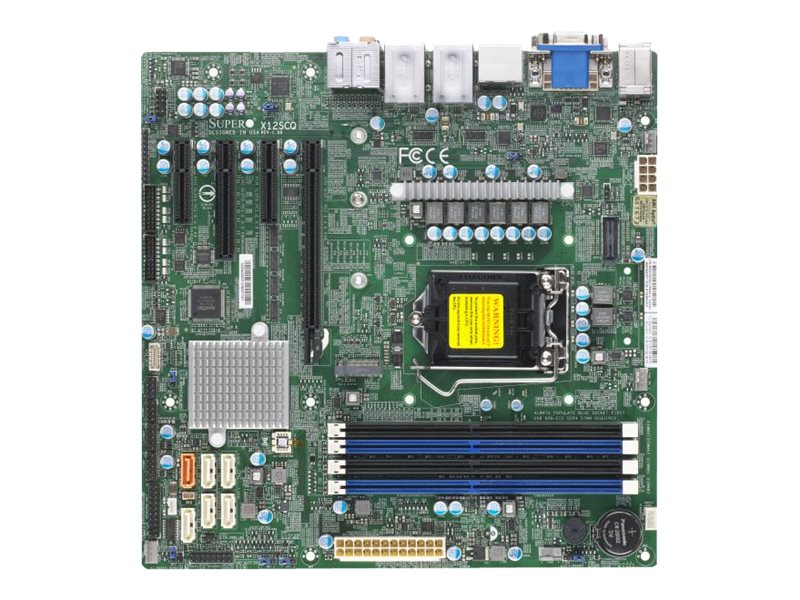

SUPERMICRO X12SCQ - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SUPERMICRO X12SCQ - Motherboard
- micro ATX
- LGA1200 Socket
- Q470E Chipset
- USB-C Gen2, USB 3.1 Gen 2
- 2 x Gigabit LAN
- onboard graphics (CPU required)
- HD Audio
| Additional Details | |
|---|---|
| Mfr Part #: | MBD-X12SCQ-B |
| SHI Part #: | 41033860 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | SUPERMICRO X12SCQ - Motherboard - micro ATX - LGA1200 Socket - Q470E Chipset - USB-C Gen2, USB 3.1 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.38 cm |
| Dimensions & Weight / Width | 24.38 cm |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel Q470E |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1200 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SMBIOS 3.0 support, ACPI 6.1 support |
| BIOS Type | AMI |
| Hardware Features | Chassis intrusion detection |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | RTC (real-time clock) wake up |
| General | |
| Chipset Type | Intel Q470E |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (Maximum TDP 125 Watt) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Intel I210-AT / I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.38 cm |
| Package Type | Bulk |
| Width | 24.38 cm |
| Supported RAM | |
| Bus Clock | 2933 MHz |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
