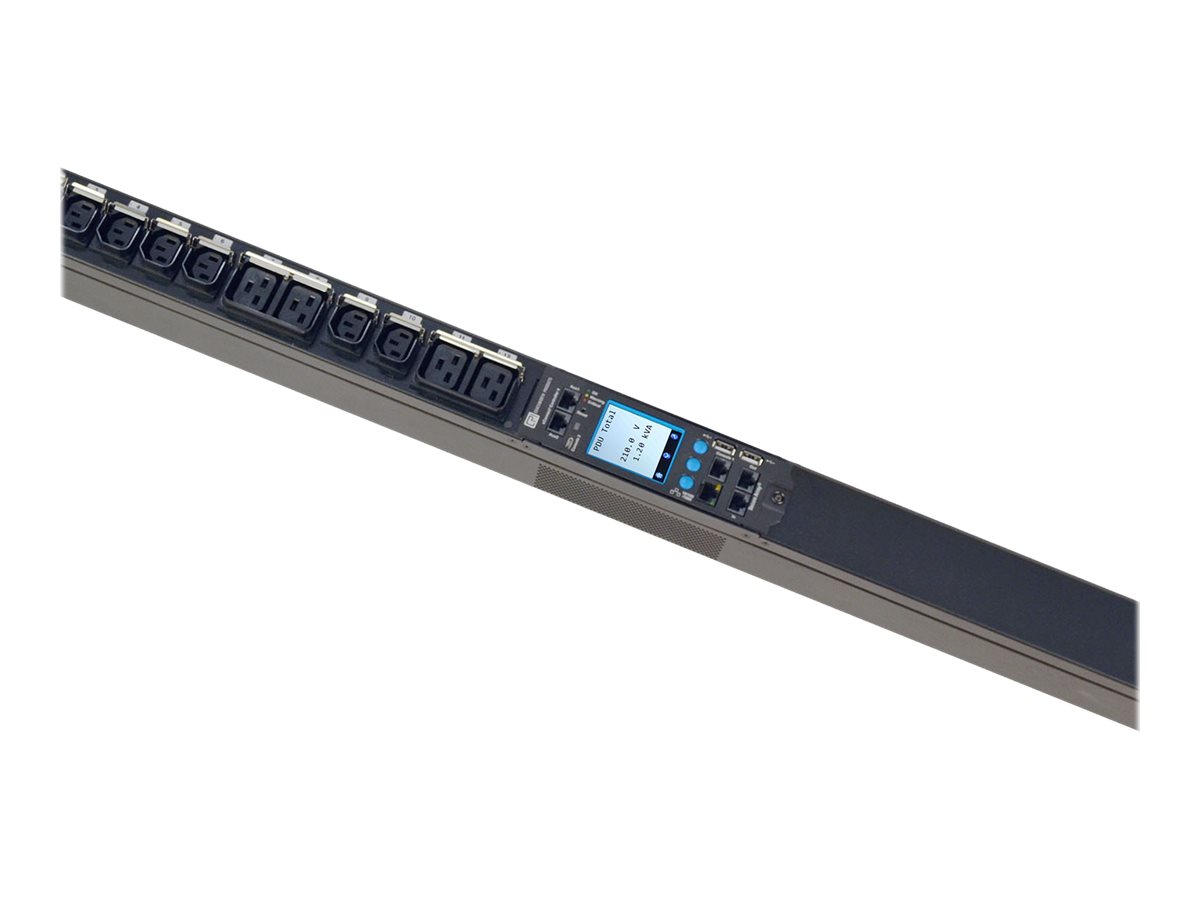

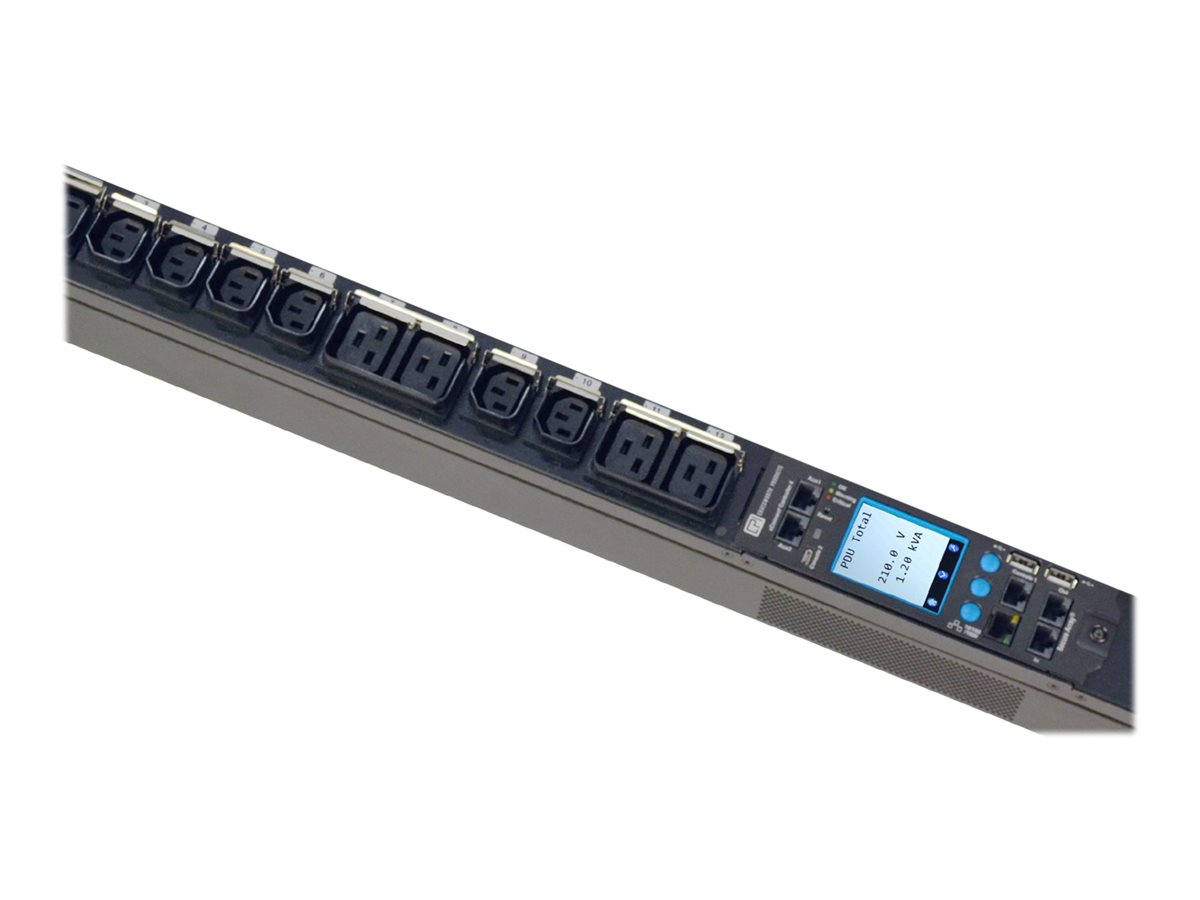

CPI Switched eConnect PDU EA-5070-C
MSRP$1,971.41
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CPI Switched eConnect PDU EA-5070-C
- Power distribution unit (rack-mountable)
- AC 208 V
- 3.3 kW
- 1-phase
- USB, Ethernet 10/100/1000, serial
- input: NEMA L6-20
- output connectors: 24 (24 x IEC 60320 C13)
- 42U
- 3 m cord
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,971.41 |
| Mfr Part #: | EA-5070-C |
| SHI Part #: | 40828231 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched eConnect PDU EA-5070-C - Power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - 1-phase - USB, Ethernet 10/100/1000, serial - input: NEMA L6-20 - output connectors: 24 (24 x IEC 60320 C13) - 42U - 3 m cord - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $1,971.41 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.01 cm |
| Dimensions & Weight / Height | 182.7 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 5.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.01 cm |
| Height | 182.7 cm |
| Weight | 8.2 kg |
| Width | 5.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, cUL, EN55022, RoHS, FCC Part 15 A, UL 489, IEC 62368 |
| Features | Password security, vertical orientation, indoor use, LCD display, voltage monitoring, current meter, LED indicators, vertical orientation, firmware upgradable, individually switchable sockets, energy meter, power factor meter, grounded, replaceable controller, Secure Array technology, switched, locking outlets, power measuring, Branch Current Monitoring, Hydraulic-Magnetic breakers, Power IQ technology, bistable latching relays, simplified load balancing, electronic lock integration, outlet grouping, field-replaceable module, SD-card transfers PDU identity, color-coded labels |
| Included Accessories | 2 x toolless mounting buttons |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, CLI, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 3.3 kW |
| Power Output Connectors Details | 24 x power IEC 60320 C13 |
