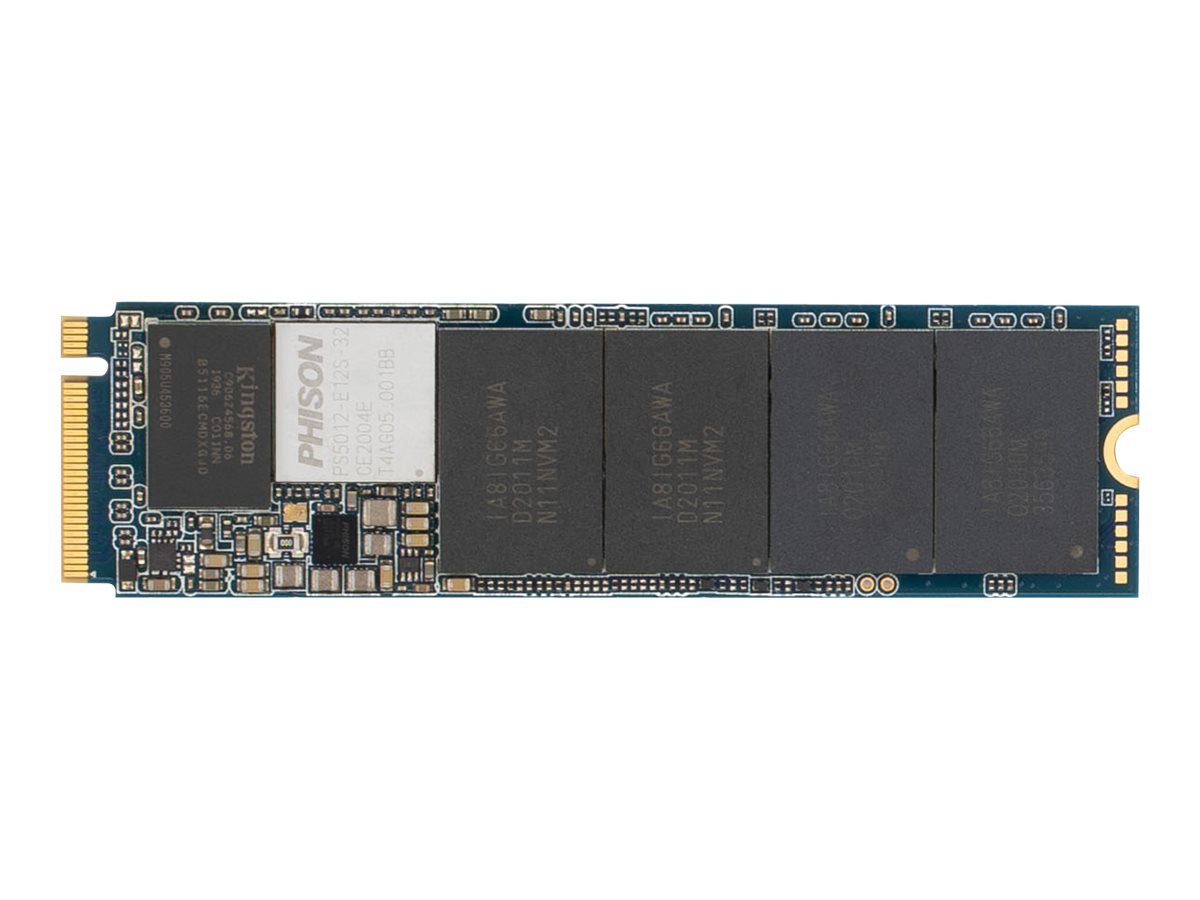

VisionTek - SSD - 8 TB
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
VisionTek - SSD - 8 TB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 901365 |
| SHI Part #: | 40731493 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | VisionTek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | VisionTek - SSD - 8 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) |
| Manufacturer | VisionTek |
| MSRP | $1,399.99 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 7 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 8 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | VisionTek |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 8 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | Static wear leveling, 3D NAND Technology, SLC cache, ECC Recovery LDPC, NVM Express (NVMe) 1.3, HMB (Host Memory Buffer) supported, Dynamic Wear Leveling, Advanced Wear Leveling, Phison E12S controller, NVMe Secure Erase support, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | Quad-level cell (QLC) |
| Weight | 7 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.609 |
| Internal Data Rate | 3400 MBps (read) / 2900 MBps (write) |
| SSD Endurance | 870 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,800,000 hours |
| Seek Errors | 1 per 10^16 |
