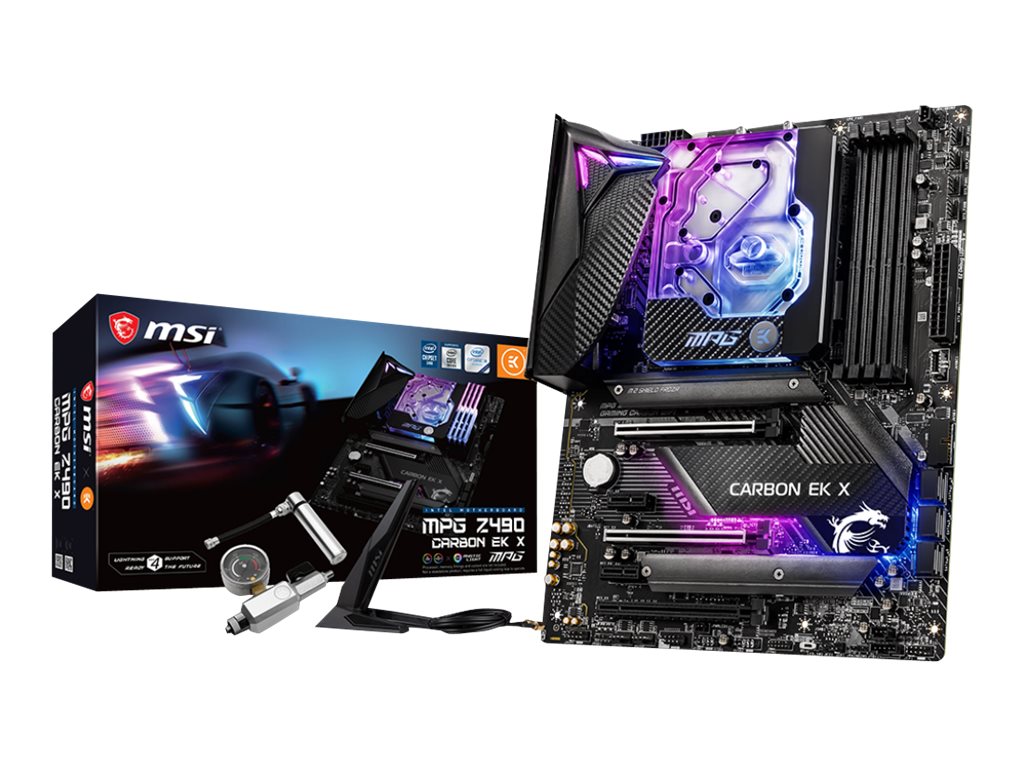

MSI MPG Z490 CARBON EK X

$520.00
MSI MPG Z490 CARBON EK X
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1200 Socket
  • Z490 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
MSI MPG Z490 CARBON EK X
  • Motherboard
  • ATX
  • LGA1200 Socket
  • Z490 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $520.00
Mfr Part #: Z490CABEKX
SHI Part #: 40716734
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: MSI
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionMSI MPG Z490 CARBON EK X - Motherboard - ATX - LGA1200 Socket - Z490 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerMSI
MSRP$439.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandMSI
Mainboard / Chipset TypeIntel Z490
Mainboard / Compatible Processors
  • Celeron
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Pentium Gold
Mainboard / Processor SocketLGA1200 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.1
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC1220
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes)
  • 2 x PCIe 3.0 x1

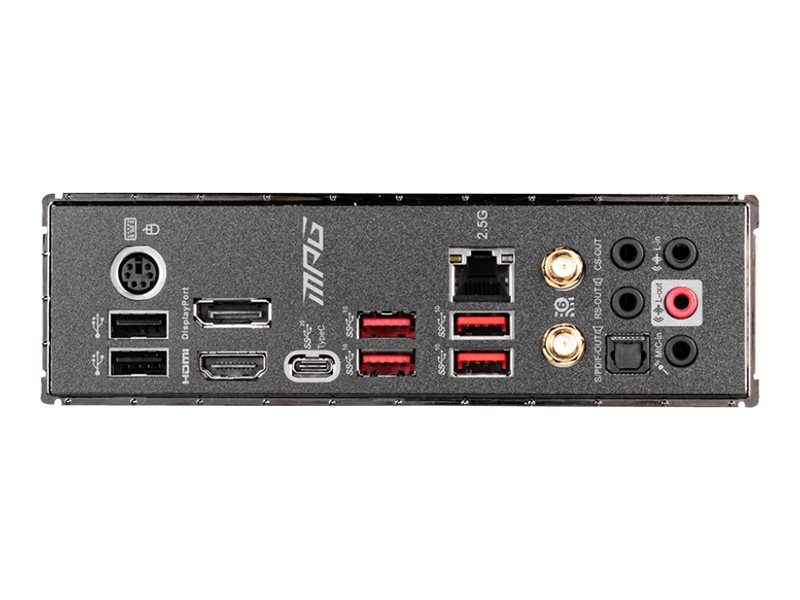

Interfaces
  • 1 x LAN (2.5Gigabit Ethernet)
  • 4 x USB 3.2 Gen 2
  • 1 x USB-C Gen2x2
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x TOSLINK
  • 2 x USB 2.0
  • 1 x PS/2 keyboard / mouse
  • 1 x DisplayPort
  • 1 x HDMI
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x USB-C Gen2 - header
  • 1 x serial - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
RAID FeaturesIntel Smart Response Technology
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Features
BIOS FeaturesMSI ClickBIOS 5
Hardware FeaturesNVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, Water Cooling Ready Heatsink Design, Intel Optane Memory Ready, MSI Audio Boost 4, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost
General
Chipset TypeIntel Z490
Compatible ProcessorsCeleron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1200 Socket
Product TypeMotherboard - ATX
Graphics
Max Allocated RAM Size1 GB
LAN
Network ControllerRealtek RTL8125B / Intel AX201
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Miscellaneous
Cables Included2 x Serial ATA cable
Depth24.4 cm
Included AccessoriesCase badge, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, EK leak tester
Software IncludedDrivers & utilities
Width30.5 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
