ADATA FALCON - SSD - 512 GB
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

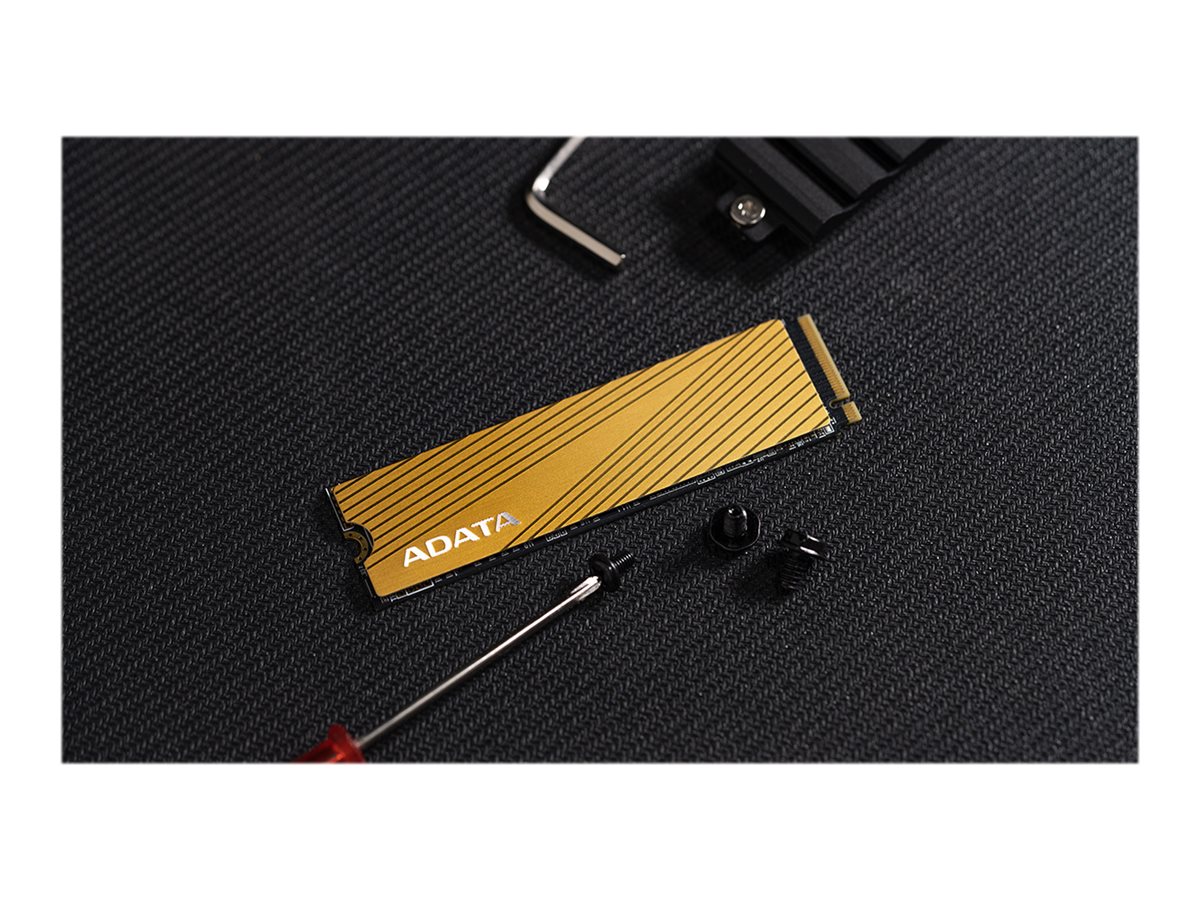

ADATA FALCON - SSD - 512 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
- 256-bit AES
- integrated heatsink
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | AFALCON-512G-C |
| SHI Part #: | 40687361 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | ADATA |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | ADATA FALCON - SSD - 512 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - 256-bit AES - integrated heatsink |
| Manufacturer | ADATA |
| MSRP | $0.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.9 mm |
| Dimensions & Weight / Weight | 9 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | ADATA |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 512 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | 3D NAND Technology, SLC cache, Advanced LDPC ECC Technology, NVM Express (NVMe) 1.3, HMB (Host Memory Buffer) supported |
| Form Factor | M.2 2280 |
| Height | 2.9 mm |
| Integrated Heatsink | Yes |
| Interface | PCIe 3.0 x4 (NVMe) |
| Weight | 9 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, FCC, RoHS, KC |
| Performance | |
| Internal Data Rate | 3100 MBps (read) / 1500 MBps (write) |
| Maximum 4KB Random Read | 180000 IOPS |
| Maximum 4KB Random Write | 180000 IOPS |
| SSD Endurance | 1200 TB |
| Reliability | |
| MTBF | 1,800,000 hours |
| Software & System Requirements | |
| Software Included | SSD Toolbox, Migration Utility |
